BNSF US-30 Bridge (Fulton)

Deck Girder Bridge over US-30 and Spring Brook
Fulton, Whiteside County, Illinois

Click the Photo Above to See All Photos of This Bridge!
Name BNSF US-30 Bridge (Fulton)
Built By Chicago, Burlington & Quincy Railroad
Contractor Unknown
Currently Owned By BNSF Railway
Length 355 Feet Total, 84 Foot Largest Span
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Type Deck Plate Girder and Concrete Stringer
Substructure Type Concrete
Date Built 1920 and 1948
Traffic Count 10 Trains/Day (Estimated)
Current Status In Use
BNSF Bridge Number 37.70
Significance Local Significance
Documentation Date December 2017
In 1886, the Chicago, Burlington & Quincy Railroad built a line between Ebner and Savannah, Illinois.
By 1904, the route would be extended to Lass, a junction near Prohpetstown. The route provided a direct route between the northern lines of the CB&Q system and the Quad Cities area.
During the early 1900s, the route was part of the most direct route between St. Paul and St. Louis, two major cities along the CB&Q.
In 1970, the CB&Q merged with Northern Pacific and Great Northern to form Burlington Northern. This massive network of routes dominated the midwest during the 1970s and 1980s.
Although many routes would be cut down and abandoned, this route has remained intact since construction. In 1996, the BN merged with the Atchison, Topeka & Santa Fe to form BNSF Railway, the current owners of this route.
Currently, this route is the northern section of the BNSF Barstow Subdivision.
07/17/21

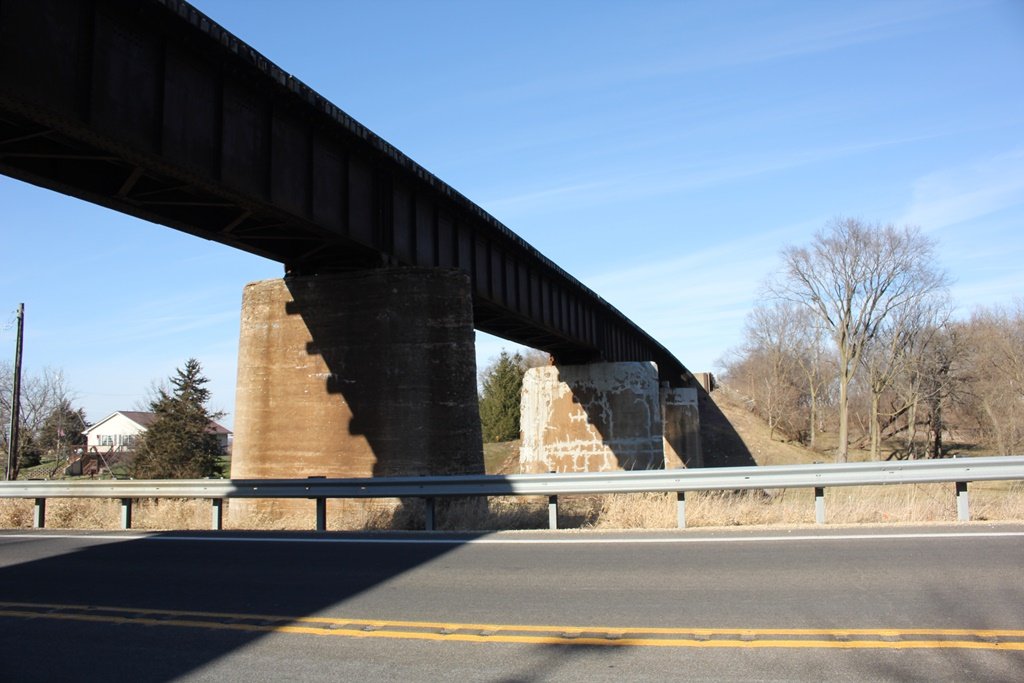

This standard deck girder bridge crosses Spring Brook and US-30 near the town of Fulton.

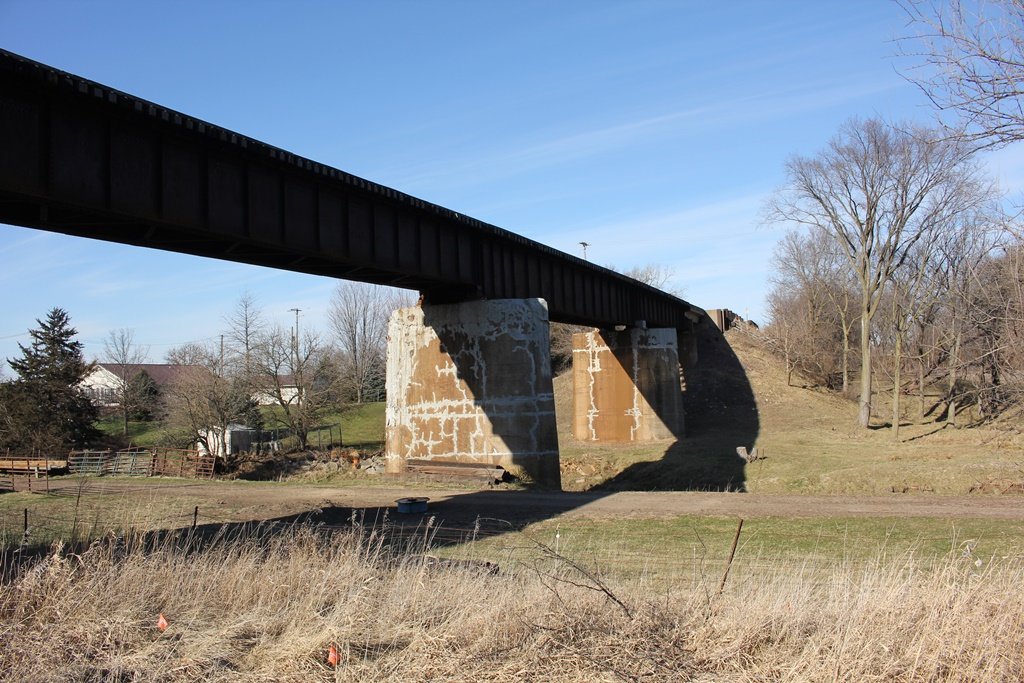

Built in 1920 and 1948, the bridge features 5 deck girder spans, originally with wooden trestle approaches.

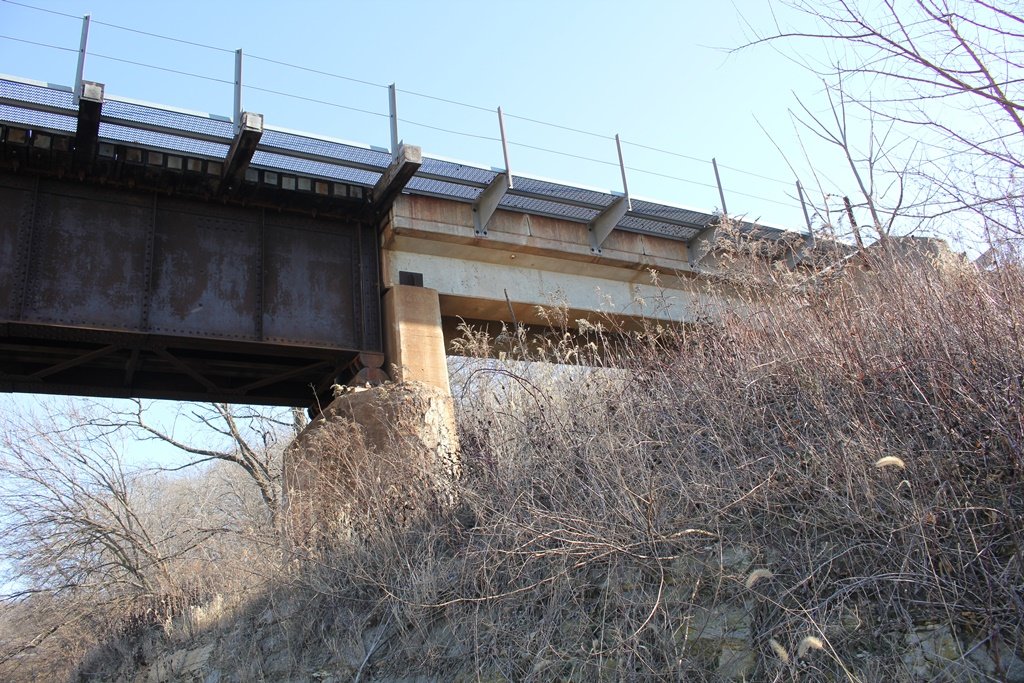

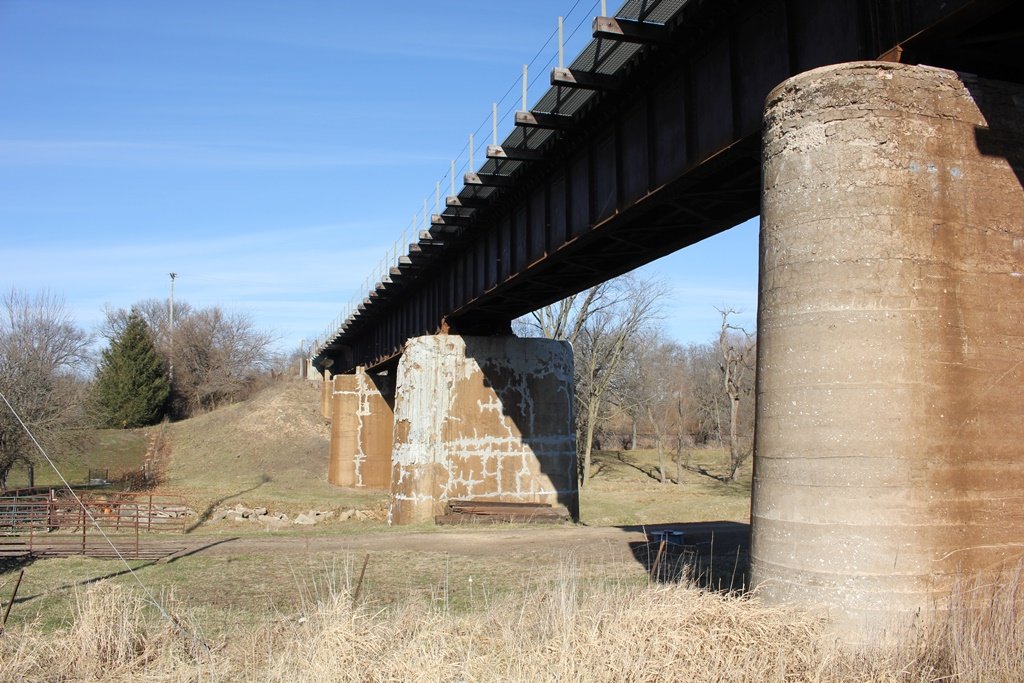

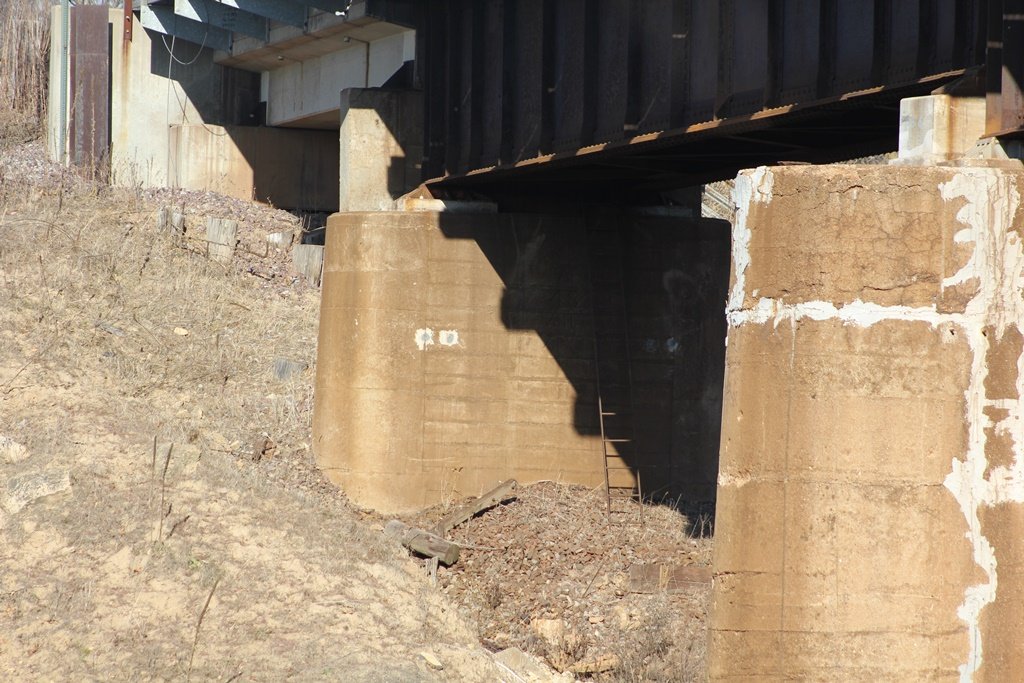

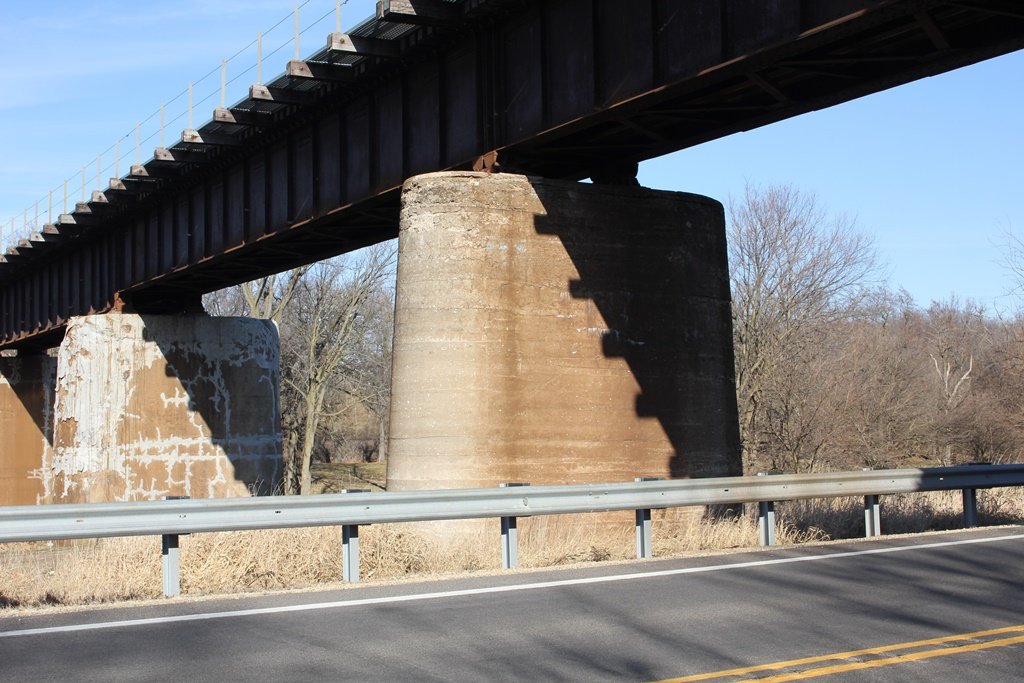

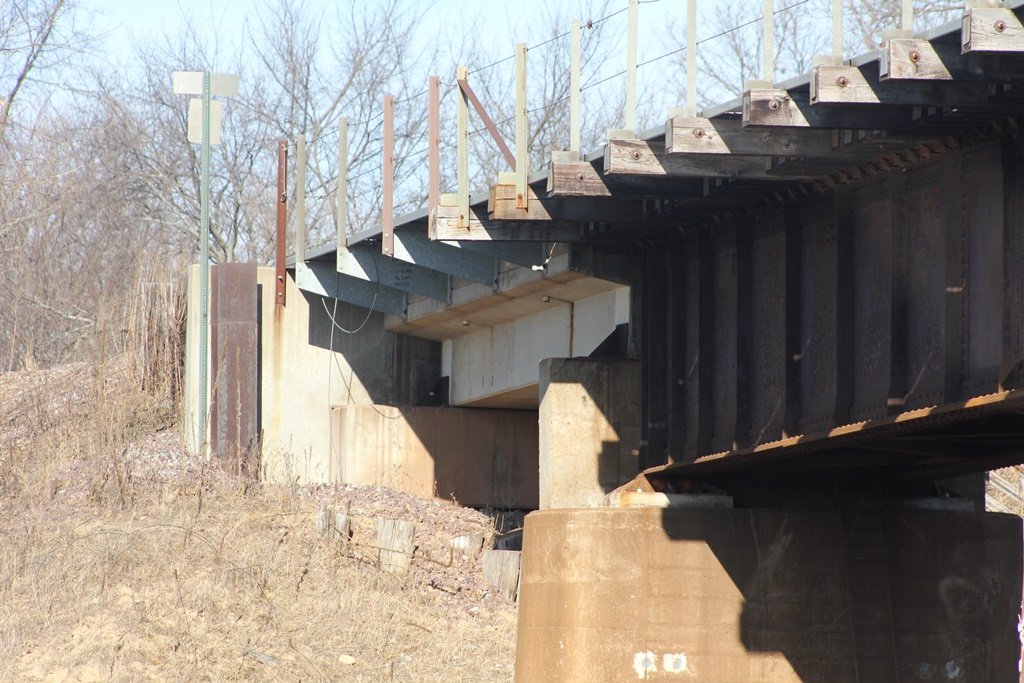

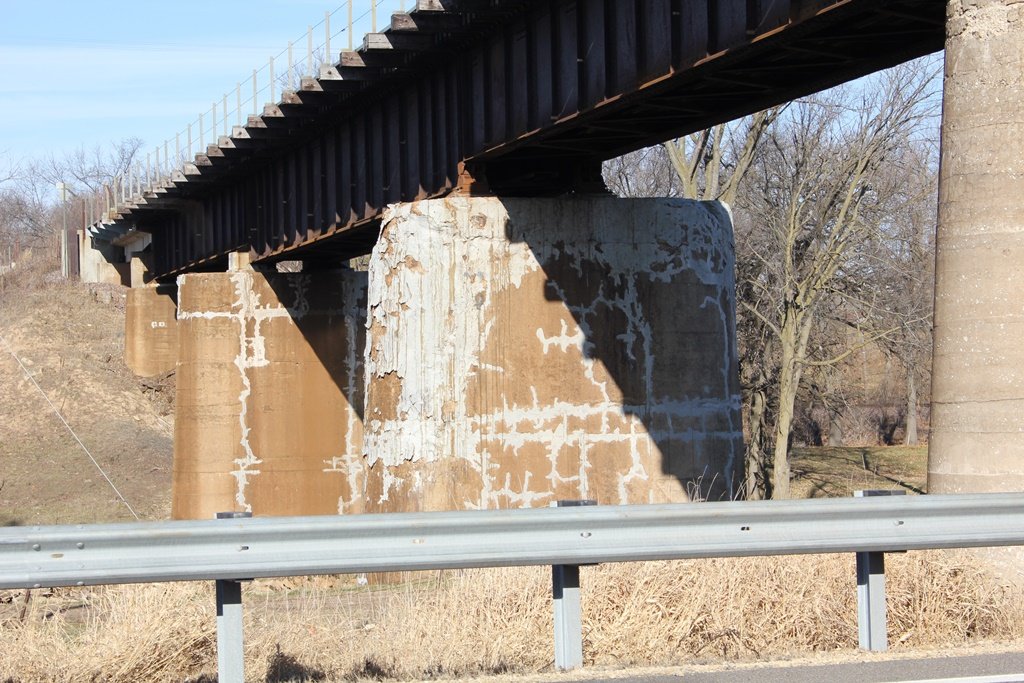

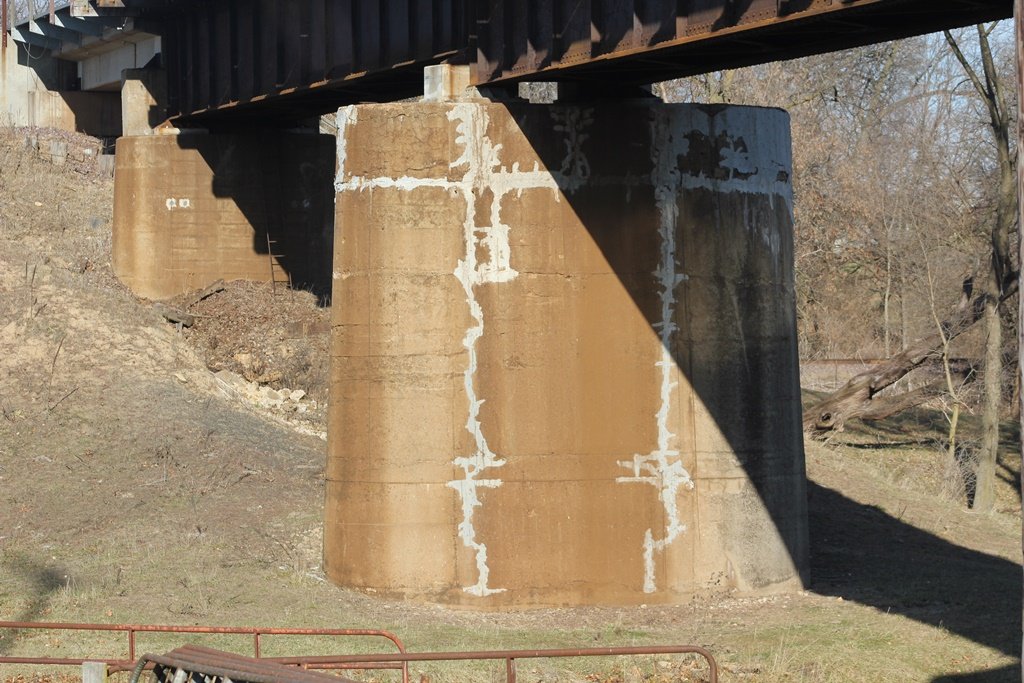

Modern concrete stringer approaches replaced wooden pile approaches in the early 2000s. The current substructures of the bridge are standard concrete piers.
Overall, the bridge remains in good condition.

The author has ranked the bridge as being locally significant, due to the common design.

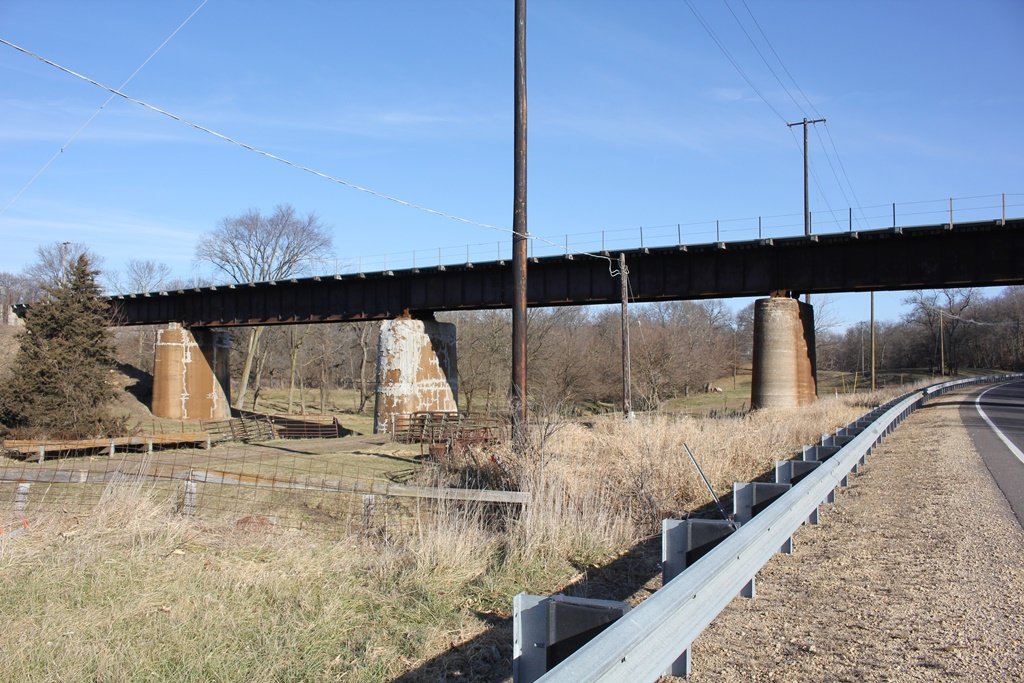

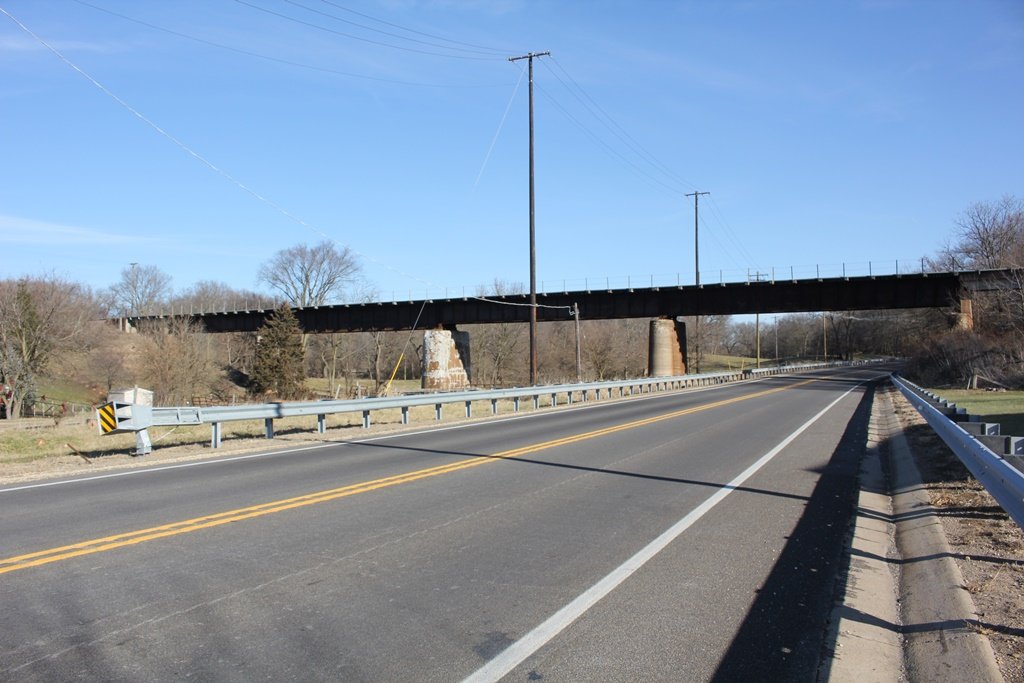

The photo above is an overview.

Citations

Source Type

Source

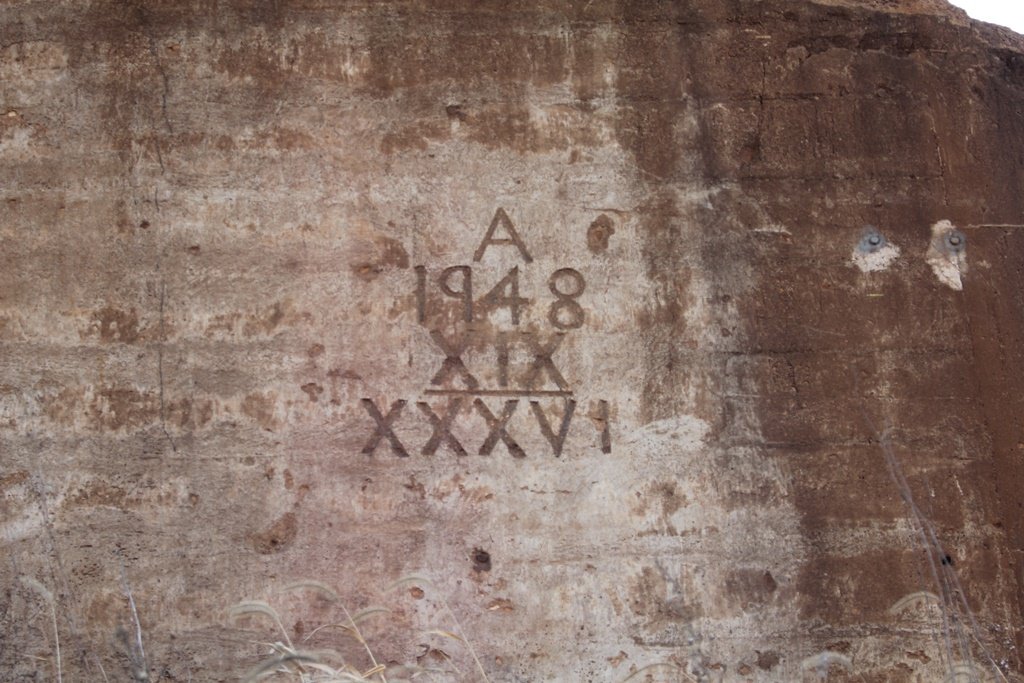

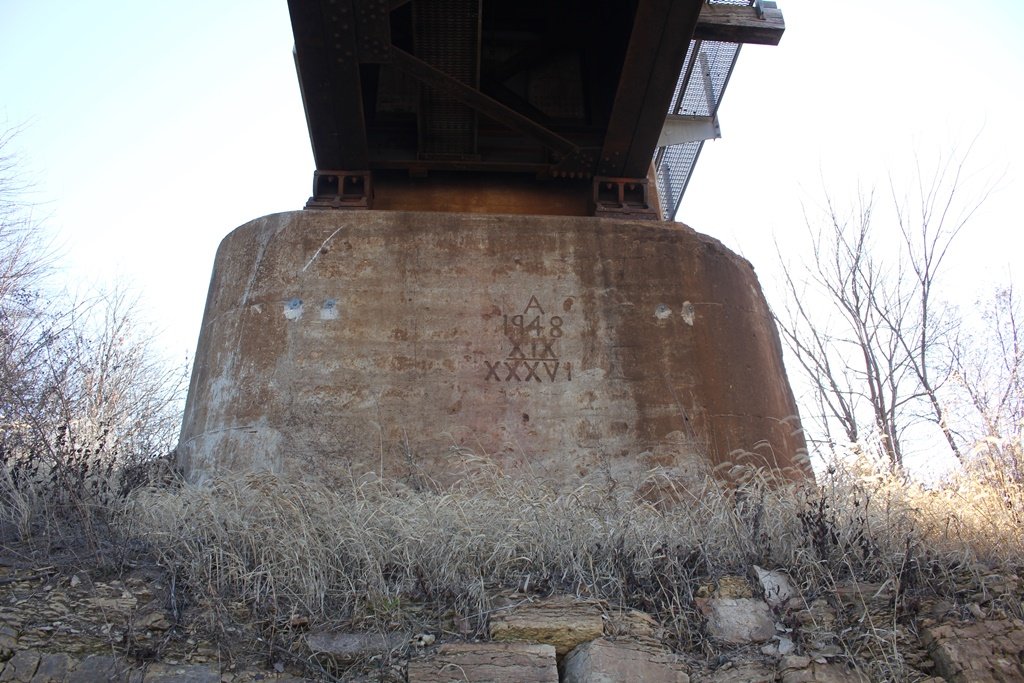

Build Date Date stamp
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
