Name CPKC Rock River Bridge (Watertown)
Chicago, Milwaukee & St. Paul Railway Bridge #C-92
Built By Chicago, Milwaukee & St. Paul Railway
Currently Owned By Canadian Pacific Kansas City Limited
Superstructure Builder Milwaukee Road Bridge & Building Department Labor
Design Engineer Charles Frederick Loweth
Length 360 Feet Total, 64 Foot Spans
Width 2 Tracks, 1 In Use
Height Above Ground 30 Feet (Estimated)
Superstructure Design Stone Arch
Substructure Design Stone Masonry and Concrete

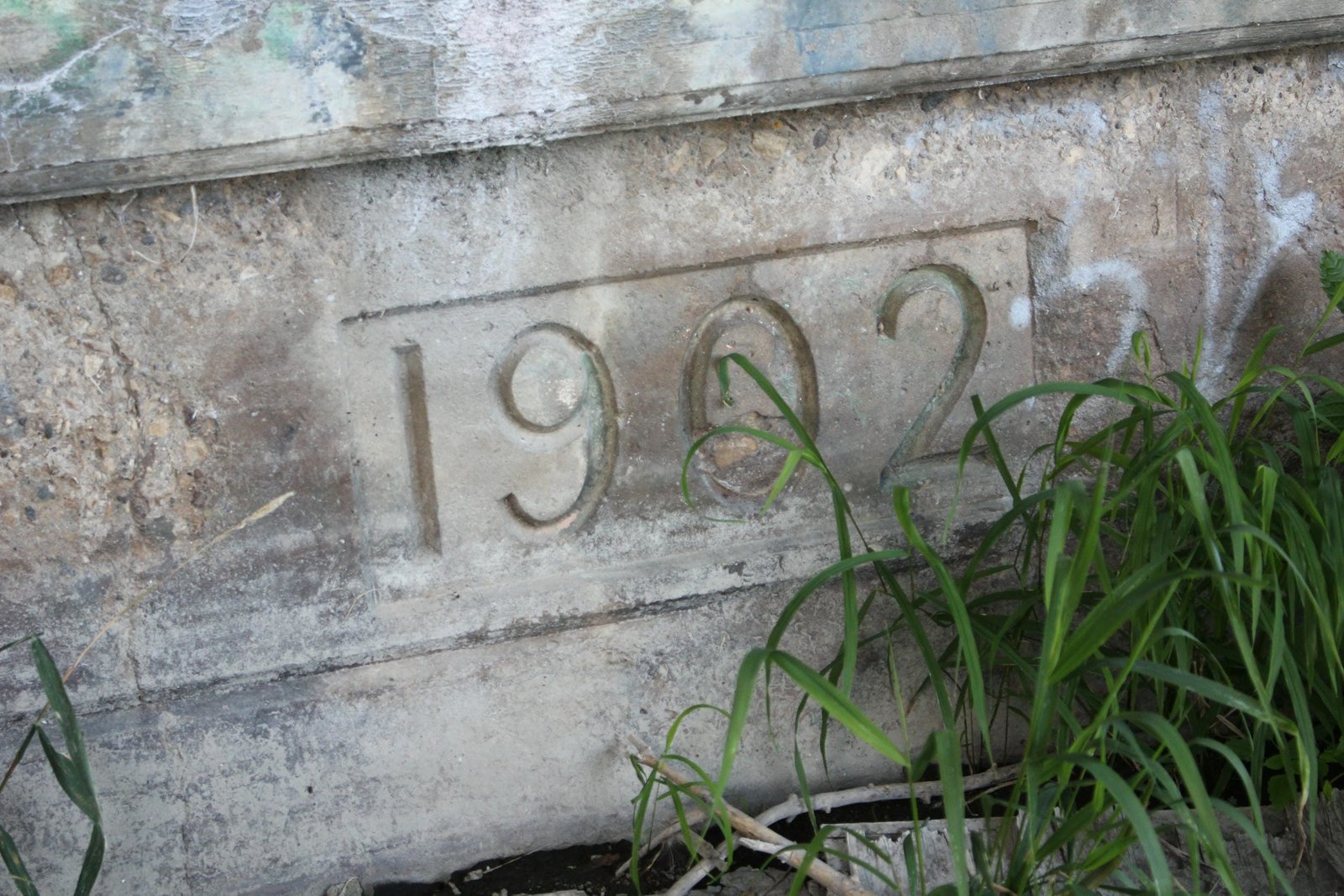

Date Built 1902
Traffic Count 20 Trains/Day (Estimated)
Current Status In Use
Chicago, Milwaukee & St. Paul Railway Bridge Number C-92
Significance Regional Significance
Documentation Date 8/6/2016; 12/9/2020

In 1850, the Milwaukee & Mississippi Rail Road (M&M) began construction on a new railroad line, with the intention of connecting Lake Michigan at Milwaukee with the Mississippi River.  The first 12 miles between Milwaukee and Brookfield opened in 1851, and the line eventually continued west.  In Milwaukee, this line followed the south side of the Menomonee River.  In 1854, the Milwaukee and Watertown Railroad (M&W) began construction on a new line, leaving the original line at Brookfield, Wisconsin.  32 miles of new railroad were completed to Watertown, Wisconsin by 1855.  The M&W was acquired by the La Crosse and Milwaukee Railroad (LC&M) in 1856.  This railroad had previously constructed a more northerly route between Milwaukee and Portage, Wisconsin.  Between 1857 and 1858, the LC&M constructed 103 miles of new railroad, extending from Portage to the Mississippi River at La Crosse, Wisconsin.  The M&M was acquired by the Milwaukee and Prairie du Chien Railway (M&PdC) in 1861.  The western division of the LC&M, extending from Portage to La Crosse, was sold to the Milwaukee & St. Paul Railway (M&StP) in 1863.  In 1864, the M&StP constructed an additional 47 miles of railroad between Watertown and Portage, connecting the two lines.  In addition, a 7-mile "airline" would be constructed between Elm Grove and Milwaukee in 1864, allowing for a more direct route into Milwaukee.  In 1867, the M&PdC would be sold to the M&StP.  In 1874, the M&StP changed its name to the Chicago, Milwaukee & St. Paul Railway (Milwaukee Road).

The Milwaukee to La Crosse line became a critical backbone for the Milwaukee Road, serving as the middle section of a longer line between Chicago and Minneapolis/St. Paul.  This line also allowed for the construction of numerous branch lines, as well as the rapid expansion of the Milwaukee Road in the Midwest.  Between 1874 and 1876, a bridge across the Mississippi River was constructed at La Crosse.  A second track was constructed between Milwaukee and Brookfield during the early 1880s.  In 1902, 90 additional miles of second track would be constructed between Brookfield and Watertown, between Portage and Camp Douglas and between West Salem and La Crosse. An additional 47 miles of double track were constructed between Watertown and Portage in 1906, followed by an additional 44 miles of double track between Camp Douglas and West Salem in 1910.  The same year, the "airline" was also double tracked.  During the 20th Century, the Milwaukee Road had become a prominent railroad in the United States, operating an extensive network of railroad lines primarily in the Midwest.

The Milwaukee Road was often in financial trouble, especially after the costly Pacific Extension was completed in 1909. In 1925, the company declared bankruptcy, and reorganized as the Chicago, Milwaukee, St. Paul and Pacific Railroad in 1928.  Despite the financial troubles of the railroad, this line remained a critical line and was well maintained.   Financial hardship continued through the 20th Century for the Milwaukee Road, and the railroad again filed bankruptcy in 1977.  By 1985, a suitor for the Milwaukee Road was being sought, and the Soo Line Railroad, controlled by Canadian Pacific Railway (CP) purchased the Milwaukee Road in 1986. Upgrades were made to the route, including the installation of CTC.  As a result, sections of the second track were removed, and the remaining sections became sidings.  The Elm Grove to Milwaukee airline was abandoned in the 1990s, and has since become the Hank Aaron Trail.  CP merged with Kansas City Southern Railway in 2023 to form CPKC. CPKC currently operates the Milwaukee to Portage segment as the Portage Subdivision, and the Watertown to La Crosse segment as the Tomah Subdivision.  The route remains well used, and hosts both freight and Amtrak trains.


View articles discussing the construction of this bridge (digitalized by Google)

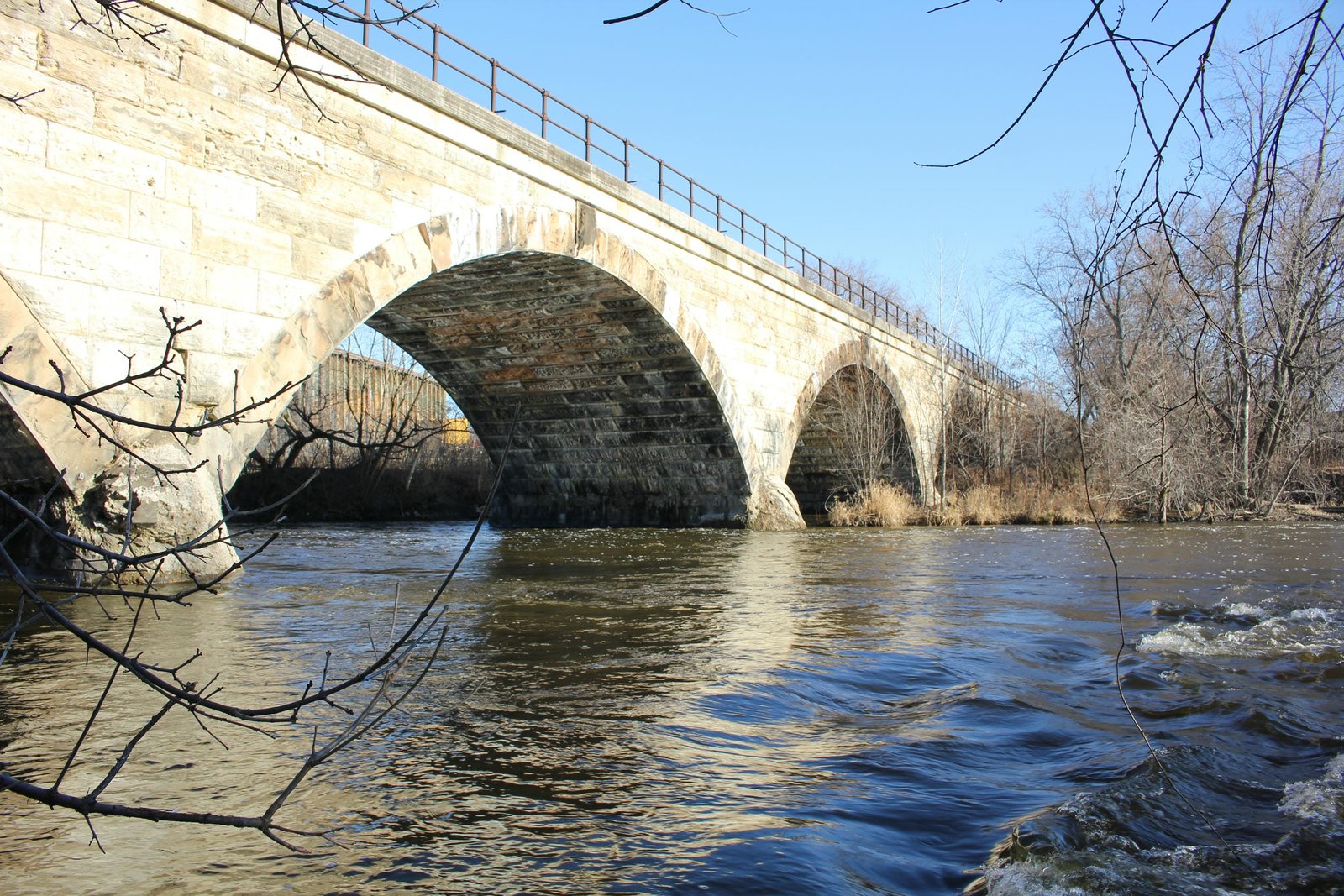

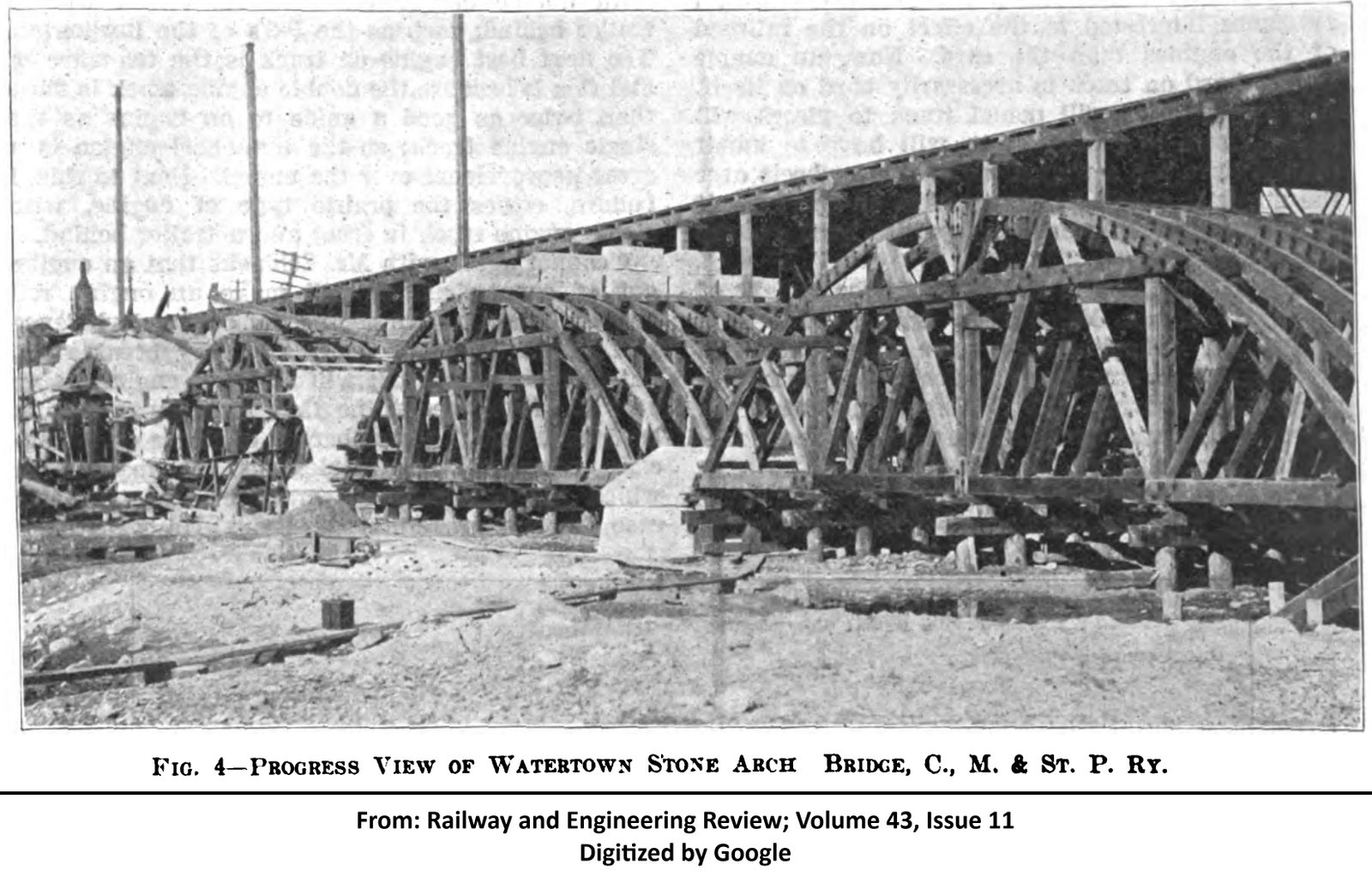

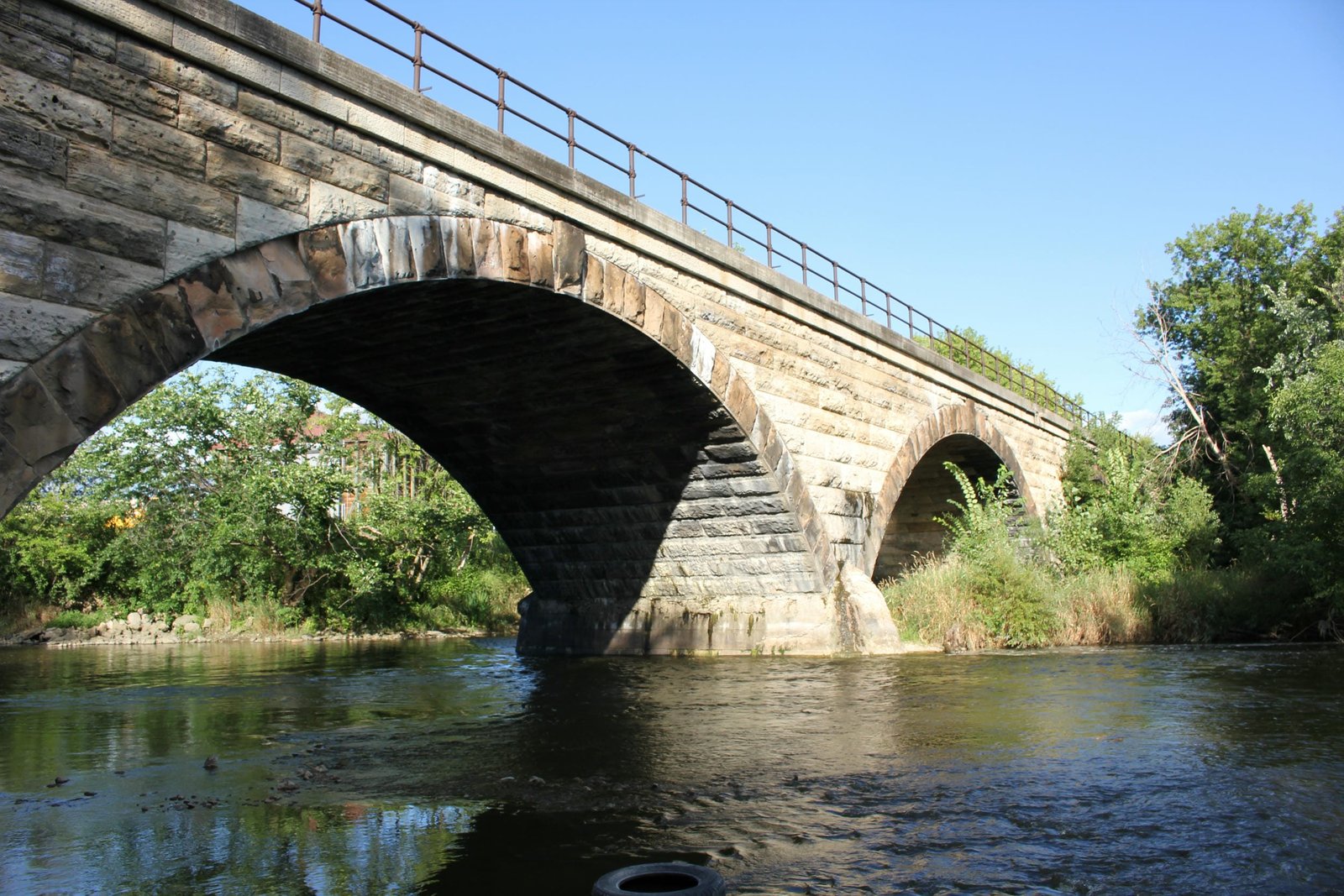

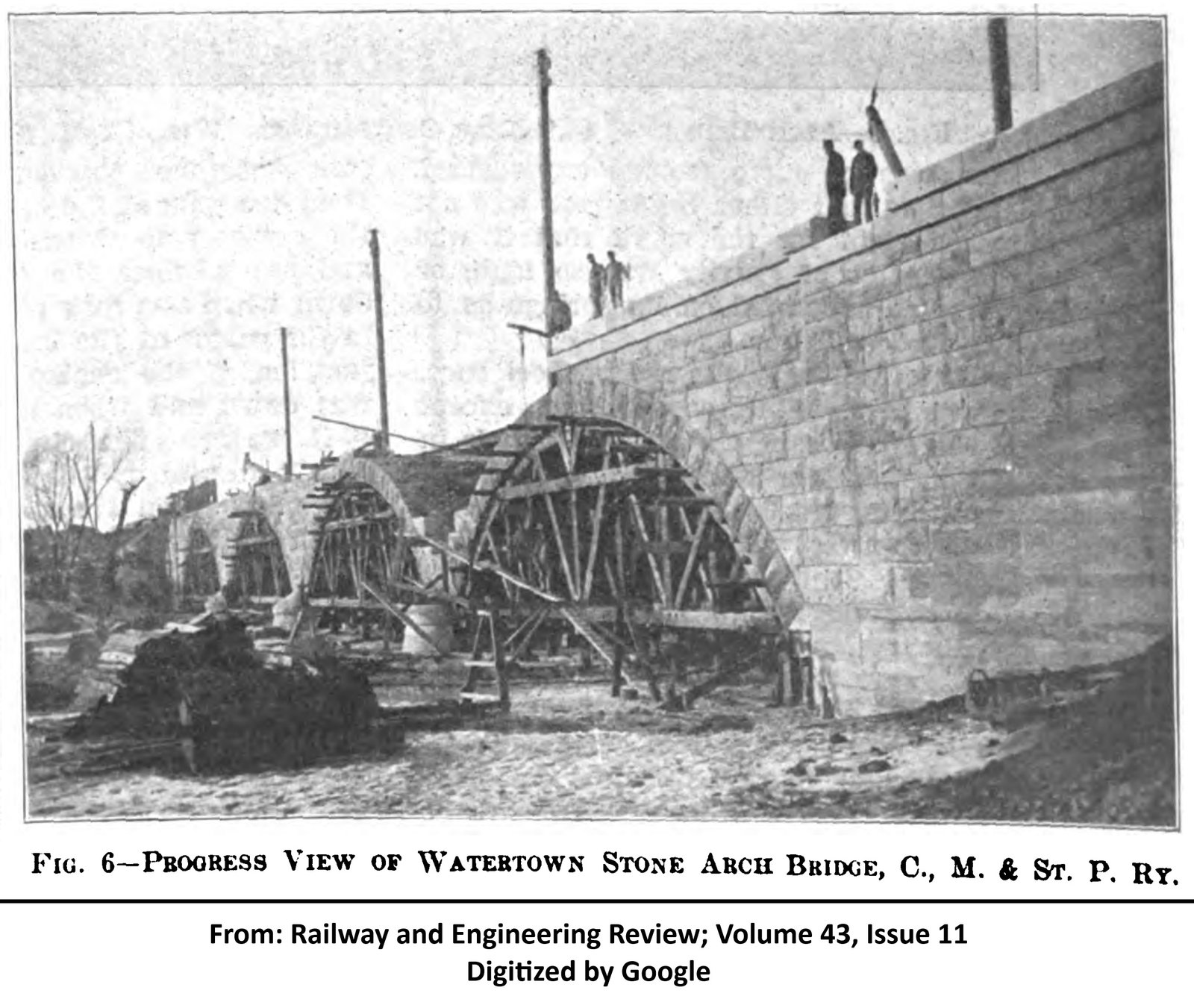

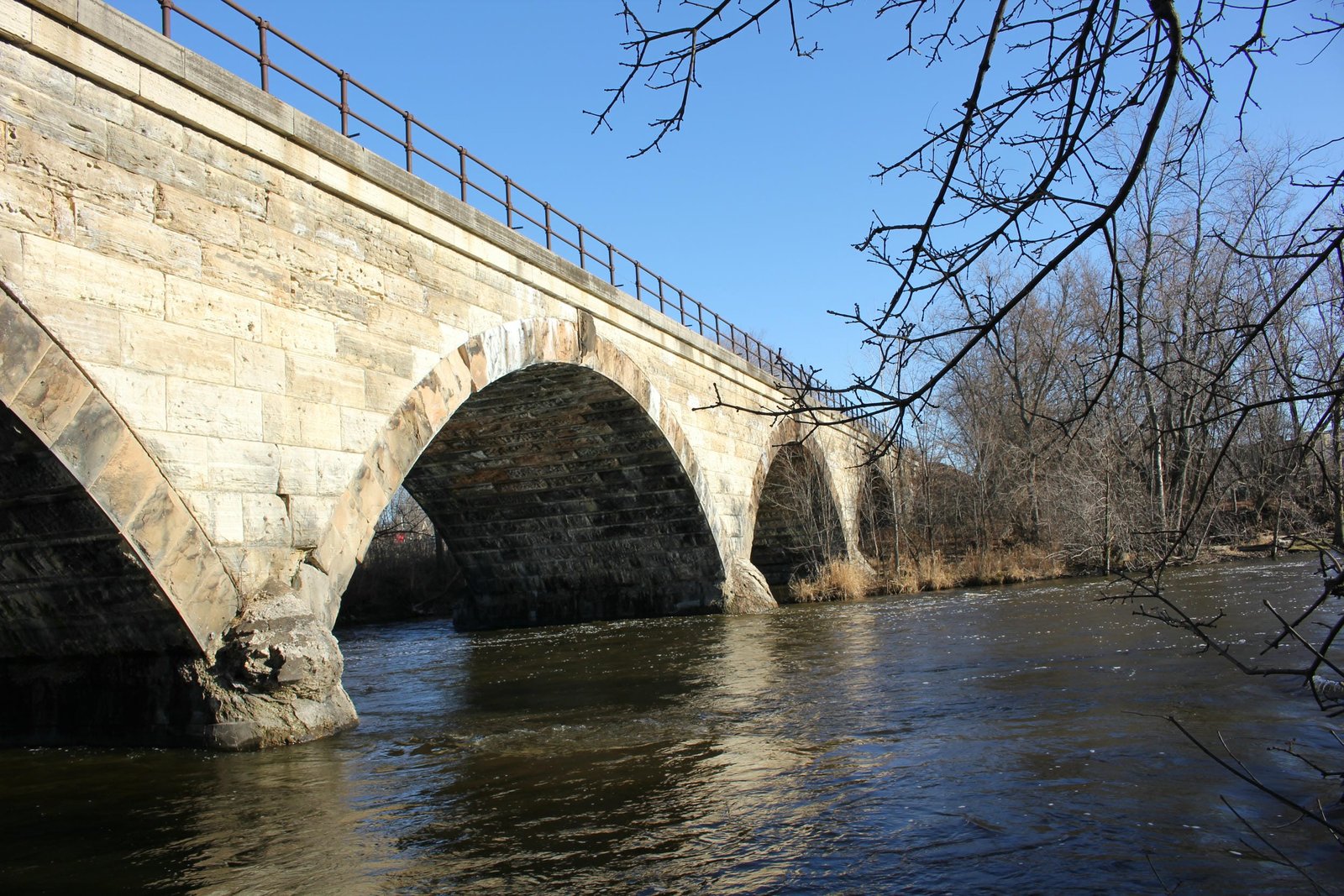

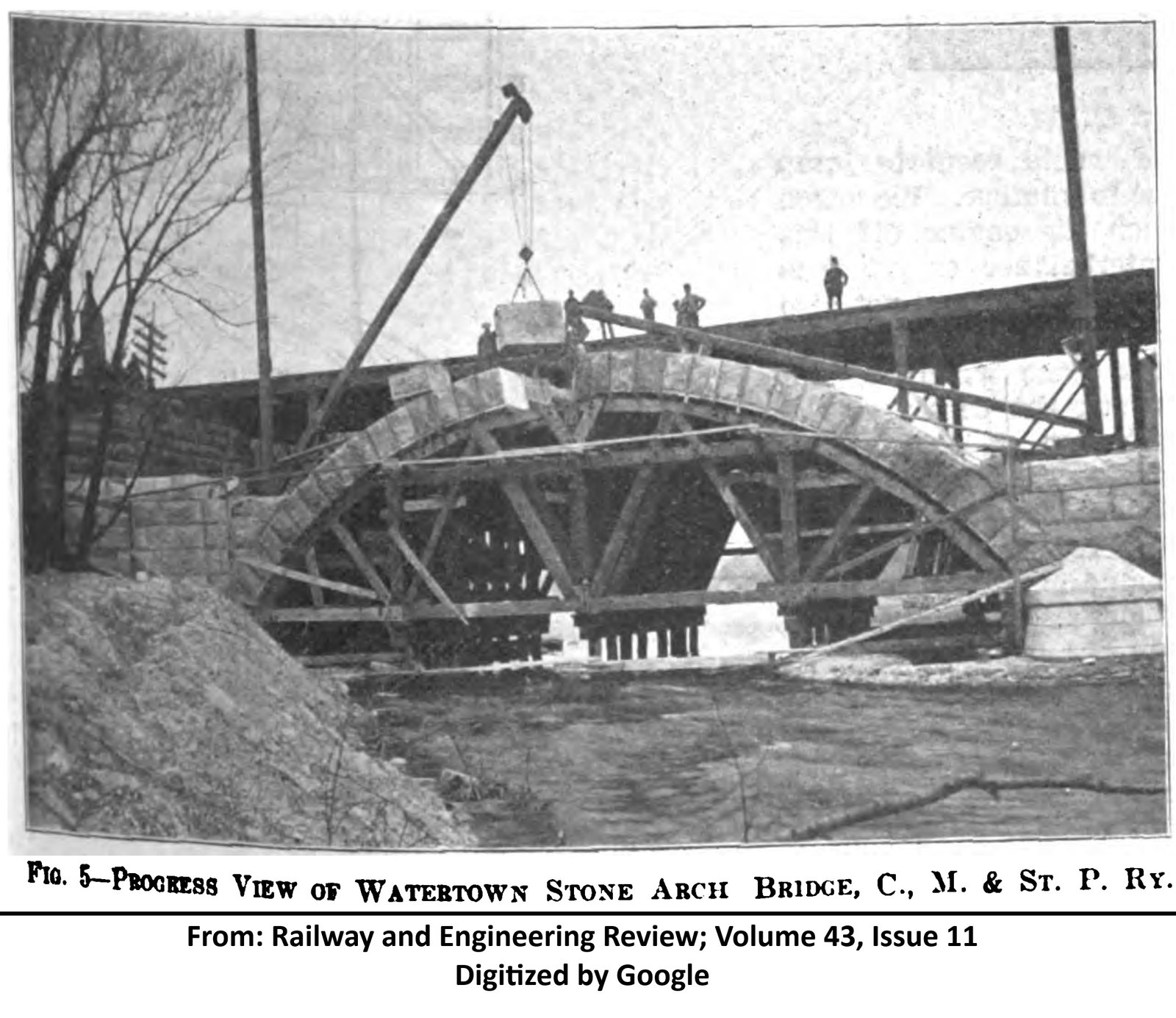

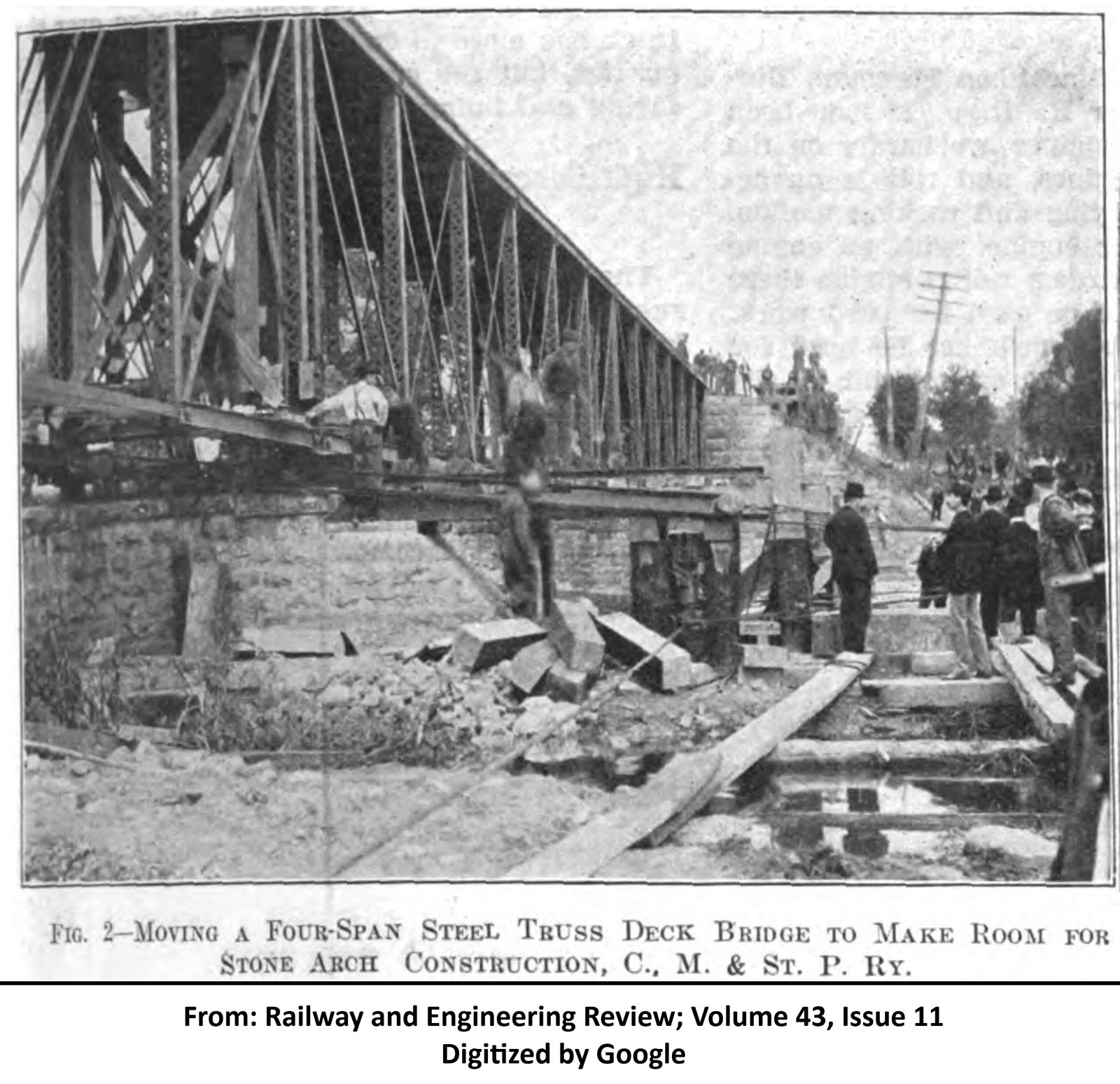

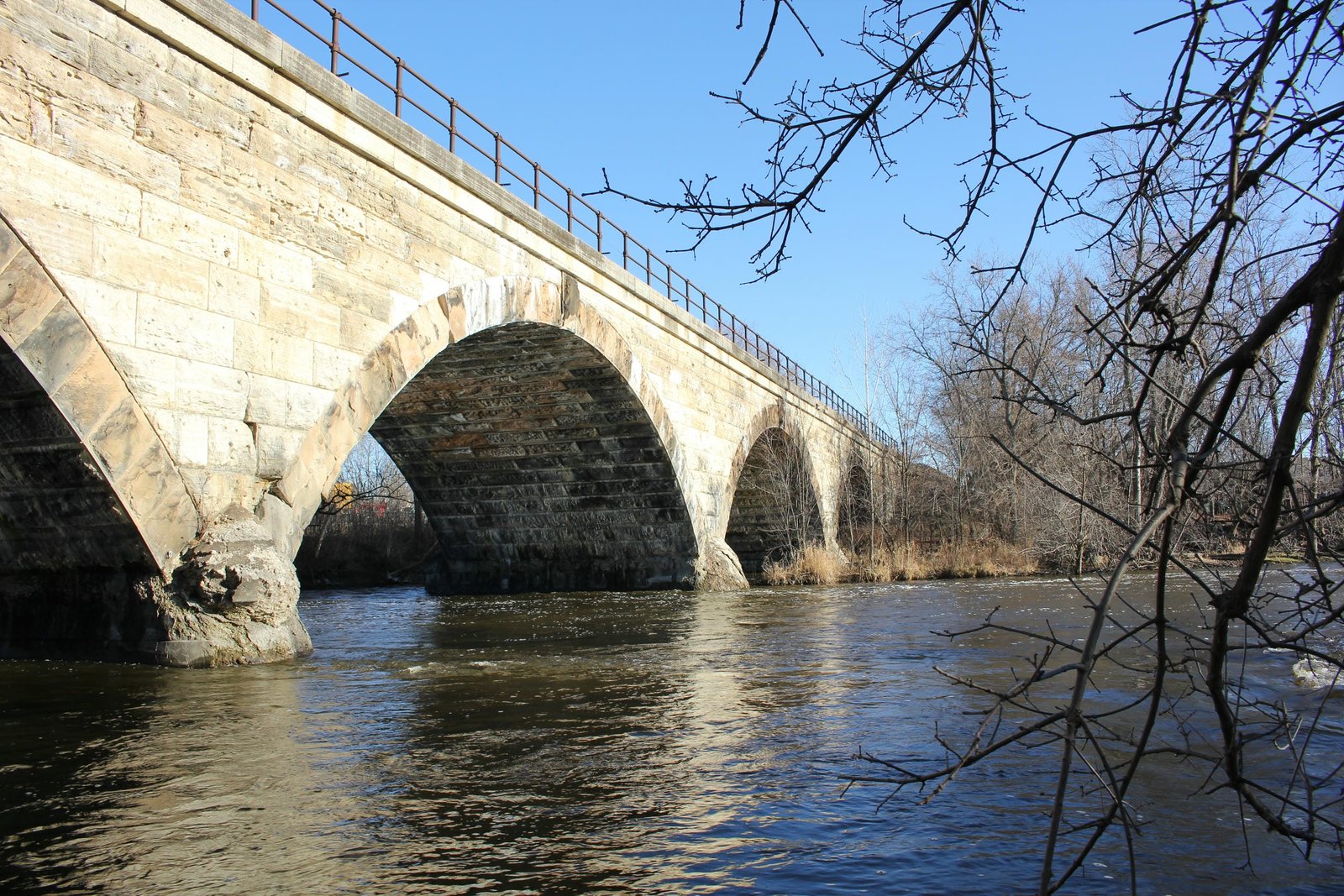

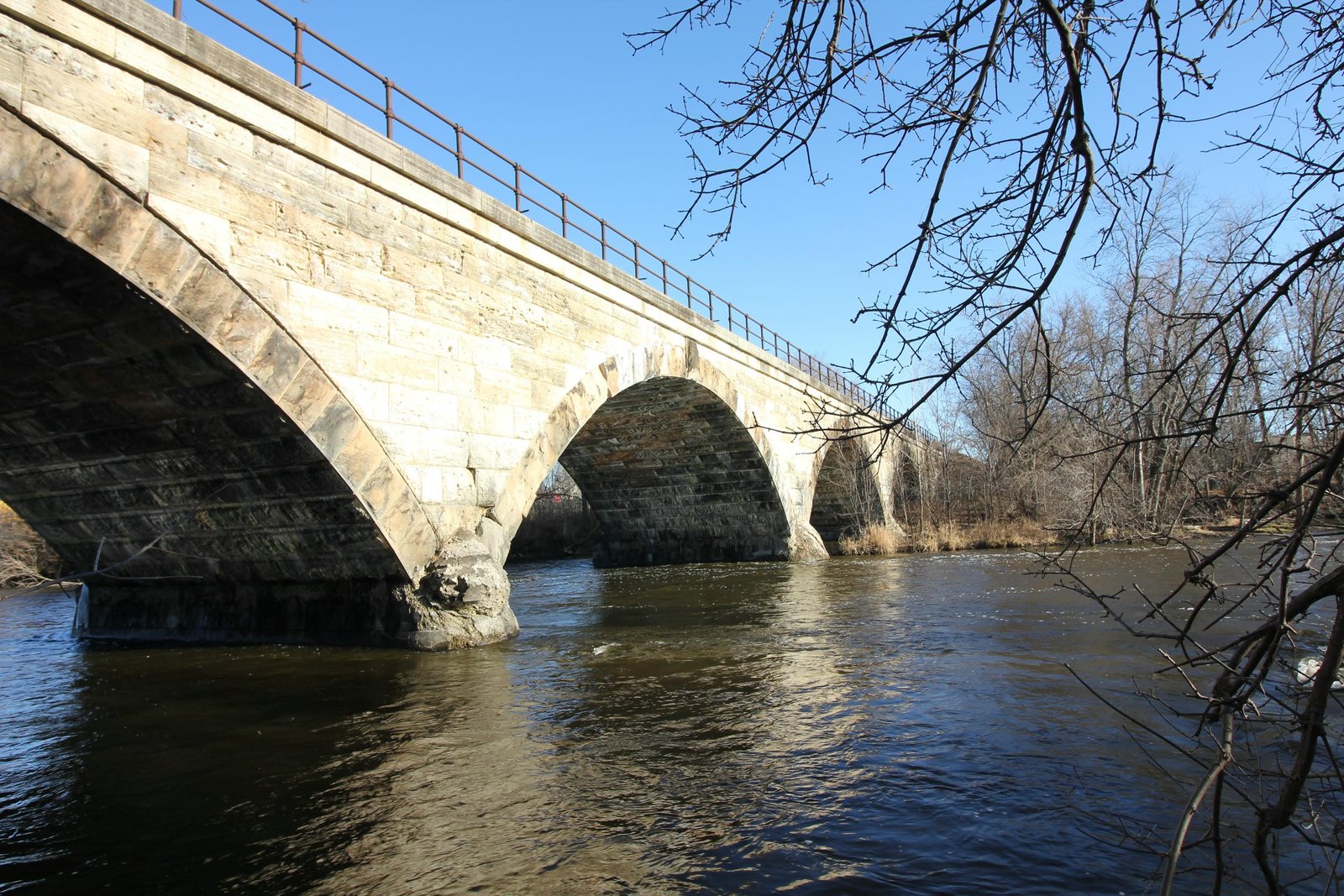

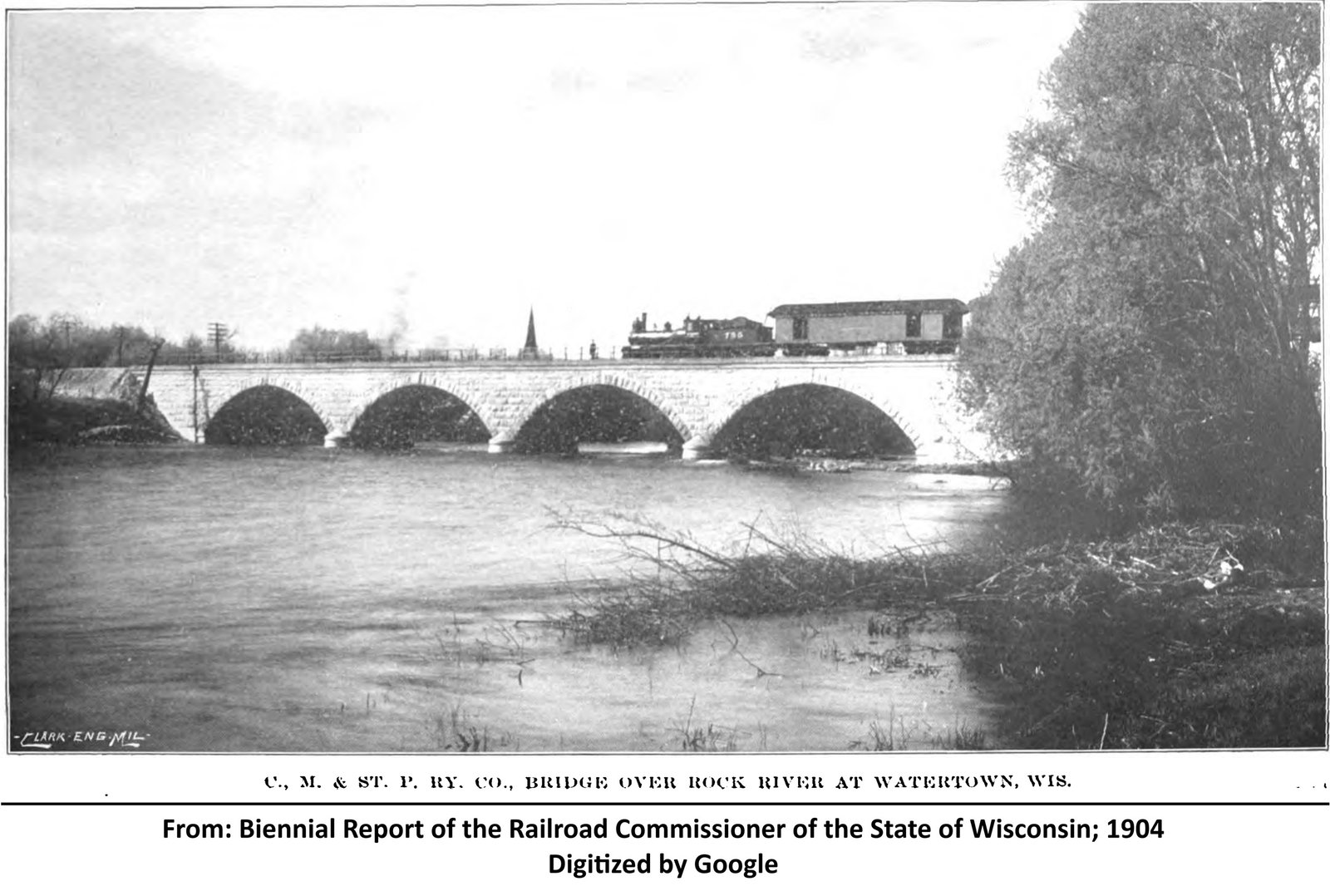

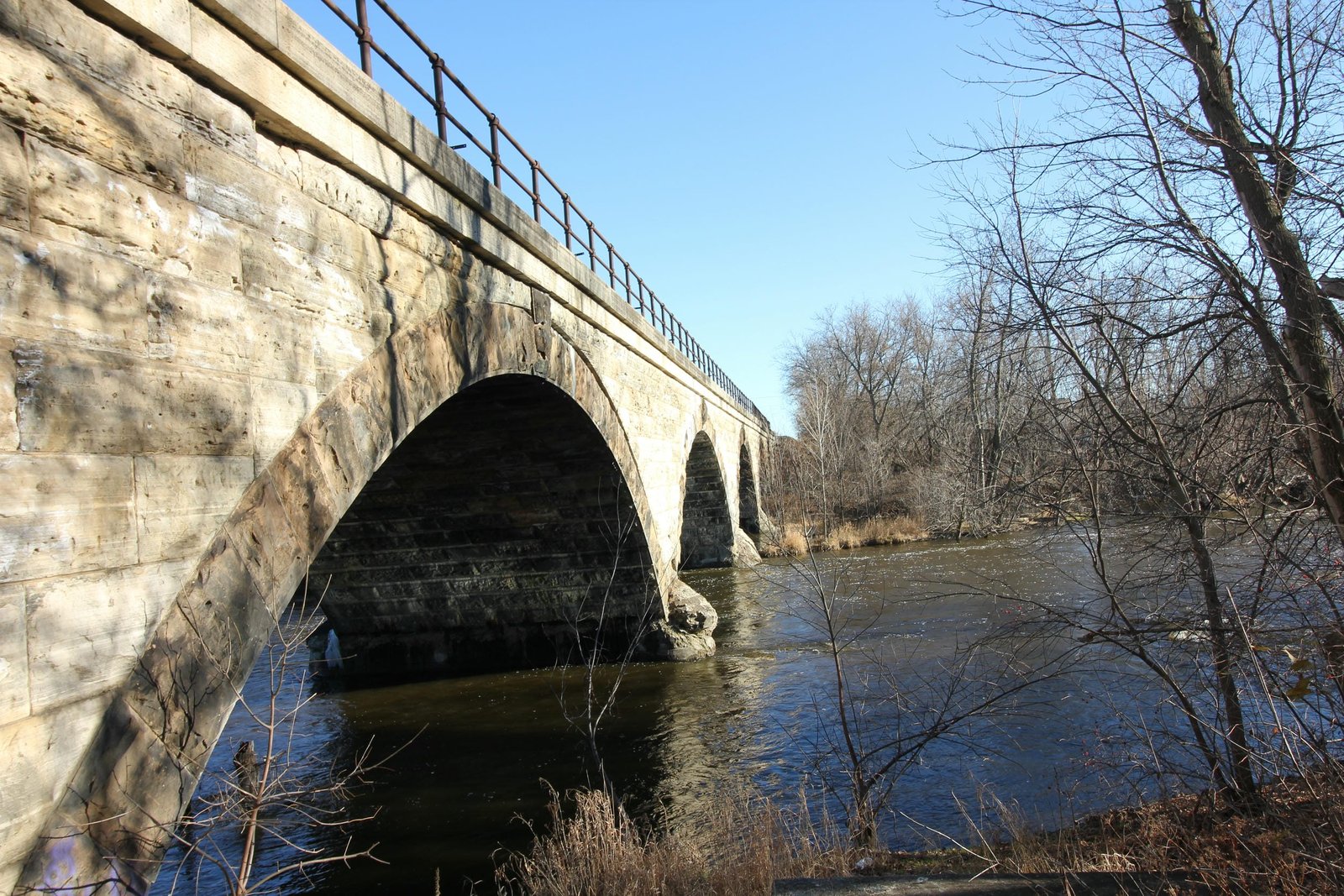

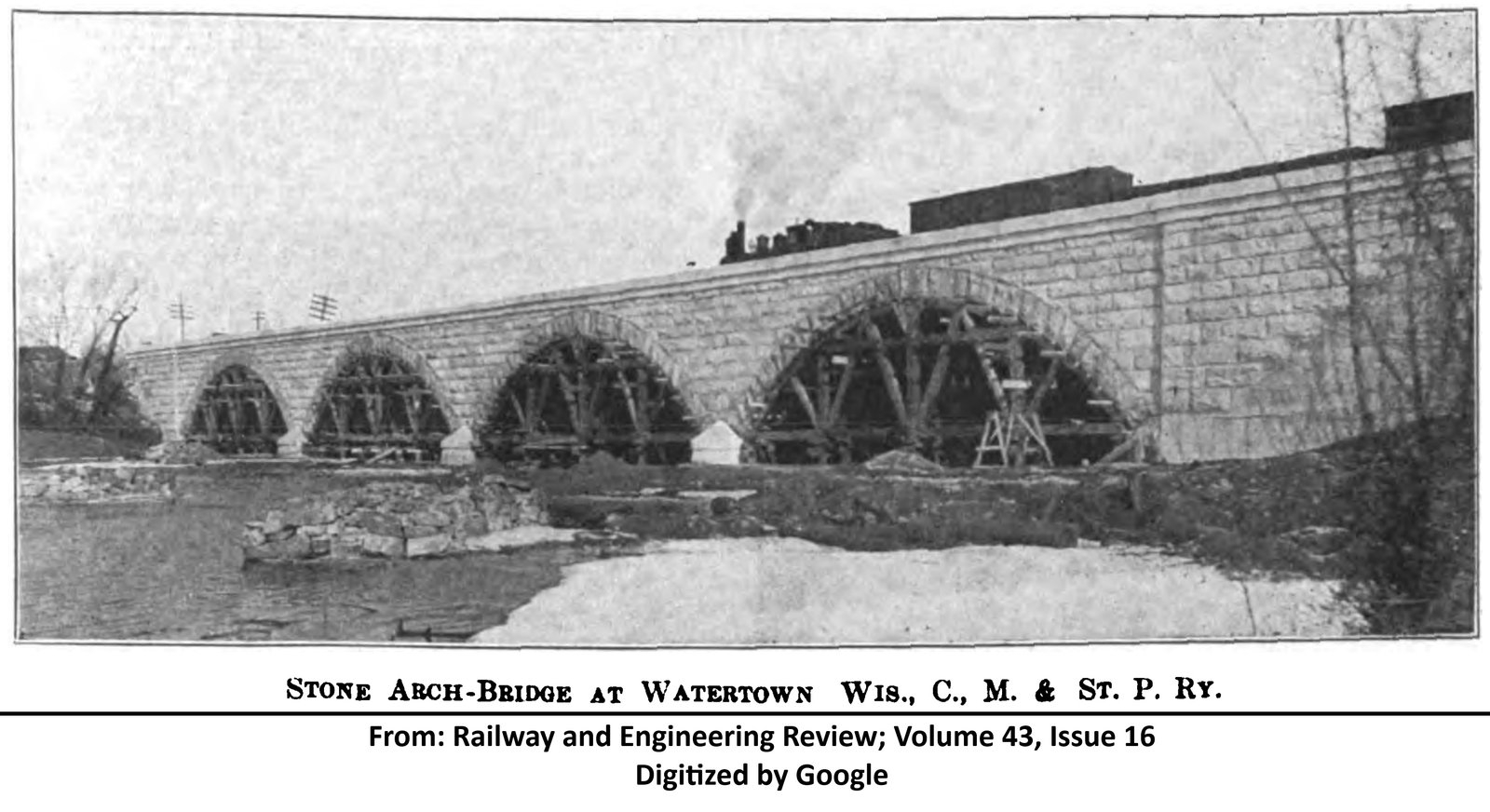

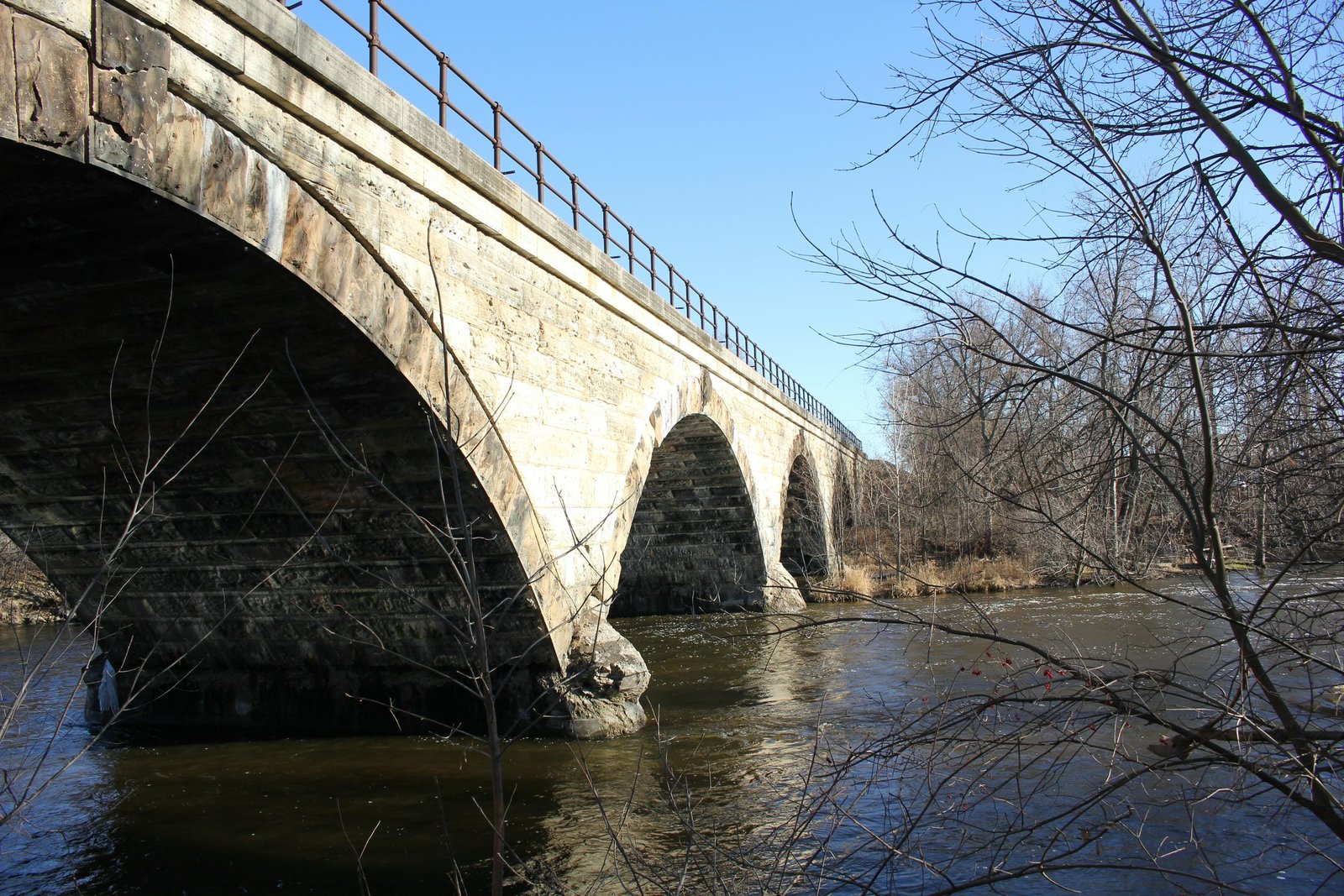

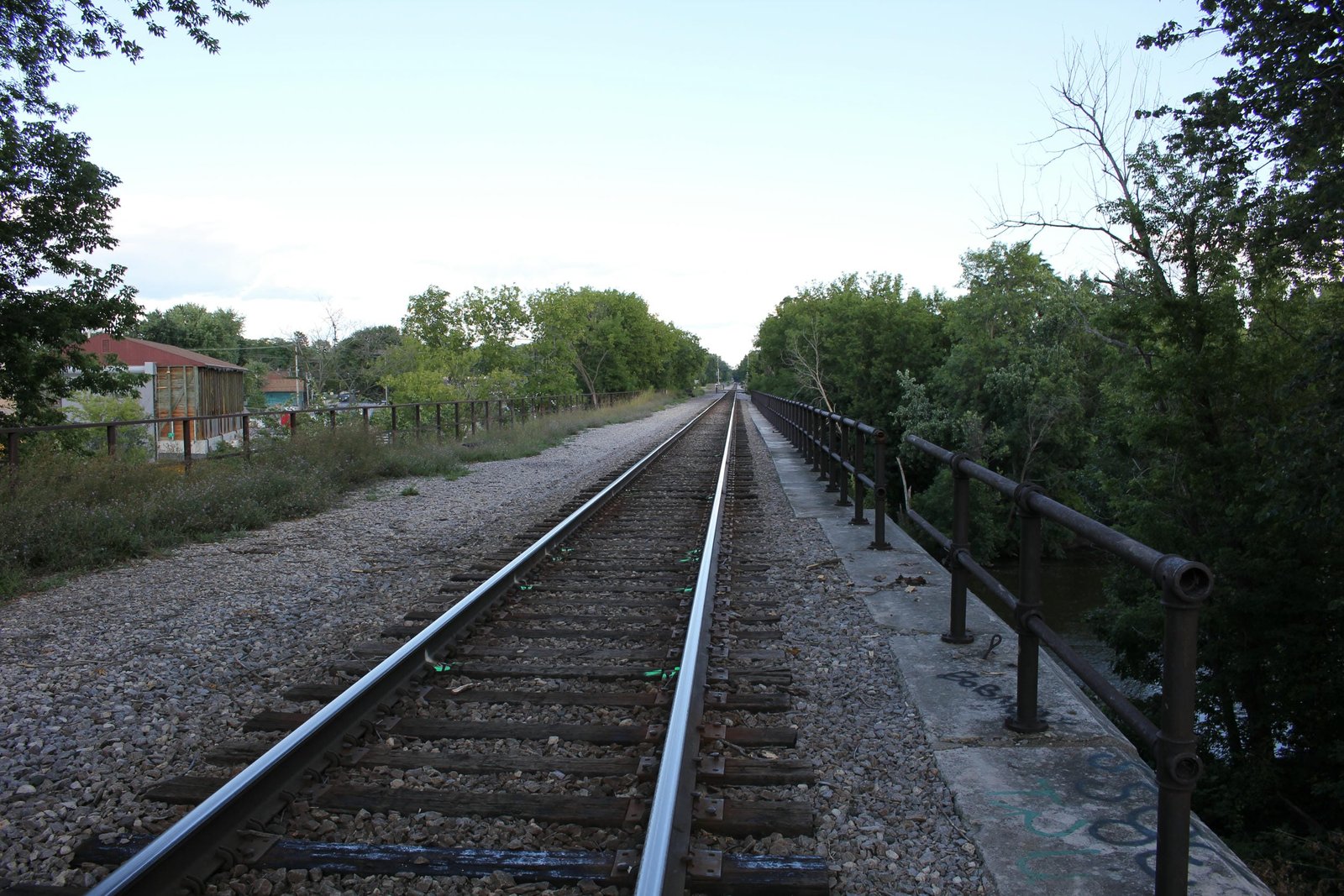

Located in Watertown, this large stone arch bridge carries the former Chicago, Milwaukee, St. Paul & Pacific Railroad (Milwaukee Road) mainline over the Rock River. The first bridges at this location likely consisted of timber truss bridges, set onto stone piers. In 1884, a new iron bridge would be constructed. This bridge consisted of two 89-foot and two 79-foot single track Pratt deck truss spans, set onto stone substructures. These spans were lightly constructed of wrought iron, using pinned connections and lightly built-up members. When the Milwaukee Road double tracked the line in this area, it was decided to replace the deck truss bridge with a new stone arch structure. To facilitate the construction of the new bridge, temporary timber pile piers were used to shift the truss span north, which was completed in August 1902. Work on the new stone arch progressed through the rest of 1902, and the structure was completed in March 1903. Upon completion of the new bridge, the old bridge was removed and reused at other locations. The two 79-foot spans were reused across the Straight River at Bridge #S-808 south of Faribault, Minnesota; one 89-foot span was reused at Bridge #Y-410 across the North Raccoon River at Sac City, Iowa; and the remaining 89-foot span was reused at Bridge #P-6 near Mitchell, South Dakota. The span at Bridge #P-6 was replaced in 1911, and the span at Bridge #Y-410 was replaced in 1934. It is unknown if the truss spans were reused again, or were scrapped. Bridge #S-808 survived until the 1970s or 1980s, but the truss spans were ultimately scrapped.

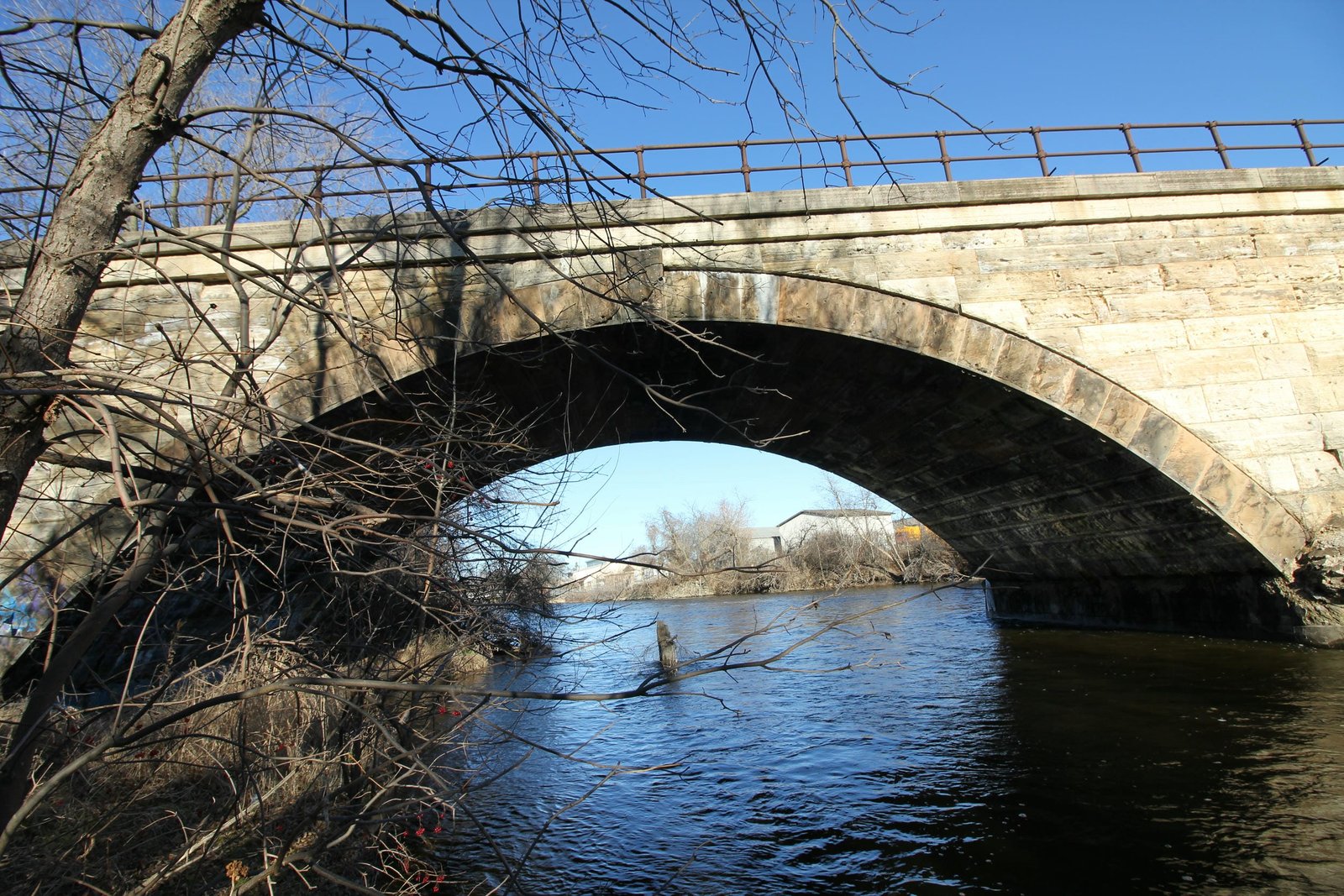

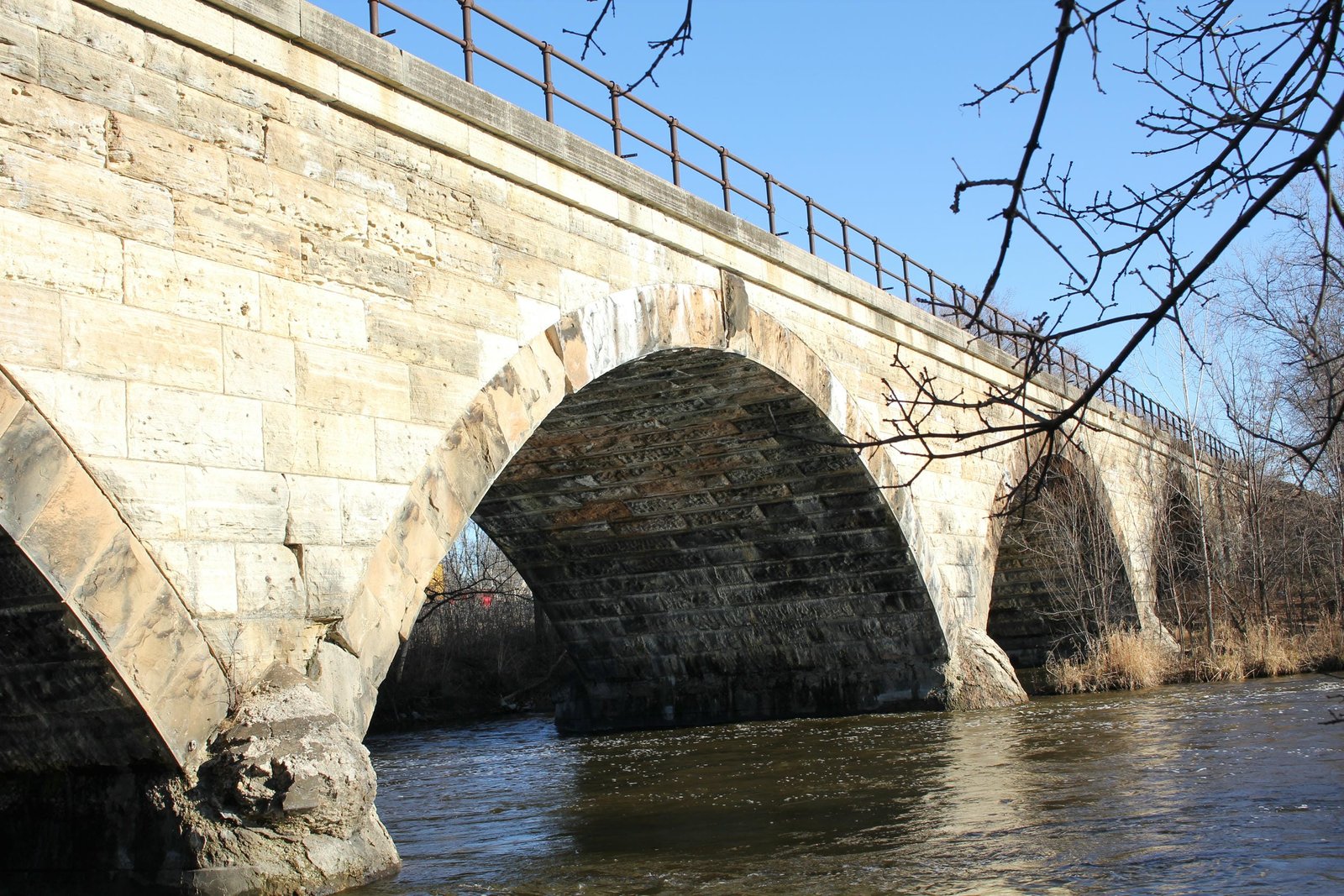

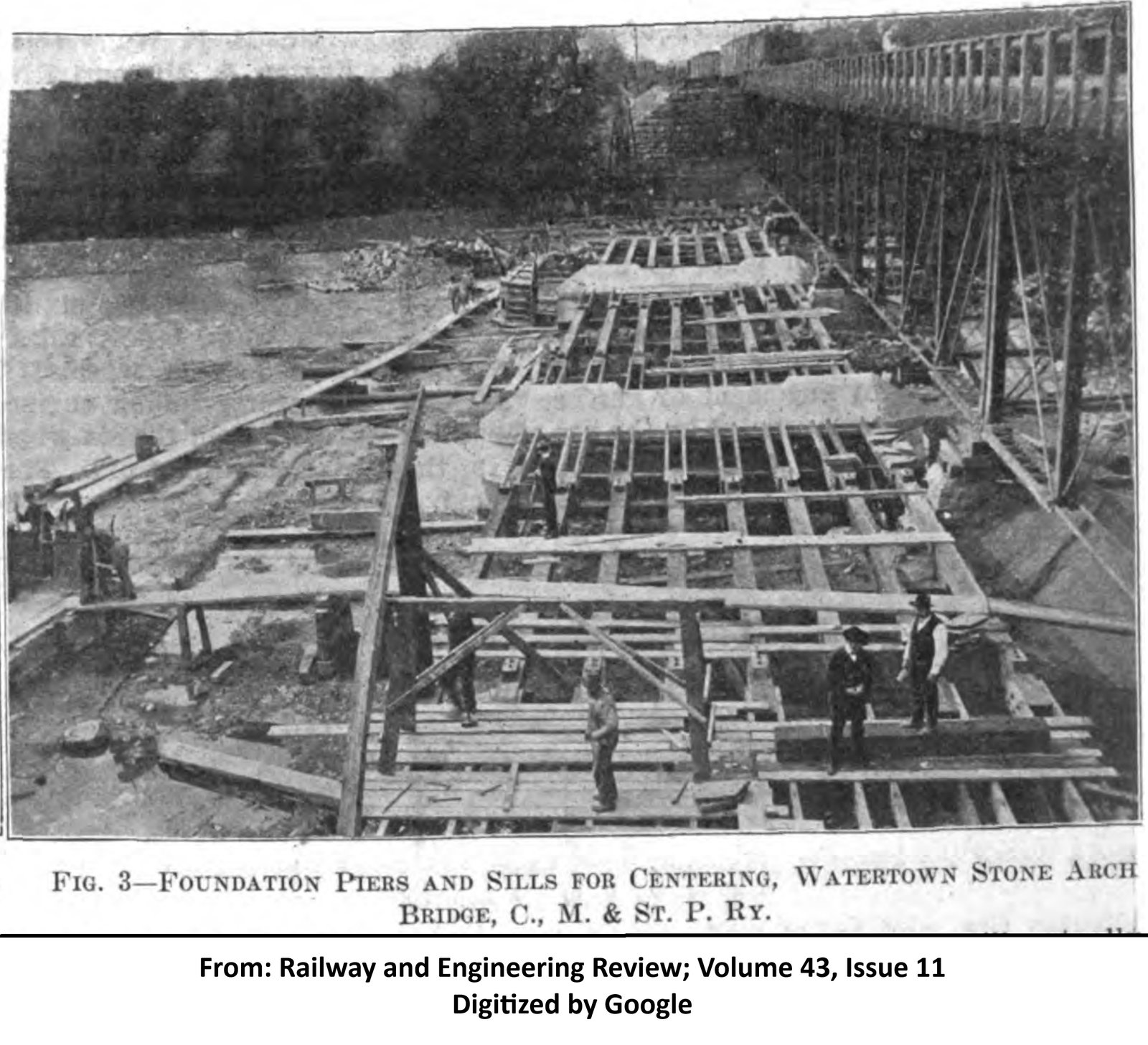

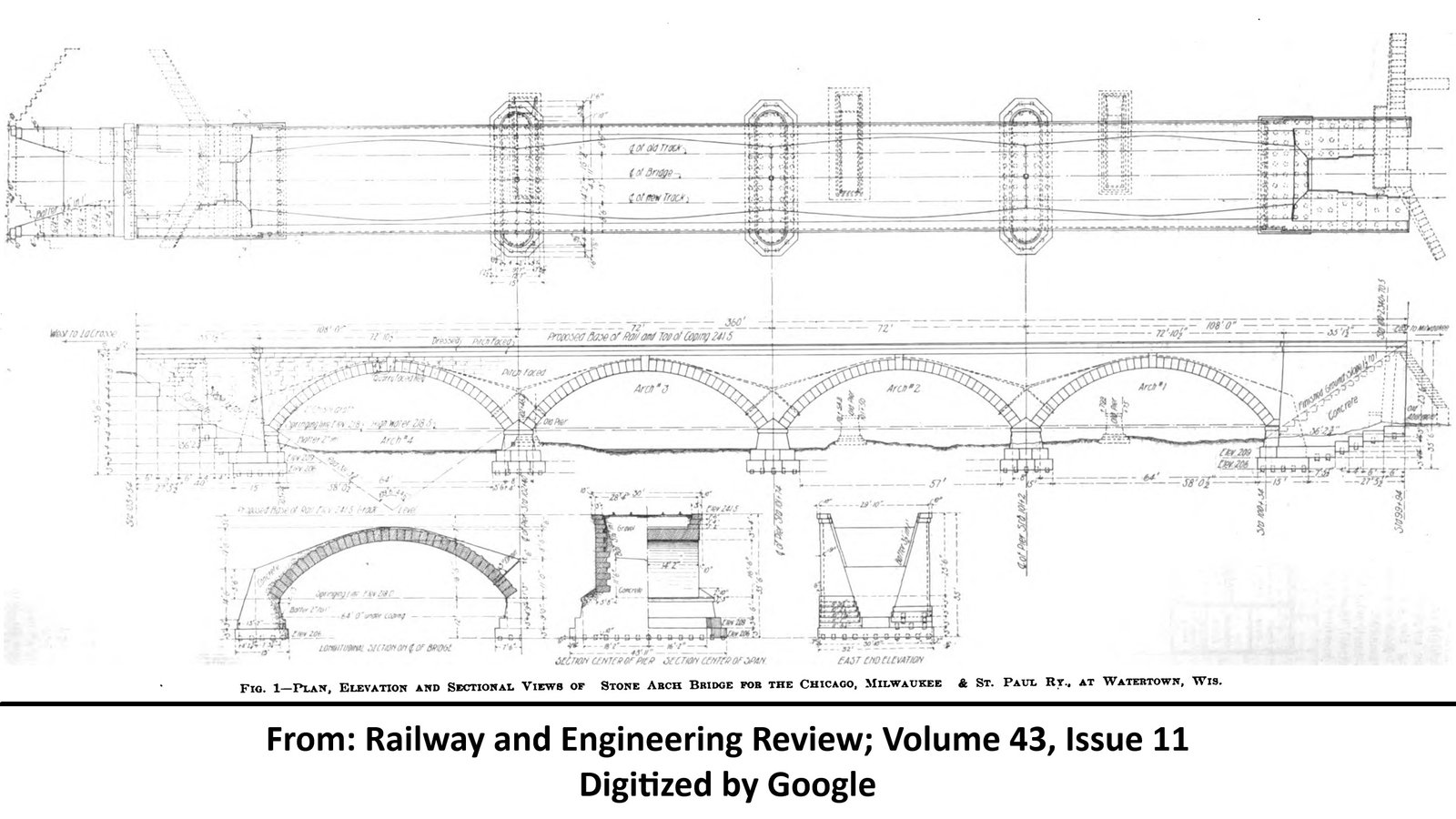

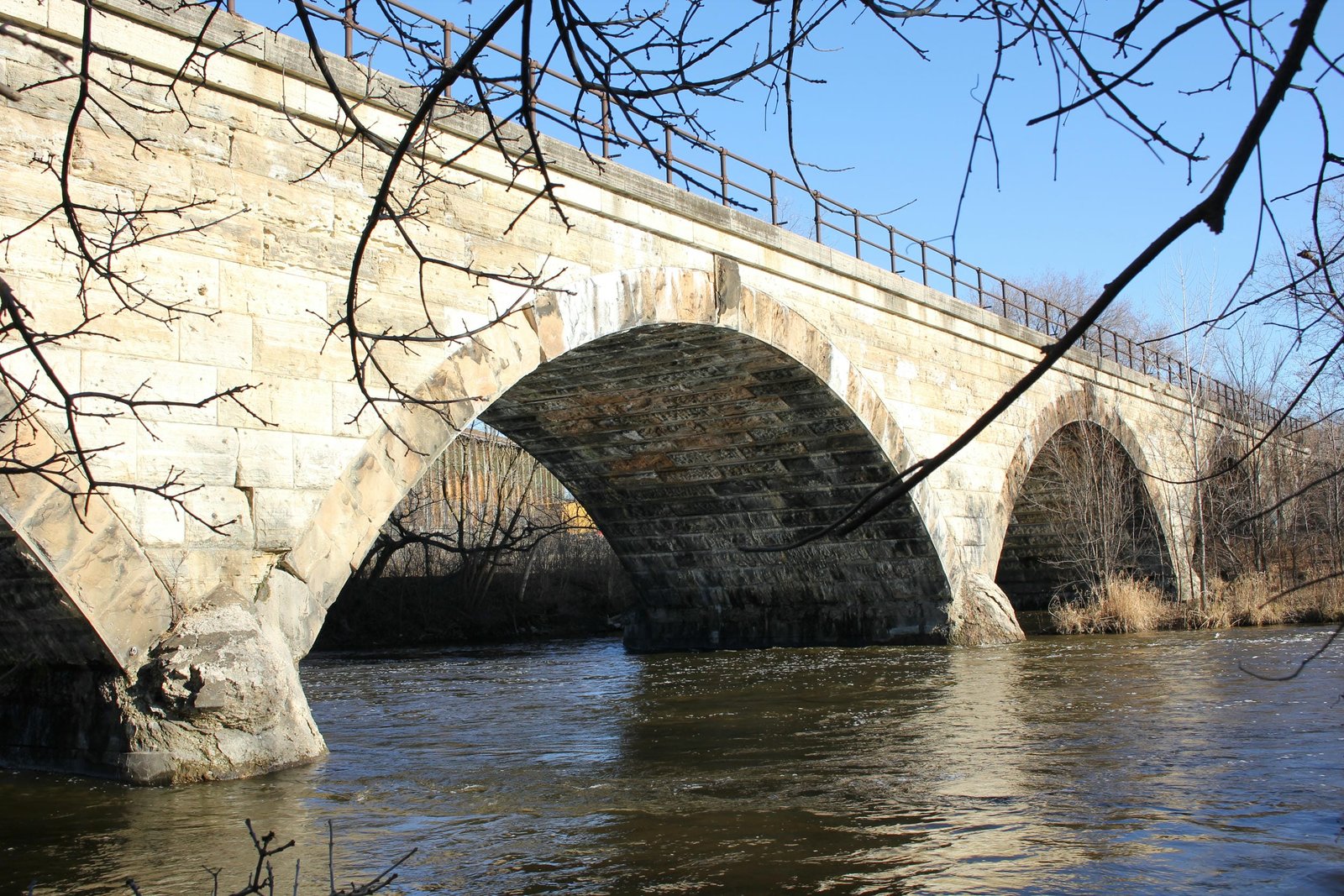

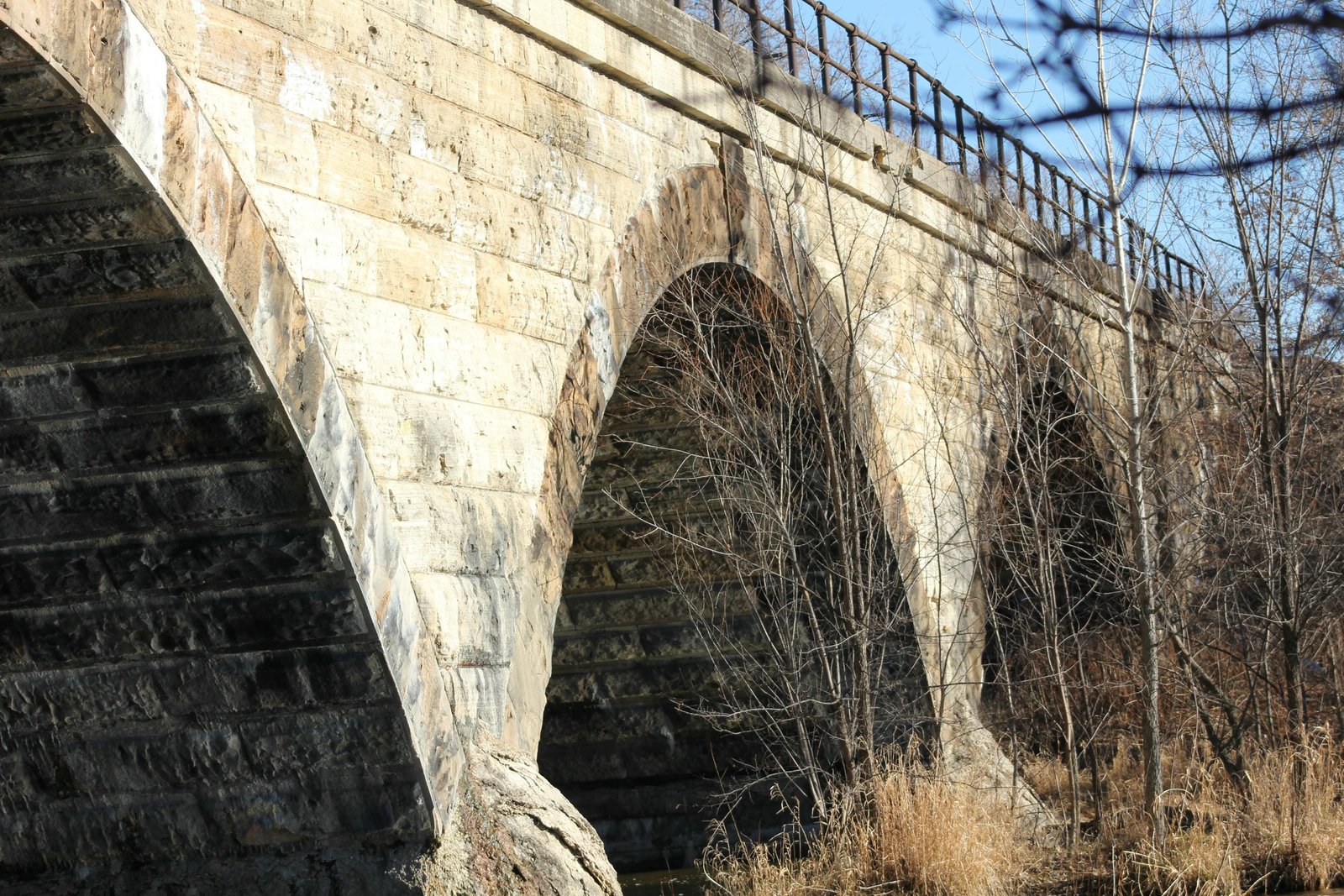

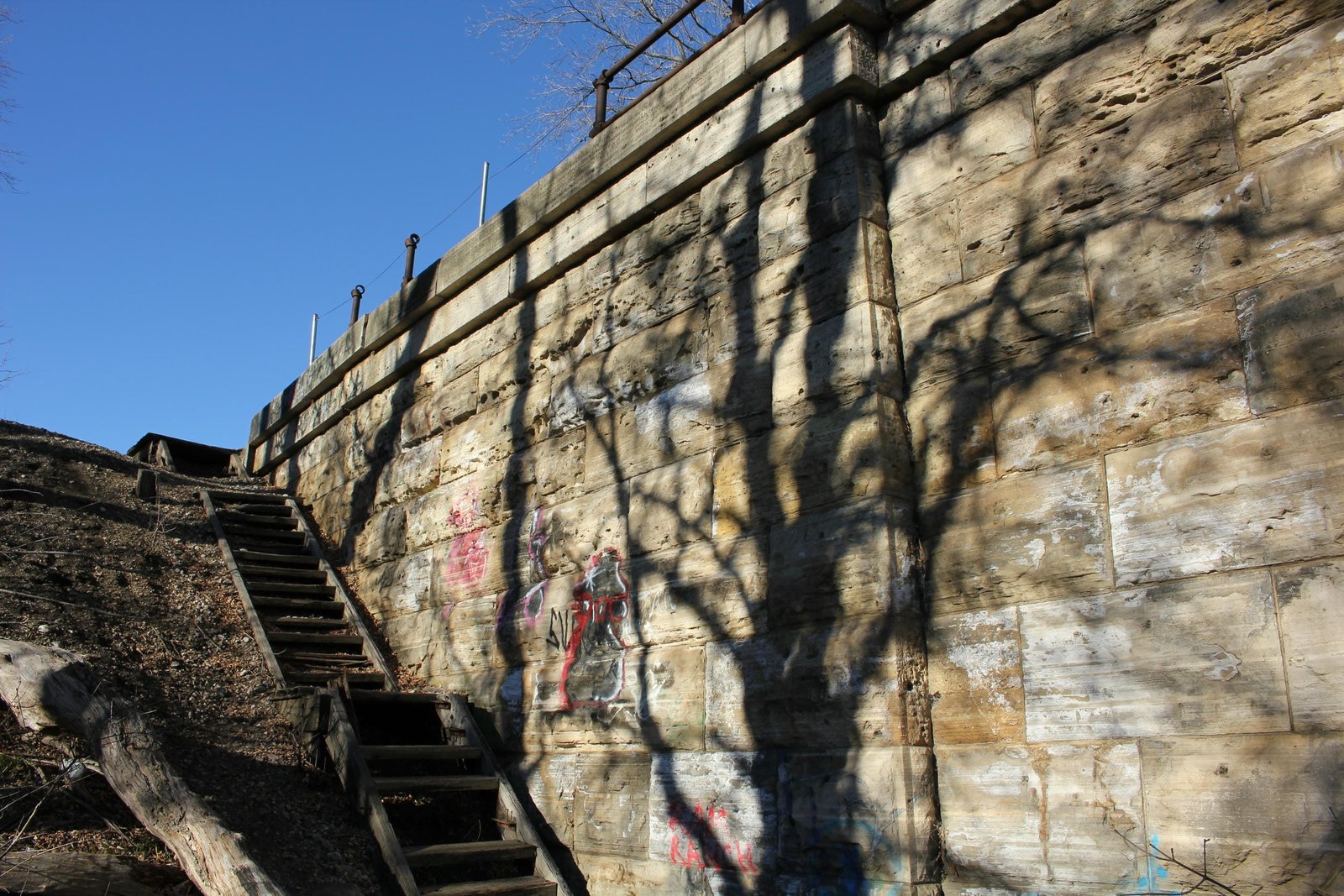

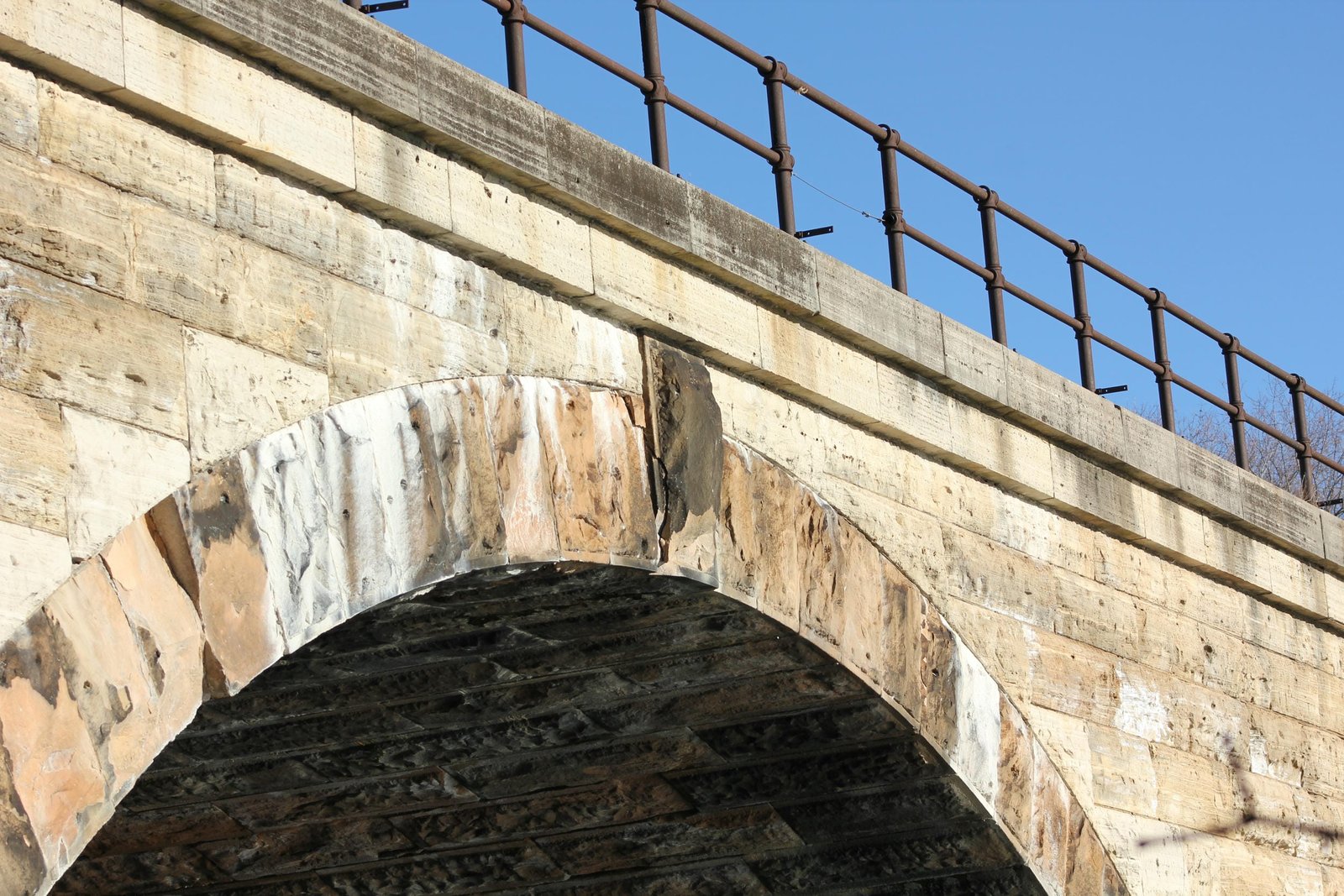

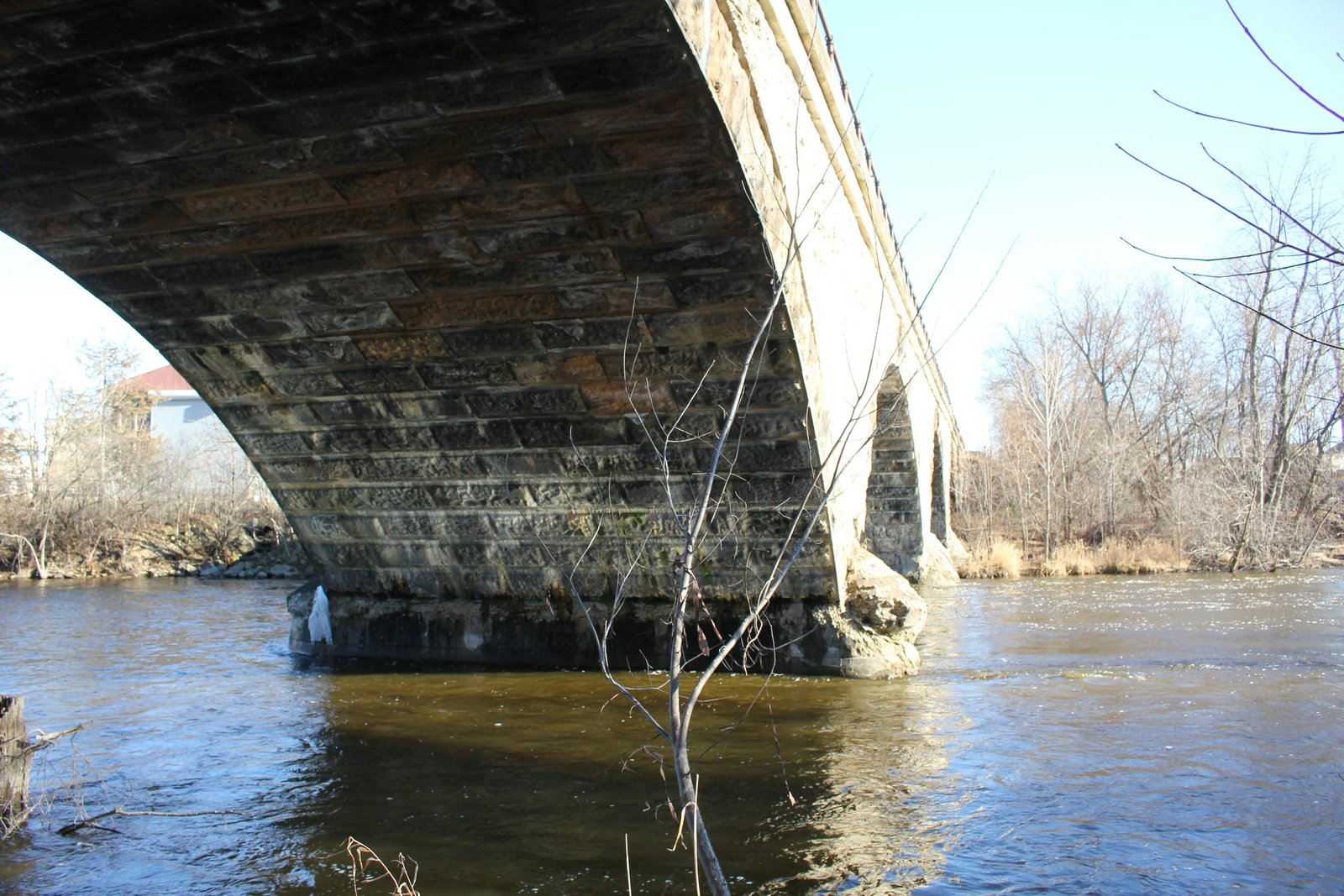

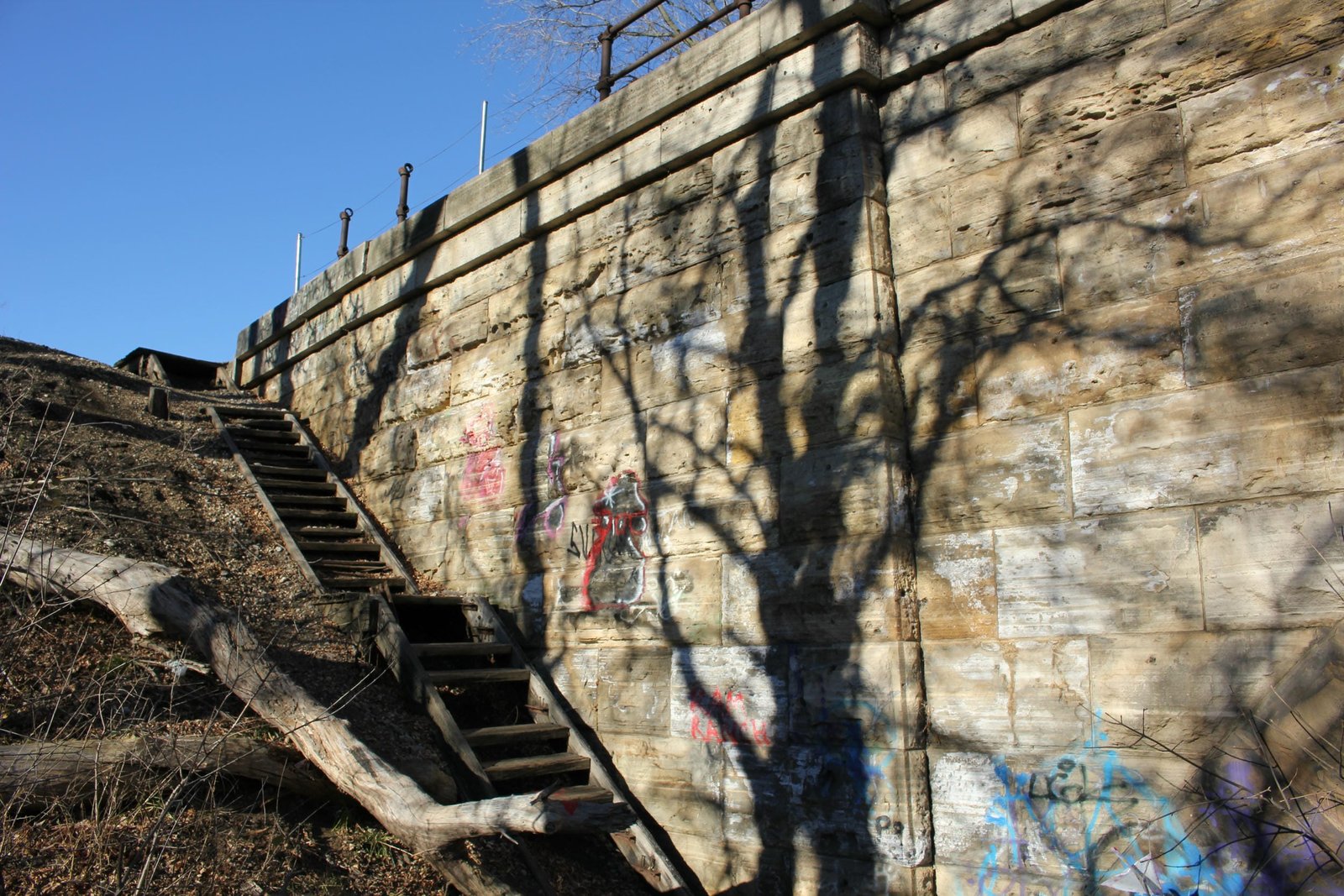

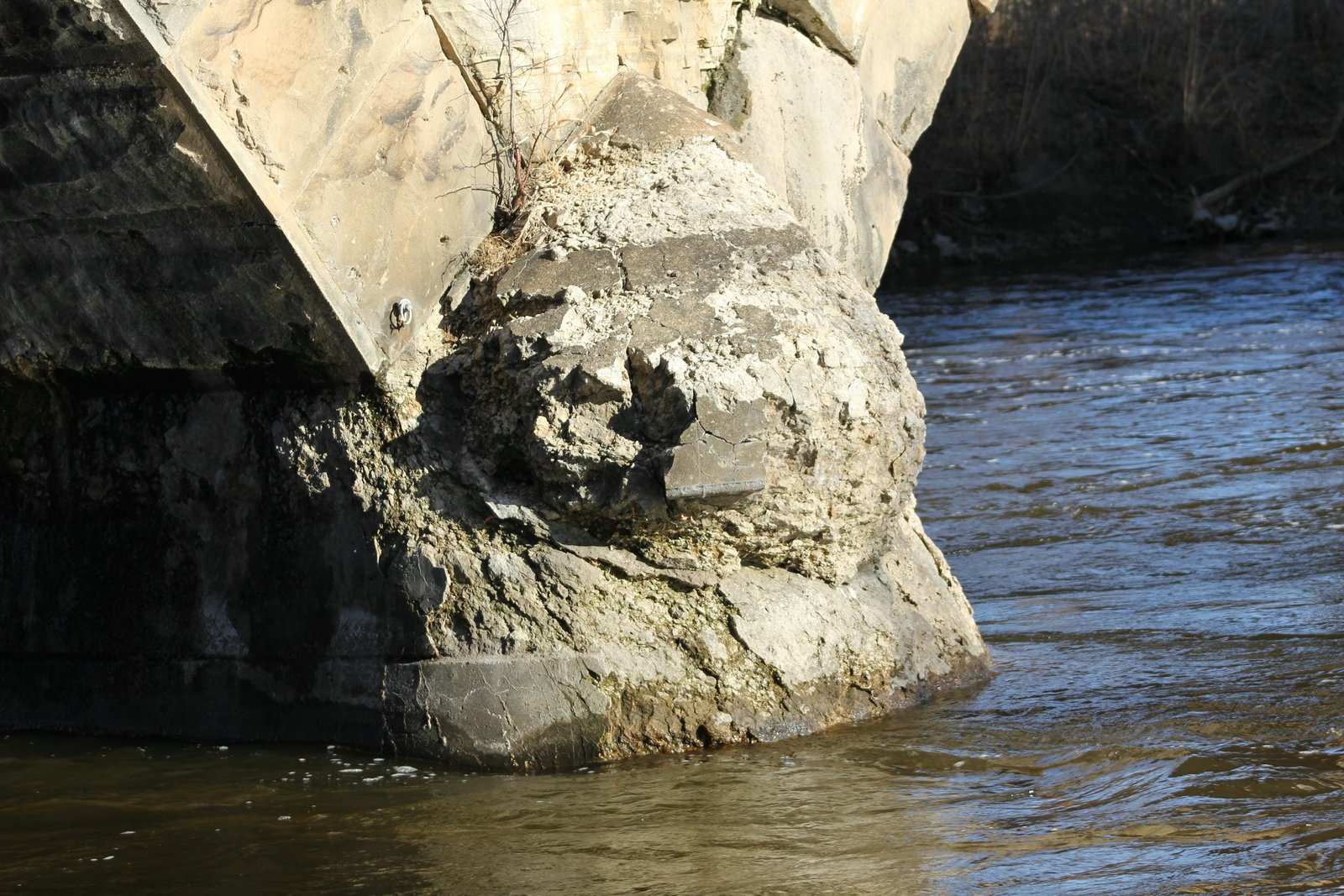

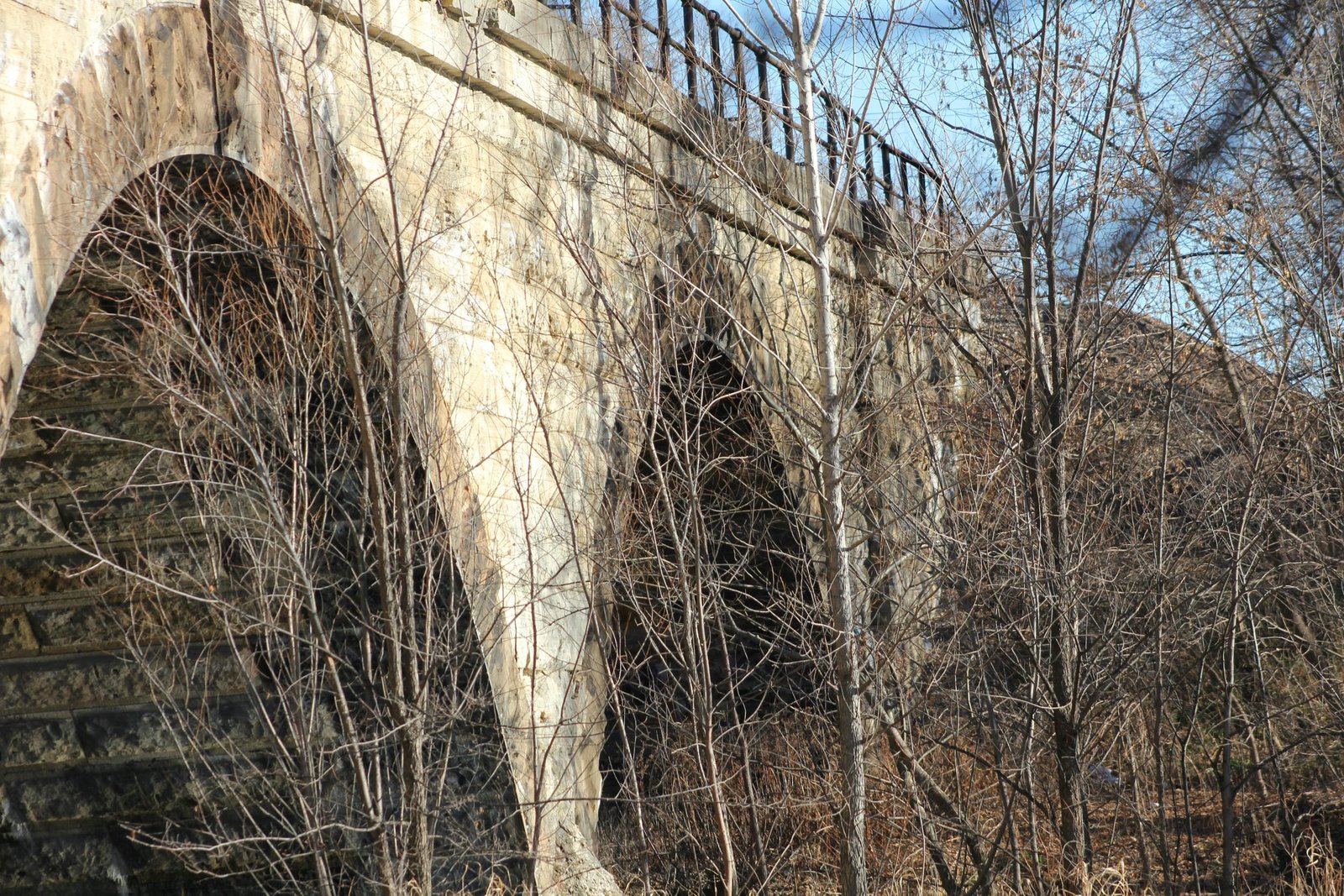

Currently, the bridge consists of four 64-foot stone arch spans, set onto foundations constructed of concrete founded on timber piles. Each span consists of a rise of 16 feet 6 inches, is 30 feet wide and is constructed with a radius of 39 feet. Two complete arch lines and the face courses of the remaining two arches are constructed of Kettle River Sandstone quarried at Sandstone, Minnesota; while the abutments, spandrel walls and remainder of the arch lines are constructed of limestone quarried at Stone City, Iowa. The inside of the spandrel walls are backed with concrete, which is filled with gravel. The structure is constructed of approximately 1,850 cubic yards of cut stone and approximately 1,975 cubic yards of concrete. The bridge was designed by C.F. Loweth, Superintendent of Bridges and Buildings; and was constructed under the direction of J.C. Hain, Engineer of Masonry Construction. Typical of masonry bridges constructed by the Milwaukee Road, the structure was constructed by labor employed by the Bridge & Building Department. Stone arches were commonly used by railroads in the 19th Century, as they were durable and easy to construct. While many railroads switched to constructing concrete arches around the turn of the 20th Century, the general policy of the Milwaukee Road was to use stone for long span arches. The Milwaukee Road followed other railroads around 1905, when the Milwaukee Road began constructing larger concrete arches. The use of concrete substructures is somewhat unusual for a stone arch bridge, although it likely provided the most cost effective foundation design. Since the initial construction, the bridge has seen few alterations, and the southern track remains in use. Overall, the bridge appears to be in fair to good condition, with no significant deterioration noted. The author has ranked this bridge as being regionally significant, as it is one of the few examples of a multiple span stone arch bridge constructed for railroad use in Wisconsin.


Citations

Build date and engineer Milwaukee Road Drawing Collection, located at the Milwaukee Road Archives at the Milwaukee Public Library
Railroad History Citation ICC Valuation Information, Compiled by Richard S. Steele
