Waterloo Rail Bridge

Through Plate Girder Bridge over Cedar River
Waterloo, Black Hawk County, Iowa

Click the Photo Above to See All Photos of This Bridge!

Name Waterloo Rail Bridge
Built By Chicago Great Western Railway
Contractor American Bridge Company of New York
Currently Owned By Iowa Northern Railway
Length 730 Feet Total, 90 Foot Spans
Width 1 Track
Height Above Ground 10 Feet (Estimated)
Superstructure Type Through Plate Girder
Substructure Type Stone Masonry, Concrete and Steel Pile
Date Built 1901, Rebuilt 2009
Traffic Count 4 Trains/Day (Estimated)
Current Status In Use
CGW Bridge Number Unknown
Significance Moderate Significance
Documentation Date September 2017

A brief history of the Chicago Great Western route to Kansas City:


06/26/21


Crossing the Cedar River in downtown Waterloo, this bridge survived the 2008 flood after being rebuilt.
Originally constructed in 1901, the bridge served Chicago Great Western trains for many years. It was later transfered to Iowa Northern, along with a short segment of line in the area.

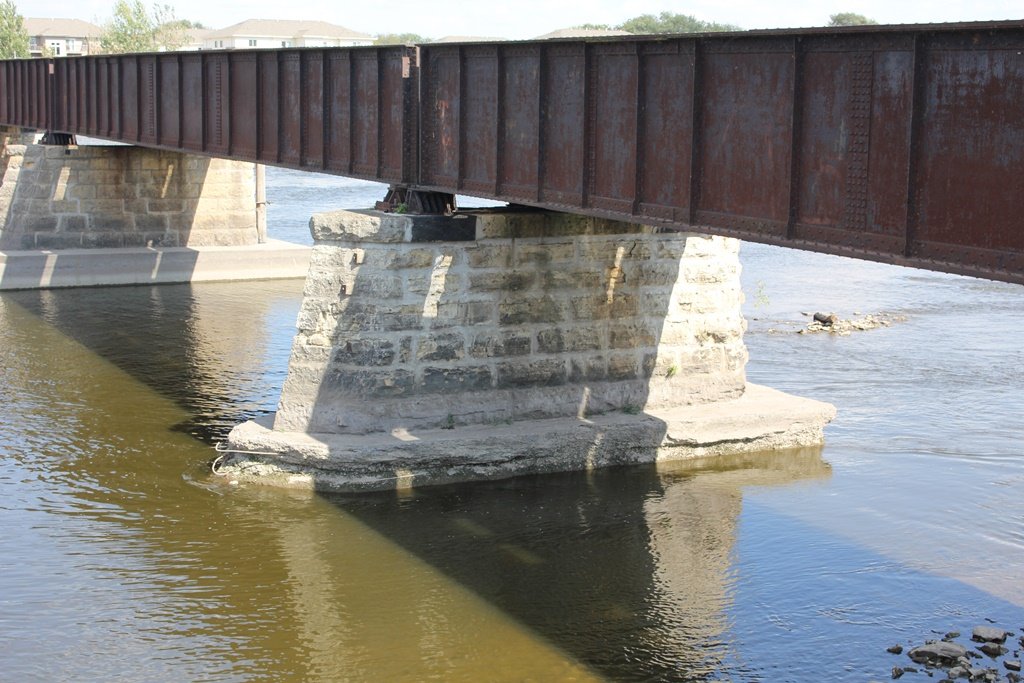

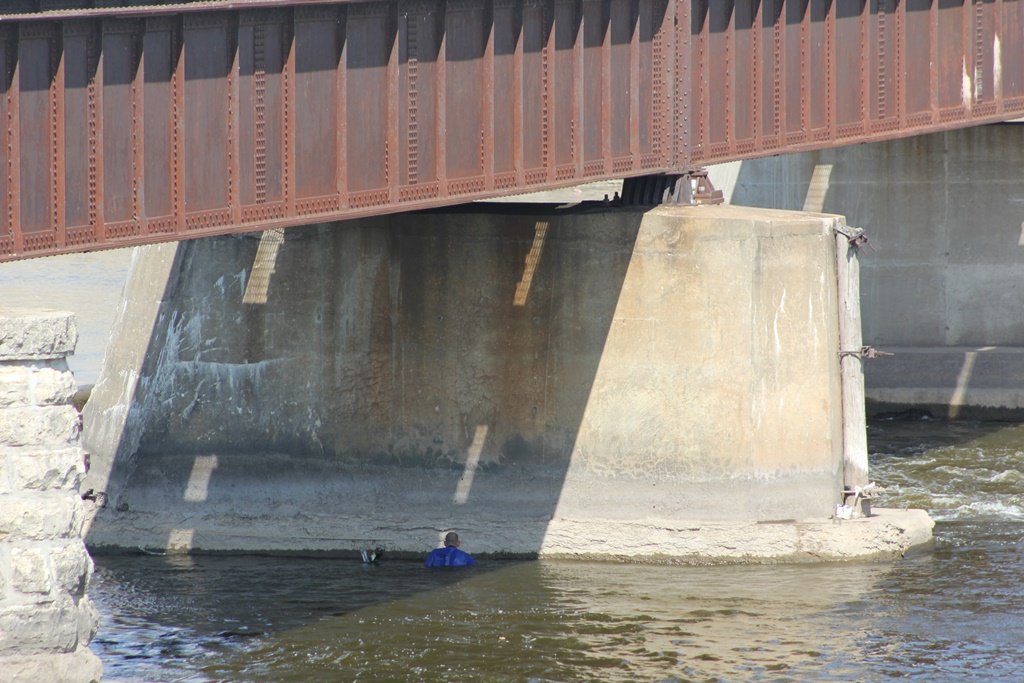

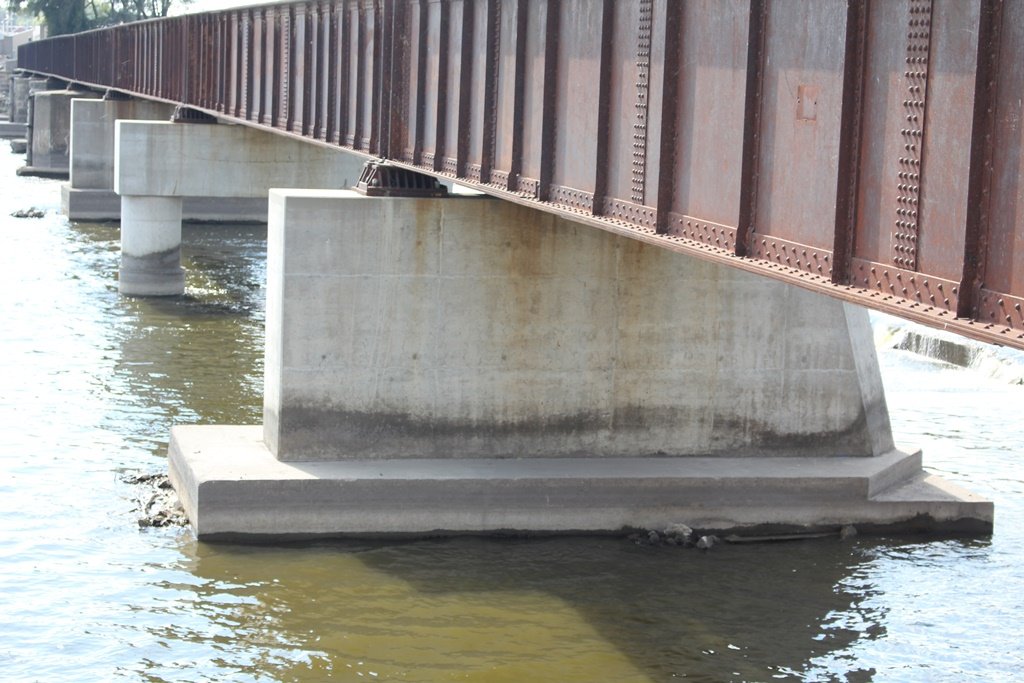

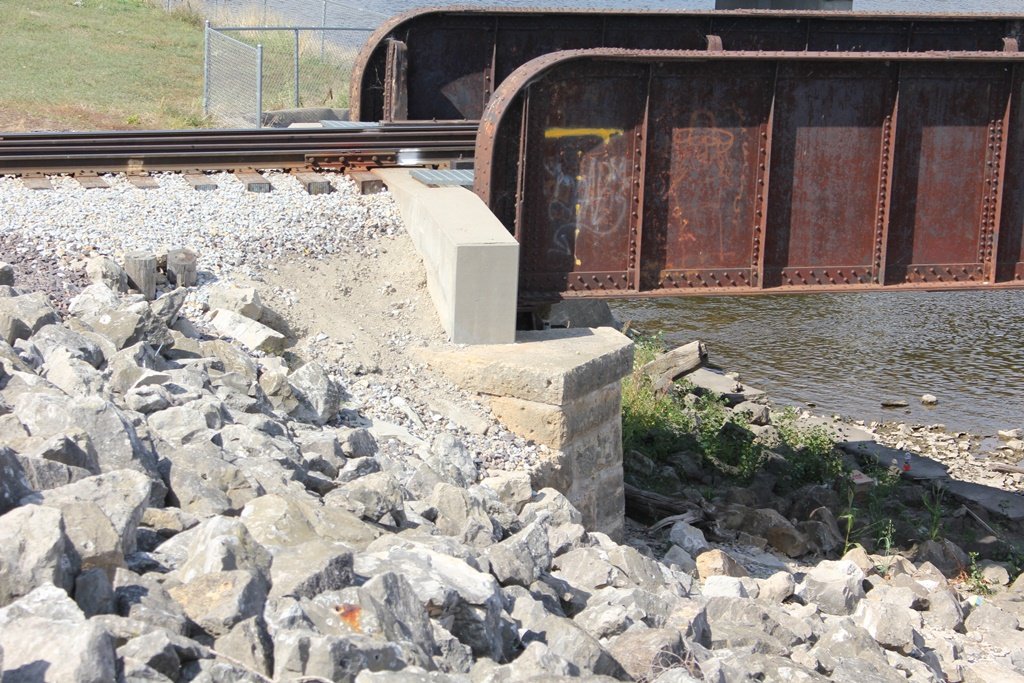

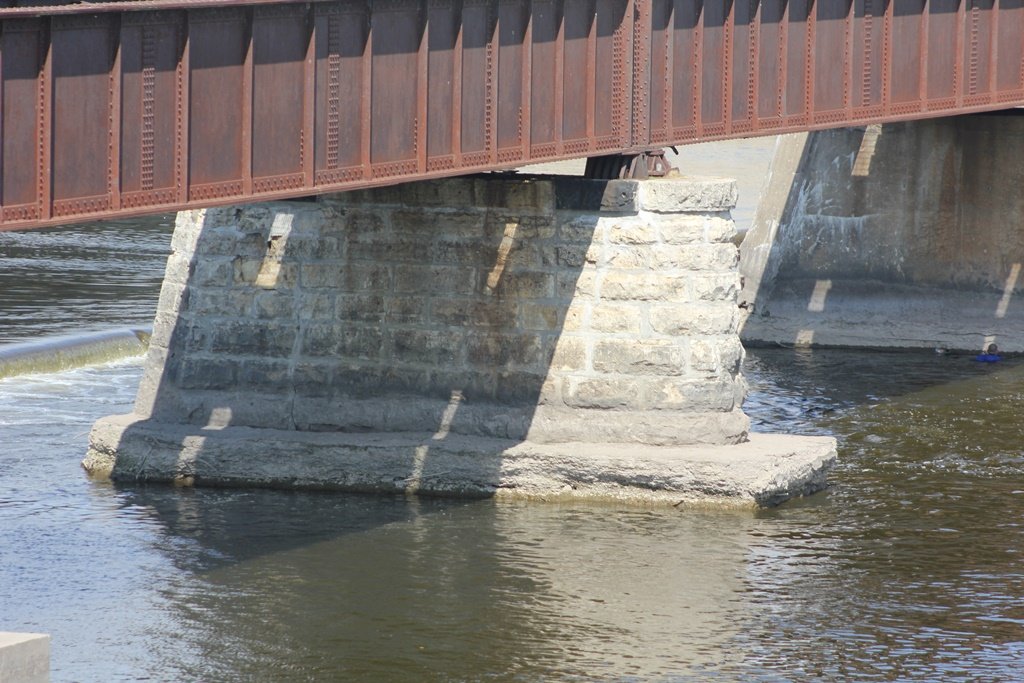

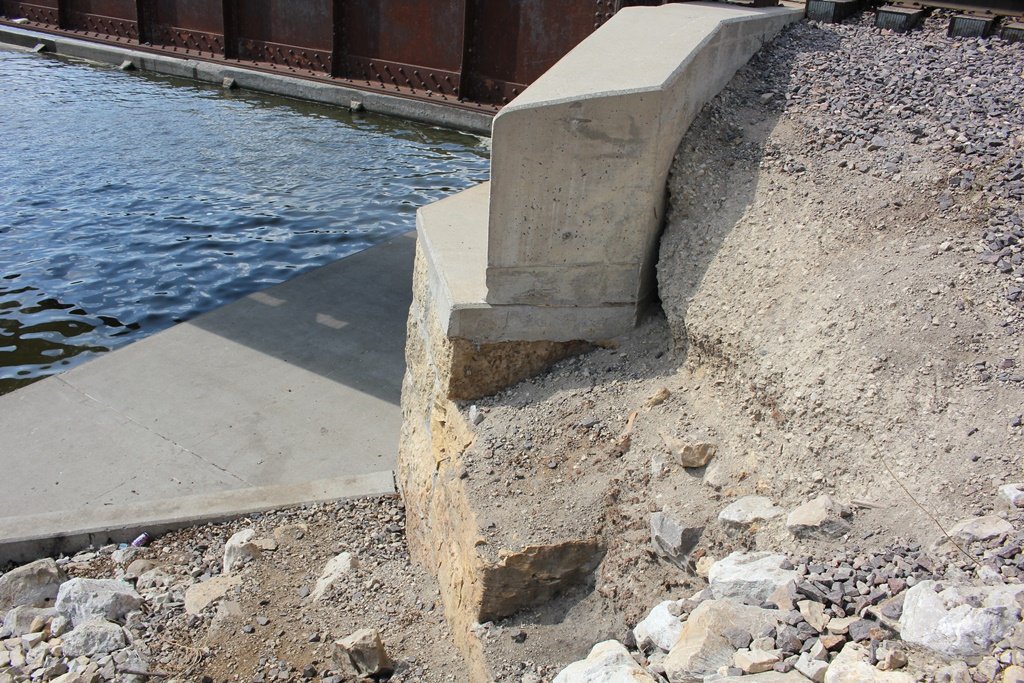

All substructures were originally constructed of stone, but two piers were jacketed with concrete in the 1900s, and two were rebuilt after the 2008 flood.
During the 2008 flood, three spans were knocked off the piers, which caused the piers to fail.
The bridge was later rebuilt, and reopened to traffic. The flood of 2008 caused four other railroad and former railroad bridges to fail.

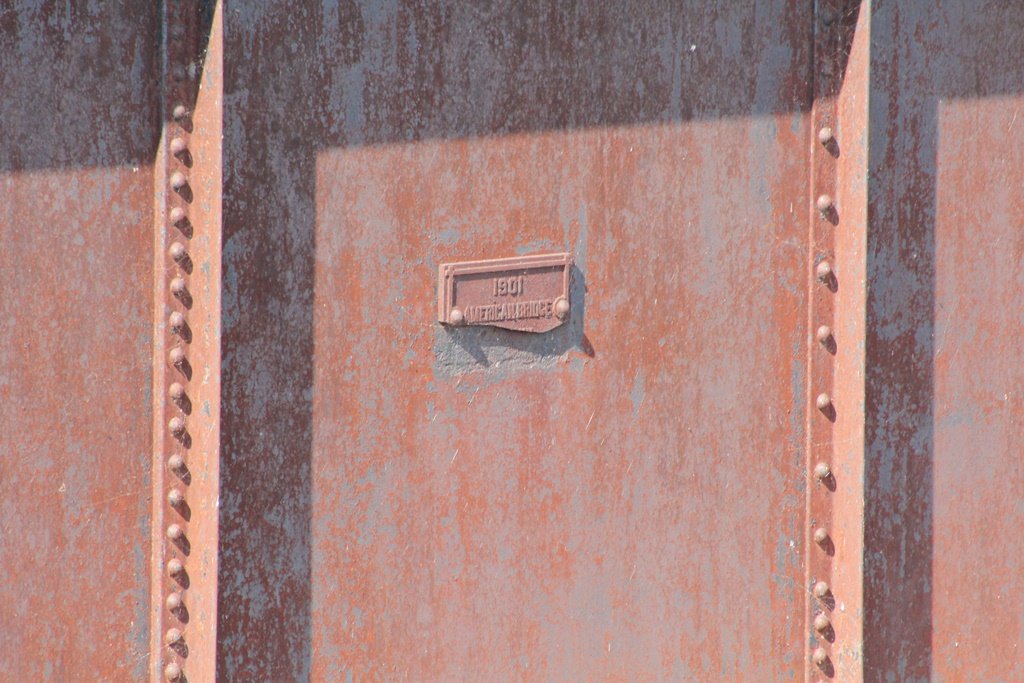

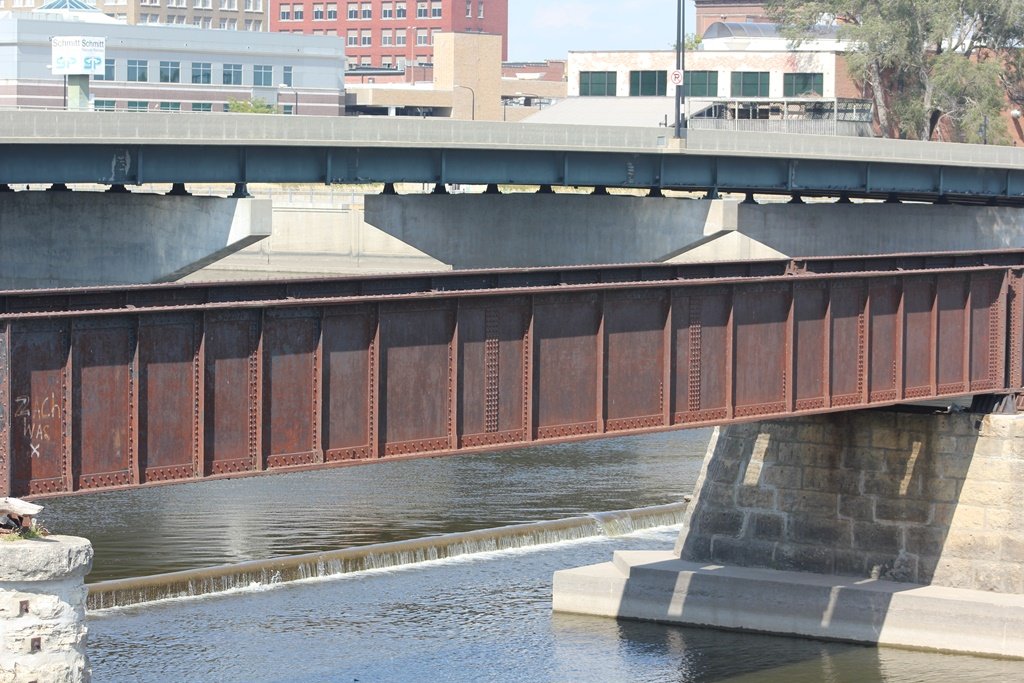

American Bridge Company was the chief contractor for this bridge, producing the eight through girder spans.

The author has rated this bridge as being moderately significant, due to the large scale design and older age of the bridge.

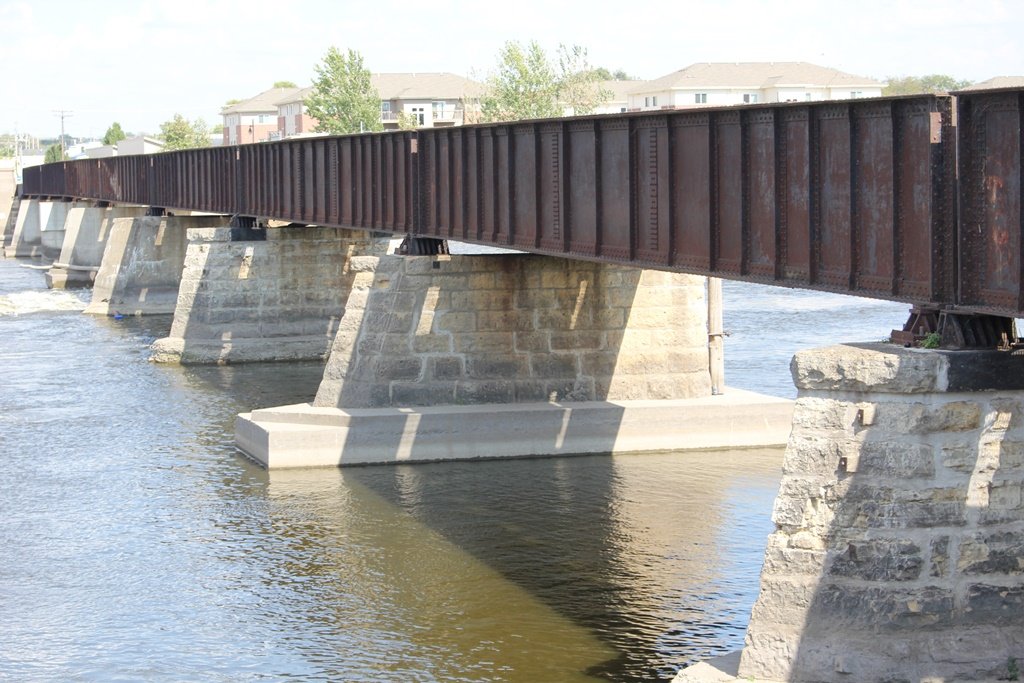

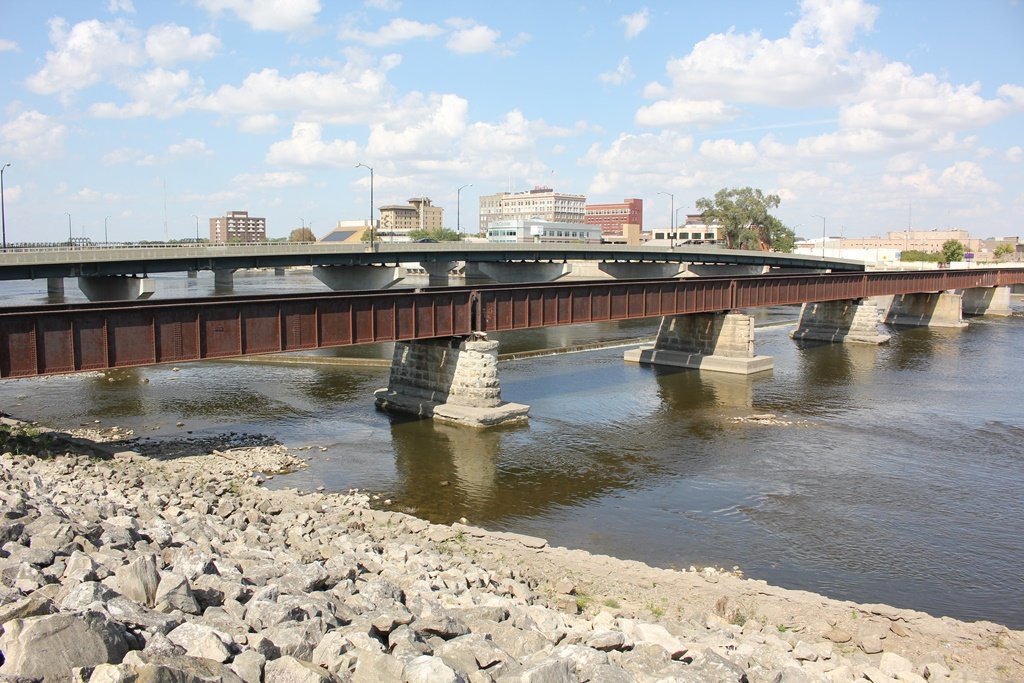

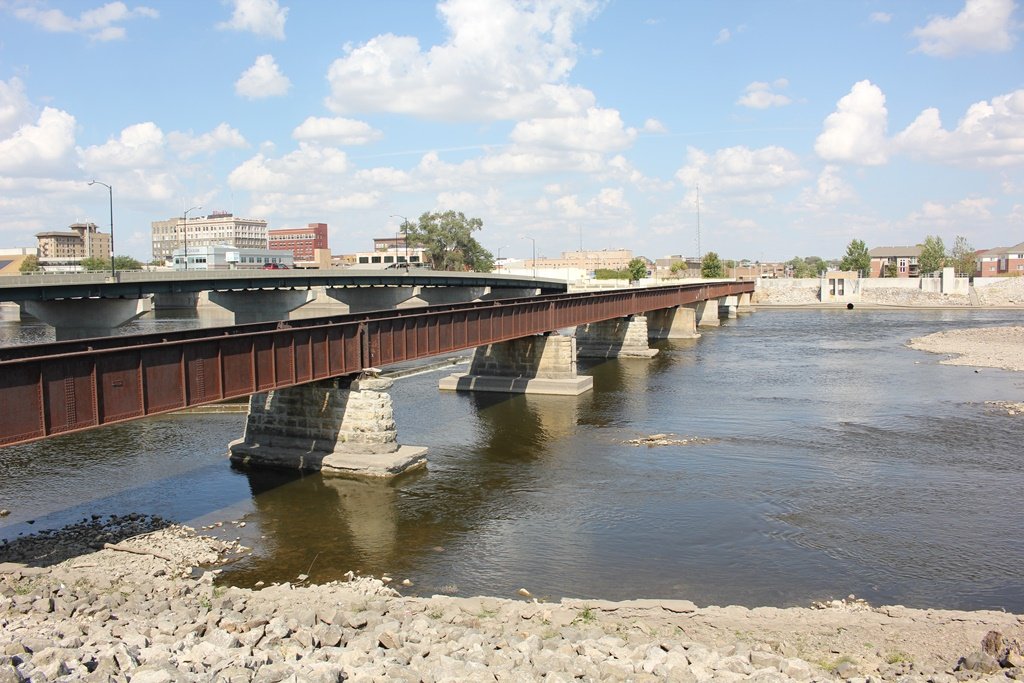

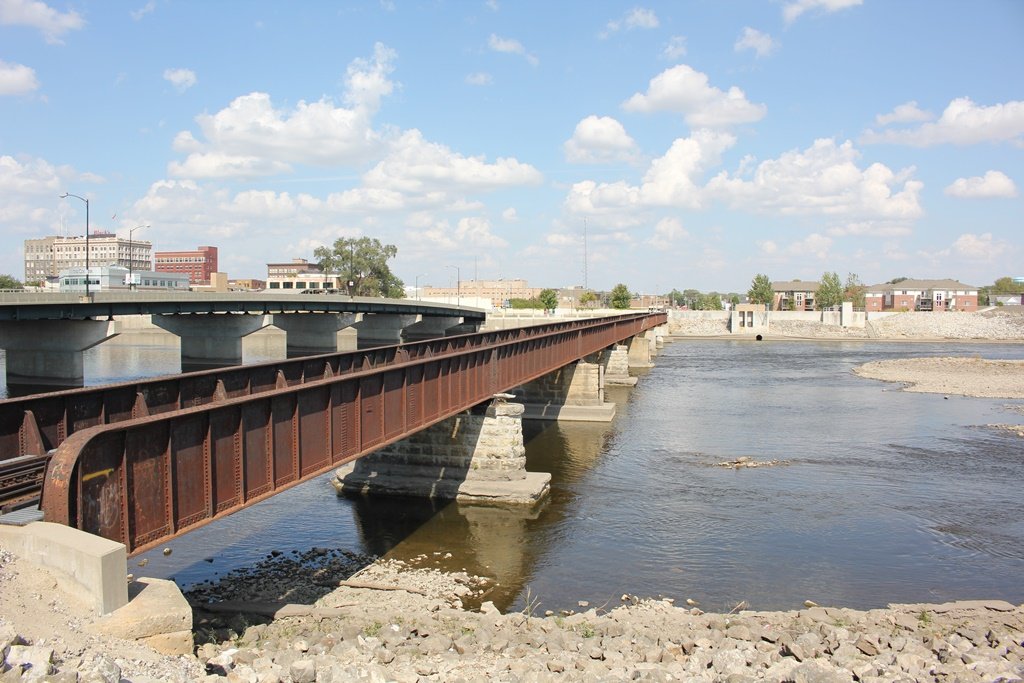

The photo above is an overview. The bridge can be accessed from nearby roads and trails.

Cedar River Railroad Bridges
Upstream Sans Souci Bridge (New)
Downstream Evansdale Trail Bridge

Citations

Source Type

Source

Build Date American Bridge Company plaque
Contractor American Bridge Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
