UP Sunfish Slough Bridge

Deck Girder Bridge over Sunfish Slough
East Clinton, Whiteside County, Illinois

Click the Photo Above to See All Photos of This Bridge!
Name UP Sunfish Slough Bridge
Built By Chicago & North Western Railway
Contractor (Superstructure) Wisconsin Bridge & Iron Company of Milwaukee
Contractor (Substructure) Foundation Company of New York
Contractor (Erection) Missouri Valley Bridge & Iron Company of Leavenworth, Kansas
Currently Owned By Union Pacific Railroad
Length 550 Feet Total, 50 Foot Spans
Width 2 Tracks
Height Above Ground 10 Feet (Estimated)
Superstructure Type Deck Plate Girder
Substructure Type Stone Masonry and Steel Caisson
Date Built 1909
Traffic Count 75 Trains/Day (Estimated)
Current Status In Use, Scheduled for Replacement
UP Bridge Number 136.26
C&NW Bridge Number 0 1/4
Significance Local Significance
Documentation Date December 2017
A brief history of the Chicago & North Western Iowa Division mainline, now part of the Overland Route:


11/12/21


View an article regarding the construction of this bridge.

This structure is the easternmost crossing of the Mississippi River at Clinton.

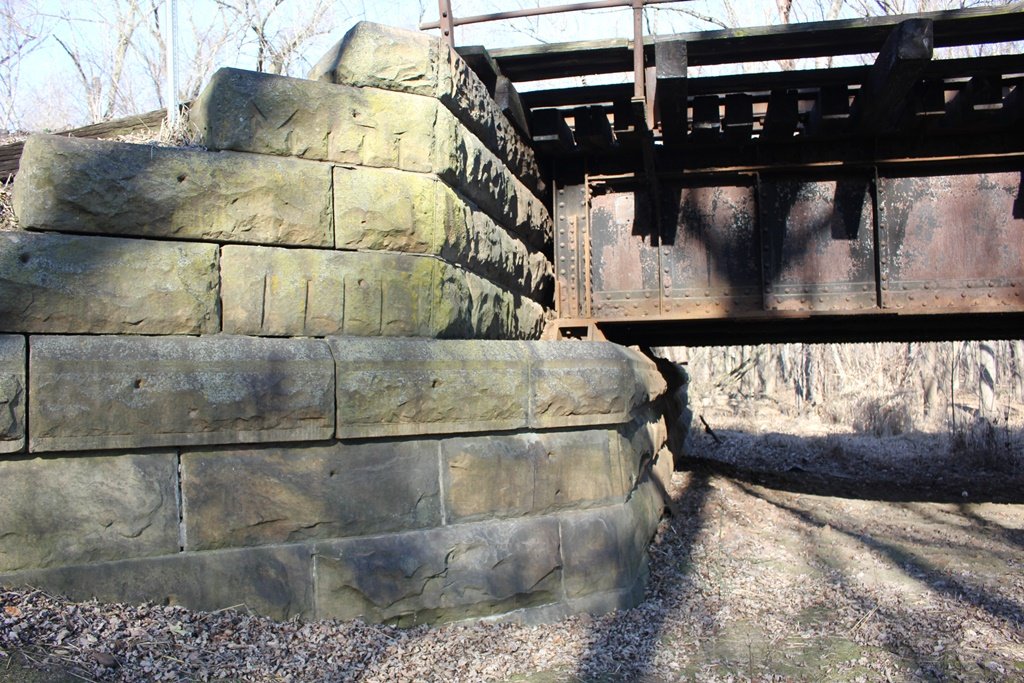

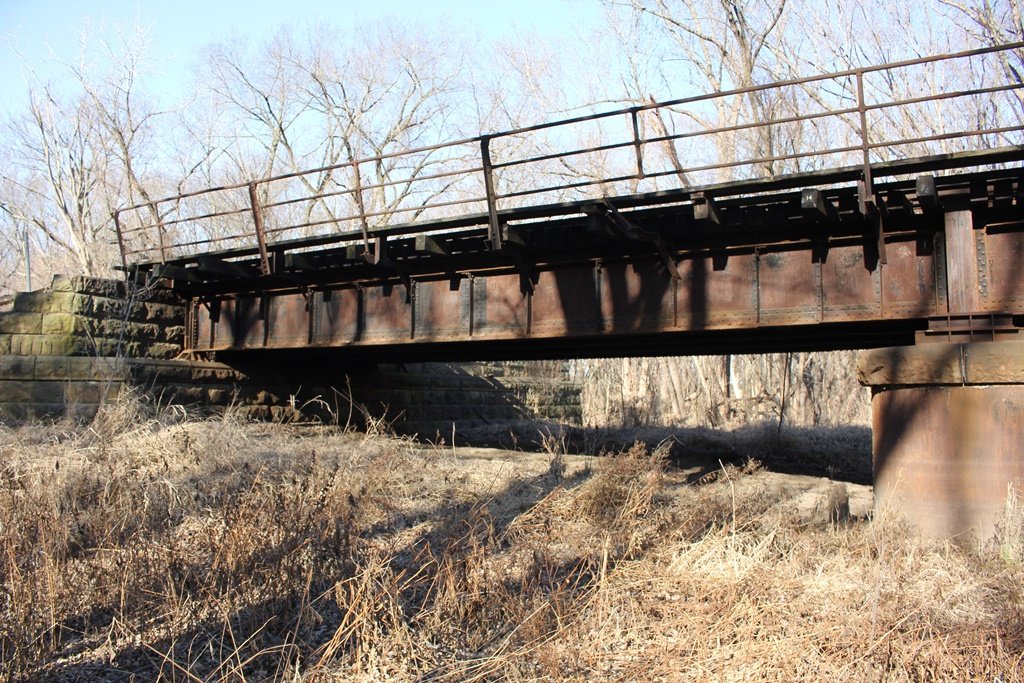

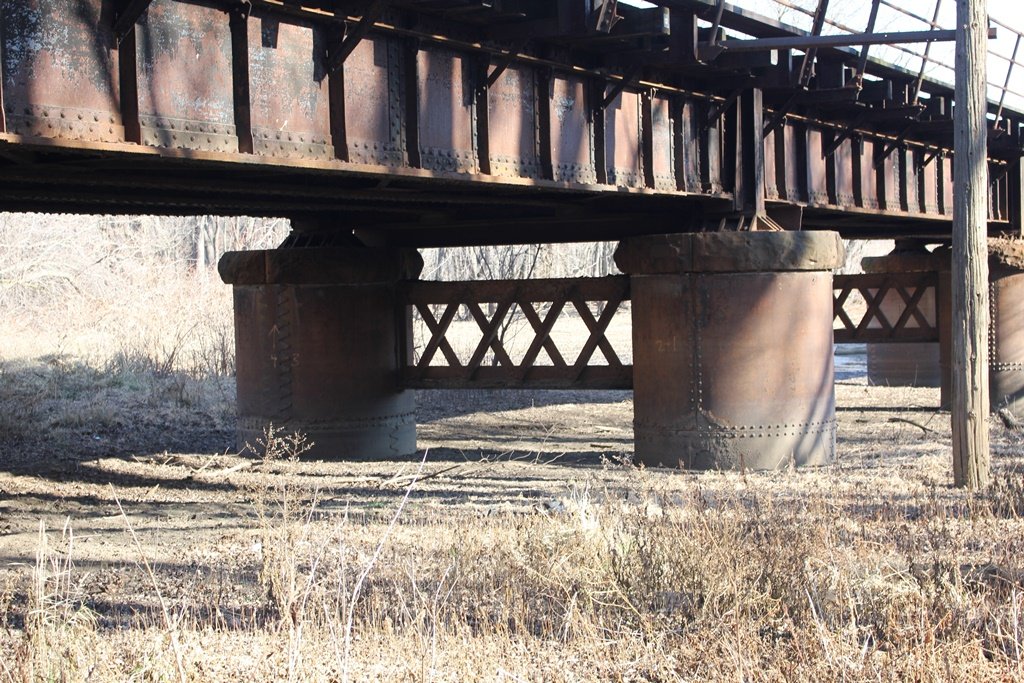

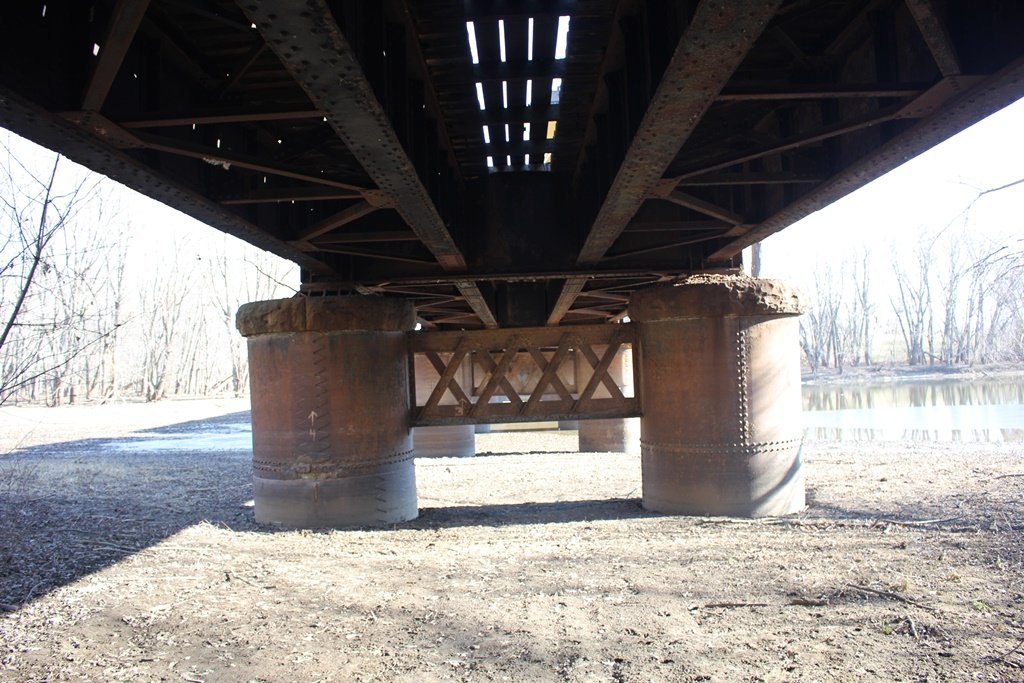

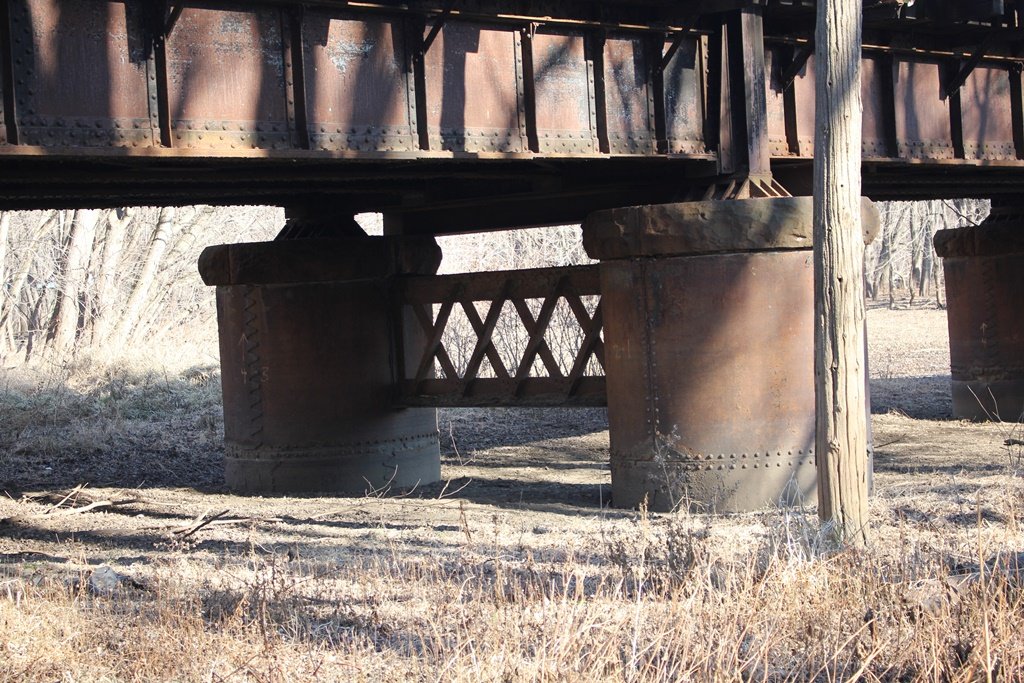

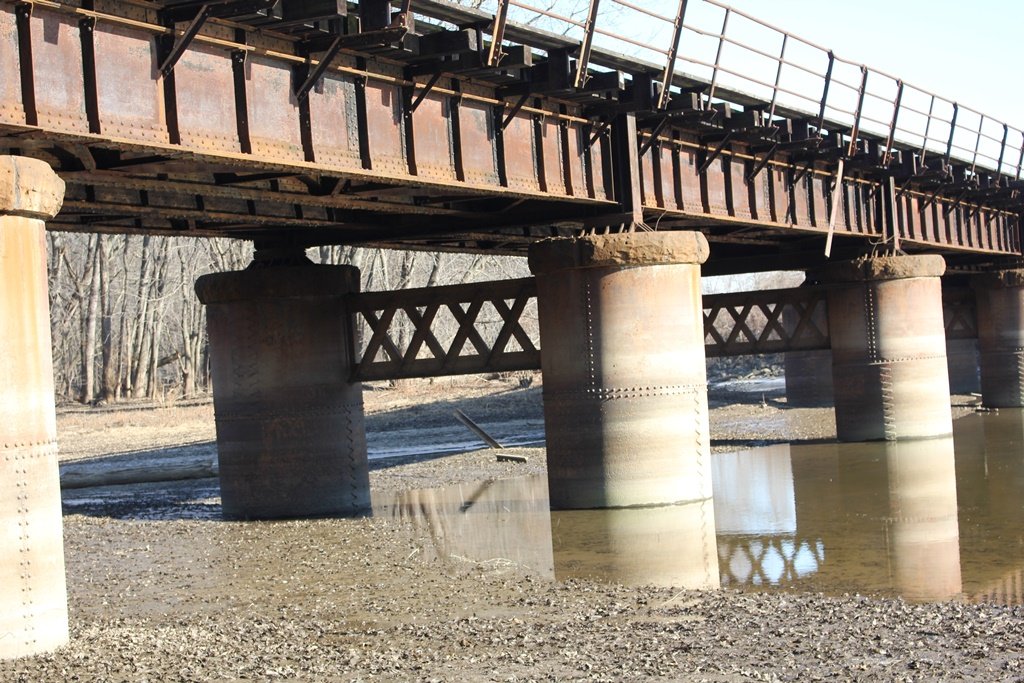

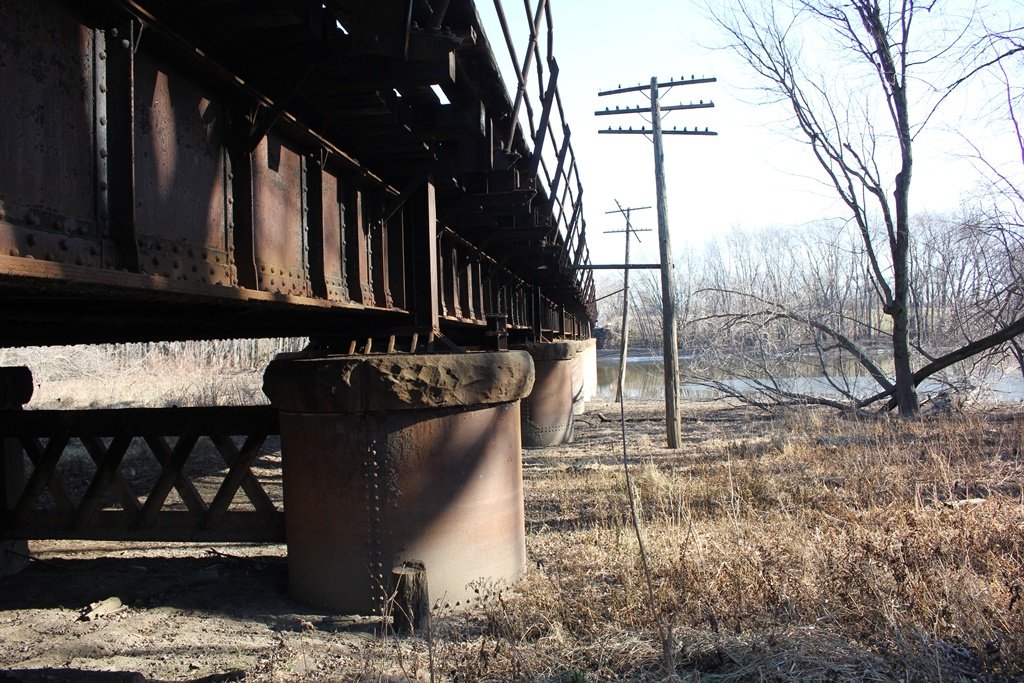

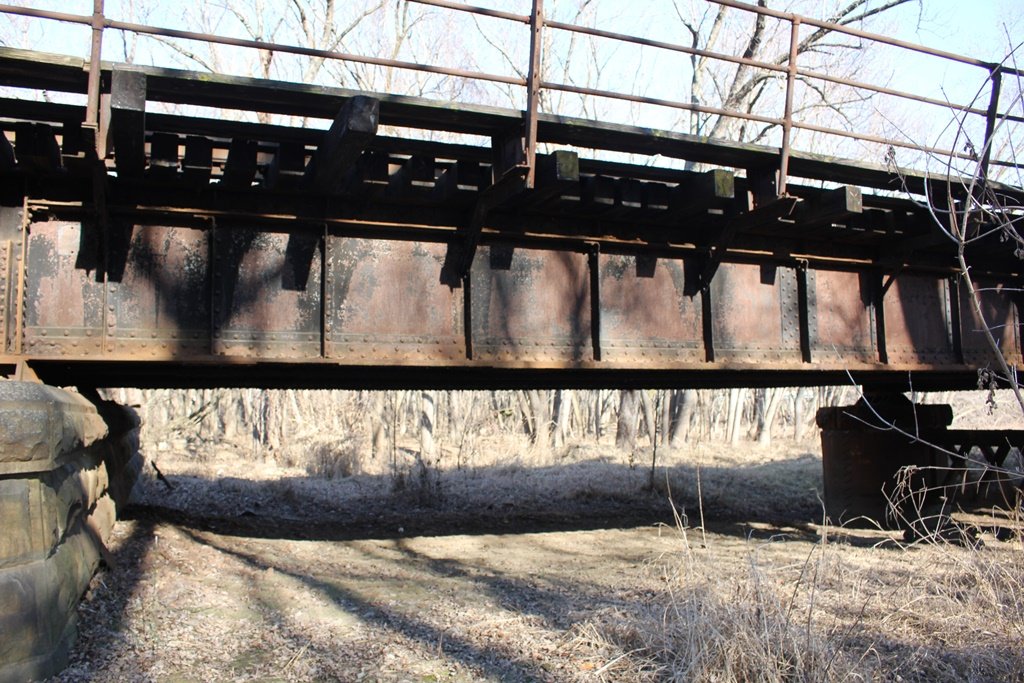

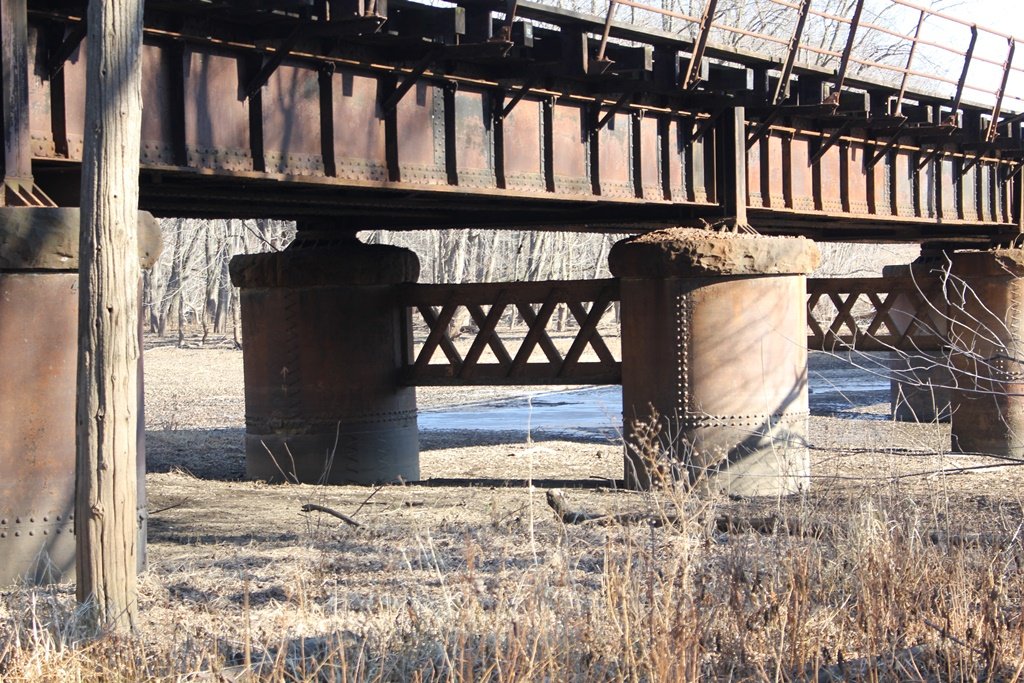

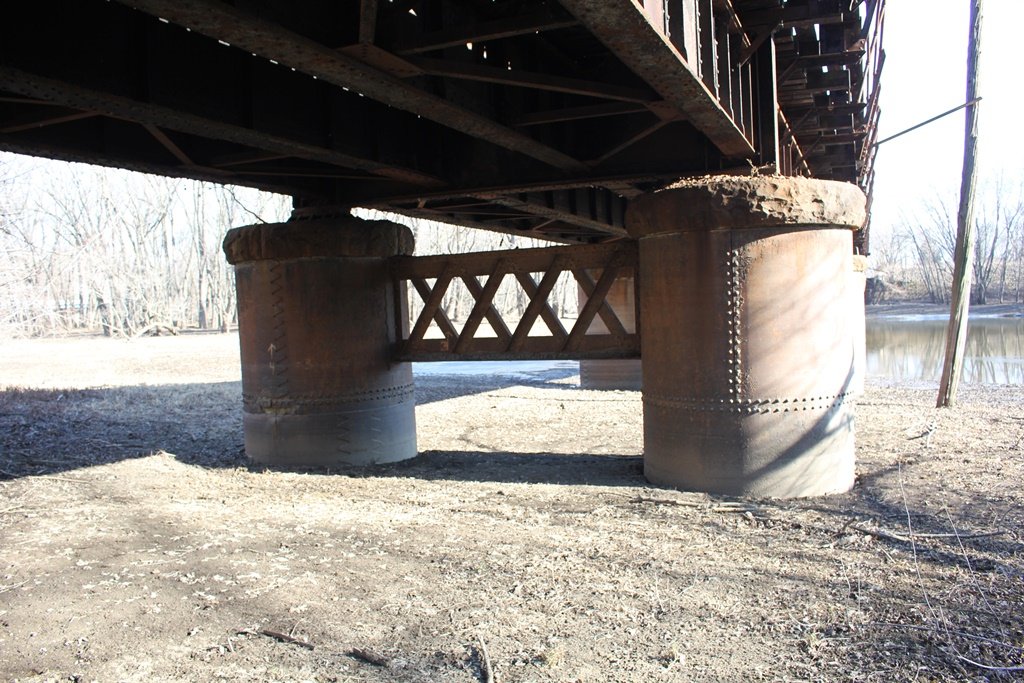

Located entirely in Illinois, the bridge features 11 deck girder spans, resting on steel caissons and stone abutments.
Built in 1909, the bridge is in a deteriorated condition from how heavily used it is. As a result, it is scheduled for replacement. As of January 2018, the project is in early stages of construction, including surveying and soil tests.
The double track bridge currently carries approximately 100 trains a day. Since its original construction, it has been carrying this level of traffic nearly every day.
Overall, the bridge remains in a deteriorated condition. Preventative maintenance appears to have ceased due to the planned construction of the new crossing, which will be located nearby to the south.
Upon completion of the new bridge, the old bridges will be removed, ending their 110+ year history. It is expected that the old bridges will be removed in 2025.

Historic Photo
Blueprints of the bridge, from Railroad Gazette: Volume 48 Issue 2

The author has ranked this bridge as being moderately significant, due to the large scale version of the deck girder design.

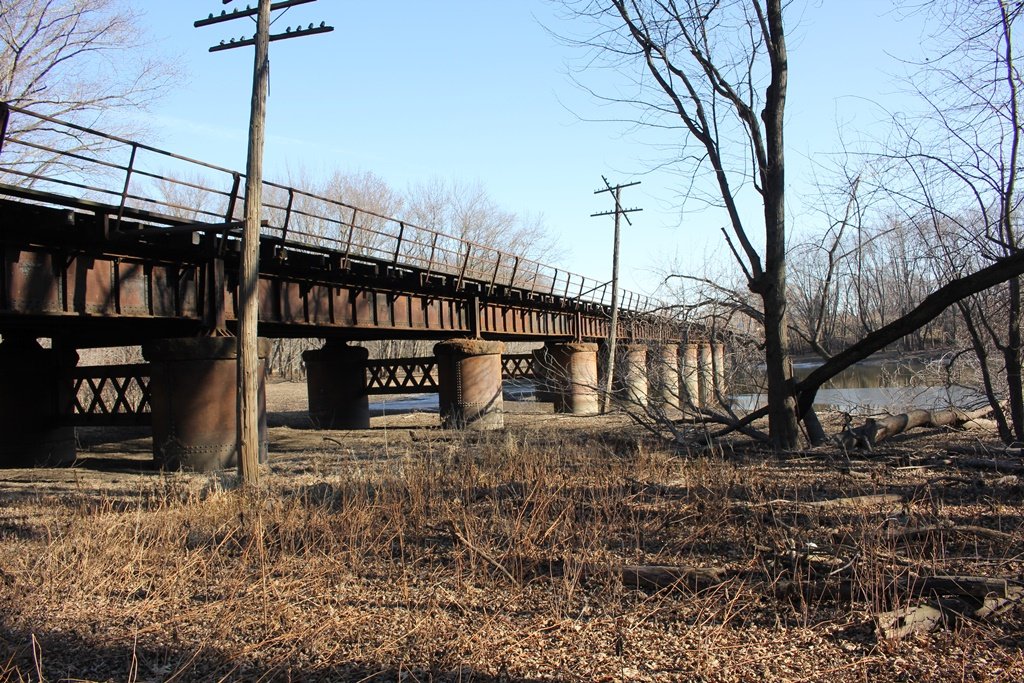

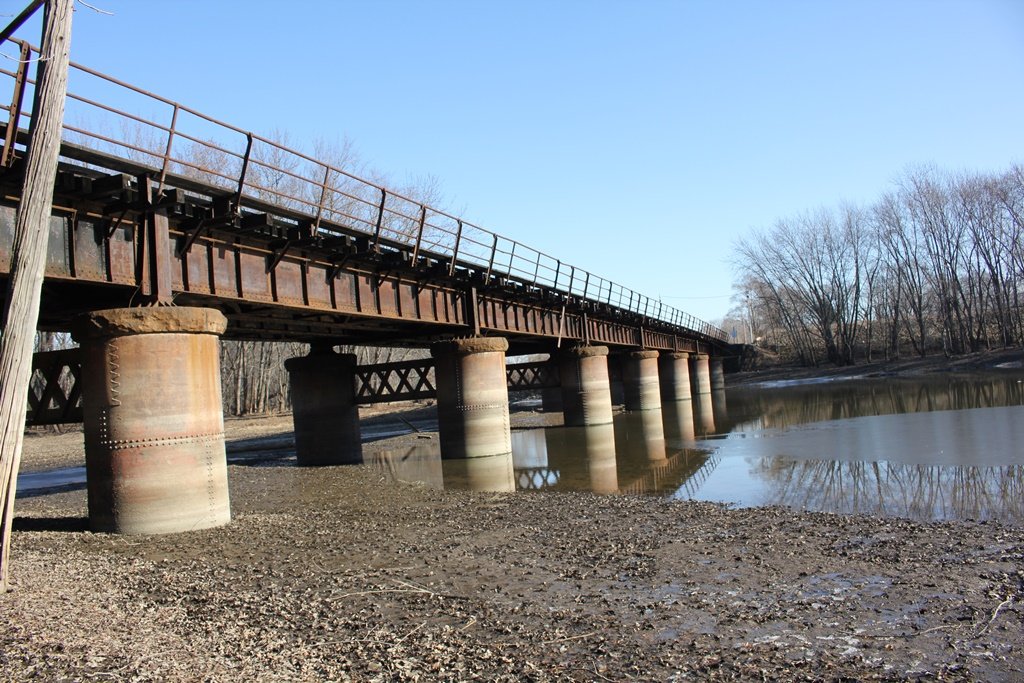

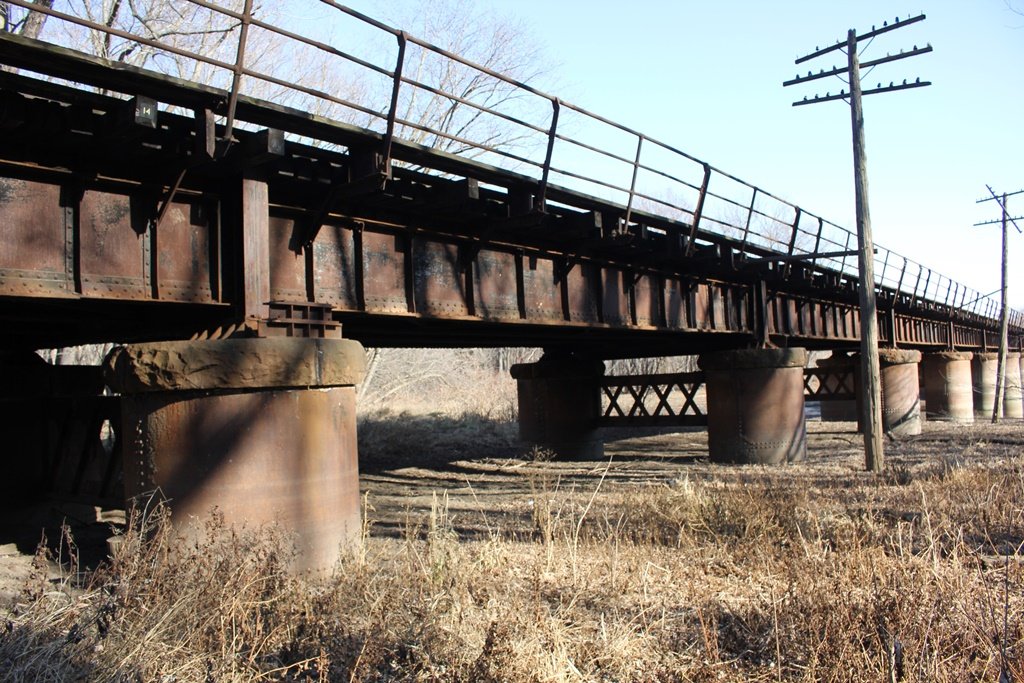

The photo above is an overview. It can be accessed from the island on the west end of the bridge.

Mississippi River Railroad Bridges
Upstream Sabula Rail Bridge
Middle Channel Willow Island Rail Bridge
Main Channel Clinton Rail Bridge
Downstream Government (Arsenal) Bridge

Citations

Source Type

Source

Build Date Reconstruction of crossing
Contractor Missing Wisconsin Bridge & Iron Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
