UP Mud Creek Bridge (Faribault)

Steel Stringer Bridge over Mud Creek
South of Faribault, Rice County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name UP Mud Creek Bridge (Faribault)
Built By Chicago, Rock Island & Pacific Railway
Contractor Unknown
Currently Owned By Union Pacific Railroad
Length 69 Feet Total
Width 1 Track
Height Above Ground 10 Feet (Estimated)
Superstructure Type Steel Stringer
Substructure Type Concrete
Date Built Ca. 1947
Traffic Count 15 Trains/Day (Estimated)
Current Status In Use
UP Bridge Number 293.60
Significance Minimal Significance
In 1901, the Burlington, Cedar Rapids & Northern Railway built a 54 mile route between Albert Lea and Comus (north of Faribault), as well as 11 miles connecting Inver Grove Heights to Rosemount.
This new route used a direct path between Albert Lea and St. Paul, and paralleled a nearby Milwaukee Road route.
In June of 1903, the Chicago, Rock Island & Pacific Railroad purchased the BCRN. The Rock Island utilized this route as a main line to connect to the Twin Cities.
Unfortunately for the Rock Island, it was never able to lure customers in the Saint Paul area to its facilities. As a result, it became more of a bridge railroad, connecting towns.

With a steady decline in company finances through the decades before, the Rock Island Railroad filed for bankruptcy in 1980. All Rock Island properties were shut down, and most salvaged.
This route became a contested route connecting the Twin Cities with Des Moines and Kansas City. In 1983, the Chicago & North Western Railway won the rights to the entire right of way between Kansas City and St. Paul. Rehabilitation work started soon after.
Extensive rebuilding of the line was necessary, as the Rock Island had not been maintaining properties for some years prior. This route required less extensive work than others, but still required a great deal of work to make operational.
In 1996, the C&NW was purchased by Union Pacific Railroad. Union Pacific currently owns this route, and it is known as the Albert Lea Subdivision. It continues to connect St. Paul and Kansas City.
06/26/21


Crossing Mud Creek south of Faribault, this three span steel stringer bridge utilizes a common design.

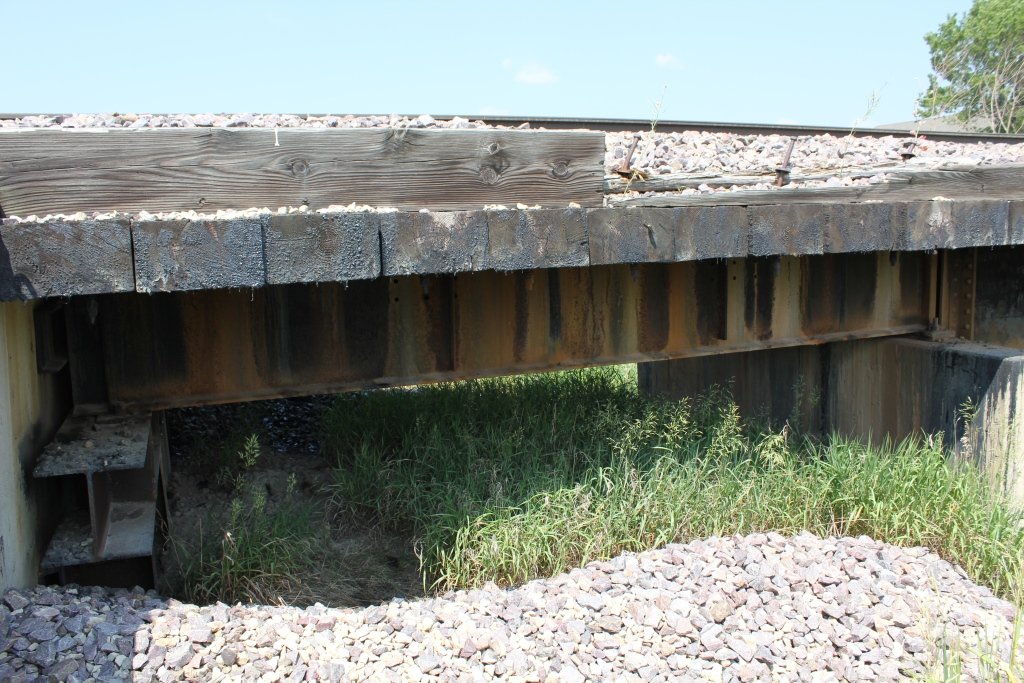

This bridge utilizes a common design, using three steel stringer spans. One span has printing giving a painting date of 1947. Judging by these beams, that date may be appropriate.

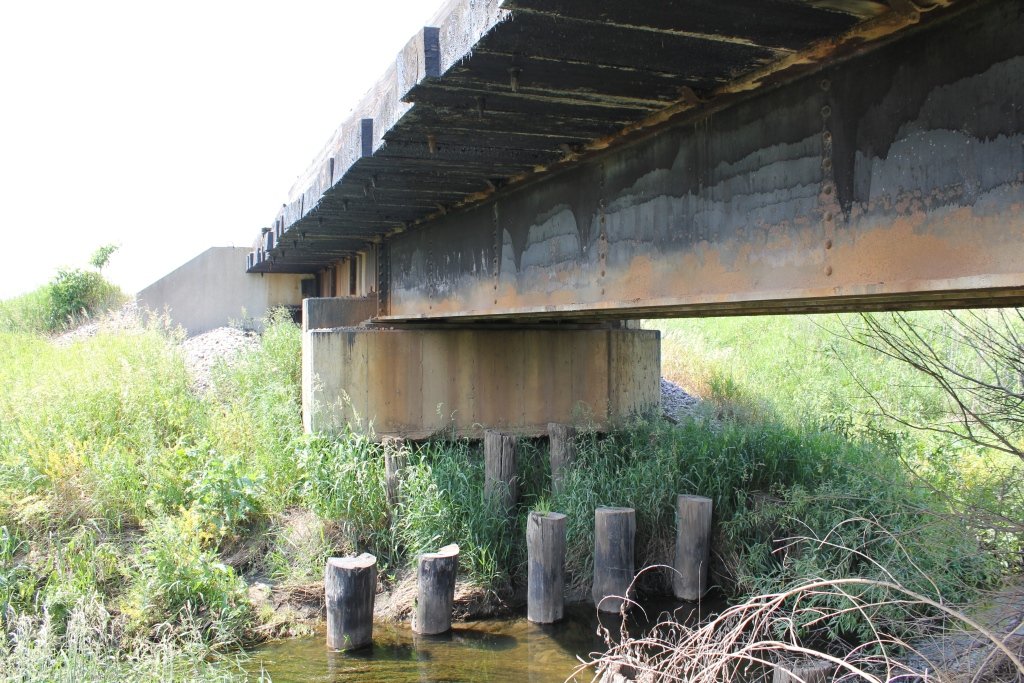

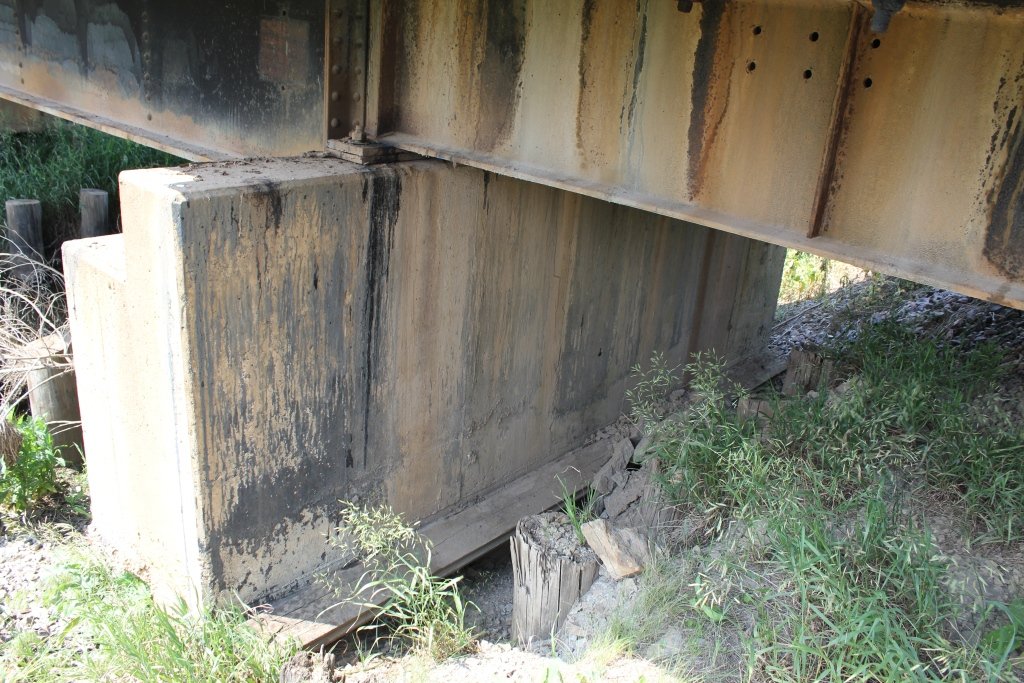

The substructures of the bridge are concrete piles. While it appears that the bridge may date to 1947, it is also possible it is older or was built using spare parts at a later date.
Overall, the bridge appears to be in good condition.

The author has ranked the bridge as being minimally significant, due to the common design and unknown history.

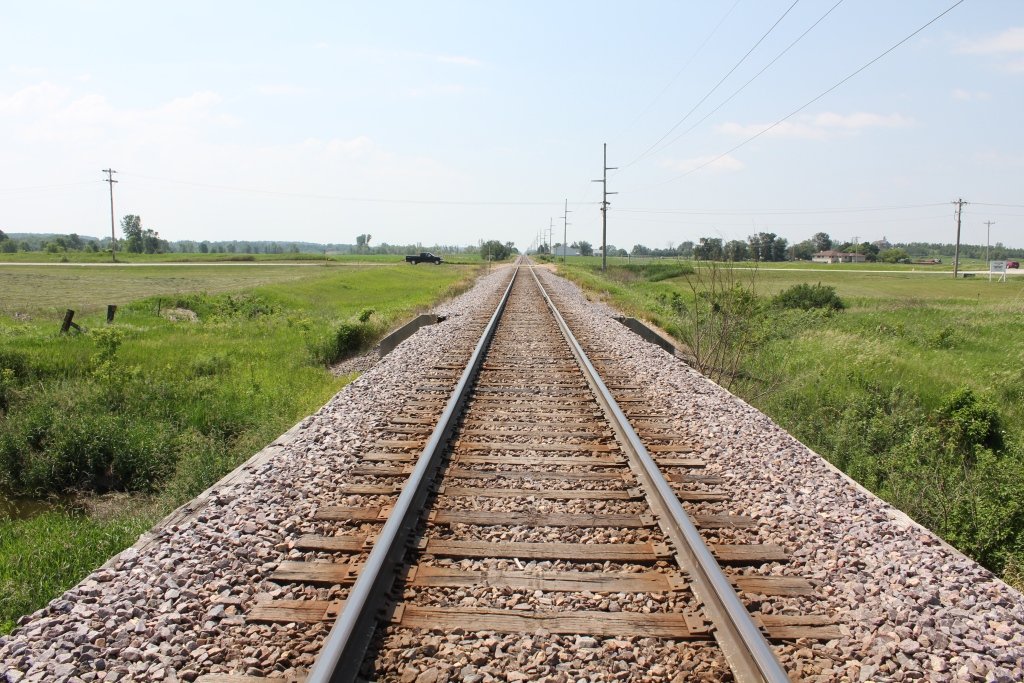

The photo above is an overview.

Citations

Source Type

Source

Build Date Printed Date
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
