UP Gypsum Creek Bridge

Deck Plate Girder Bridge over Gypsum Creek
Fort Dodge, Webster County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name UP Gypsum Creek Bridge
Built By Fort Dodge, Des Moines & Southern Railway
Contractor Unknown
Currently Owned By Union Pacific Railroad
Length 55 Feet Total, 25 Foot Main Span
Width 1 Track
Height Above Ground 10 Feet (Estimated)
Superstructure Type Deck Plate Girder and Trestle
Substructure Type Timber Pile
Date Built Ca. 1920
Traffic Count 1 Train/Day (Estimated)
Current Status In Use
UP Bridge Number Unknown
Significance Local Significance
Documentation Date April 2017
In 1875, the beginnings of the Fort Dodge, Des Moines & Southern were created as the Crooked Creek Railroad.
Charted as an 8 mile route east of Fort Dodge, the route connected coal mines in the area.
By 1885, it was made a standard gauge, and began consolidated operations with the Webster City and Southwestern Railroad, which operated from the existing route to Webster City.
In 1892, the CCR purchased the WC&SW. In 1893, the route would be extended to Fraser by the Boone Valley Coal and Railway Company.

Another railroad was formed in 1899, the Marshalltown and Dakota Railway, which planned to build from Marshalltown to South Dakota.
However, this route was never built. Despite this, the M&D completed a line from Fraser to Gowrie.
In 1901, the M&D name changed to the Boone, Rockwell City and Northwestern Railway. By 1904, routes would be opened to Newton from Fraser.
At the same time, the route to Rockwell City would also be completed.

In 1906, the Fort Dodge, Des Moines & Southern Railroad is incorporated to consolidate the numerous lines in the area. This route would become the largest interurban route in Iowa.
The railroad began to falter in 1930, and passenger service was reduced during World War II. Between 1968 and 1983, the route became part of the Chicago & North Western and several miles were abandoned.
In 1983, the Boone and Scenic Valley Railroad would be started to begin operations on a several mile segment of track from Fraser to Boone, along the Des Moines River.
Since conception, the B&SV has grown considerably and has become one of the main attractions in Iowa.
06/26/21

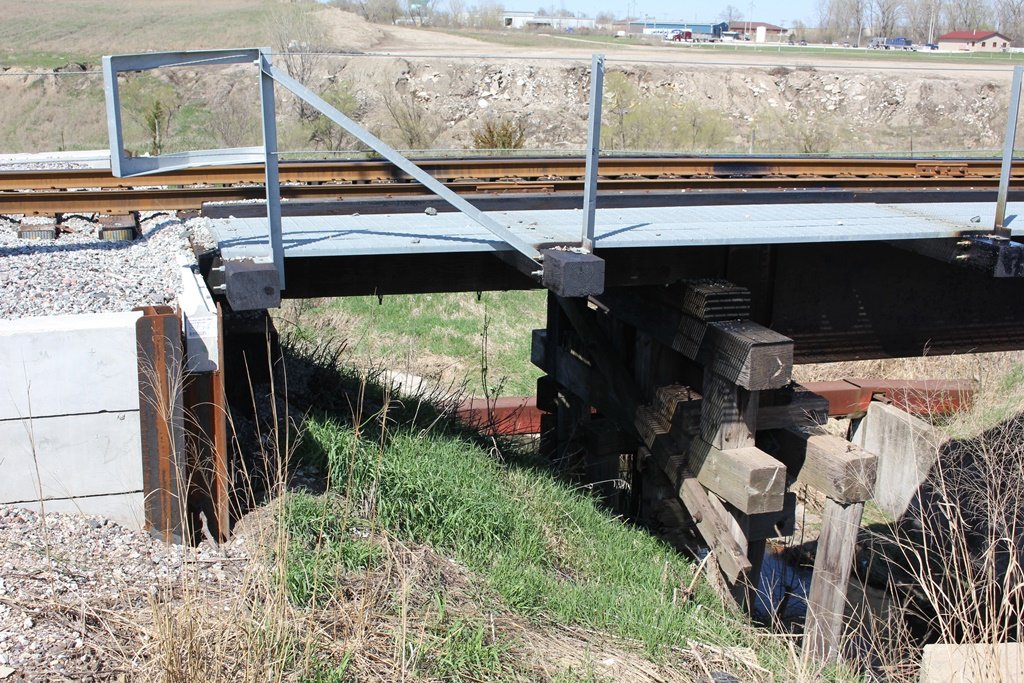

Utilizing a common design, this bridge features a deck girder bridge to cross Gypsum Creek.

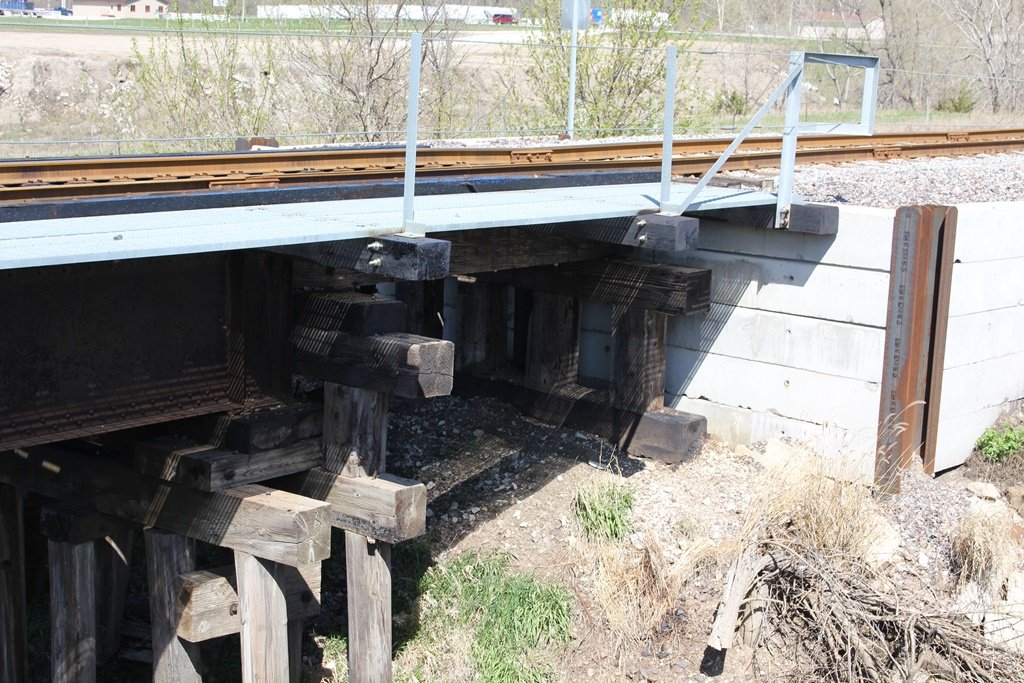

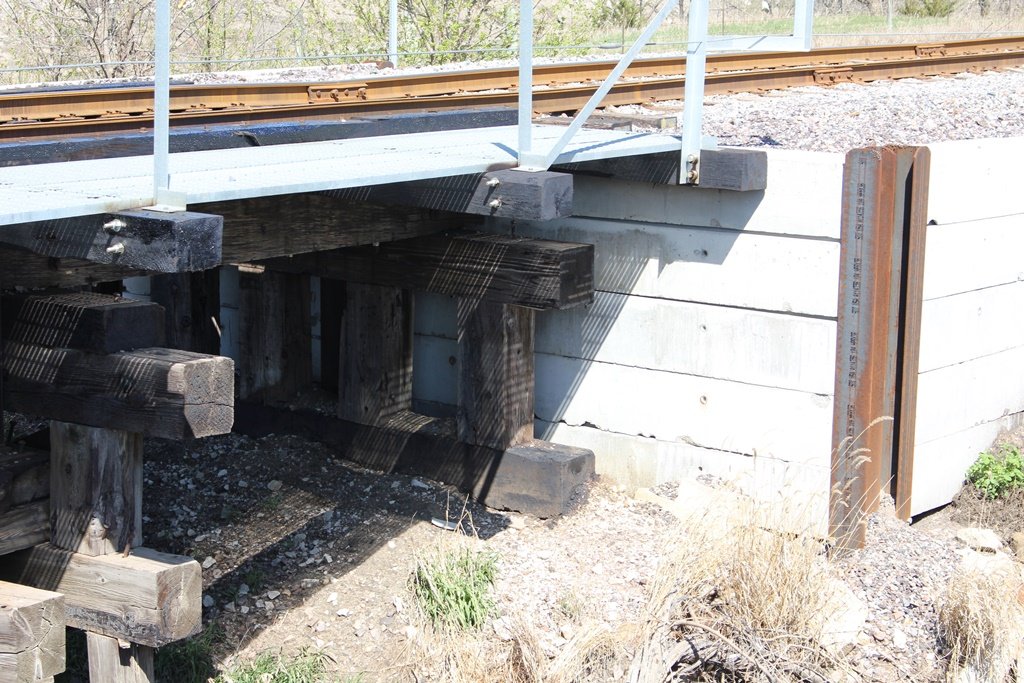

Located on the east side of Fort Dodge, the single deck girder span is set onto wooden substructures and approached by trestle spans.
This design is common on branch lines and even some main lines to cross roads, railroads and waterways.

The author has ranked the bridge as being locally significant, due to the common design of the bridge.

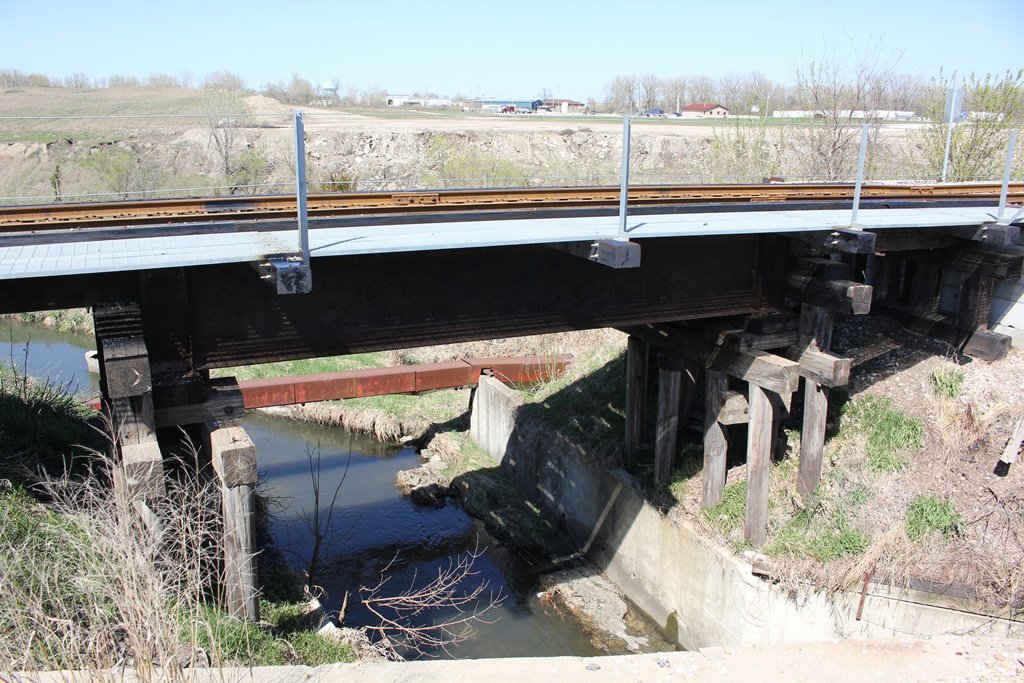

The photo above is an overview. It can be accessed from a parallel road.

Citations

Source Type

Source

Build Date Estimated based on similar bridges
