CP MN-3 Bridge (Faribault)

Steel Stringer Bridge Over Minnesota Highway 3
Faribault, Rice County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name CP MN-3 Bridge (Faribault)
Built By Chicago, Milwaukee St. Paul & Pacific Railway
Contractor Unknown
Currently Owned By Canadian Pacific Railroad (Progressive Rail)
Length 40 Feet
Width 1 Track
Height Above Ground 14 Feet (Estimated)
Superstructure Type Steel Girder
Substructure Type Concrete
Date Built 1936
Traffic Count 3 Trains/Week (Estimated)
Current Status In Use
MILW Bridge Number S-286.5
Significance Local Significance
In 1864, the Minnesota Central Railway began construction of an 82 mile route between Owatonna, Minnesota and St. Paul, Minnesota.
The following year, the route was completed to Austin, Minnesota. By 1870, the route would be absorbed by the Milwaukee & St. Paul Railway.
The railroad became a part of the Chicago, Milwaukee & St. Paul Railroad. The Milwaukee Road operated a number of lines throughout Southern Minnesota. This route was the main route to Iowa from the Twin Cities.
In 1915, the railroad was reorganized as the Chicago, Milwaukee, St. Paul & Pacific Railway in 1928. This route stayed a secondary mainline until 1985, when the Milwaukee Road was merged with the Soo Line (Canadian Pacific).

Being a secondary route, the route was sold off in the late 1980s or early 1990s. In 1997, it became a part of I&M Rail Link, and later the Iowa, Chicago & Eastern Railroad in 2002. By 2008, the IC&E along with sister Dakota, Minnesota & Eastern became a part of Canadian Pacific Railway.
Currently, a portion of this line from Iowa to Owatonna is operated as CP, while CP owns the line from Owatonna to Faribault.
Progressive Rail leases the line between Eagan and Faribault. Union Pacific operates the route as its Albert Lea Subdivision between Rosemount and Comus. Between Eagan and Mendota, the railroad has been abandoned.
06/26/21

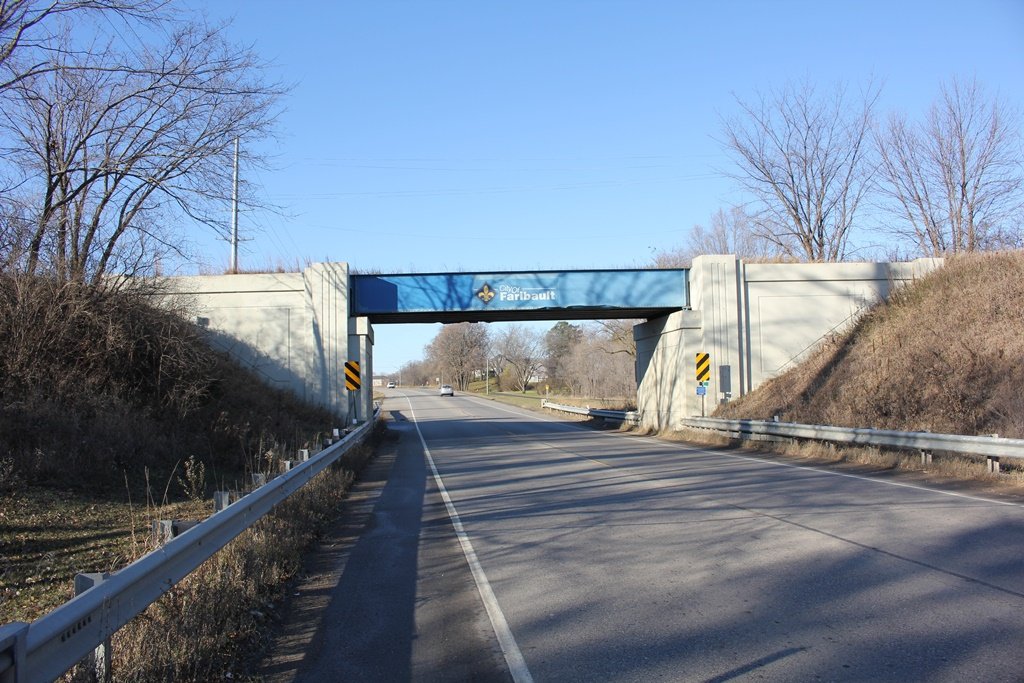

Located on the north side of Faribault, this bridge crosses Minnesota Highway 3 (Former US-65).

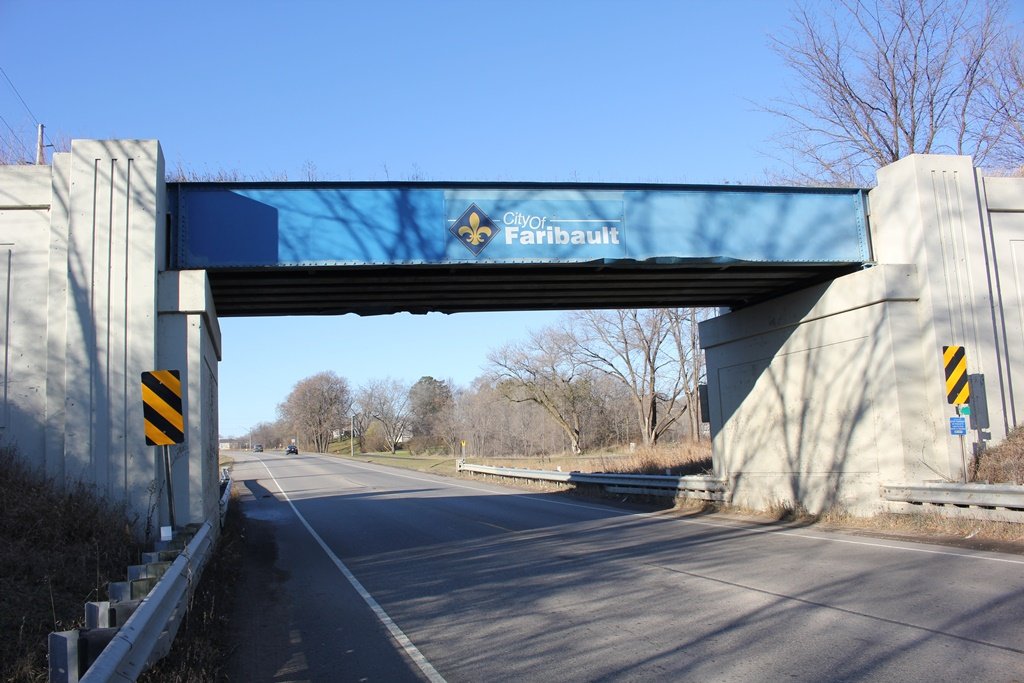

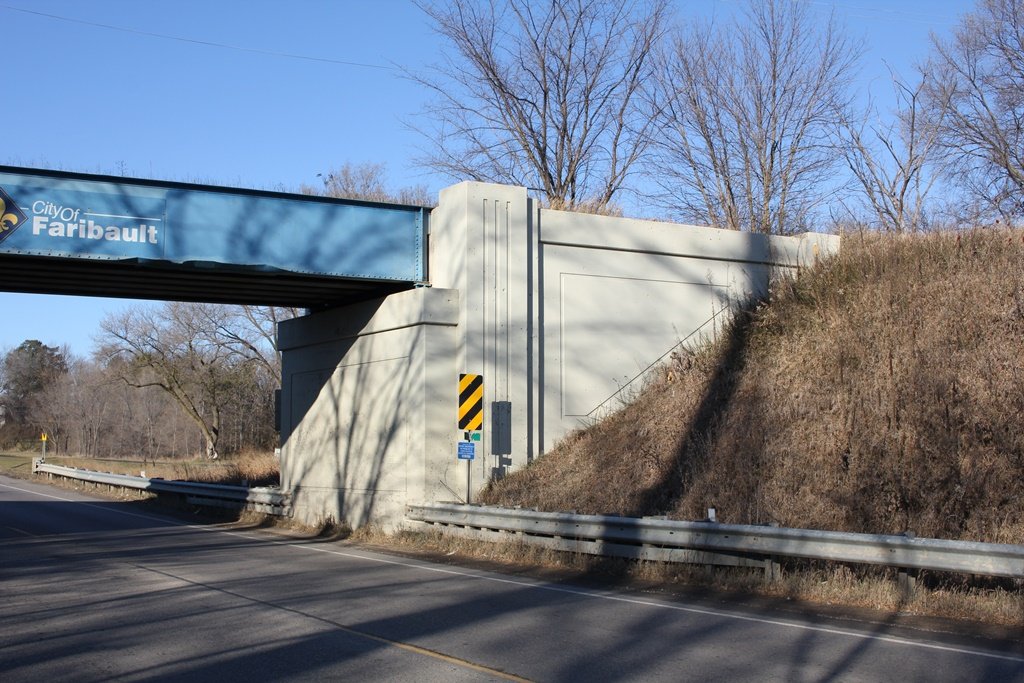

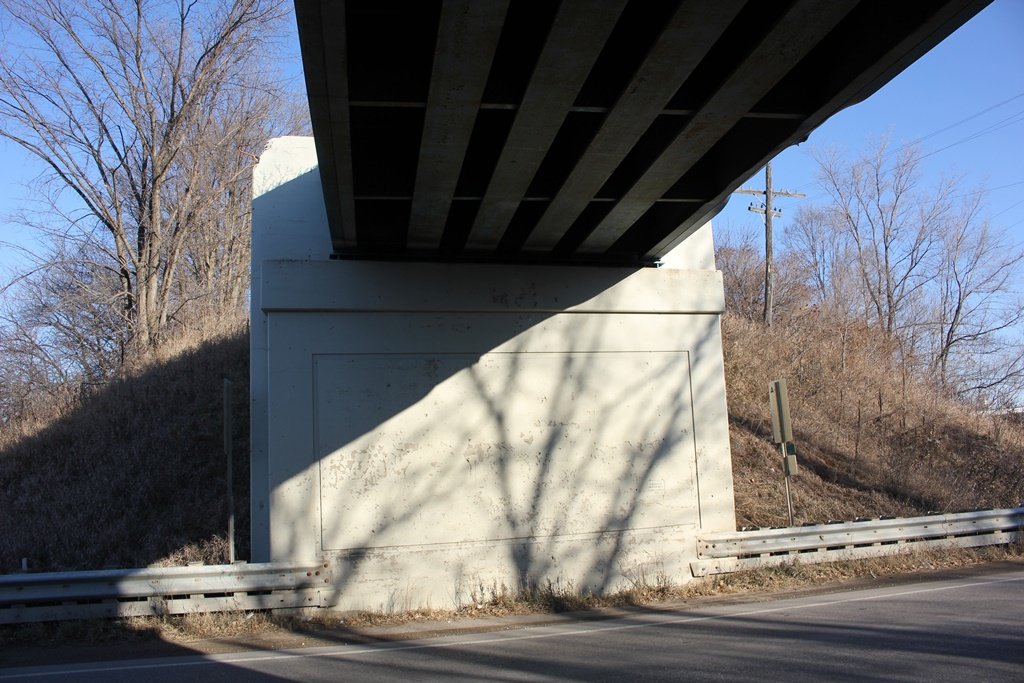

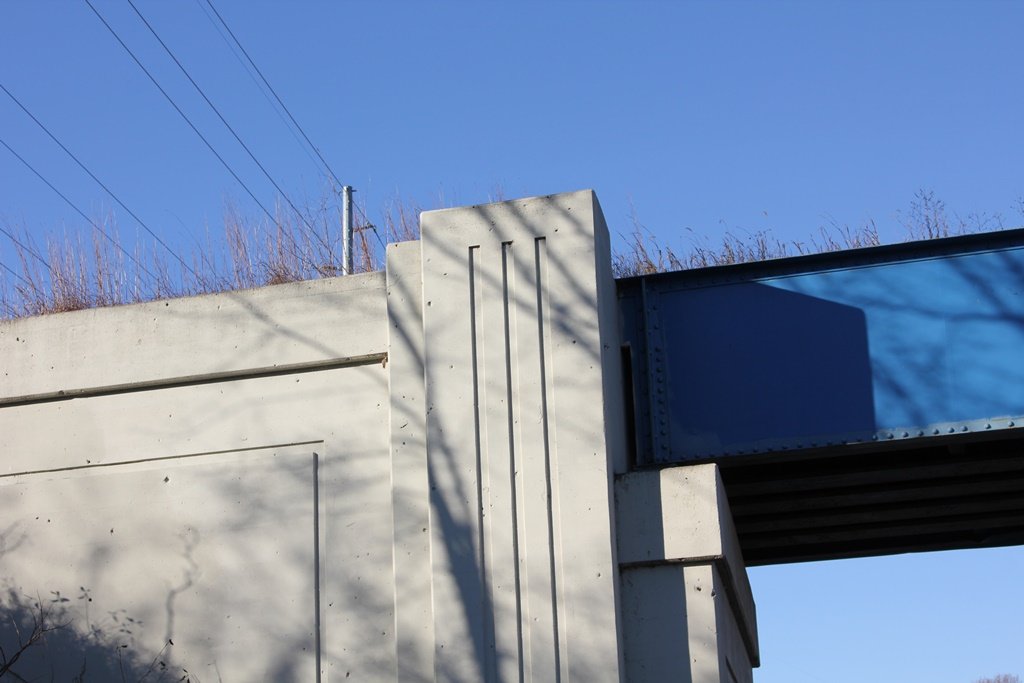

Originally built to cross US-65, the bridge was built in 1934 using a single steel girder span set onto concrete abutments.
In 1956, US-65 was relocated and no longer crossed under this bridge. Currently, it crosses Minnesota Highway 3.

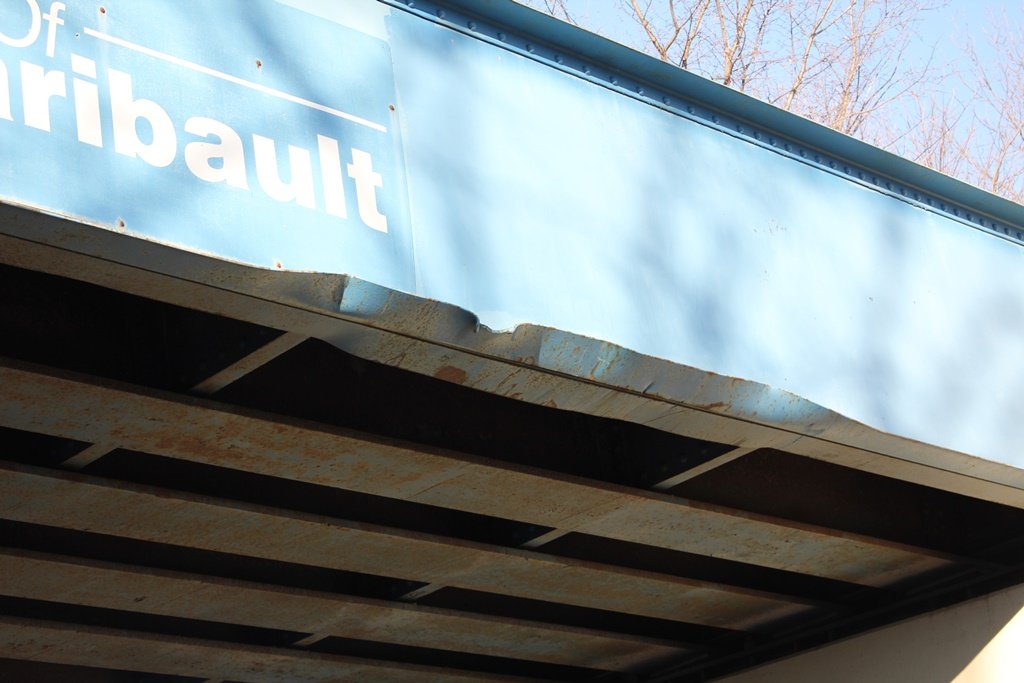

Overall, the bridge is in poor condition. Serious damage from oversized loads have gone under this bridge.

The author has ranked this bridge as being locally significant, due to the common design.

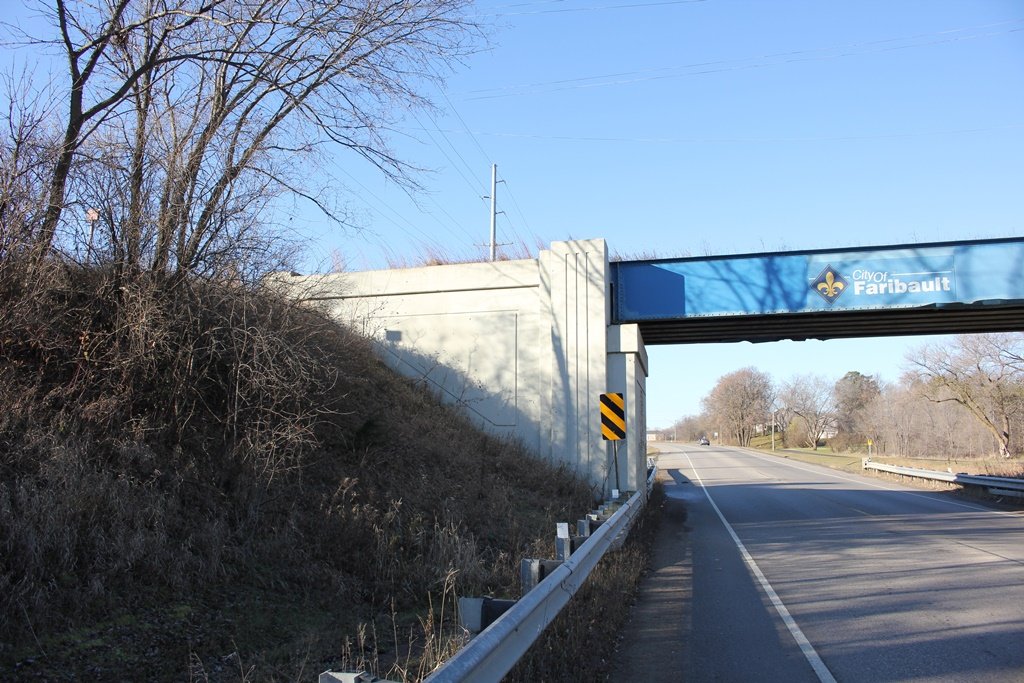

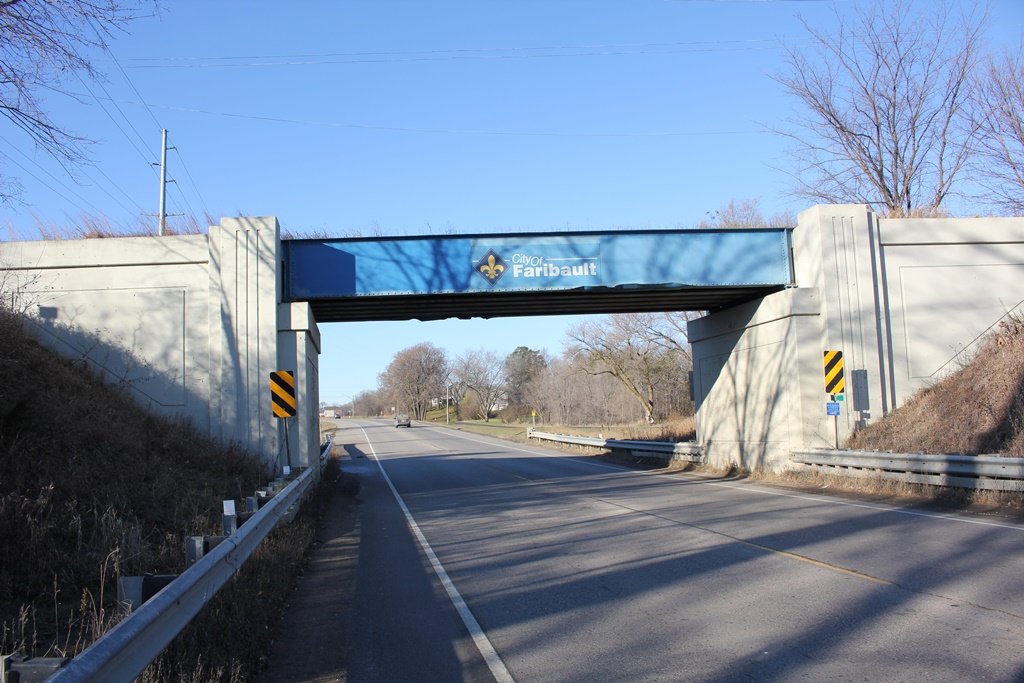

The photo above is an overview.

Citations

Source Type

Source

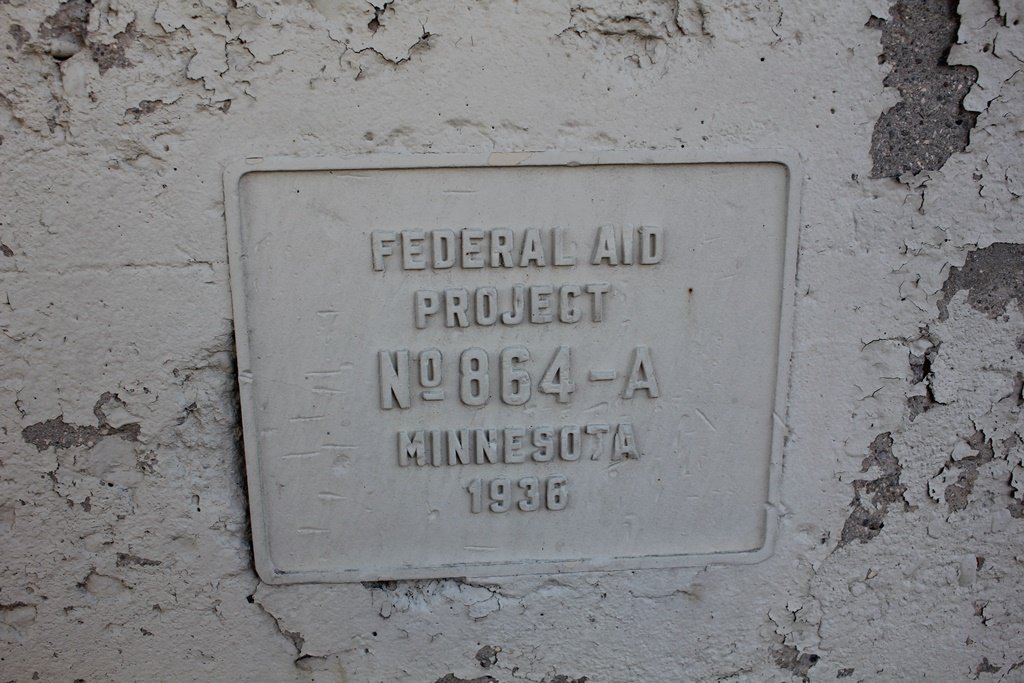

Build Date Federal Aid Project plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
