NS Grimm Road Bridge

Stone Arch Bridge over Grimm Road
East of Goodfield, Woodford County, Illinois

Click the Photo Above to See All Photos of This Bridge!
Name NS Grimm Road Bridge
Built By Lake Erie & Western Railroad
Contractor Unknown
Currently Owned By Norfolk Southern Railway
Length 30 Feet Total
Width 1 Track
Height Above Ground 12 Feet (Estimated)
Superstructure Type Stone Arch
Substructure Type Stone Masonry
Date Built Ca. 1890
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
NS Bridge Number 392.40
Significance Local Significance
Documentation Date June 2015 and April 2017
In 1872, the Lafayette, Bloomington and Mississippi Railway began construction of an 80 mile line extending from the Illinois/Indiana border.
At the same time, the Lafayette, Muncie and Bloomington Railroad continued building west, to Lafayette, Indiana. This completely line opened in 1872.

The two railroads became part of the Lake Erie & Western Railroad. The LE&W operated into Ohio, connecting to Cleveland.

A 30 mile extension was created on the west end of the line in 1888, connecting to Peoria. This would become the western terminus of both the LE&W, and its successor.

In 1900, the railroad came under the control of the New York Central Railroad, who sold it to the Nickel Plate Road in 1922.

The New York, Chicago and St. Louis Railroad (Nickel Plate) was a railroad operating in the Great Lake States, connecting Buffalo, New York to St. Louis; but also connecting to Indiana, Ohio and Pennsylvania.

By 1964, the NKP merged with the Wabash Railroad and several other small carriers to form the Norfolk and Western Railroad.

The N&W combined with the Southern Railway in 1982 to form the Norfolk Southern, who still operates a majority of this line as the Bloomington District. However, the portion between Gibson City and Lafayette would be abandoned in 1989.
The portion between Cheneyville and Lafayette is now operated by the Kankakee, Beaverville and Southern Railroad.

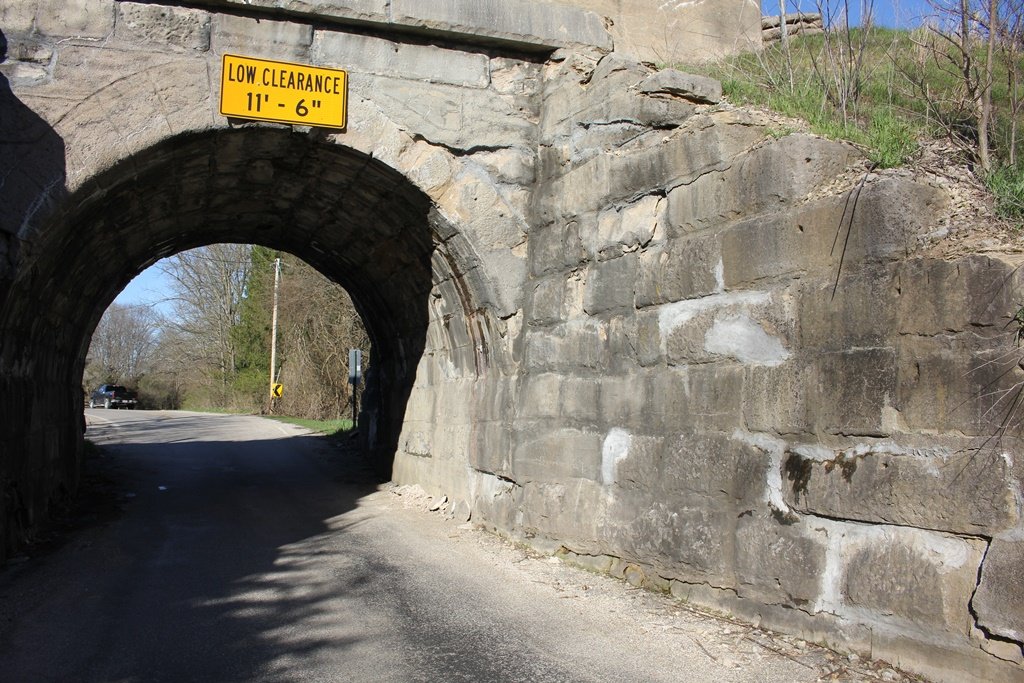

Located between Congerville and Goodfield, this small stone arch bridge crosses over Grimm Road.
Built in approximately 1890, the bridge consists of a single stone arch span. This span appears to follow a standard design.
Arches like these were commonly built to cross creeks. It is possible, but unlikely, that this was originally constructed to cross a creek. It is likely that it was originally built to cross a road.
Today, the bridge remains in service. Minor upgrades have occured to the bridge since construction, but it appears to still be in good condition.

The author has ranked this bridge as being locally significant, due to the common design.

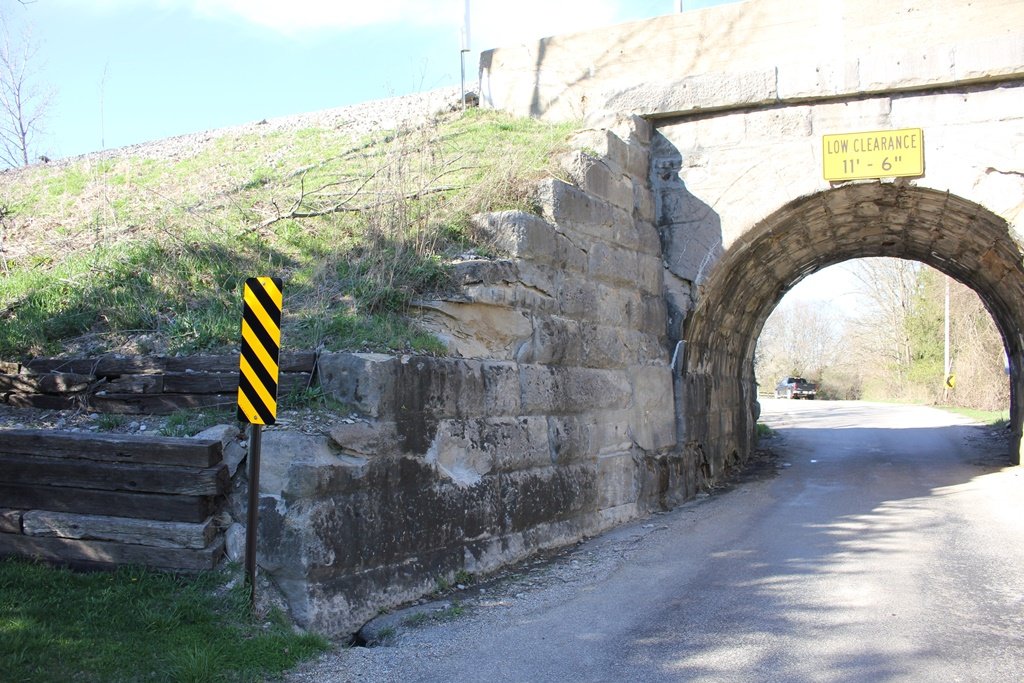

The photo above is an overview.


Source Type


Build Date Estimated
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
