Meadow Hill Railroad Bridge

Abandoned Quadrangular Through Truss Bridge over Wilson Creek
Menomonie, Dunn County, Wisconsin

Click the Photo Above to See All Photos of This Bridge!
Name Meadow Hill Railroad Bridge
Built By Chicago, St. Paul, Minneapolis & Omaha Railway
Contractor American Bridge Company of New York
Currently Owned By City of Menomonie
Length 196 Feet Total, 150 Foot Main Span
Width 1 Track
Height Above Ground 10 Feet (Estimated)
Type Quadrangular Through Truss and Deck Plate Girder
Substructure Type Concrete and Steel Pile
Date Erected Ca. 1930
Date Fabricated (Truss) Ca. 1890
Date Fabricated (Girder) 1905
Original Locations Unknown
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
C&NW Bridge Number D3
Significance Regional Significance
In 1880, the Menomonie Railway built a line from the existing mainline at Menomonie Junction to downtown Menomonie, as well as a line north to Cedar Falls.
By 1893, the WW became part of the Chicago, St. Paul & Minneapolis Railway, which in turn became part of the Chicago, St. Paul, Minneapolis & Omaha Railway in 1880.
The Omaha road became controlled by the Chicago & North Western Railway upon formation in 1880. The Omaha Road was leased by the C&NW in 1957, and was outright merged in 1972. The C&NW continued to operate this as a main track until 1995, when it was purchased by Union Pacific.
While the route to Cedar Falls was abandoned in 1902, the Menomonie spur lasted until 2002, when it was abandoned.
Today, portions are trails while others are abandoned.
09/04/18


Crossing Wilson Creek between downtown Menomonie and the UW Stout Campus is this large truss bridge.
Built in approximately 1890 at an unknown location, this large truss bridge was installed in approximately 1930 to replace an older wooden trestle.

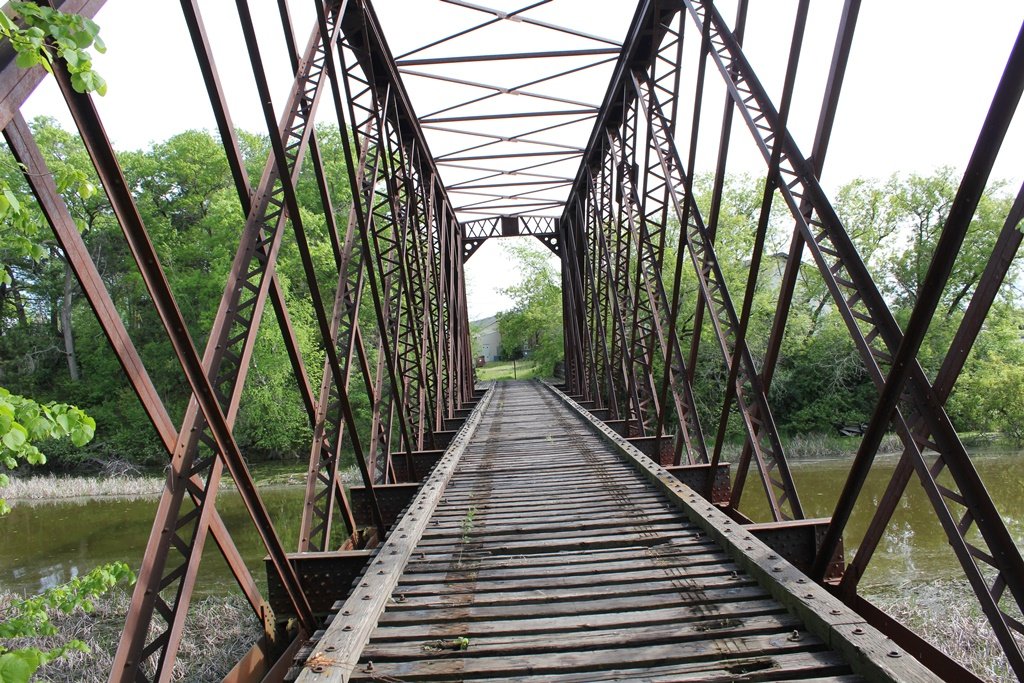

Like the nearby Red Cedar River Bridge, this truss is a riveted Quadrangular Through Truss. It is believed that they may have been relocated from near Gordon or Rice Lake, Wisconsin; or from the Iowa division.

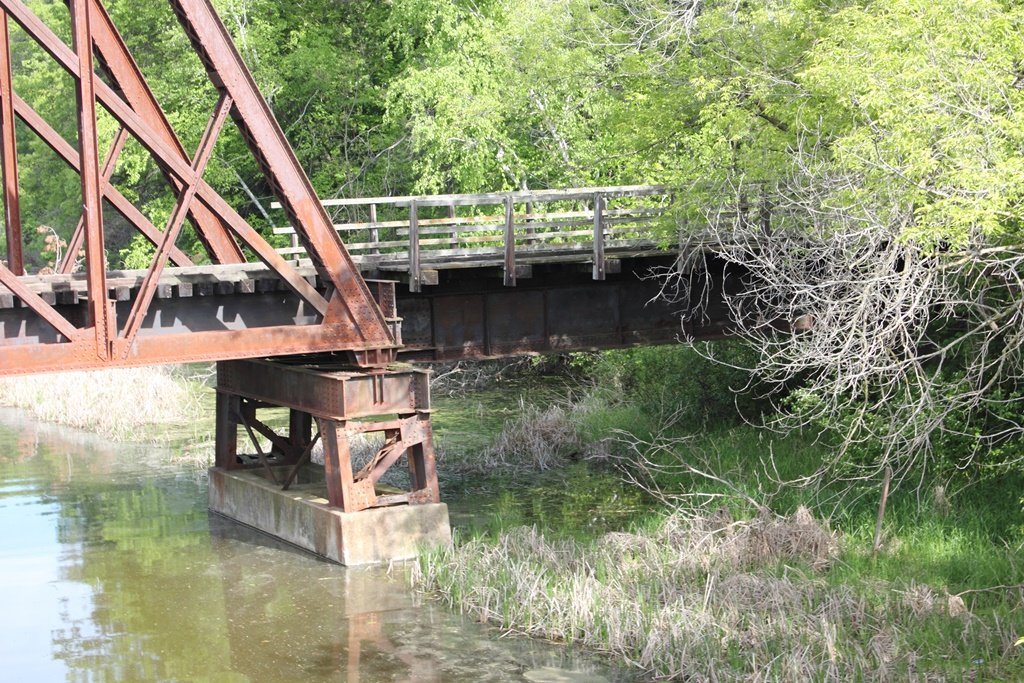

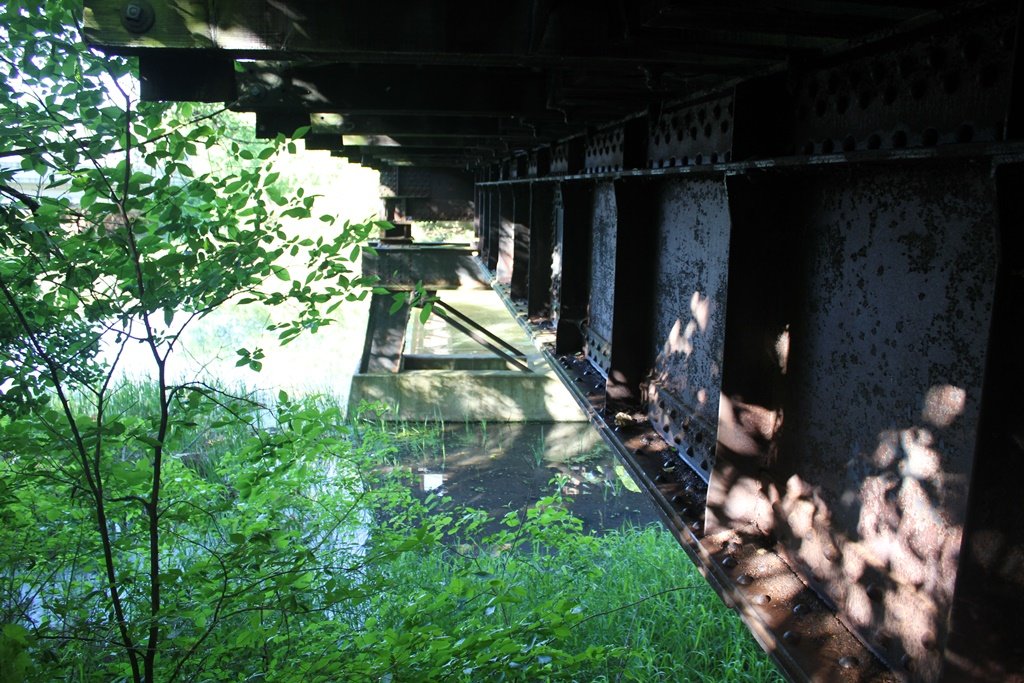

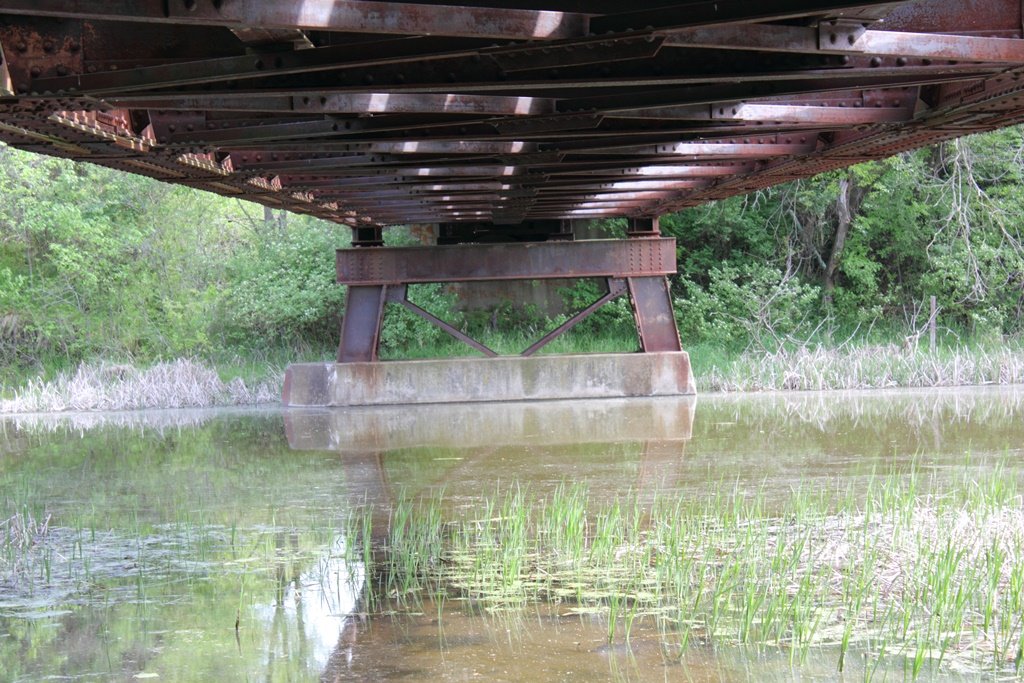

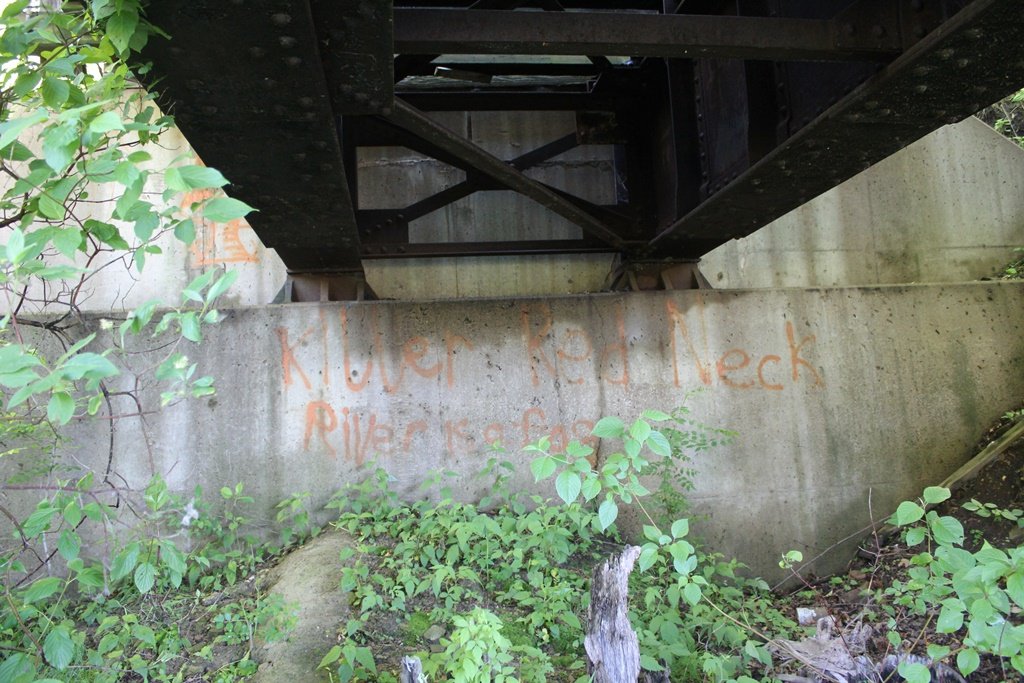

In addition to the truss, a 1905 vintage deck girder span approaches the structure. This span was also relocated, alas from an unknown location. The bridge rests on concrete and steel substructures.
The bridge has an unknown future. Maps from the City of Menomonie suggest this bridge will be reused as a trail, and the author hopes this is true. This structure is a large and signature bridge, and would be great for a connection between Downtown Menomonie and the Stout Campus.
Overall, the bridge appears to remain in good condition.

The author has ranked this bridge as being regionally significant, due to the large scale design, relocation history and unknown future.

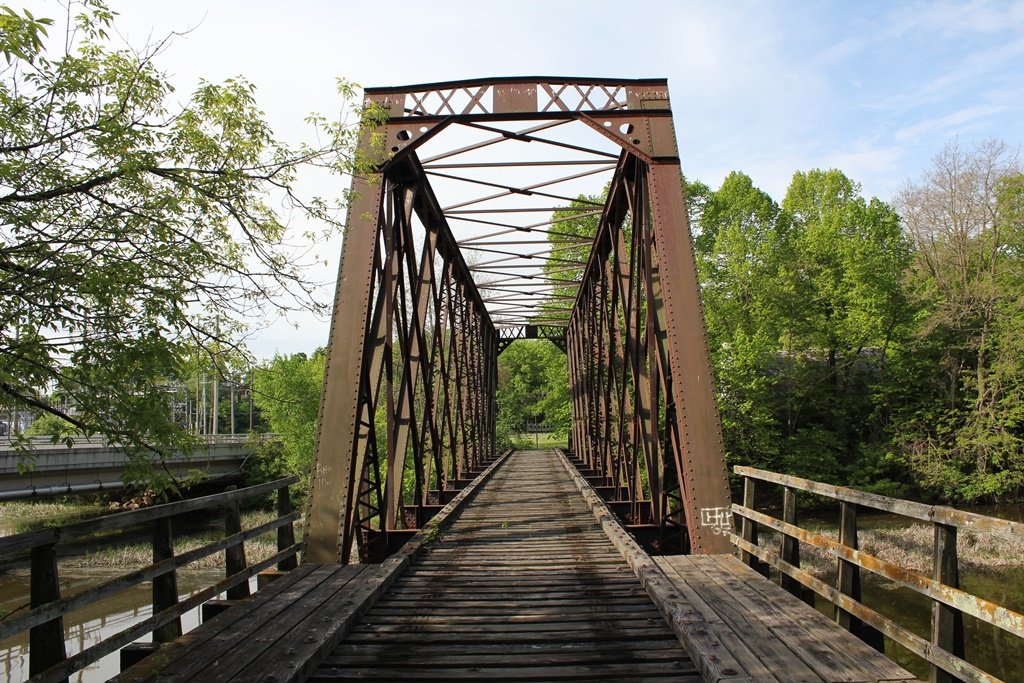

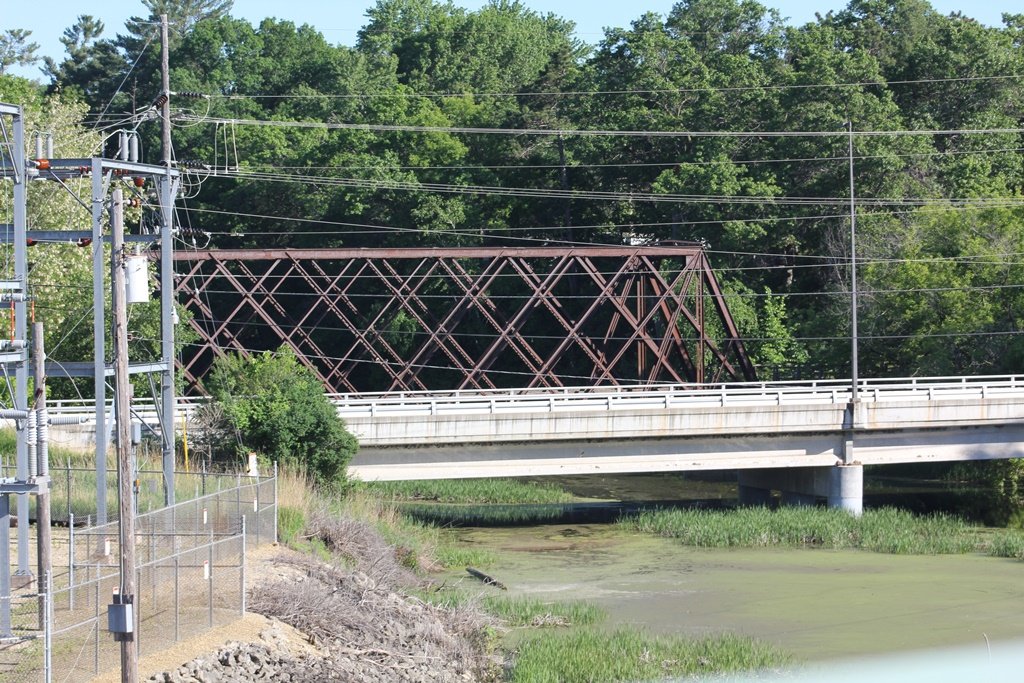

The photo above is an overview. The bridge can be seen from parallel Meadow Hill Drive.

Citations

Source Type

Source

Build Date Estimated based on similar bridges

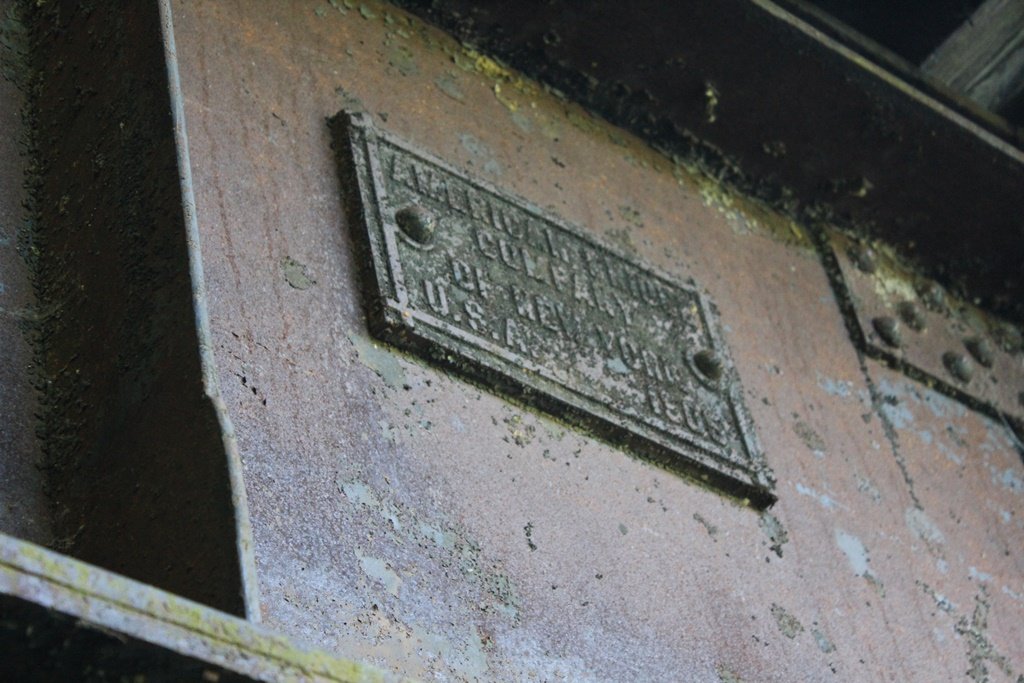

Contractor (Approach Span) American Bridge Company plaque
Original Location Information Unknown
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
