CP 270th Street Bridge (Medford)

Steel Girder Bridge over 270th Street
Near Faribault, Rice County, Minnesota
To
Medford, Steele County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name CP 270th Street Bridge (Medford)
Built By Chicago, Milwaukee St. Paul & Pacific Railway
Contractor Unknown
Currently Owned By Canadian Pacific Railway
Length 60 Feet Total, 25 Foot Main Span
Width 1 Track
Height Above Ground 13 Feet (Estimated)
Superstructure Type Steel Girder and Trestle
Substructure Type Timber Pile
Date Built 1947
Traffic Count 0 Trains/Day (Bridge is Closed to Traffic)
Current Status Closed to Traffic
MILW Bridge Number S-278
Significance Local Significance
In 1864, the Minnesota Central Railway began construction of an 82 mile route between Owatonna, Minnesota and St. Paul, Minnesota.
The following year, the route was completed to Austin, Minnesota. By 1870, the route would be absorbed by the Milwaukee & St. Paul Railway.
The railroad became a part of the Chicago, Milwaukee & St. Paul Railroad. The Milwaukee Road operated a number of lines throughout Southern Minnesota. This route was the main route to Iowa from the Twin Cities.
In 1915, the railroad was reorganized as the Chicago, Milwaukee, St. Paul & Pacific Railway in 1928. This route stayed a secondary mainline until 1985, when the Milwaukee Road was merged with the Soo Line (Canadian Pacific).

Being a secondary route, the route was sold off in the late 1980s or early 1990s. In 1997, it became a part of I&M Rail Link, and later the Iowa, Chicago & Eastern Railroad in 2002. By 2008, the IC&E along with sister Dakota, Minnesota & Eastern became a part of Canadian Pacific Railway.
Currently, a portion of this line from Iowa to Owatonna is operated as CP, while CP owns the line from Owatonna to Faribault.
Progressive Rail leases the line between Eagan and Faribault. Union Pacific operates the route as its Albert Lea Subdivision between Rosemount and Comus. Between Eagan and Mendota, the railroad has been abandoned.
06/26/21

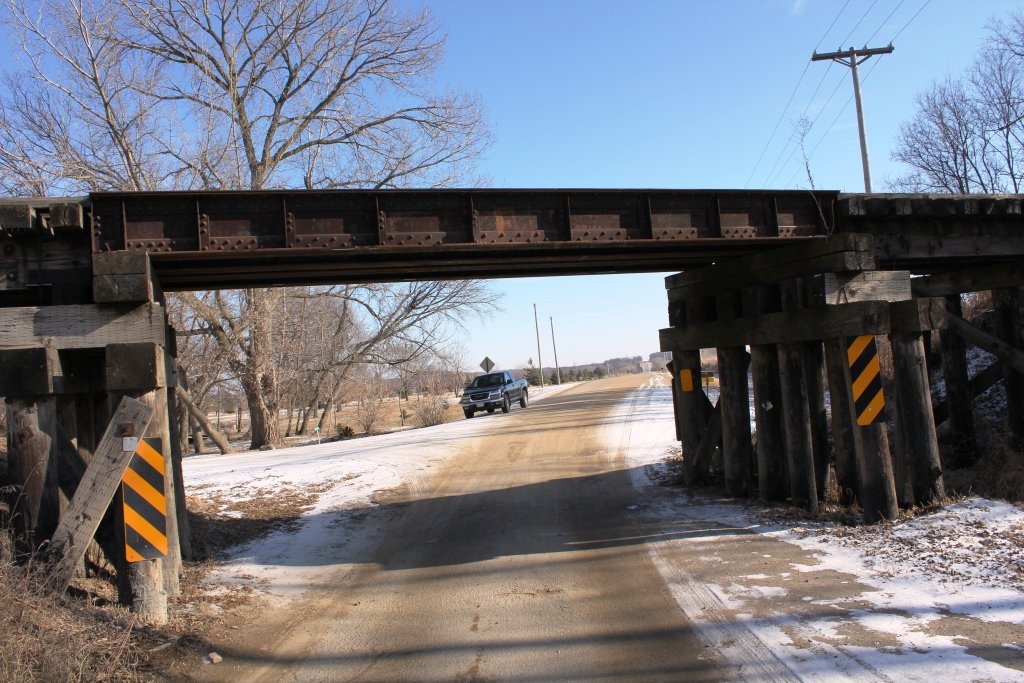

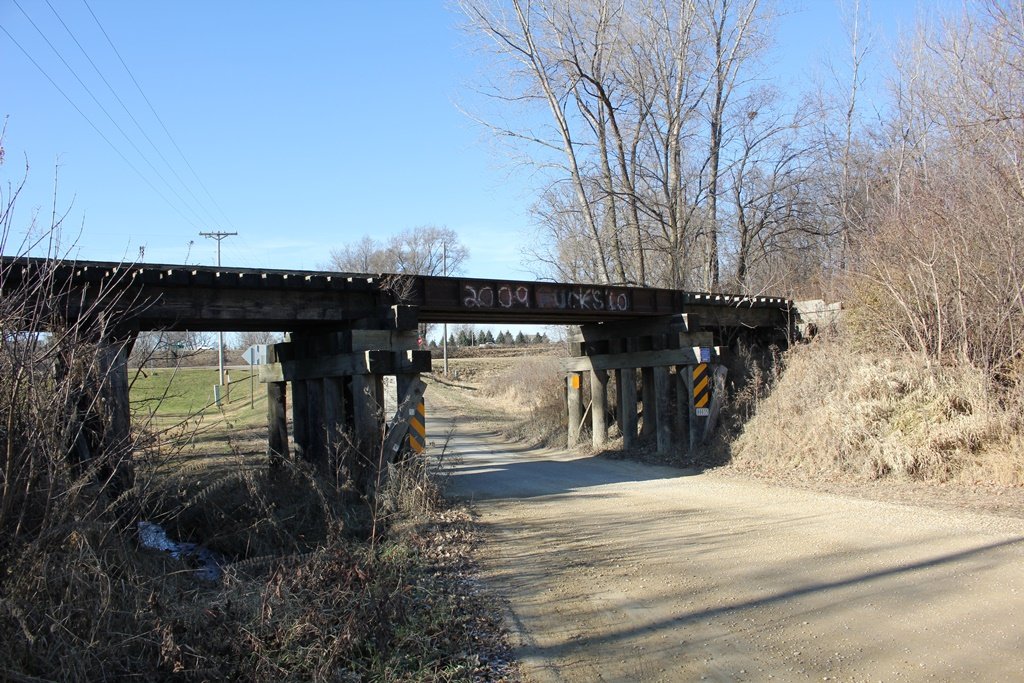

This small girder bridge crosses 270th Street between Faribault and Austin.
Located along an out of service railroad, the bridge has not been formally abandoned.

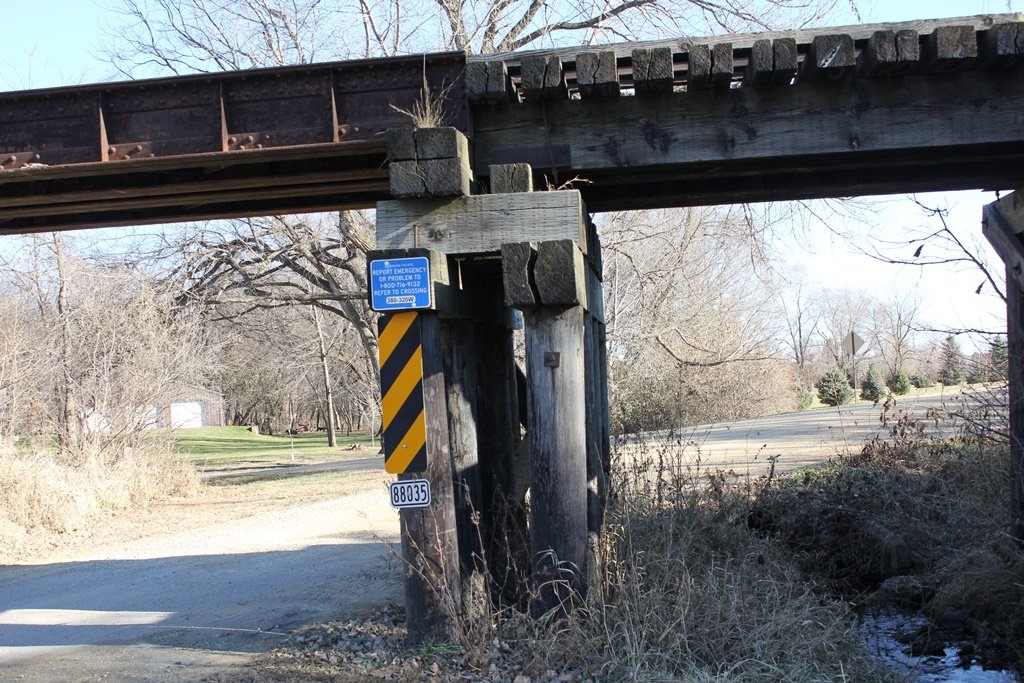

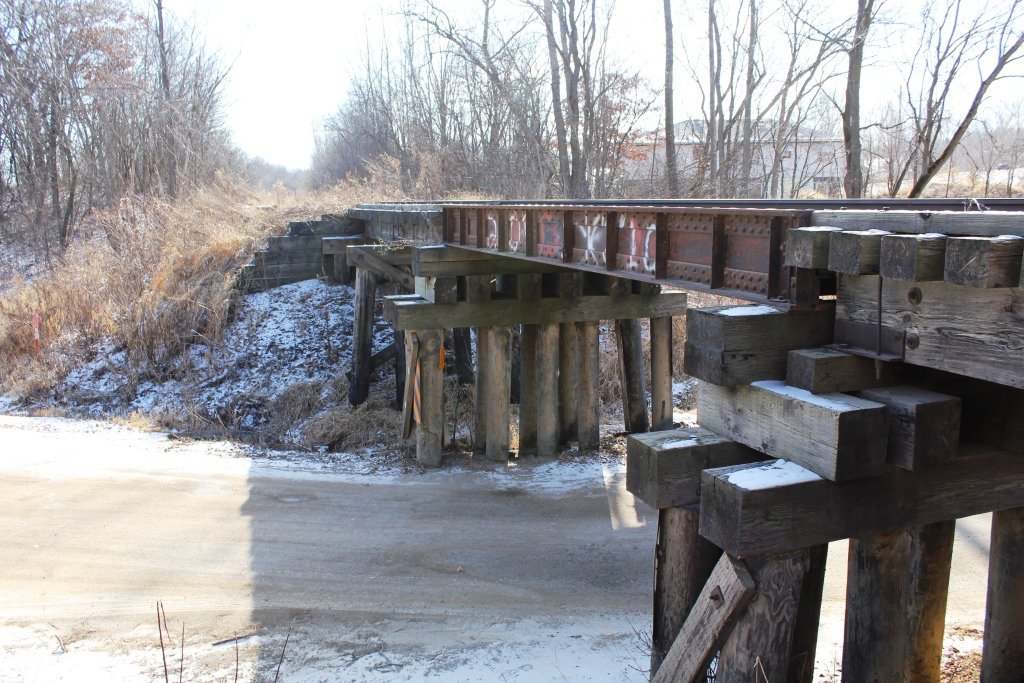

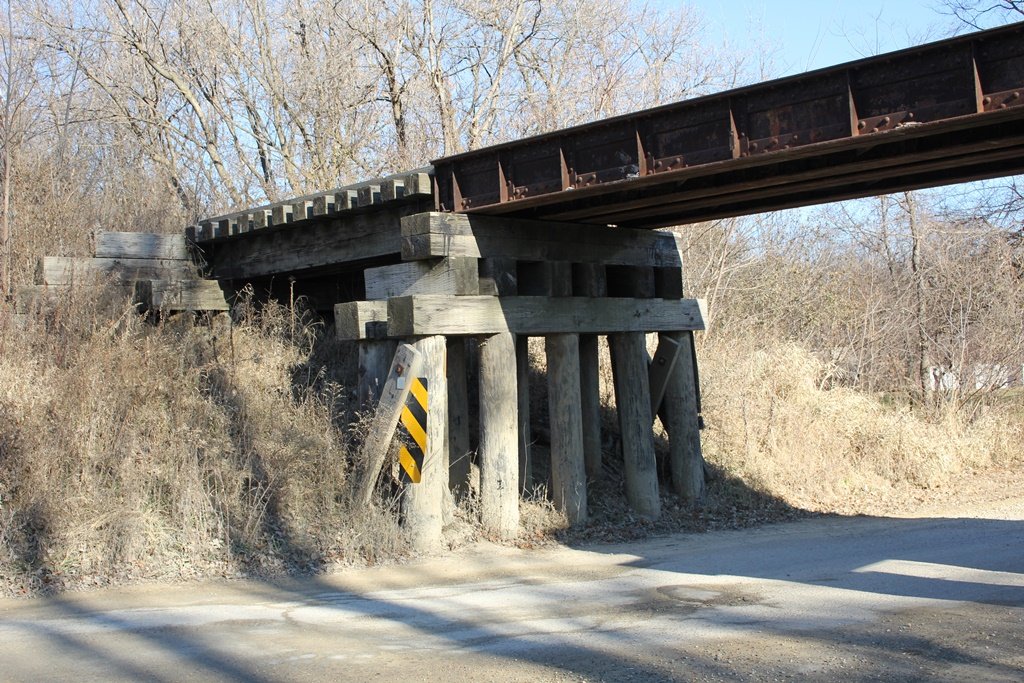

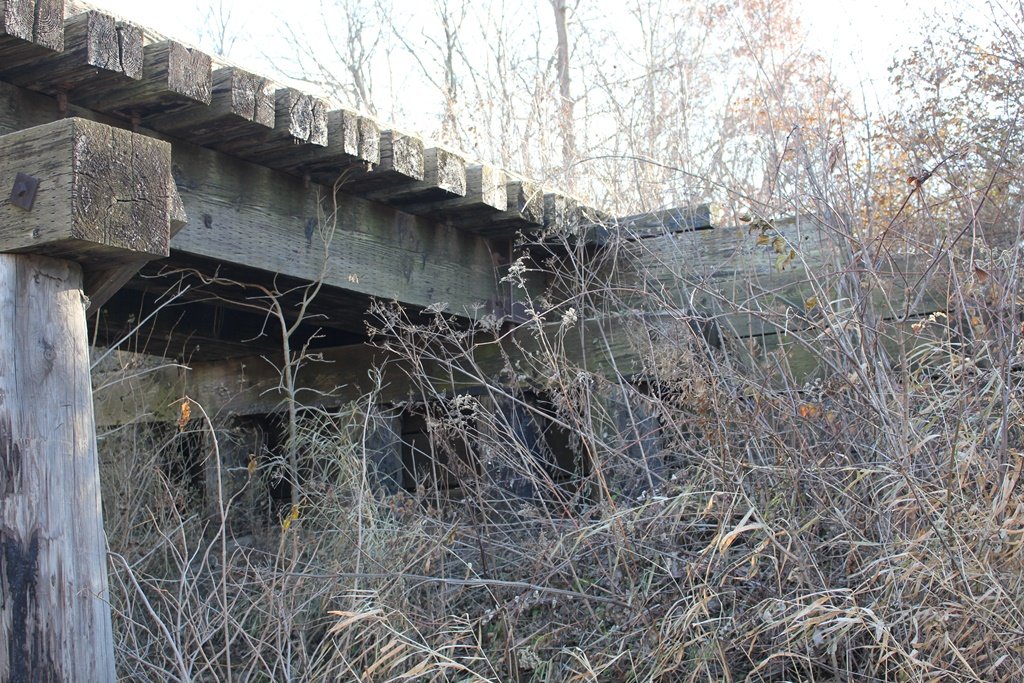

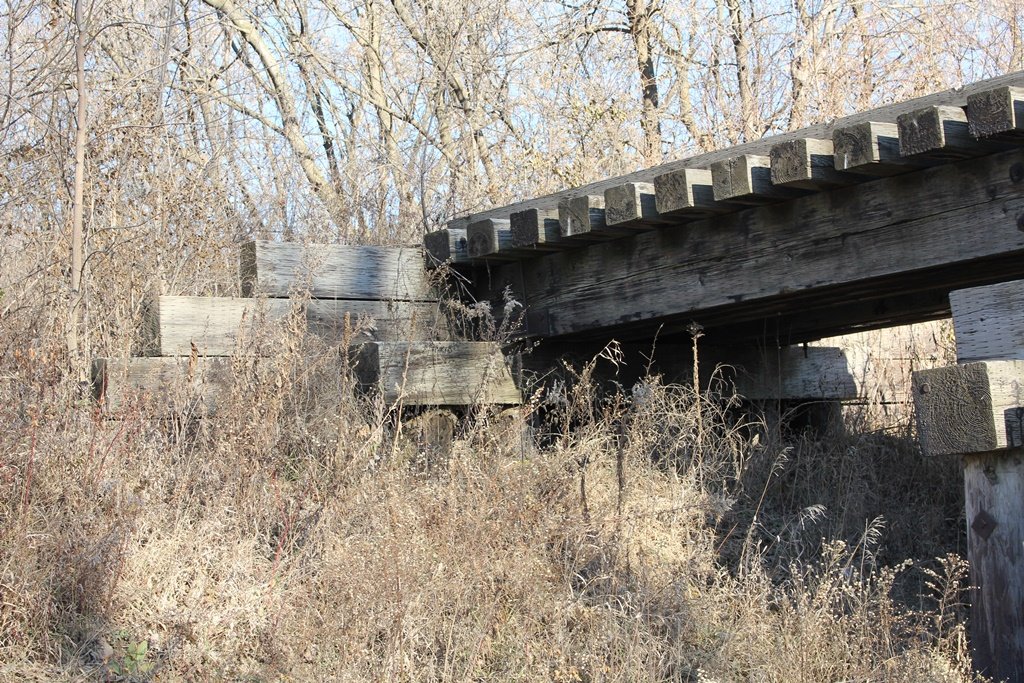

Reportedly built in 1947, this bridge features a short girder main span, and is approached by wooden trestle. The substructures are all timber.

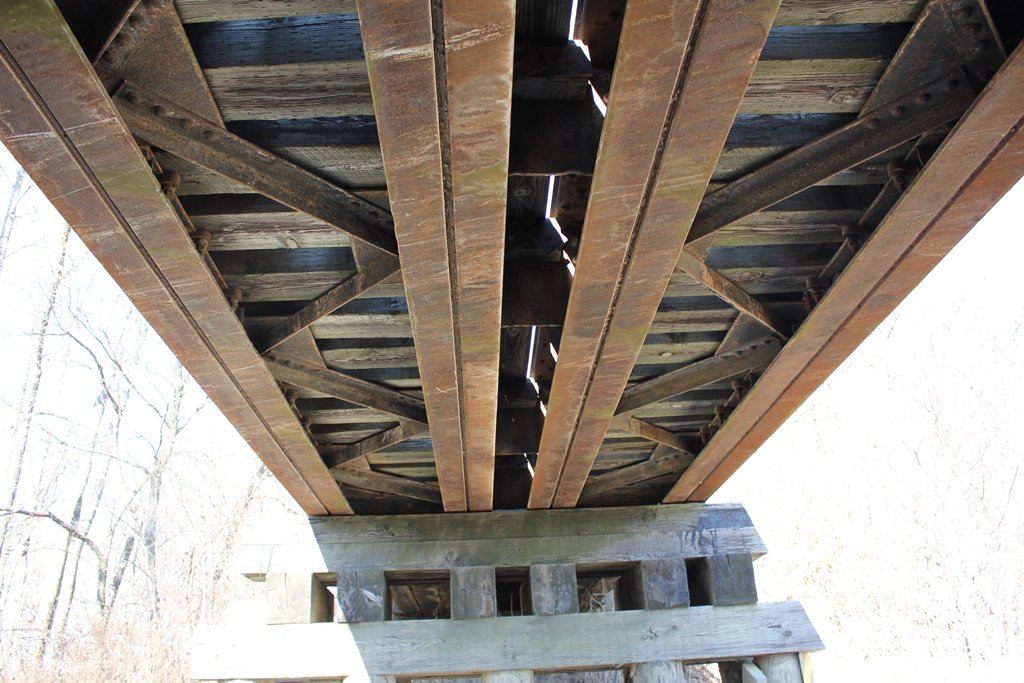

In addition, the main span does use an interesting arrangement of girders, which suggest that this bridge could be much older as 1947. Unusual spans like this oftentimes indicate that the bridge was once built somewhere else, rebuilt and moved to the current location.
The design of the girders also indicates an 1890s style girder. Further research is currently being conducted on this bridge.
Overall, the bridge appears to be in good condition. The future of this line is currently unknown, although Rice County has established an authority on obtaining the railroad right of way should it ever be abandoned.

The author has ranked this bridge being locally significant, due to the largely unknown history. However, should more information be found, this rating could change.

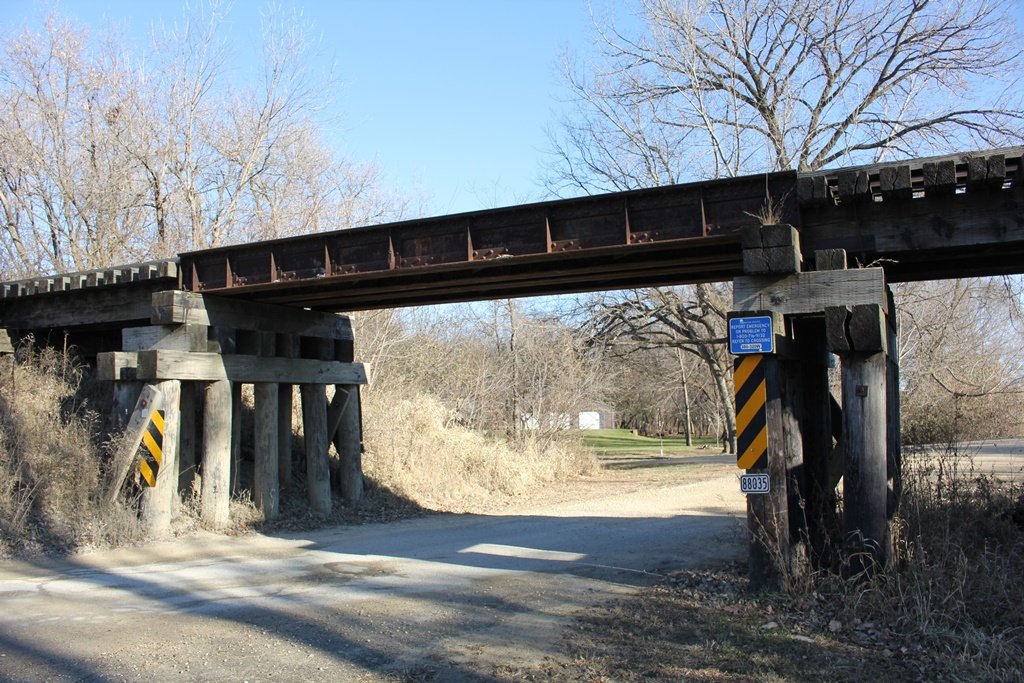

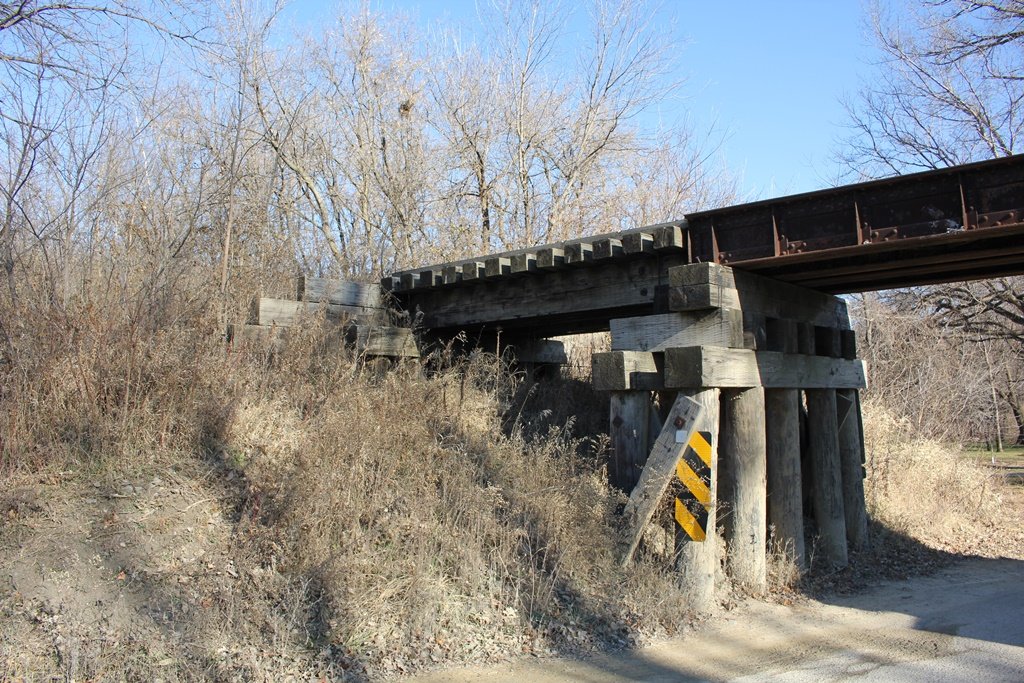

The photo above is an overview.

Citations

Source Type

Source

Build Date 2012 National Bridge Inventory
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
