DM&E Sweetland Creek Bridge

Deck Girder Bridge over Sweetland Creek
North of Muscatine, Muscatine County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name DM&E Sweetland Creek Bridge
Built By Chicago, Milwaukee & St. Paul Railway
Built By Chicago, Rock Island & Pacific Railway
Contractor American Bridge Company of New York
Currently Owned By Dakota, Minnesota & Eastern Railroad
Length 111 Feet Total, 37 Foot Spans
Width 2 Tracks, 1 In Use
Height Above Ground 10 Feet (Estimated)
Superstructure Type Deck Plate Girder
Superstructure Type Contractor
Date Built 1901
Traffic Count 8 Trains/Day (Estimated)
Current Status In Use
RI Bridge Number 2052
Significance Local Significance
Documentation Date January 2018
In 1882, the Chicago, Milwaukee & St. Paul Railway began building a line from Savanna, Illinois to Kansas City.
The line in Iowa was completed at a majority by 1885. The route crossed the Mississippi River from Savanna to Sabula, Iowa on a large swing bridge between the two towns.
The line quickly turned south, paralleled the Mississippi River through Clinton, Davenport and Muscatine. Then the line turned southwest, crossing the Cedar and Iowa rivers near Conesville before arriving in Washington, where it crossed a Rock Island line towards Des Moines.
From here, it continued southwest, crossing the Skunk River before arriving in Ottumwa, where it would cross the Des Moines River, and a pair of rail lines.
Continuing on the same southwest trajectory, the line would cross a Rock Island line near Moravia. The line became increasingly hilly and curvy as it approached the Missouri border near Sewal.
By 1887, the Milwaukee Road reached Kansas City; crossing through Missouri and such towns as Chillicothe.
The CM&StP became the Chicago, Milwaukee St. Paul & Pacific in 1912 with newly completed Pacific Extension. By 1931, the Rock Island Railroad requested trackage rights along this line between Polo and Lawson, Missouri; as well as from Mosby to Kansas City.
The 1887 Choteau Bridge over the Missouri River was replaced in 1945 by the present Harry S. Truman Bridge.
The line was considered a mainline, connecting to Kansas City to Davenport and Chicago. Few changes were ever seen on the line, although the major one was in 1981. The Milwaukee Road purchased the former Rock Island alignment between Muscatine and Washington and scrapped their own. The Rock Island had fallen the year before.

In 1985, the Milwaukee Road was purchased by Soo Line, who operated the line until 1997 when they sold it to I&M Rail Link. The line then changed hands again in 2002 when Iowa, Chicago & Eastern purchased it, and IC&E was purchased by Canadian Pacific along with Dakota, Minnesota & Eastern in 2008.
Canadian Pacific currently operates this line, although they have continued to explore potential buyers. The line still connects Chicago to Kansas City.
06/26/21

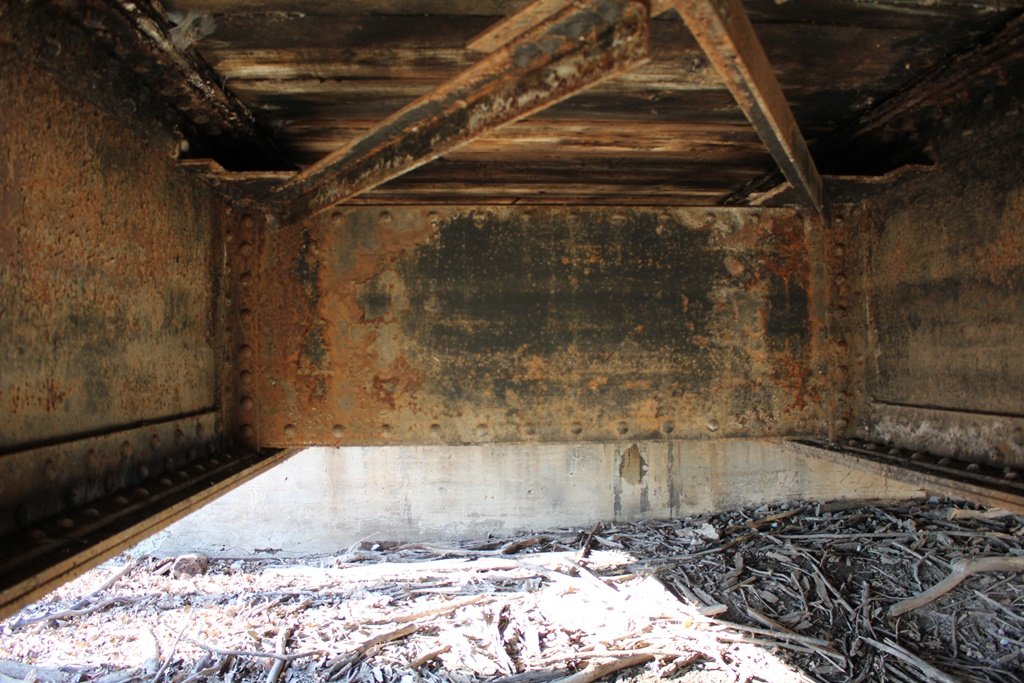

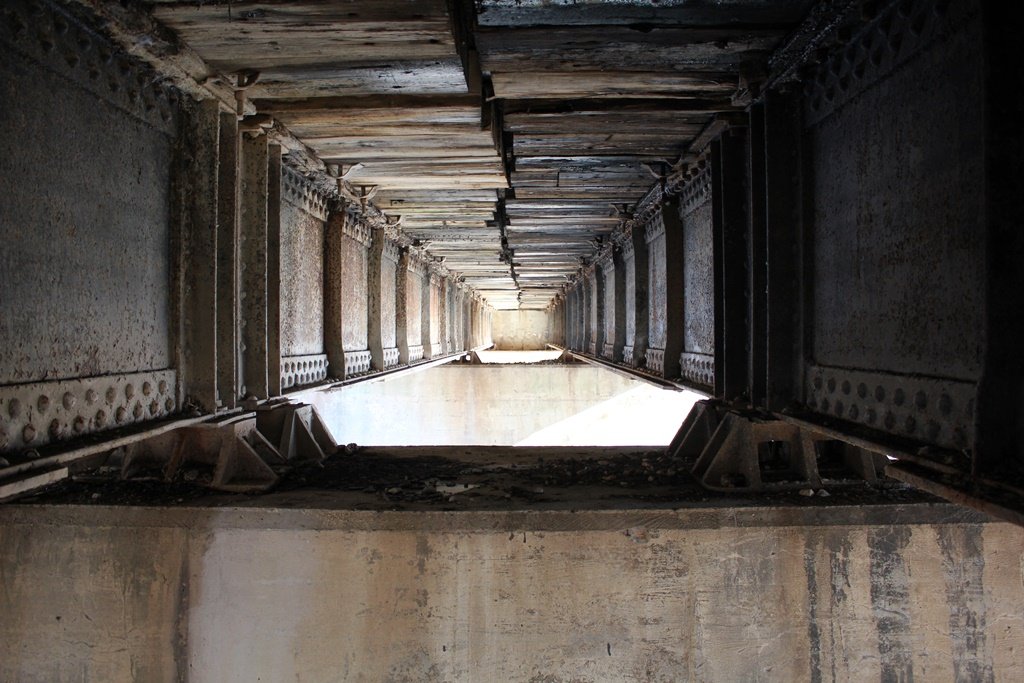

This standard deck girder bridge crosses over Sweetland Creek in Muscatine.

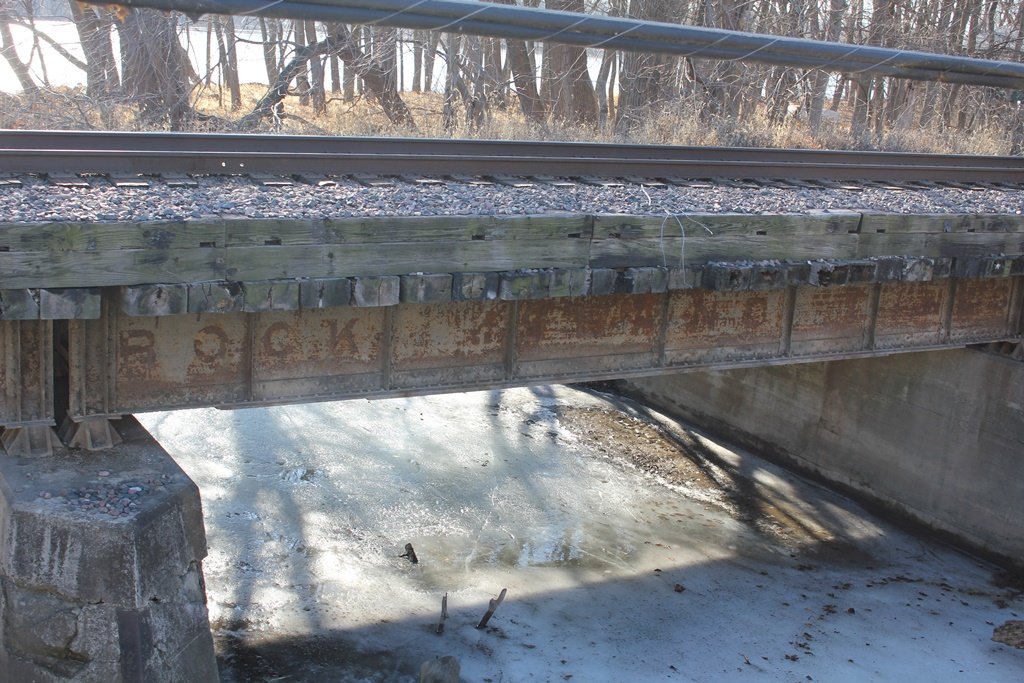

Interestingly enough, the bridge was built by both the Milwaukee Road and Rock Island.

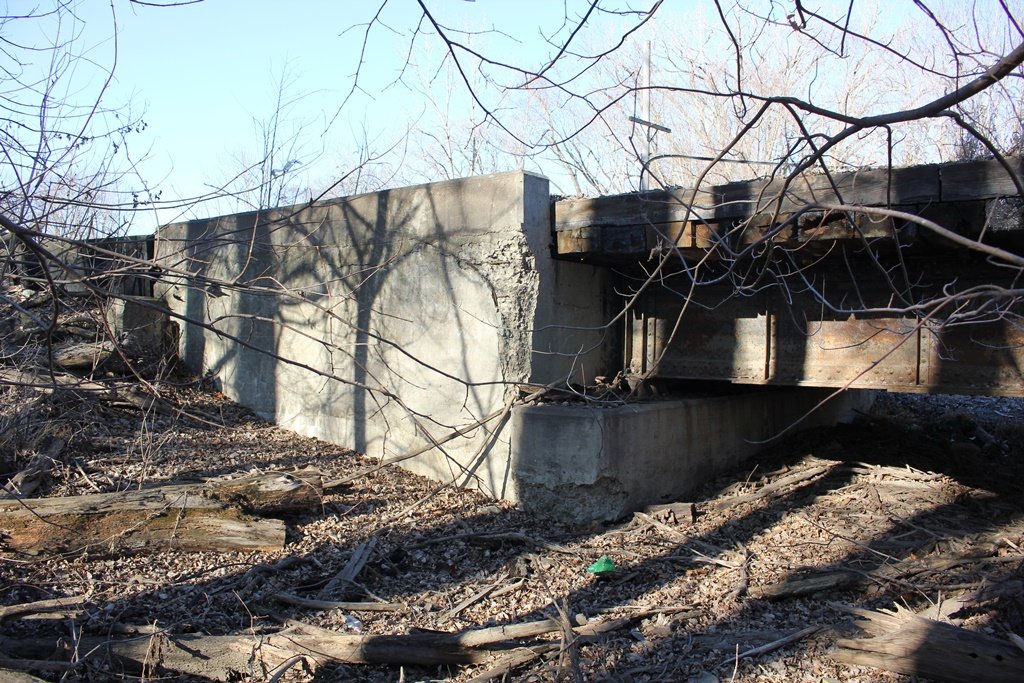

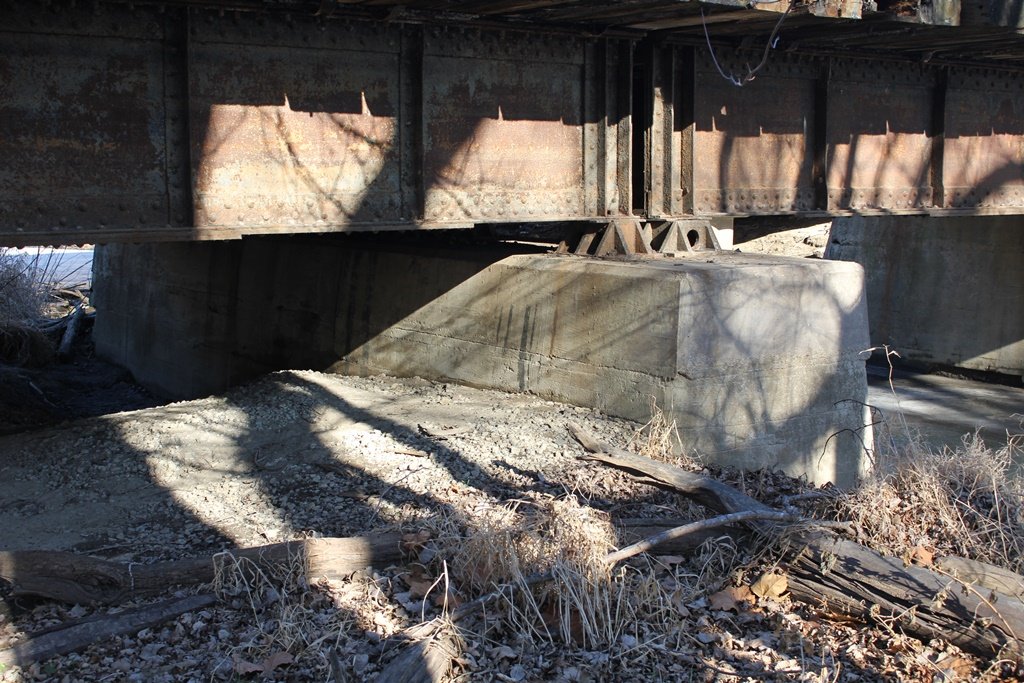

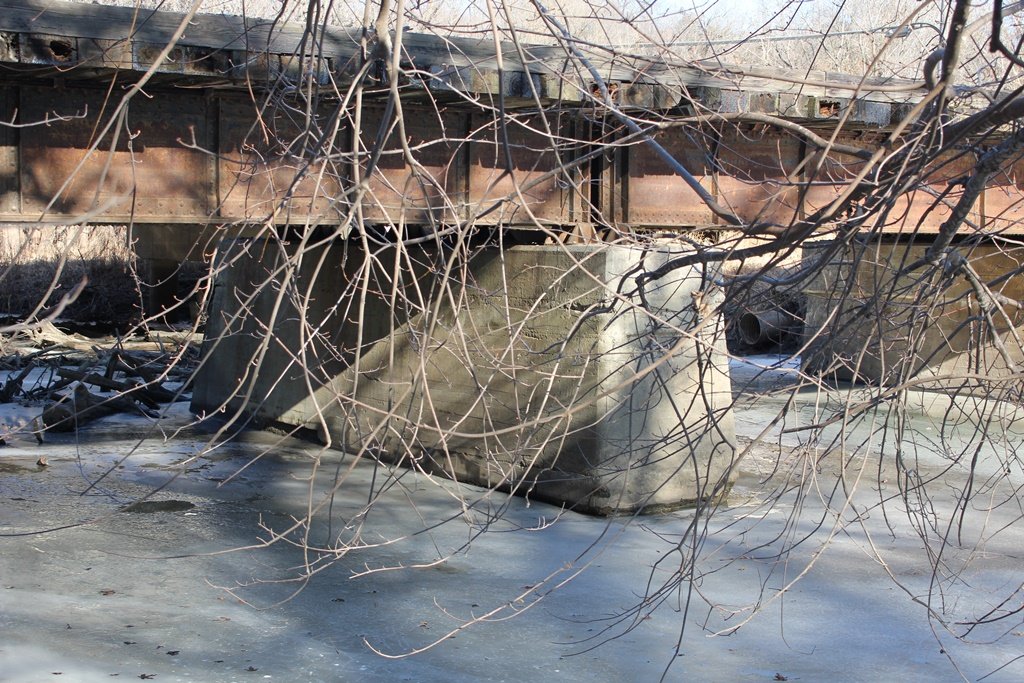

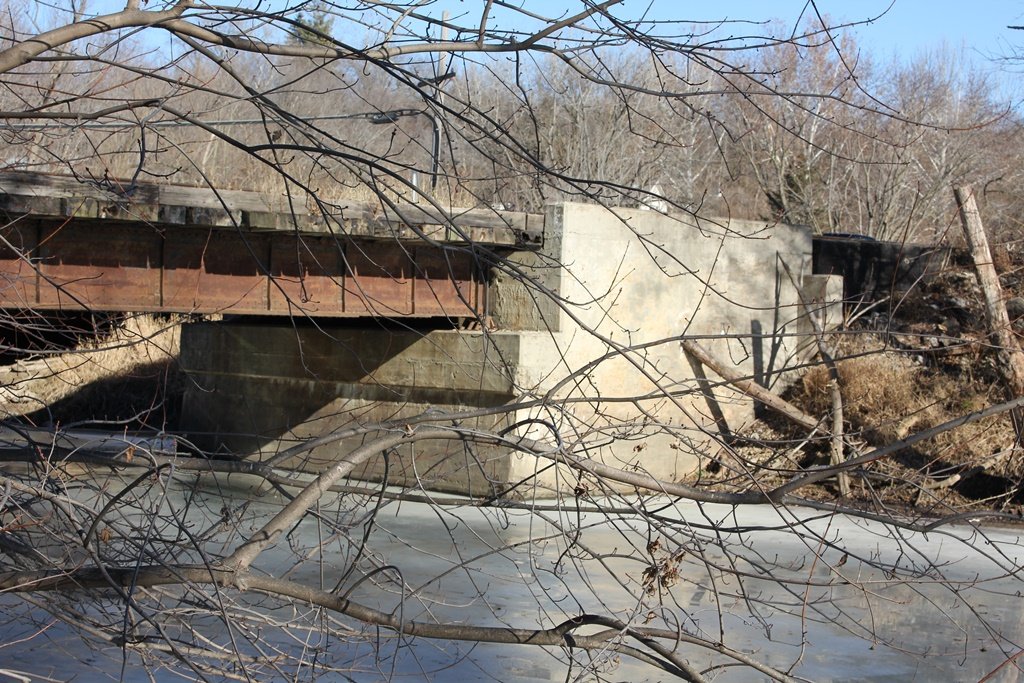

The three main spans rest on concrete substructures.
Overall, the bridge remains in good condition. Some minor spalling can be noted on the substructures.

The author has ranked this bridge as being locally significant, due to the common design of the bridge.

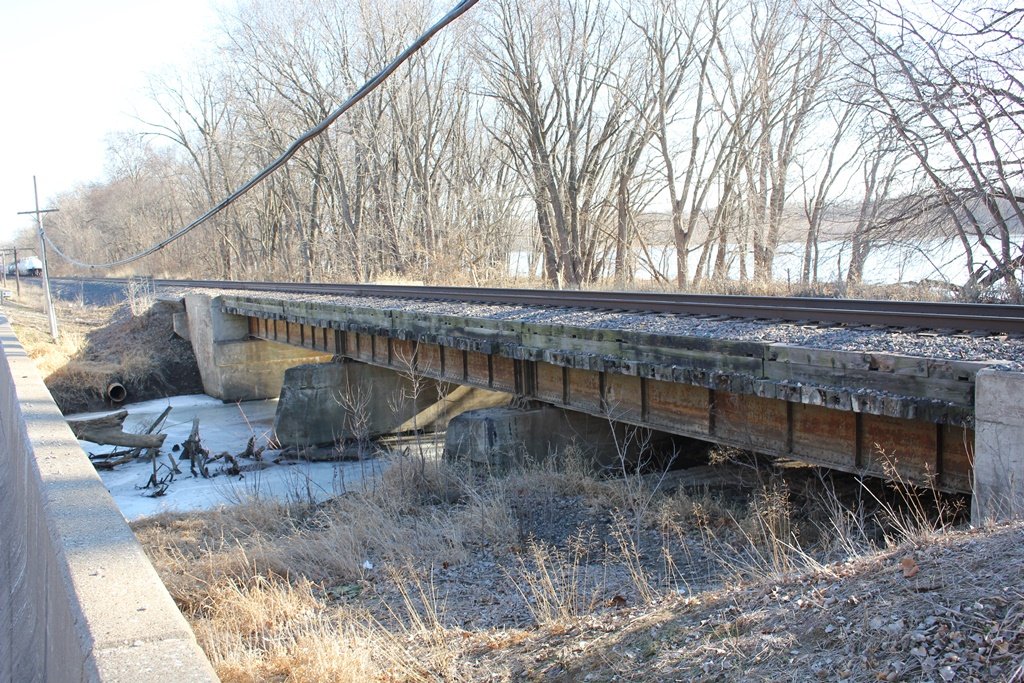

The photo above is an overview. The bridge can be accessed from a parallel road.

Citations

Source Type

Source

Build Date Estimated

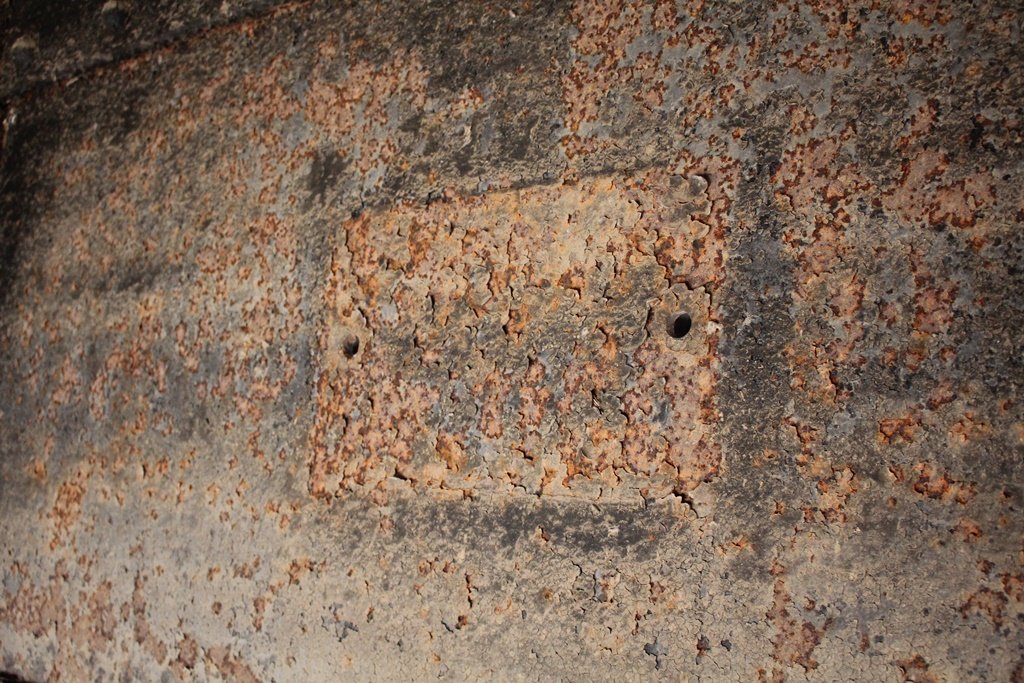

Contractor Missing American Bridge Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
