DM&E Oak Avenue Bridge

Lost Steel Girder Bridge over Oak Avenue
Owatonna, Steele County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name DM&E Oak Avenue Bridge
Built By Chicago & North Western Railway
Contractor Unknown
Currently Owned By Dakota, Minnesota & Eastern Railroad
Length 32 Feet Total
Width 1 Track
Height Above Ground 12 Feet (Estimated)
Superstructure Type Deck Plate Girder
Substructure Type Stone Masonry
Date Built 1894
Date Replaced 2016
Traffic Count 0 Trains/Day (Bridge has been Replaced)
Current Status Superstructure Replaced
DM&E Bridge Number M215.5
Significance Local Significance
A brief history of the Chicago & North Western route between Winona, Minnesota and Rapid City, South Dakota:

  • 1864: 50 miles completed from Winona to Rochester, Minnesota by the Winona & St. Peter Railway
  • 1865: 55 miles completed from Rochester to Waseca, Minnesota by the Winona & St. Peter Railway
  • 1867: W&StP is controlled by the Chicago & North Western Railway
  • 1870: 11 miles completed from Waseca to Janesville, Minnesota by the Winona & St. Peter Railway
  • 1871: 23 miles completed from Janesville to Mankato, Minnesota by the Winona & St. Peter Railway
  • 1872: 30 miles completed from Mankato to New Ulm, Minnesota via St. Peter by the Winona & St. Peter Railway
  • 1877: 62 miles completed from New Ulm to Tracy, Minnesota by the Winona & St. Peter Railway
  • 1879: 46 miles completed from Tracy, Minnesota to Elkhorn, South Dakota by the Chicago and Dakota Railway
  • 1879: 25 miles completed from Elkhorn to Volga, South Dakota by the Dakota Central Railway
  • 1880: 184 miles completed from Volga to Pierre, South Dakota by the Dakota Central Railway
  • 1881: Chicago and Dakota Railway controlled by the Chicago & North Western Railway
  • 1900: 26 miles completed from Mankato to New Ulm, Minnesota by the Mankato & New Ulm Railway
  • 1900: The Winona & St. Peter, Chicago and Dakota, Dakota Central and Mankato & New Ulm Railway all are merged into the Chicago & North Western Railway
  • 1905: Native American land west of the Missouri River opened to settlement
  • 1906: 76 miles completed from Ft. Pierre to Philip, South Dakota by the Pierre, Rapid City & Northwestern Railway
  • 1906: 45 miles completed from Rapid City to Wasta, South Dakota by the Pierre, Rapid City & Northwestern Railway
  • 1907: 3 miles completed from Pierre to Ft. Pierre, South Dakota by the Pierre & Ft. Pierre Bridge Railway, including the bridge across the Missouri River
  • 1907: 44 miles completed from Pierre to Philip, South Dakota by the Pierre, Rapid City & Northwestern Railway
  • 1907: Pierre, Rapid City & Northwestern and the Pierre & Ft. Pierre Bridge Railway controlled by the Chicago & North Western Railway
  • 1937: Burdette to Kasota segment abandoned
  • 1957: Kasota to St. Peter segment abandoned, and Minnesota River Bridge removed
  • 1963: St. Peter to Traverse segment abandoned
  • 1970: Traverse to New Ulm Quarry segment abandoned
  • 1986: Winona to Rapid City route, and New Ulm Quarry spur sold to Dakota, Minnesota & Eastern Railroad amid C&NW abandonment proposals
  • 2008: DM&E purchased by Canadian Pacific Railway and operated as a subsidiary
  • 2014: CP sells Tracy, Minnesota to Rapid City, South Dakota to Genesee Wyoming owned Rapid City, Pierre & Eastern Railroad
  • 2008-Present: Canadian Pacific (DM&E) operates the Winona to Waseca segment as the Waseca Subdivision
  • 2008-Present: Canadian Pacific (DM&E) operates the Waseca to Tracy segment as the Tracy Subdivision
  • 2014-Present: Rapid City, Pierre & Eastern operates the Tracy to Huron segment as the Huron Subdivision
  • 2014-Present: Rapid City, Pierre & Eastern operates the Huron to Pierre segment as the Pierre Subdivision
  • 2014-Present: Rapid City, Pierre & Eastern operates the Pierre to Rapid City segment as the PRC Subdivision

06/26/21


Located in downtown Owatonna, this short girder bridge once crossed Oak Avenue.

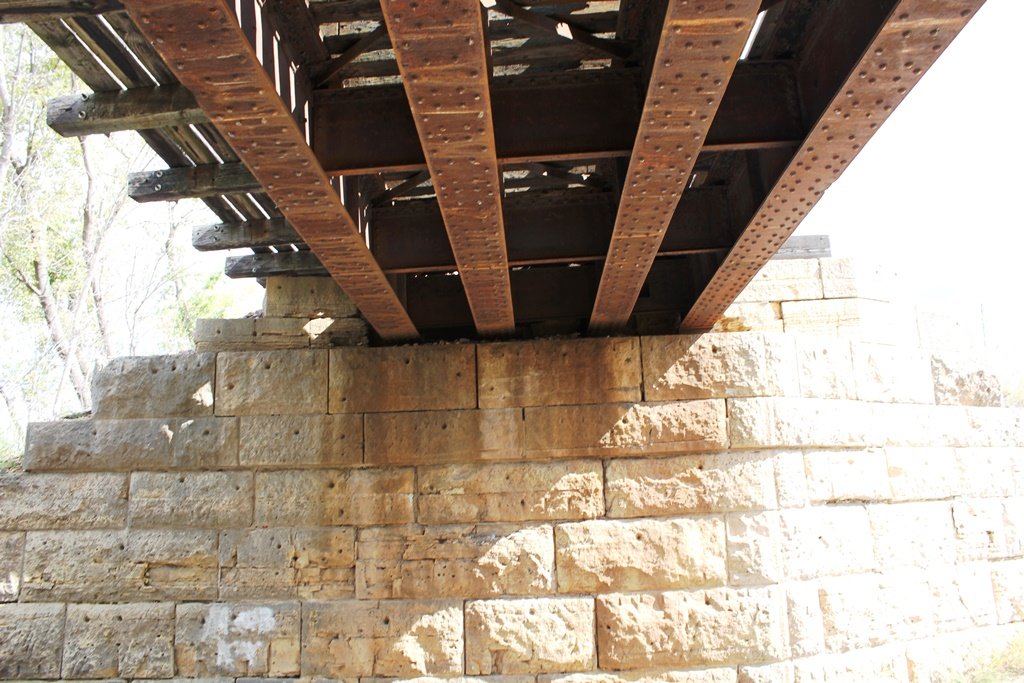

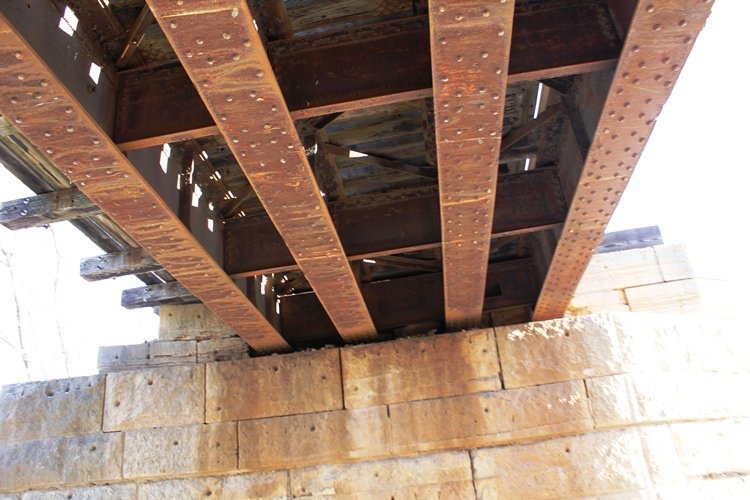

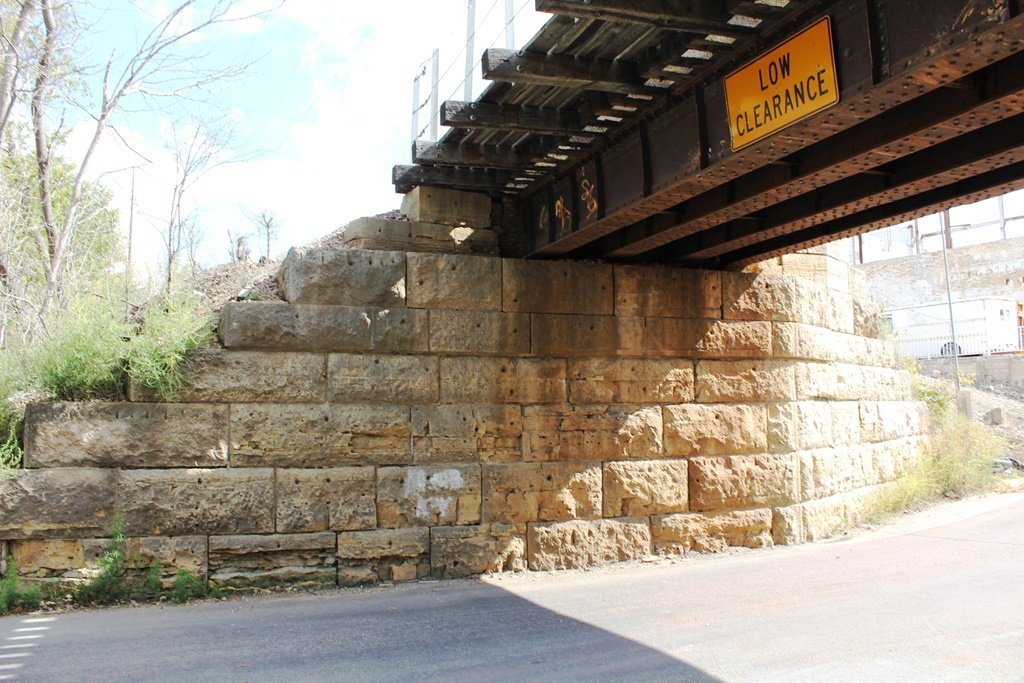

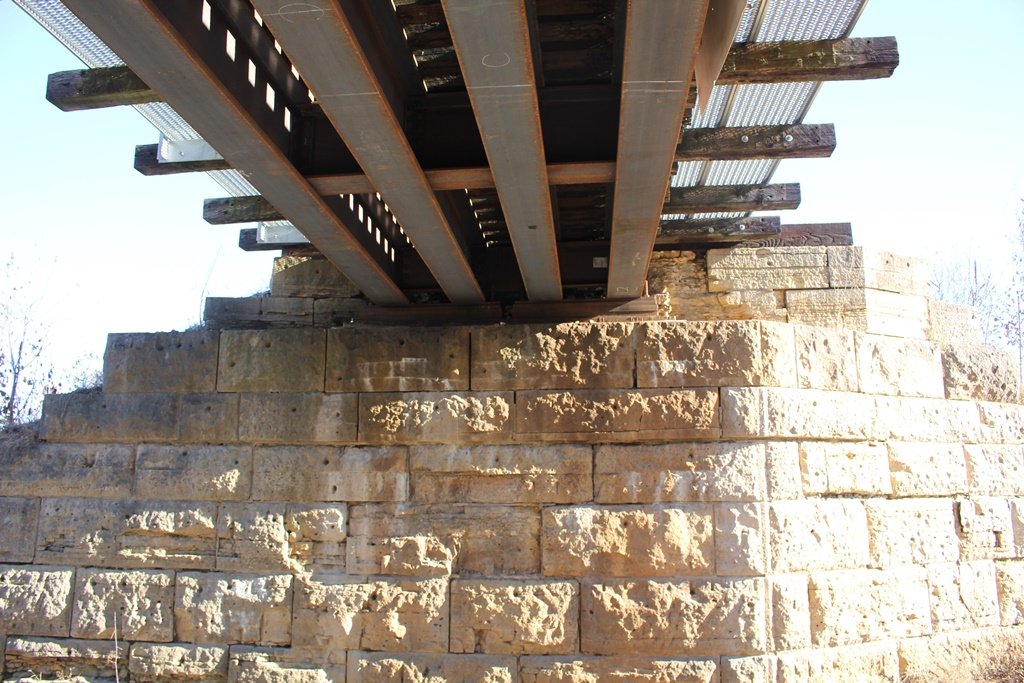

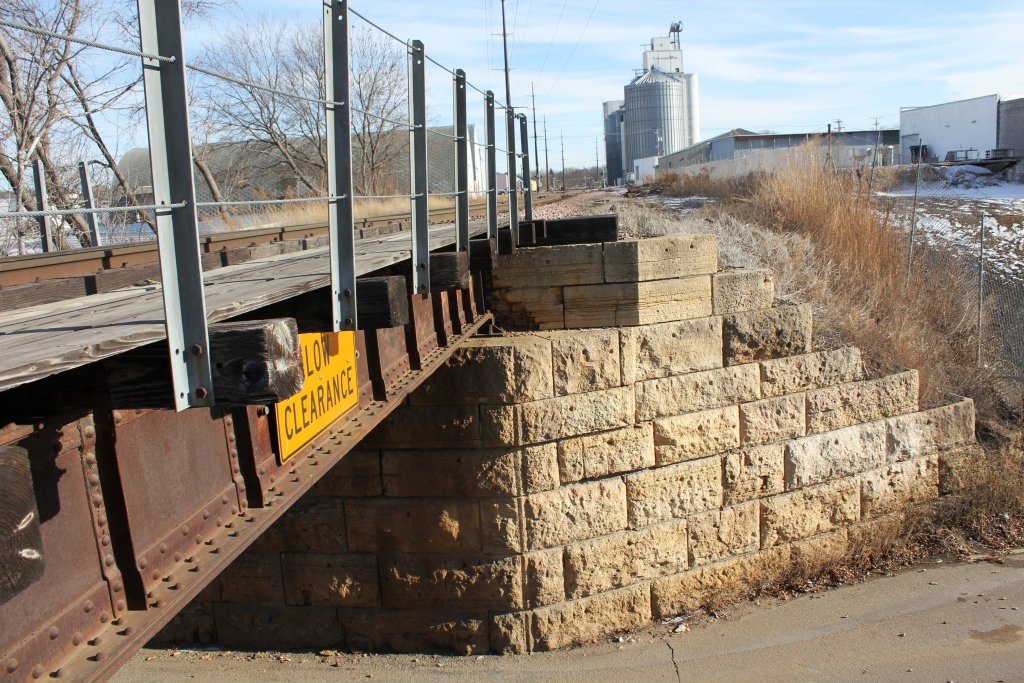

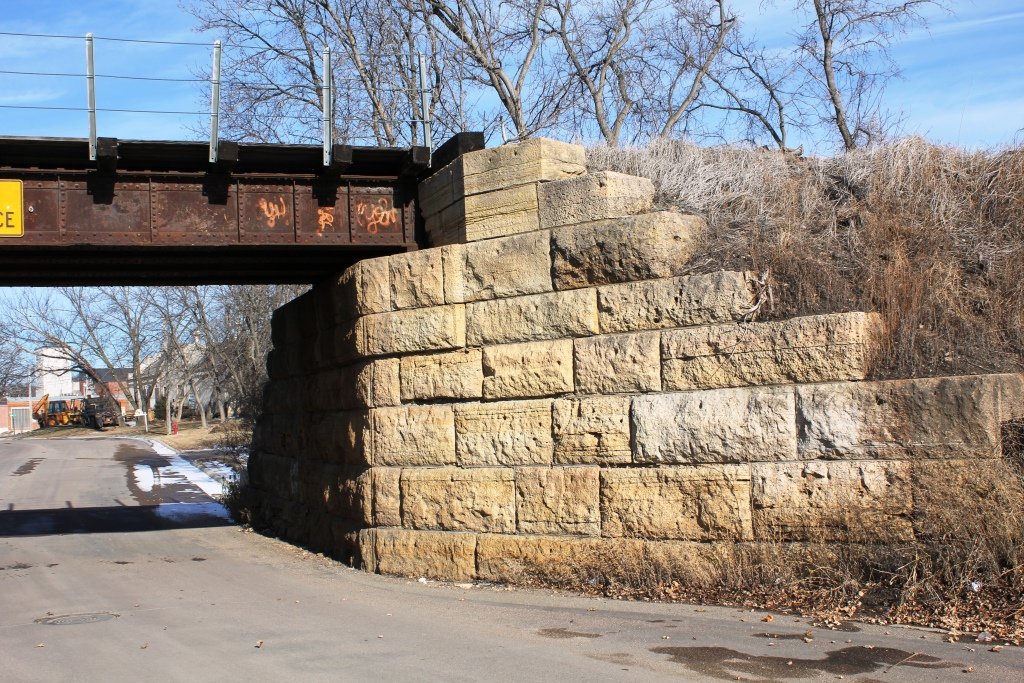

Built in 1894, the bridge featured a single deck plate girder span, built in a four girder configuration. The bridge was built onto stone abutments.

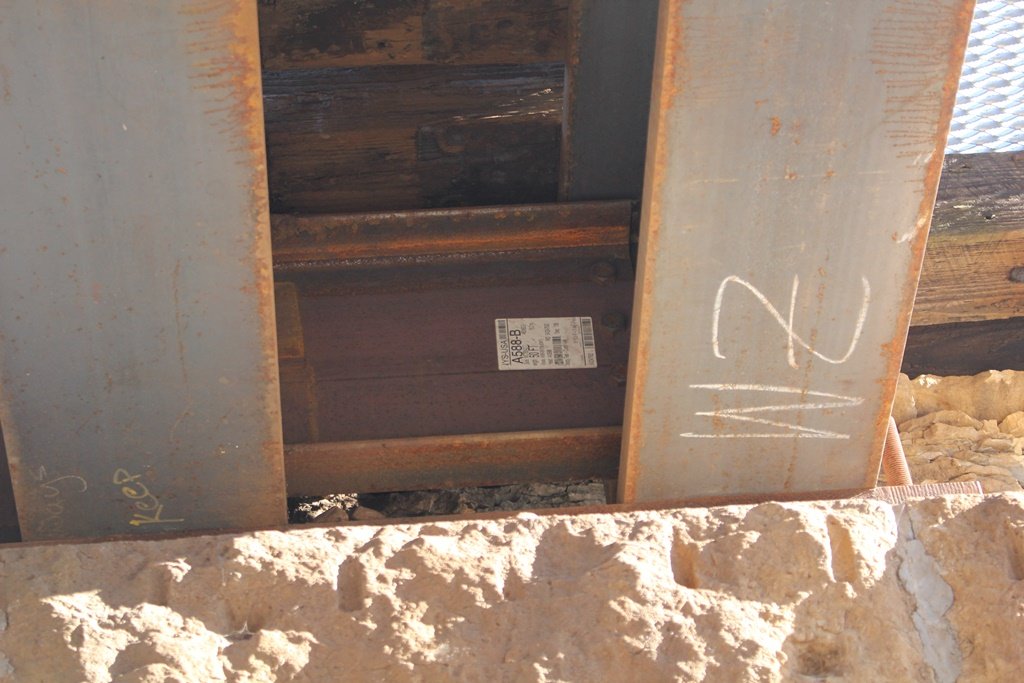

In 2016, the bridge was replaced by a new modular span. Unfortunately, this was a loss of one of the older girder spans in southern Minnesota.
The history of the span may not entirely be known either. A four beam arrangement oftentimes indicates that the bridge was rebuilt and possibly moved to that location.

The author has ranked the bridge as being locally significant, due to the common design.

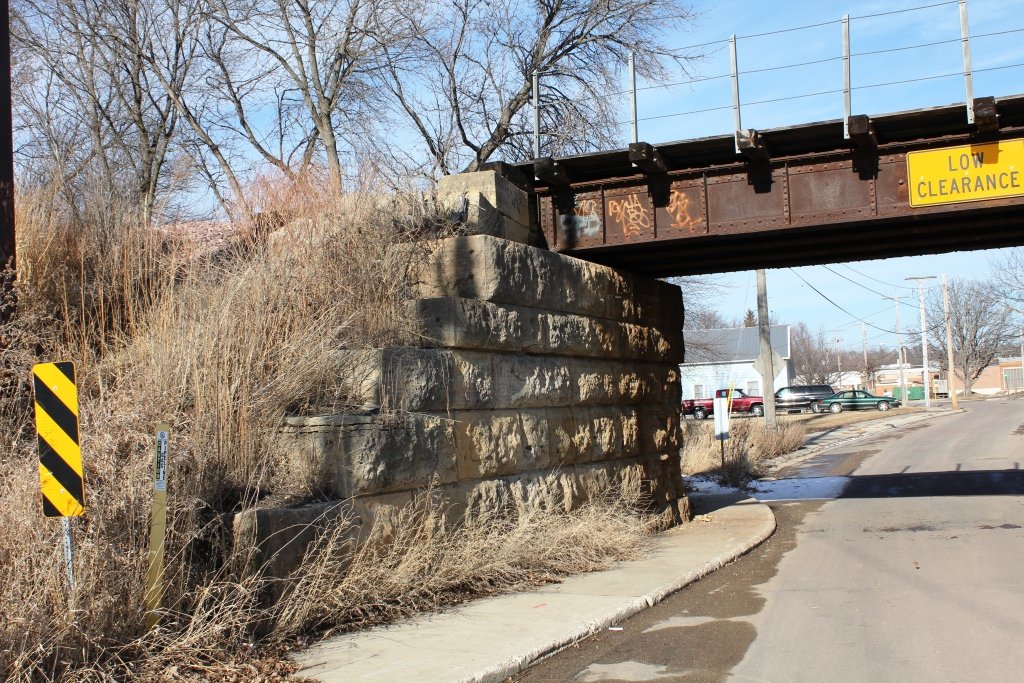

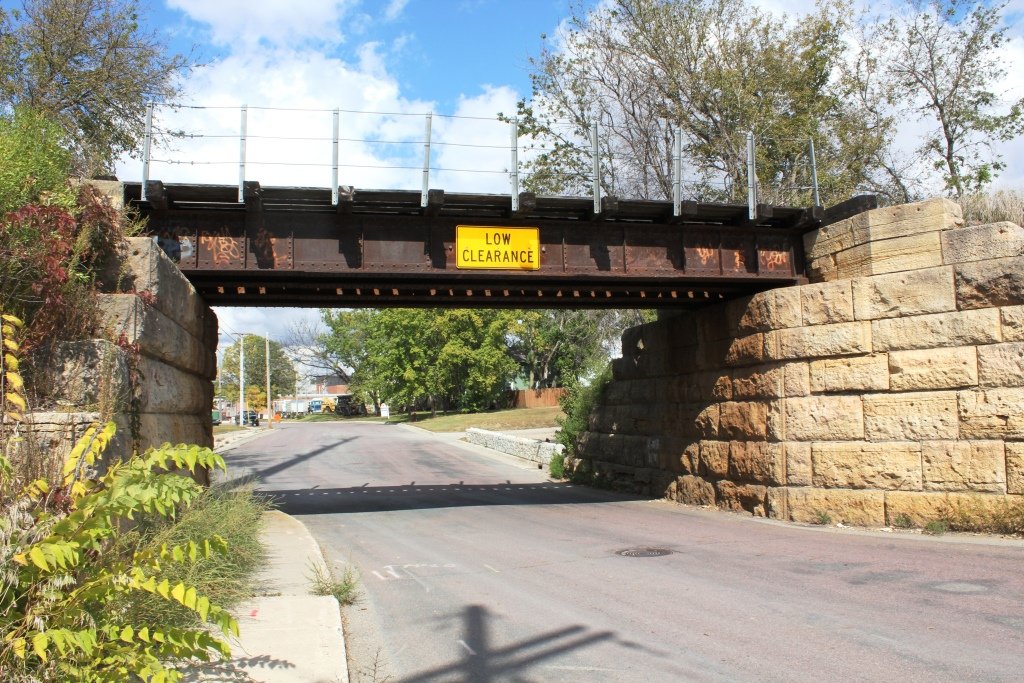

The photo above is an overview.

Citations

Source Type

Source

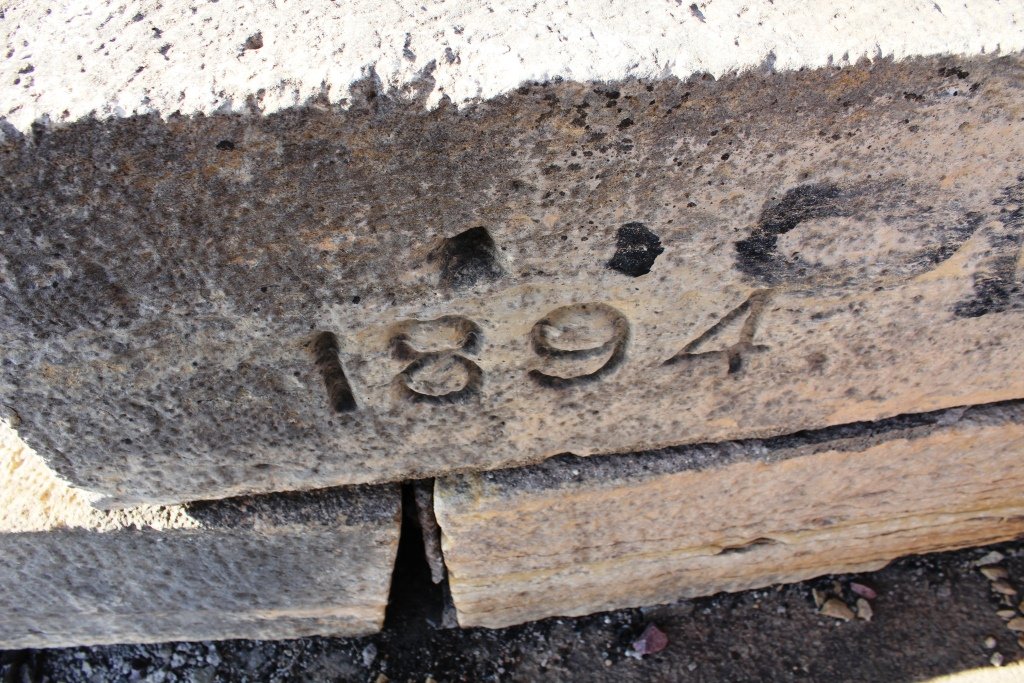

Build Date Date Carving
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
