Coolidge Creek Trail Arch

Stone Arch Culvert over Coolidge Creek
Winnebago, Winnebago County, Illinois

Click the Photo Above to See All Photos of This Bridge!
Name Coolidge Creek Trail Arch
Built By Chicago & North Western Railway
Contractor Unknown
Currently Owned By Winnebago County
Length 8 Feet Total
Width 1 Track
Height Above Ground 5 Feet (Estimated)
Superstructure Type Stone Arch
Substructure Type Stone Masonry
Date Built Ca. 1887
Traffic Count 0 Trains/Day (Bridge is a Trail)
Current Status Rails to Trails
C&NW Bridge Number 510
Significance Local Significance
Documentation Date April 2019
A brief history of the Union Pacific Belvidere Subdivision:


Located west of Winnebago, this small stone arch bridge crosses Coolidge Creek.

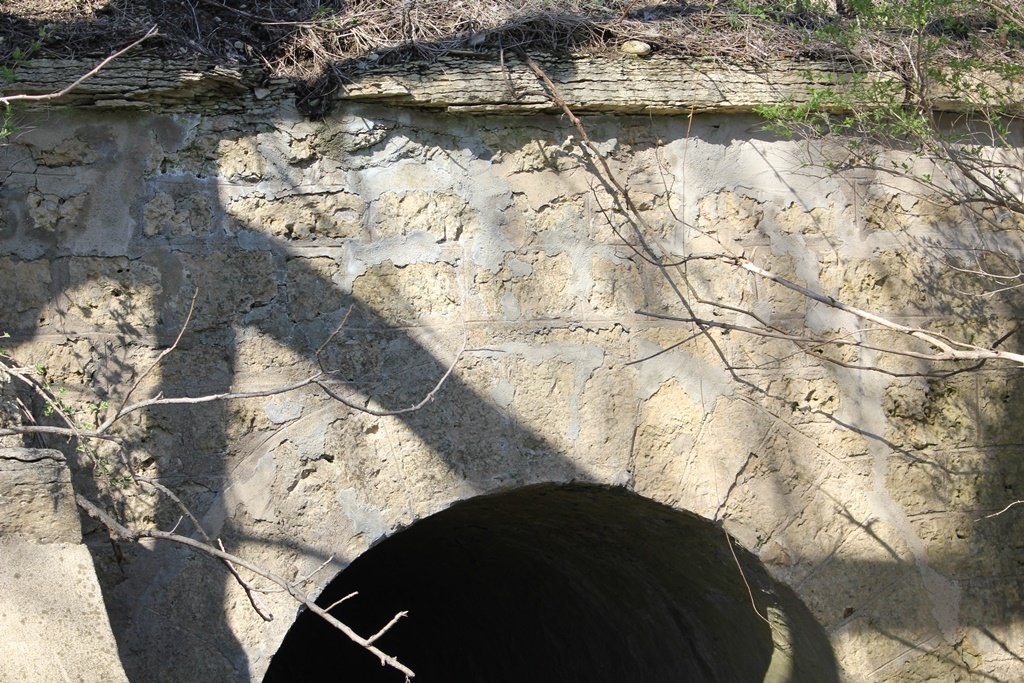

While bridge records indicate an estimated date of 1887, it is likely that this structure is much older. It is known that several stone arch culverts were constructed between 1854 and the 1870s along this route. This span is constructed with stone similar to the 1850s substructures of a bridge in Rockford.
Fortunately, this bridge has been reused for a trail. A nearby arch was demolished and replaced by a precast concrete box culvert.
Little alterations have been made to the arch. The southwest wing wall was encased in concrete, and mortaring of joints has occurred throughout the bridge.

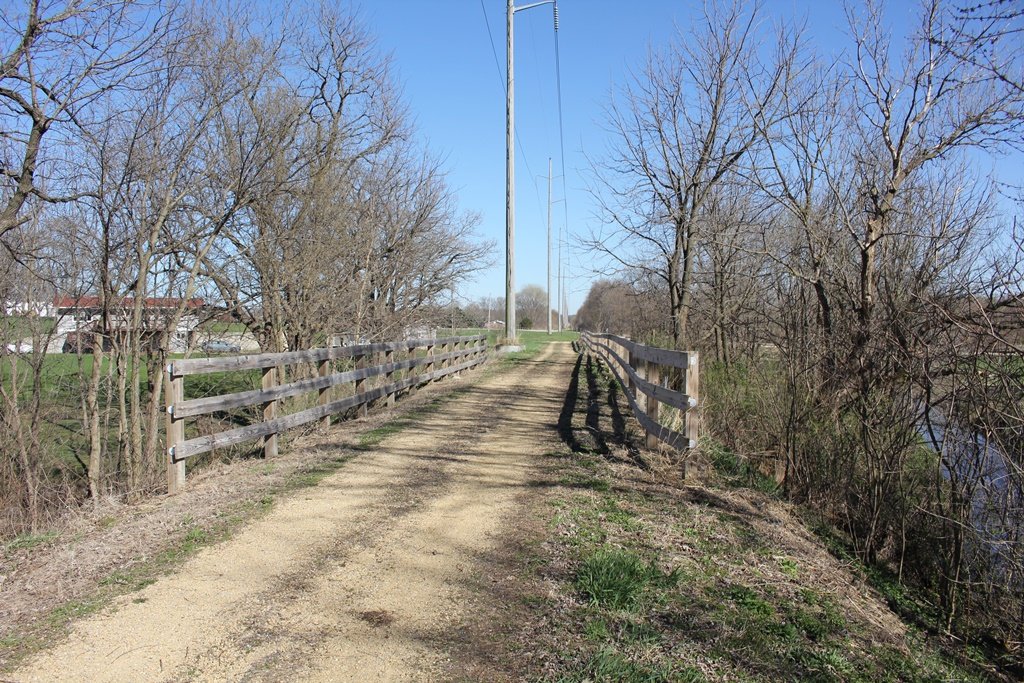

Overall, the bridge appears to be in good condition, with little significant deterioration. It currently serves the Pecatonica Prairie Trail.

The author has ranked this bridge as being locally significant, due to the common design and unknown history.

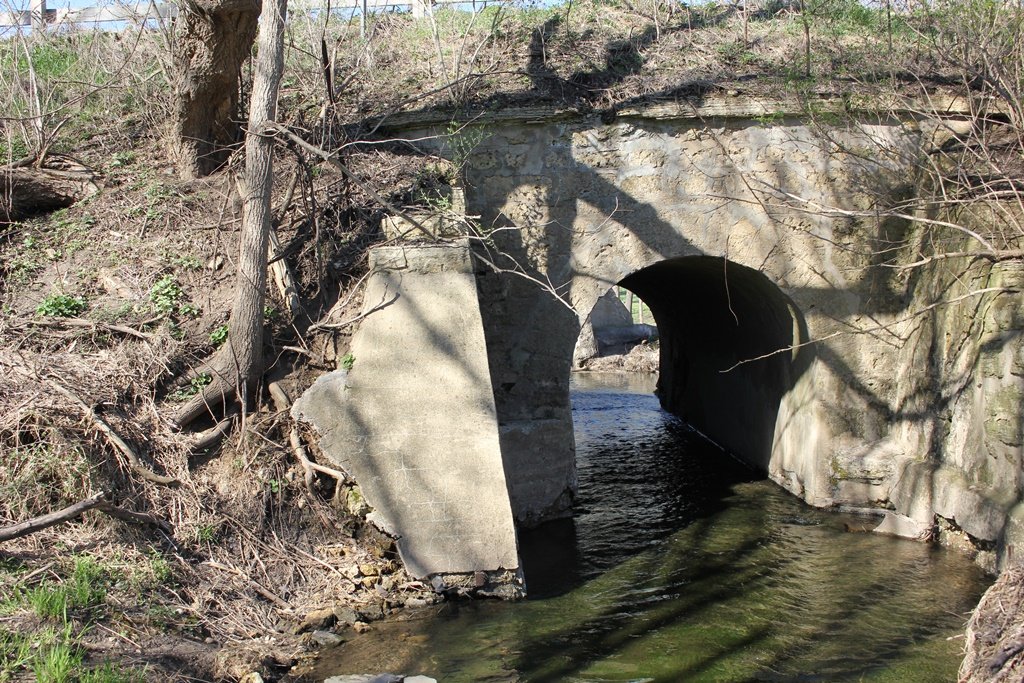

The photo above is an overview.

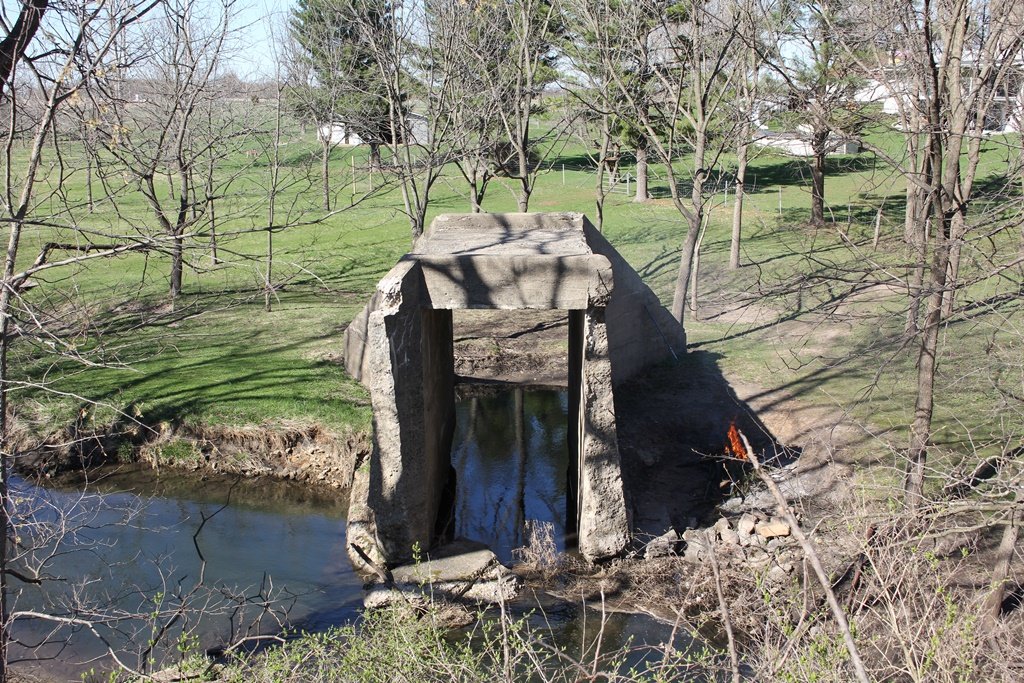

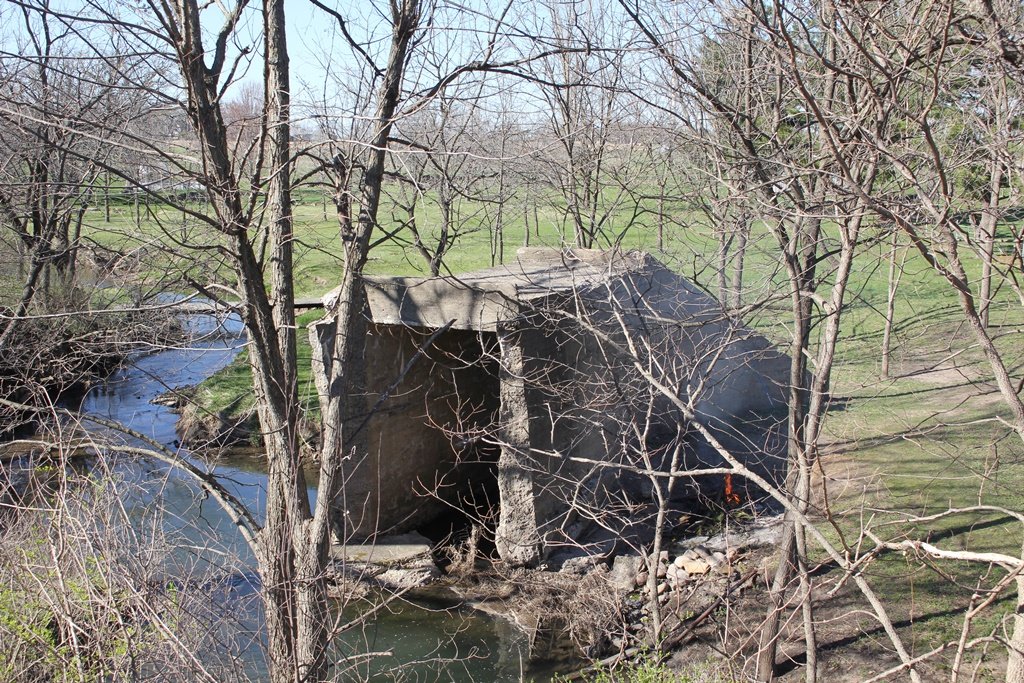

In addition, a small concrete box culvert exists on the north side of the stone arch. This culvert was built around 1904 for the Rockford & Interurban Railway.
The culvert is now abandoned and privately owned. The creek has cut off flow underneath the culvert, and will inevitably collapse the structure.


Source Type


Build Date Chicago & North Western Historical Society Archives
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
