CN Soldier Creek Bridge

Deck Plate Girder Bridge over Soldier Creek
Fort Dodge, Webster County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name CN Soldier Creek Bridge
Built By Illinois Central Railroad
Contractor American Bridge Company of New York
Currently Owned By Canadian National Railway
Length 175 Feet Total, 82 Foot Main Span
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Type Deck Plate Girder
Substructure Type Concrete
Date Built 1946
Traffic Count 8 Trains/Day (Estimated)
Current Status In Use
IC Bridge Number 375.53
Significance Local Significance
Documentation Date April 2017
In 1866, the Dubuque and Sioux City Railroad began expanding their existing mainline west, from Cedar Falls to Iowa Falls.
This route connected to Dubuque Chicago on the east, making it an important route. In 1867, Illinois Central began to lease the D&SC.

In 1869, the Iowa Falls and Sioux City Railroad continued construction west, reaching Sioux City by the end of 1870.
This new construction was in response to a fear by the directors of the D&SC that the Illinois Central would lose interest in the company. Reaching Sioux City promised a large volume of traffic into Chicago.
The route helped develop several major Iowa towns, including Iowa Falls, Fort Dodge and Cherokee.

In 1888, the IF&SC was merged into the D&SC. By 1900, new connections would be open to Omaha, Sioux Falls and Onawa.

Relatively uncommon in the modern world of railroading, the Illinois Central did not fully consume the D&SC until 1946. Despite this, virtually every project was Illinois Central funded until then.
Immediately after this, the IC went to work rebuilding numerous older truss bridges along the line. This route served as the western mainline for the Illinois Central, which had grown to be considerable in size.
In 1972, the IC merged with the Gulf, Mobile & Ohio Railroad to form the Illinois Central Gulf. The ICG dissolved back into the Illinois Central in 1988.

The entire western main line and associated branch lines of the IC were sold to a railroad known as the Chicago Central and Pacific Railroad in 1985.
Just 11 years later, the route would again be purchased by Illinois Central. By 1999, the Illinois Central was purchased by Canadian National.
In 2017, Canadian National operates the Cedar Falls-Fort Dodge segment of this line as the Waterloo Subdivision.
04/16/19


This simple deck girder bridge crosses Soldier Creek in Fort Dodge.

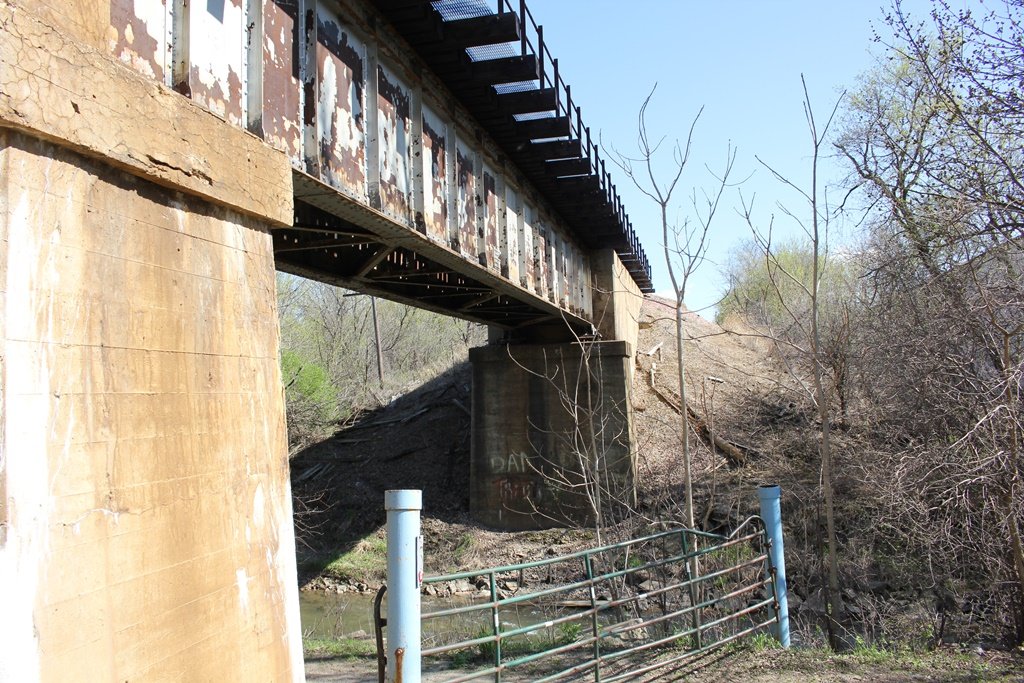

The bridge was built in 1946, to replace an 1890s deck girder. The bridge rests on large concrete abutments.
A common design, spans like this are common all across the country.
Currently, the bridge remains active as part of the Canadian National mainline.

The author has ranked this bridge as being locally significant, due to the common design.

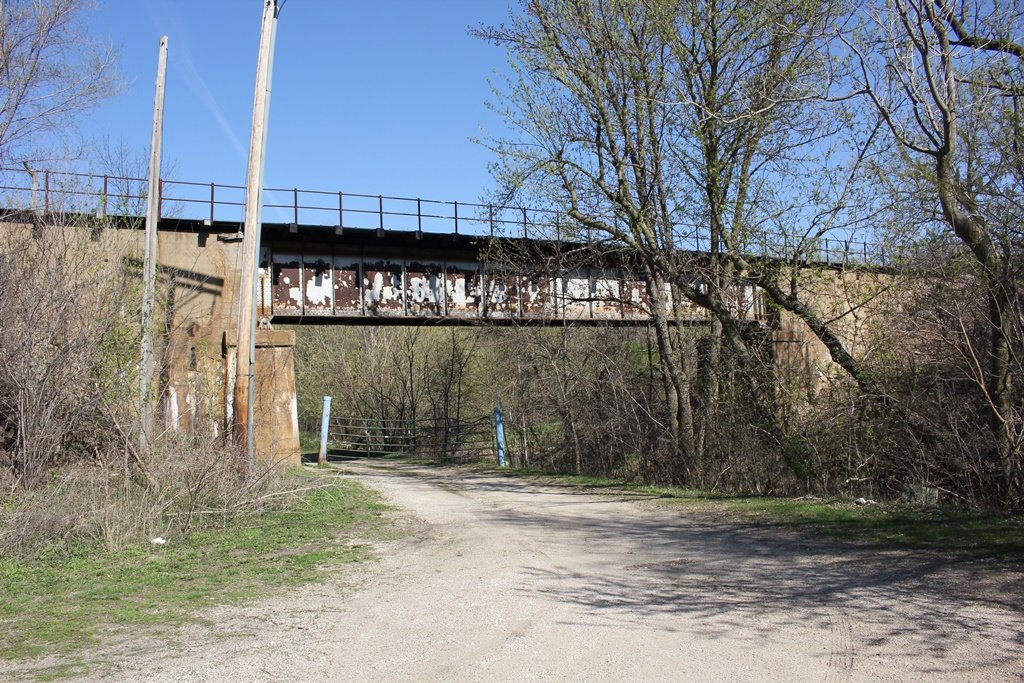

The photo above is an overview. The bridge can be accessed from the trail below.

Citations

Source Type

Source

Build Date 1973 Illinois Central Track Profile

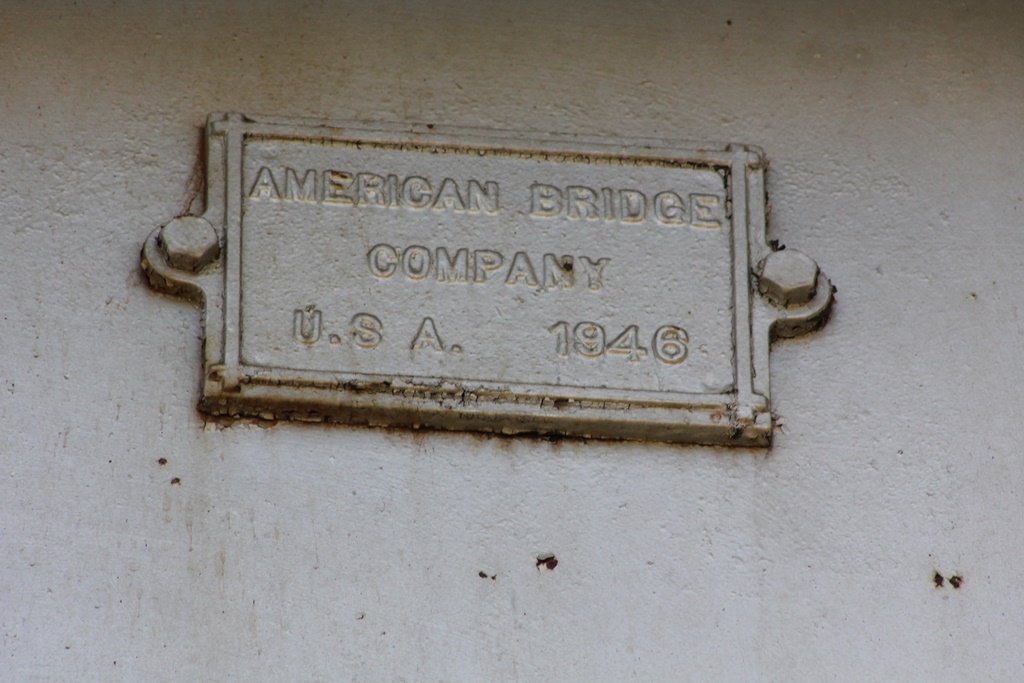

Contractor American Bridge Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
