CN Cloquet River Bridge

Warren Deck Truss Bridge across Cloquet River
Rural St. Louis County, Minnesota

Click the Photo Above to See All Photos of This Bridge!
Name CN Cloquet River Bridge
Built By Duluth & Iron Range Railway

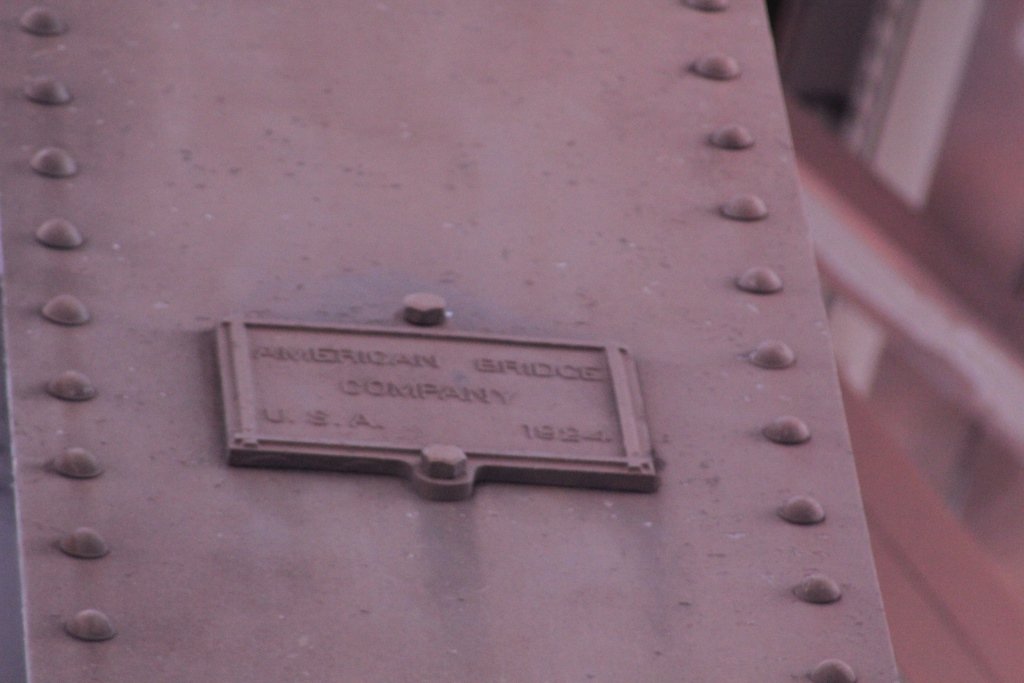

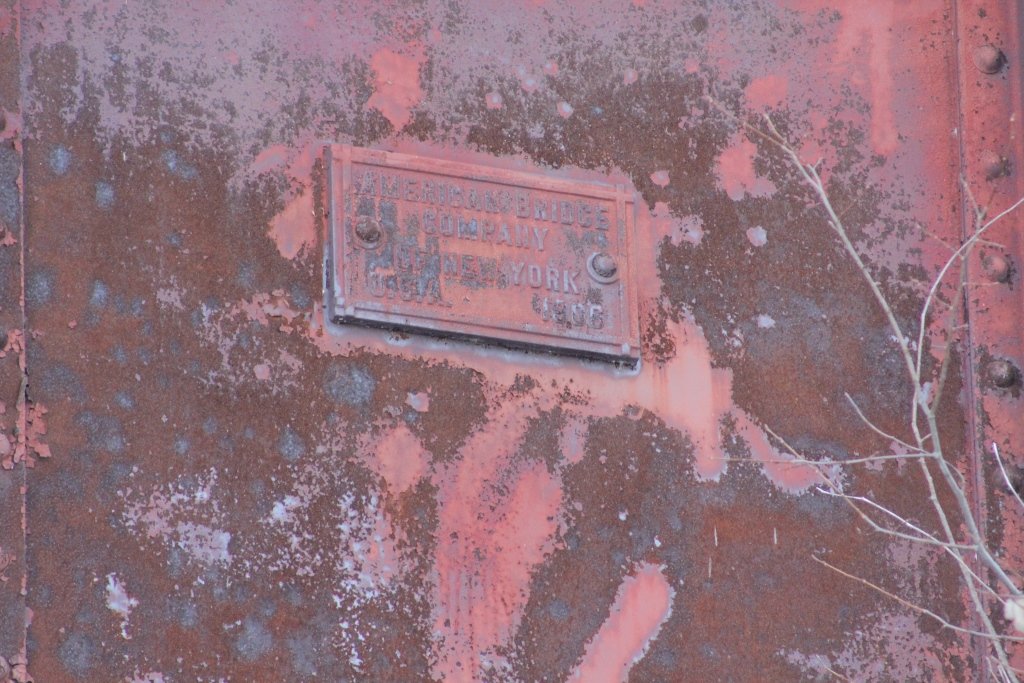

Contractor American Bridge Company of New York
Currently Owned By Canadian National Railway
Length 440 Feet Total, 170 Foot Main Span
Width 2 Tracks, 1 In Use
Height Above Ground 40 Feet (Estimated)
Type Warren Deck Truss and Deck Girder
Date Built 1906 (SB), 1924 (NB)
Traffic Count 12 Trains/Day (Estimated)
Current Status In Use, SB Span Not In USe
In 1892, the Duluth, Missabe & Northern Railroad Company constructed a line from Duluth, Minnesota to Culver, Minnesota; as well as a series of lines in the Iron Range that were built in the mid 1890s.

The DM&N would use the Great Northern Route to get to Duluth prior to construction connecting their own line.

The new construction took place in 1905, when a connection was put in place from near Keenan to Culver, connecting into Duluth via Proctor.

The construction was majorly financed by the new United States Steel, which was formed in 1901 and took complete control of the DM&N the same year.

By 1938, the DM&N merged with its partner, the Duluth & Iron Range Railroad to form Duluth, Missabe & Iron Range Railroad (DM&IR).

The DM&IR was a major iron/taconite hauler in the region, hauling the high grade Missabe Iron Ore to Lake Superior and to Pittsburgh.

USS continued to control the DM&IR until 1988, when they spun their railroad holdings off to Blackstone Group, who in turn sold them to Canadian National in 2003.

The DM&IR was a subsidiary of Canadian National until 2011, when it was fully purchased by Wisconsin Central, ending the long history of the railroad.

The WC Ltd is a fully owned subsidiary of Canadian National, who currently operates over all the DM&IR lines, including this line, known as the Missabe Subdivision, running from Keenan to the St. Louis Bay Ore Docks.
03/03/14

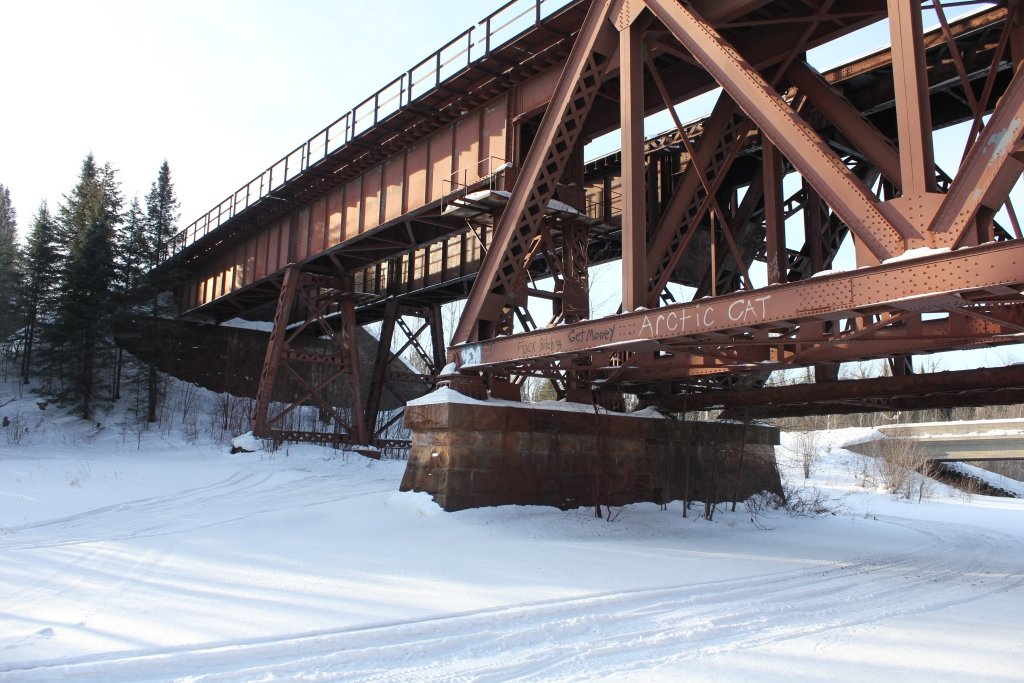

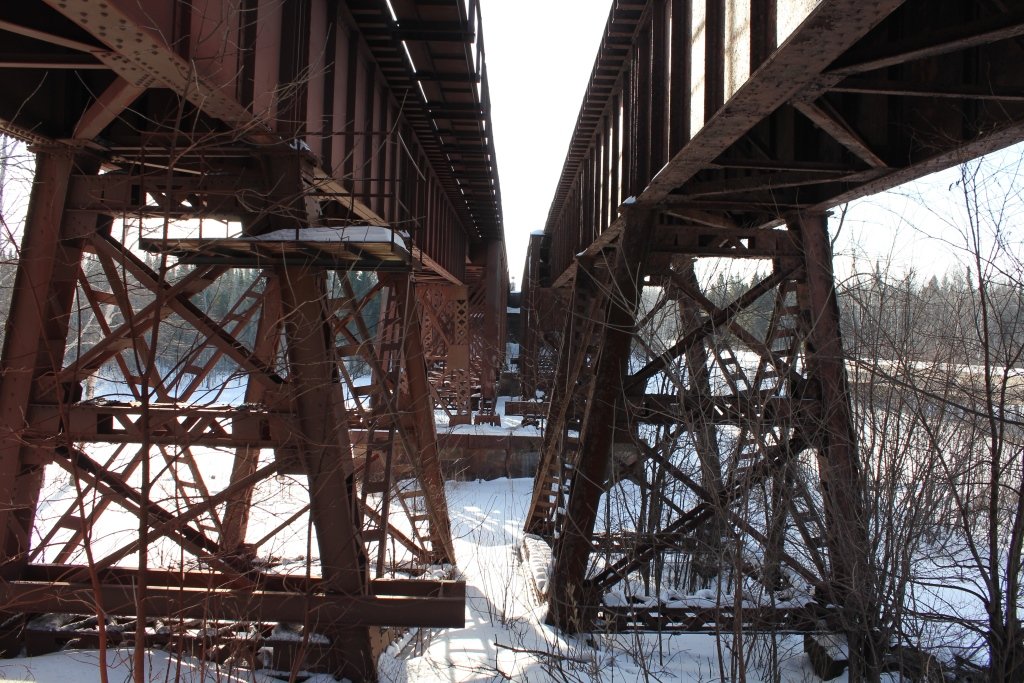

This odd bridge lies on the skirts of the Iron Range in Rural St. Louis County. The bridge is actually parallel bridges with the same dimensions.

The bridge is located parallel to County 694.

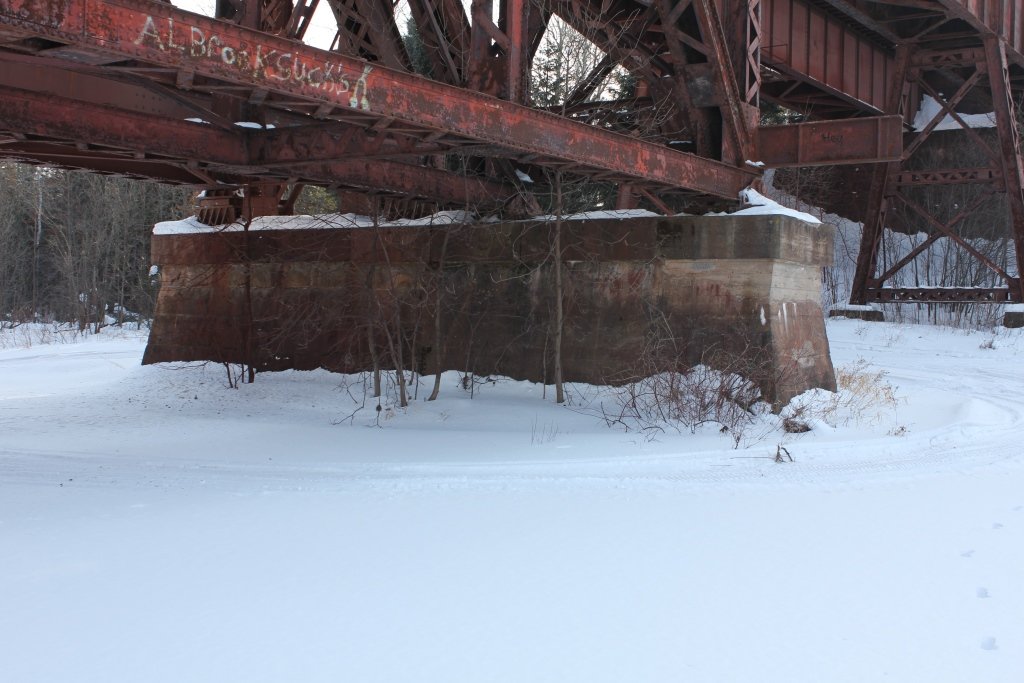

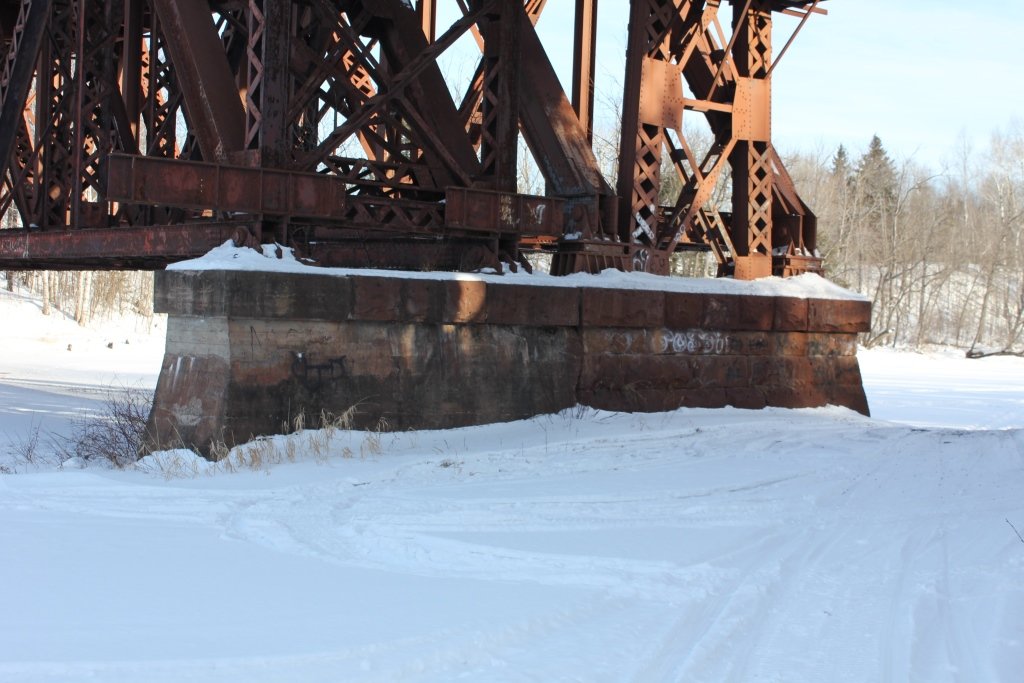

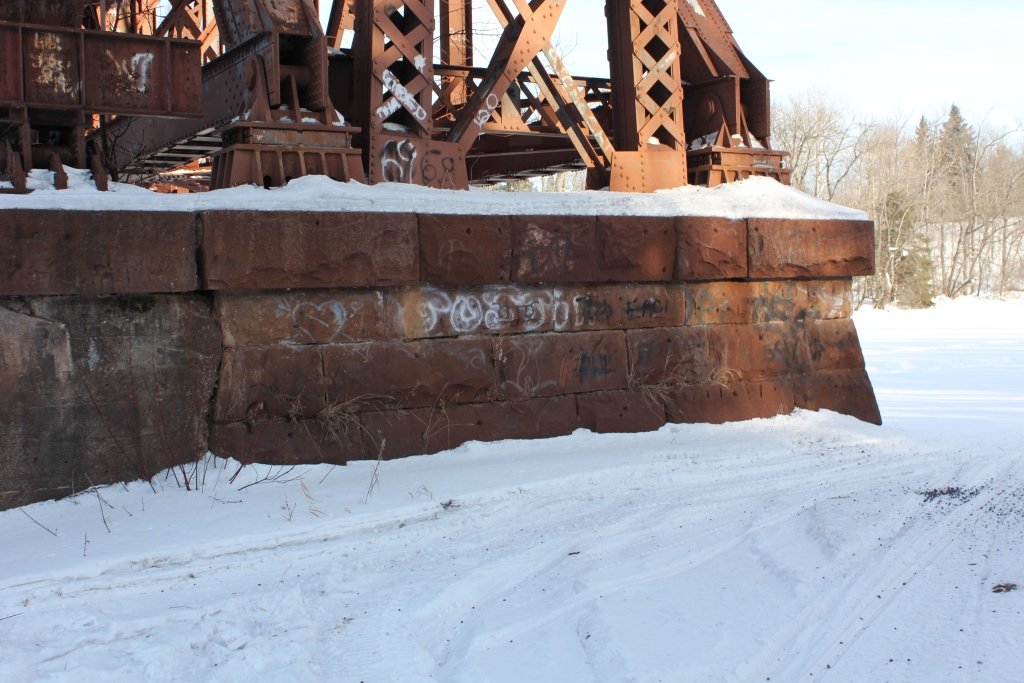

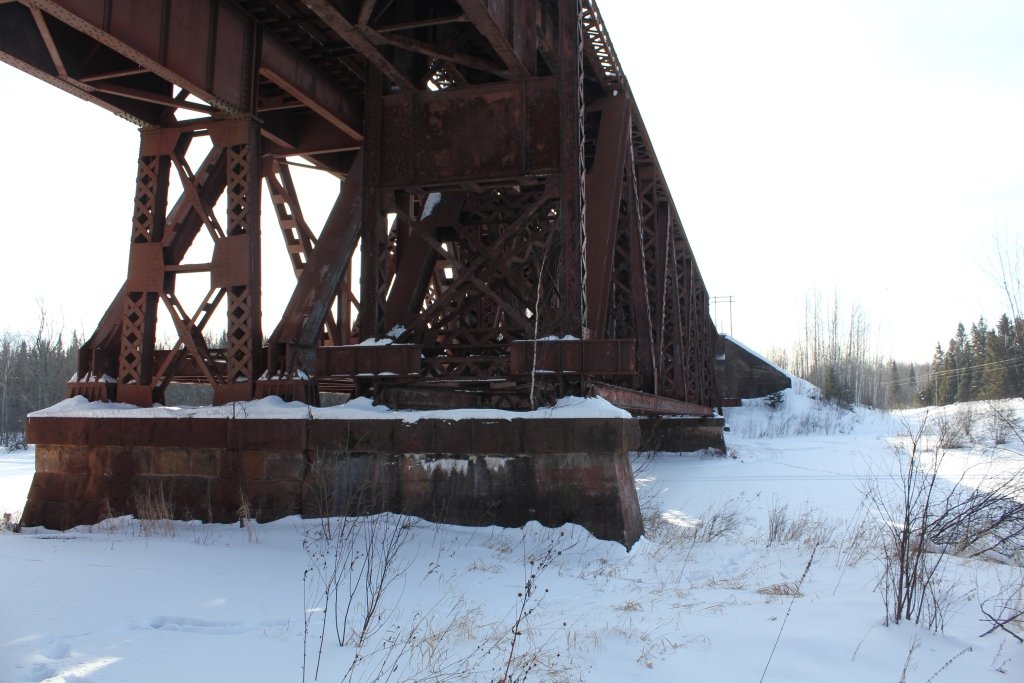

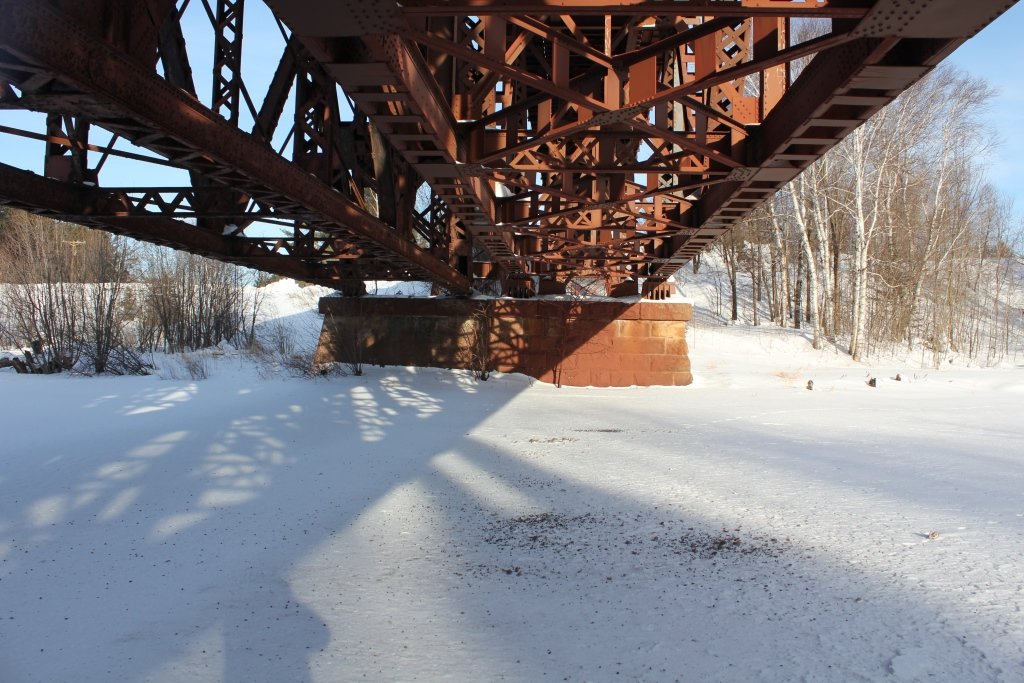

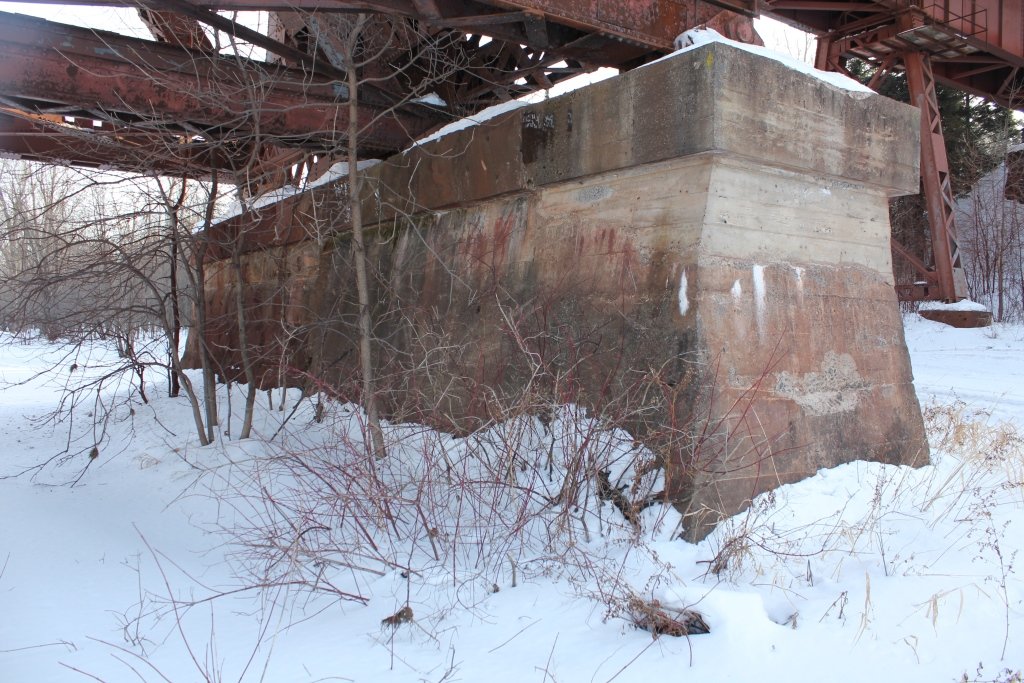

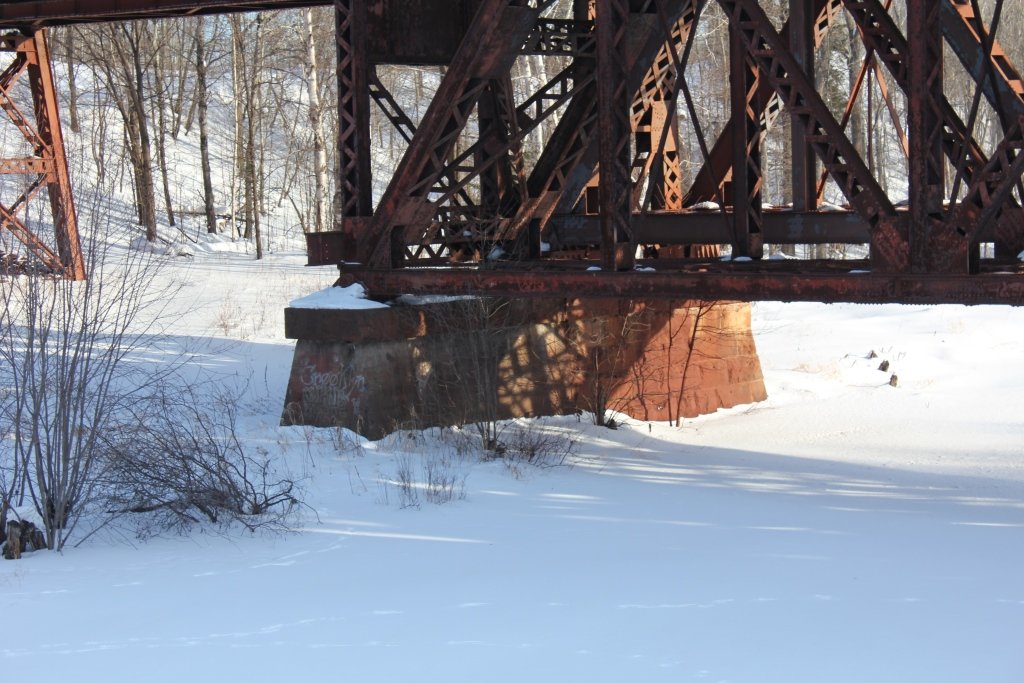

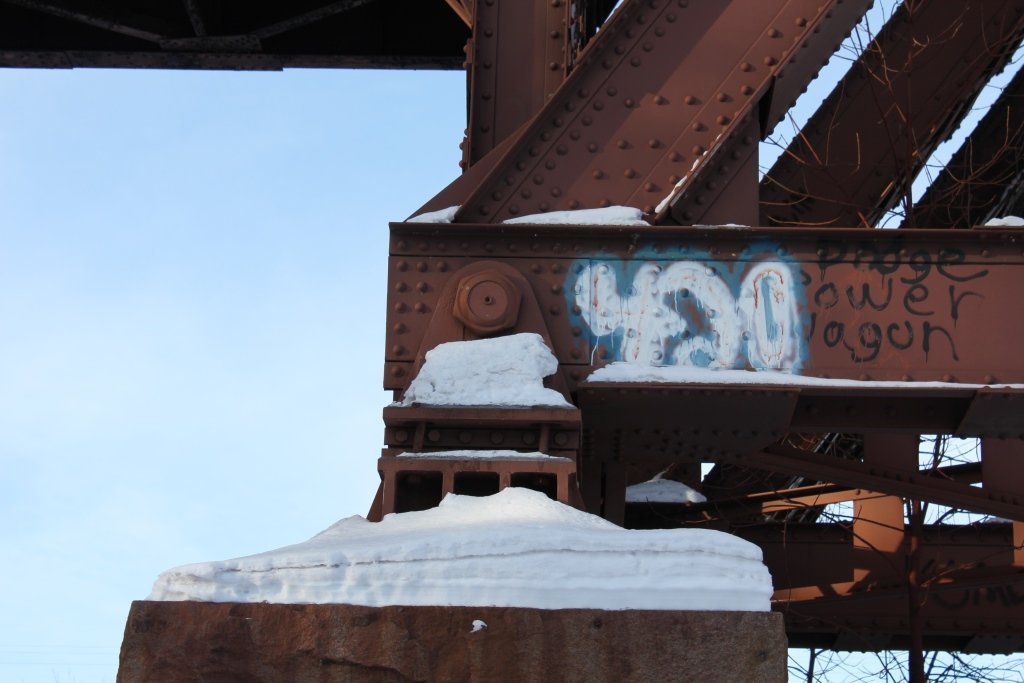

The Southbound track was built in 1906, and was clearly an expansion project. The Northbound track was built in 1924 on stone piers, and was a replacement of an old bridge.

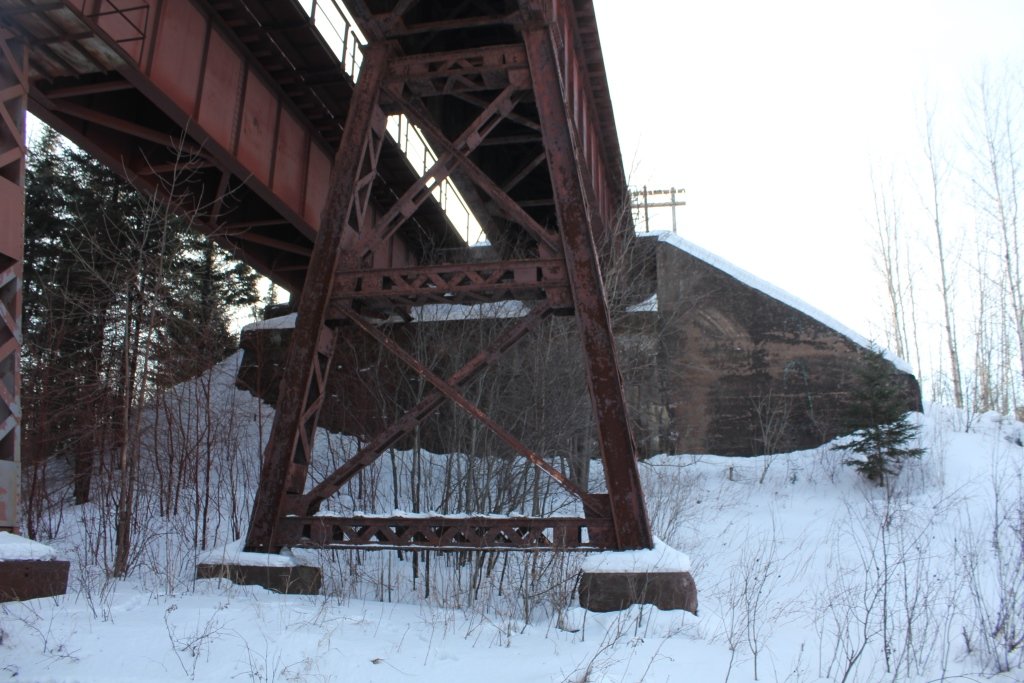

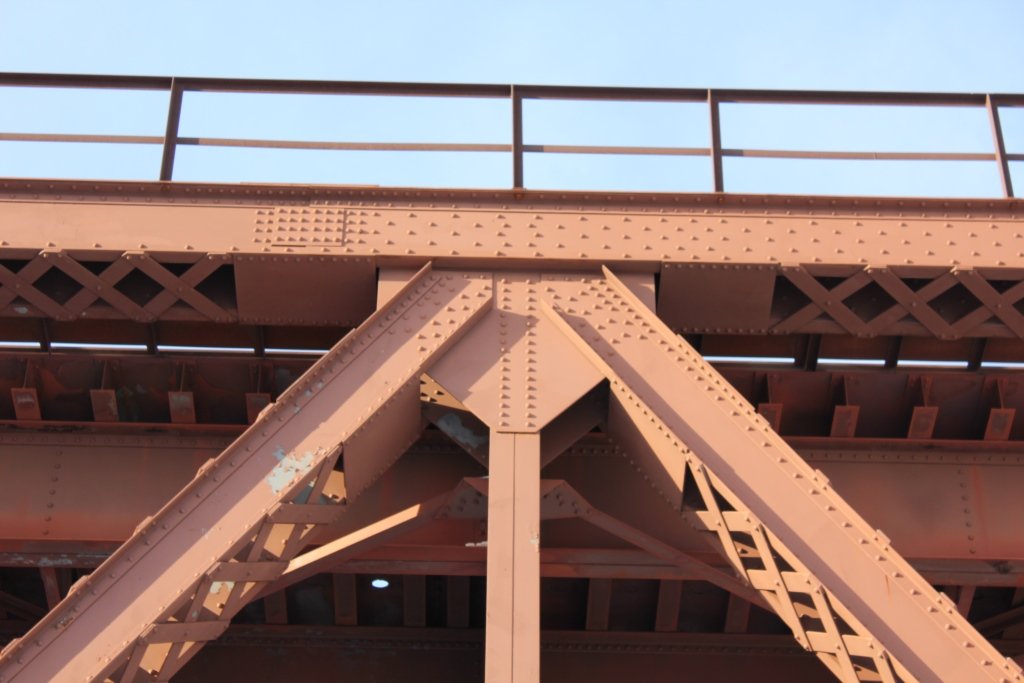

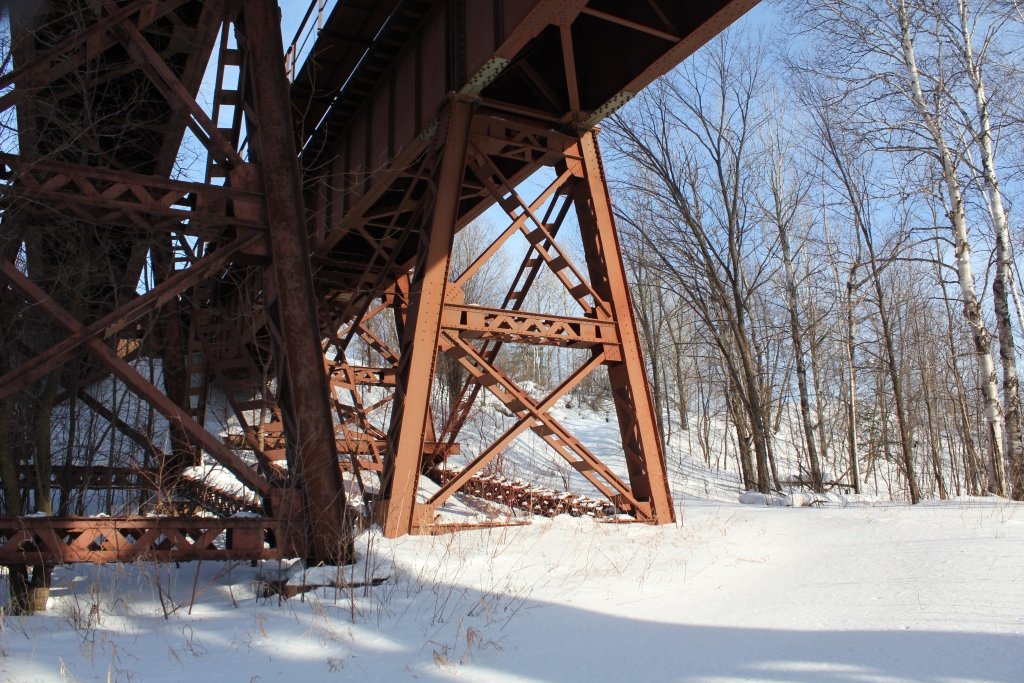

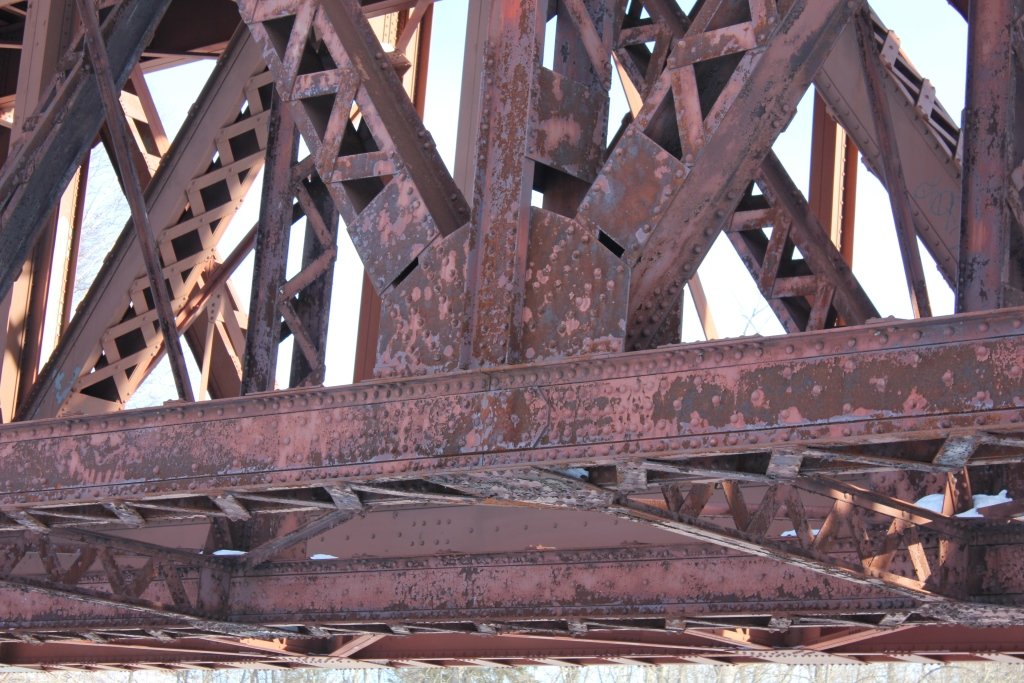

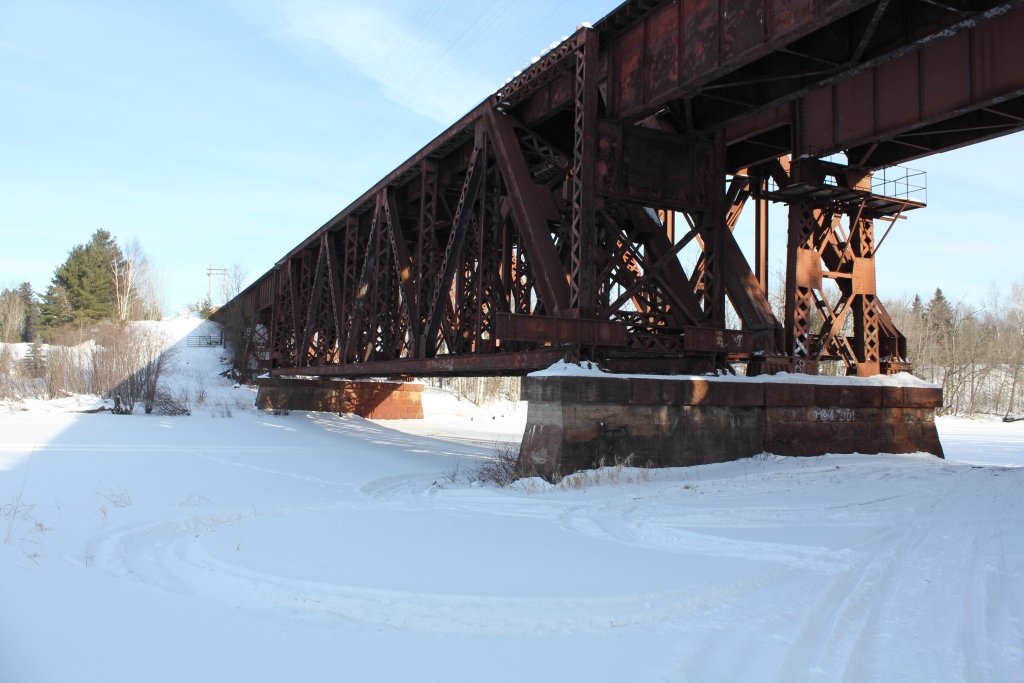

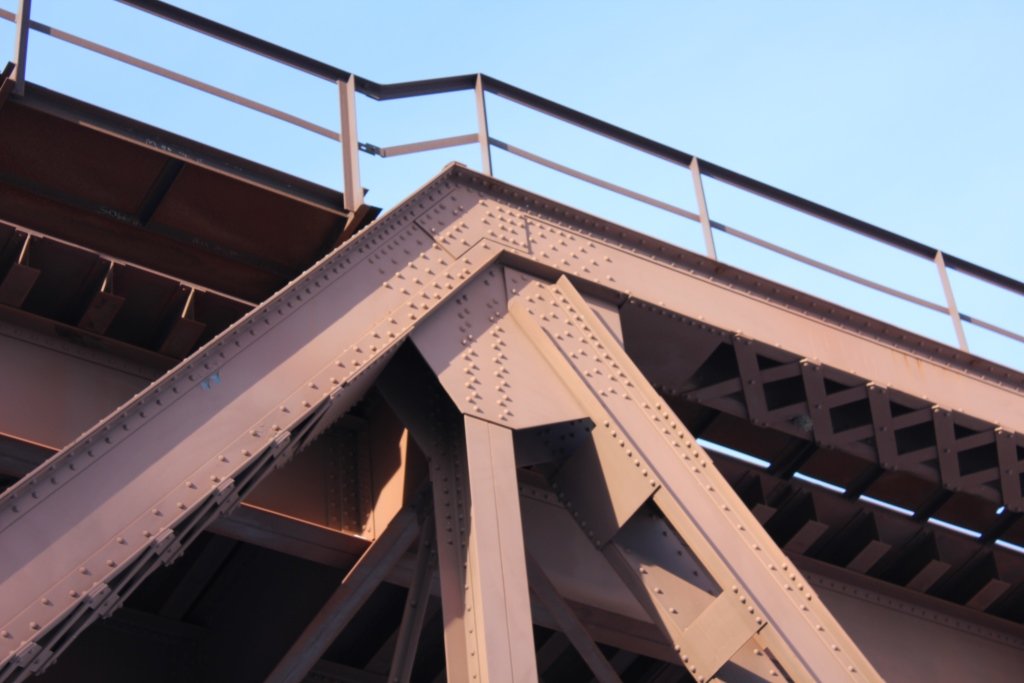

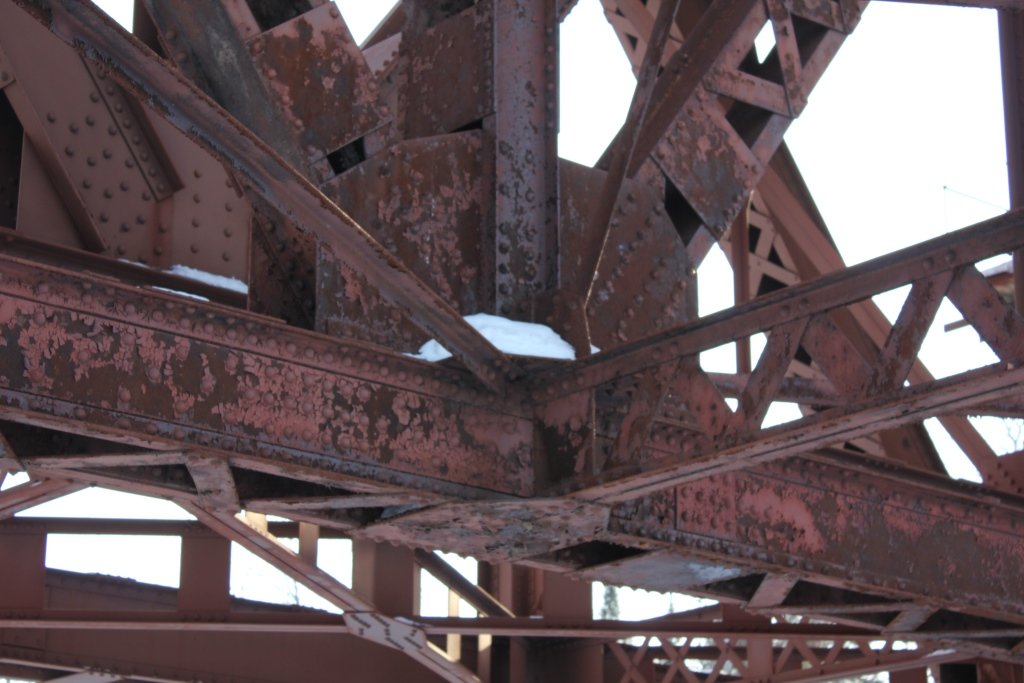

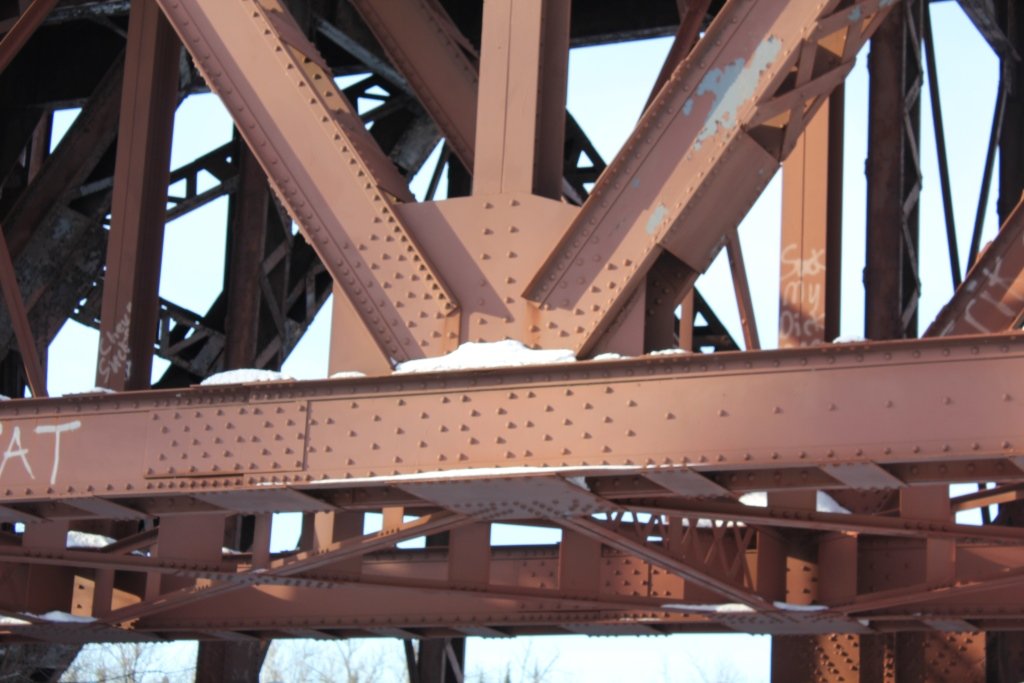

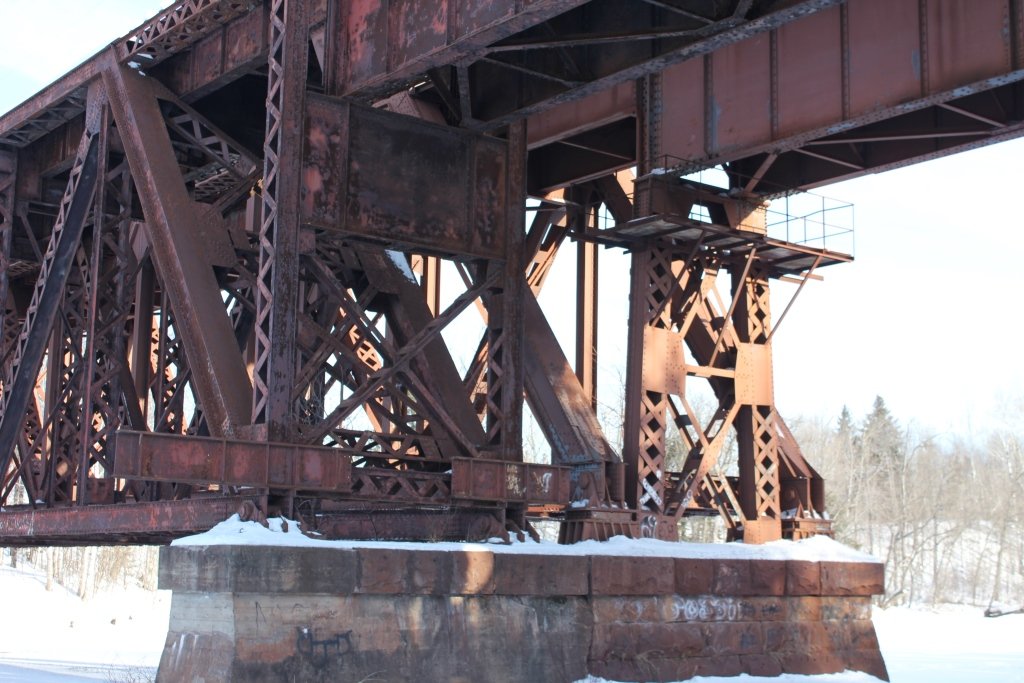

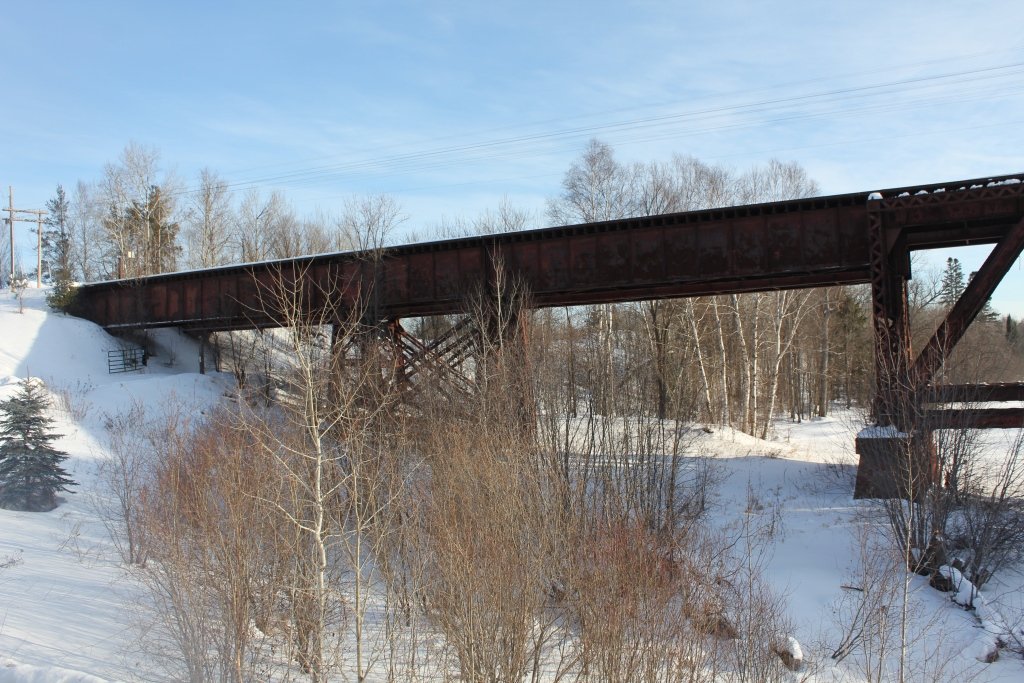

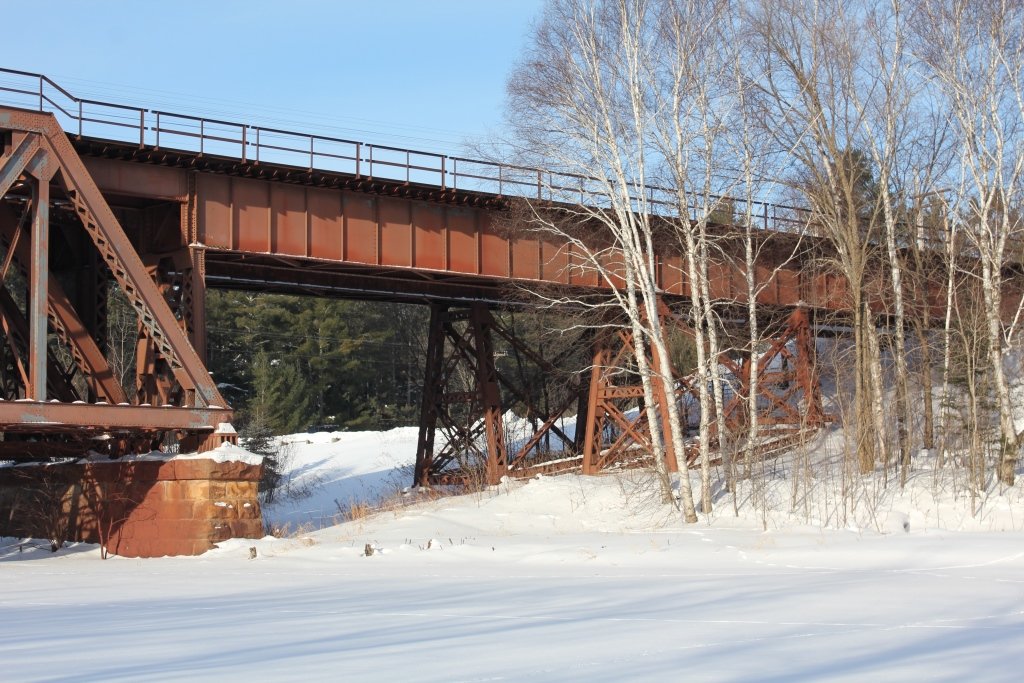

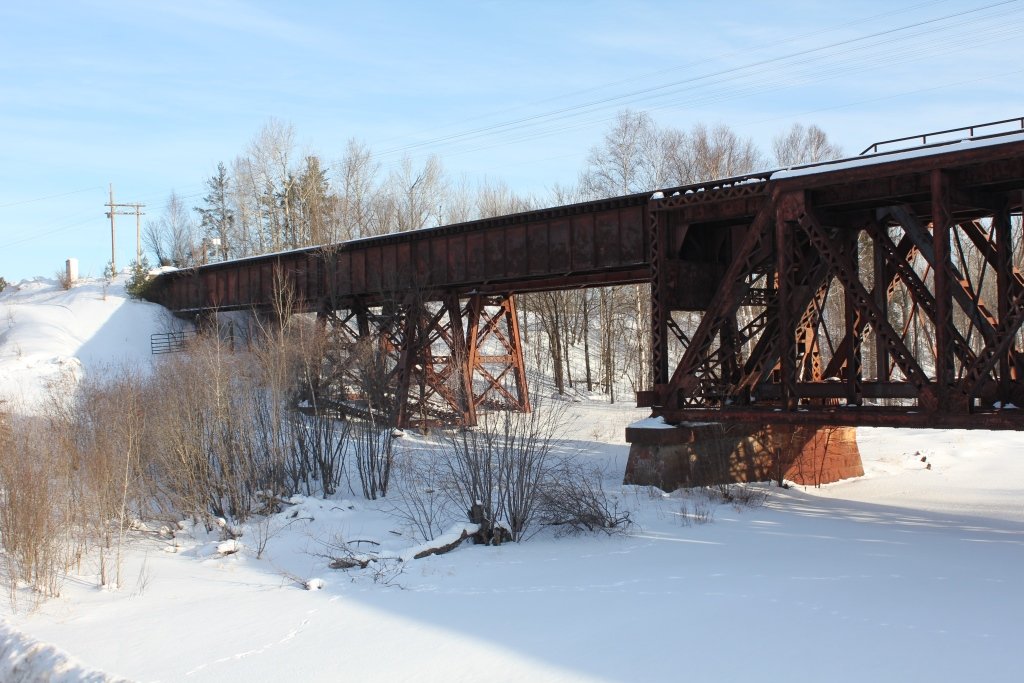

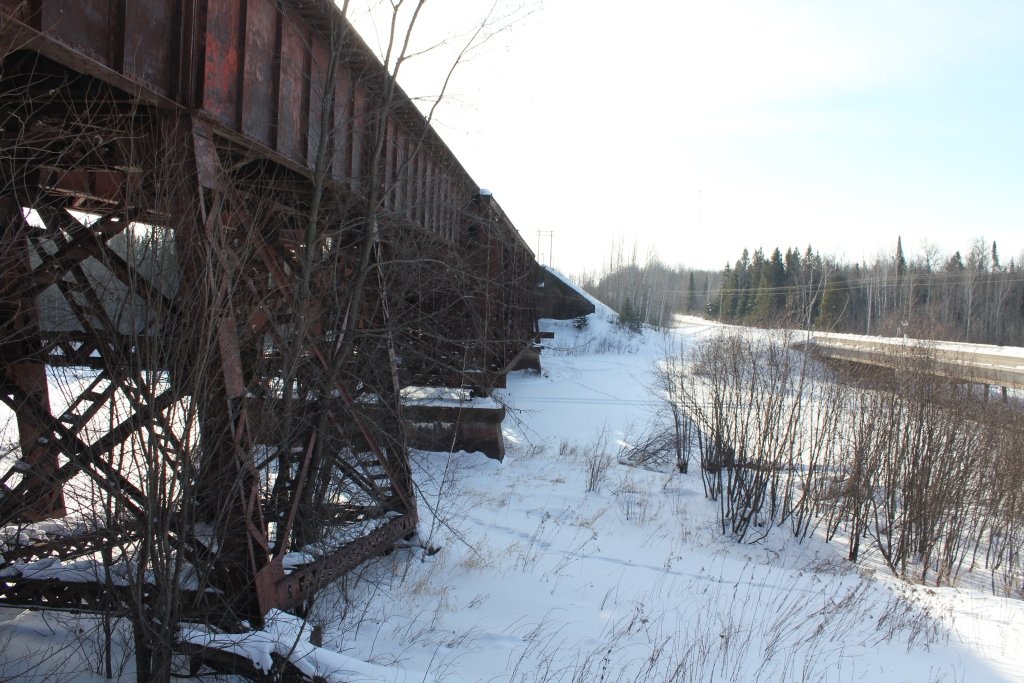

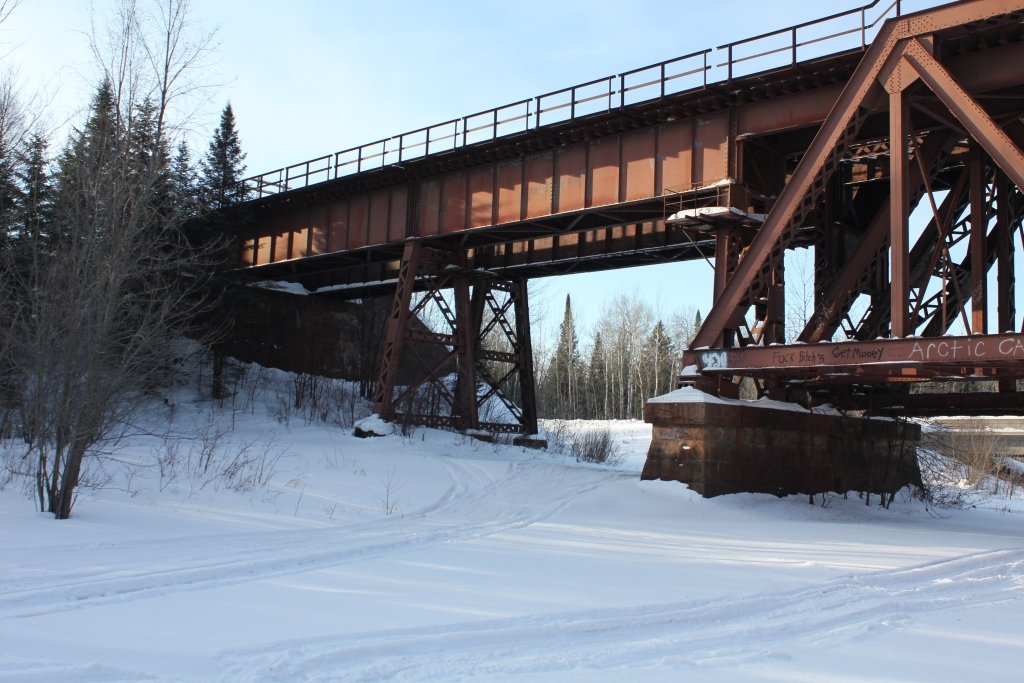

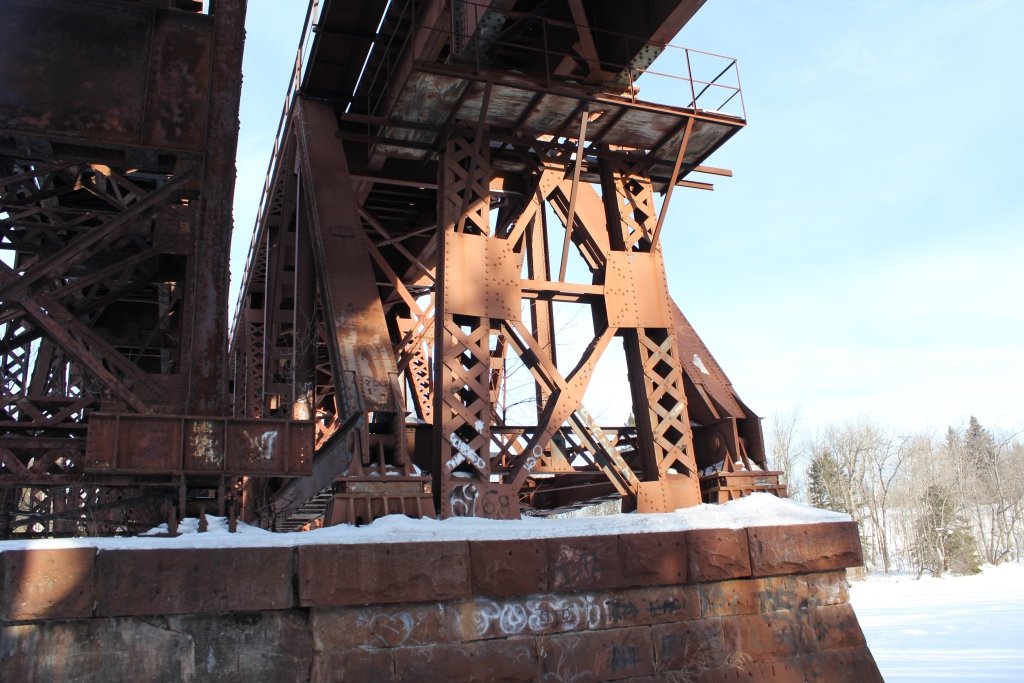

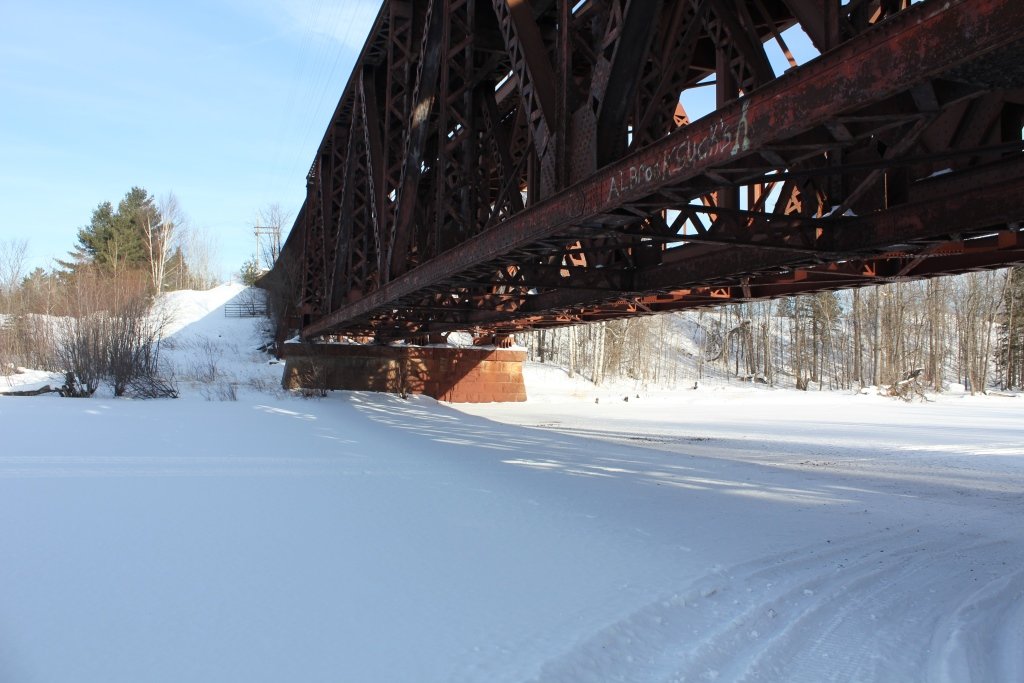

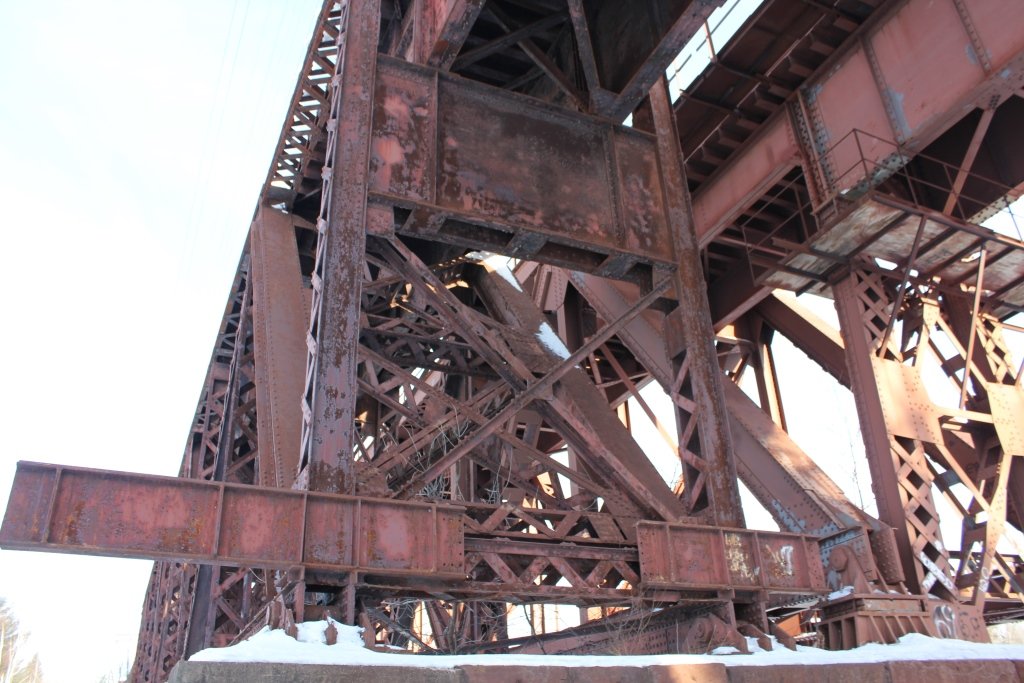

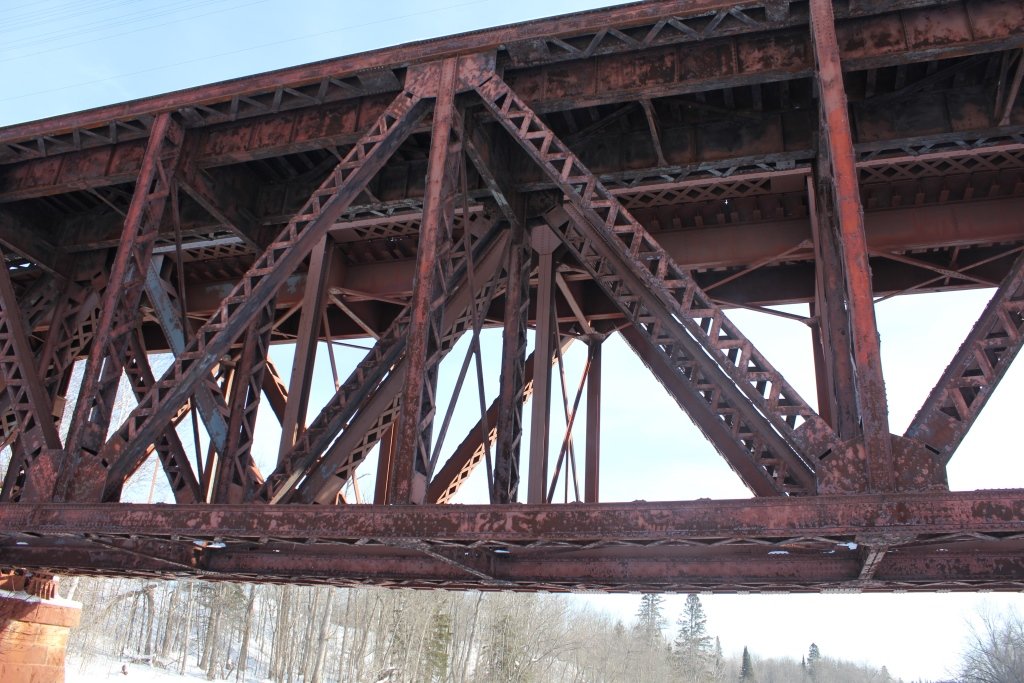

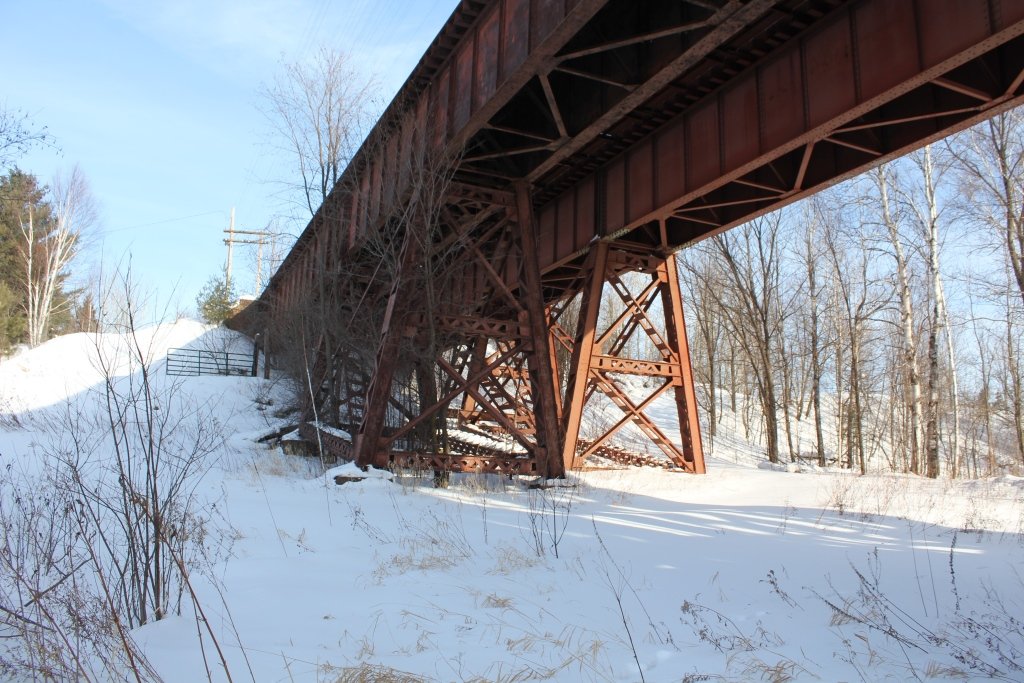

Both bridges contain identical 170' 8-panel riveted Warren Deck Trusses. The approach on the south side is 2 spans of deck girder on a steel tower, and on the north side, 3 spans of deck girder on a tower.

The Southbound track is unused currently. It was used at some point in the past. When I visited the bridge, it was a cold February morning.

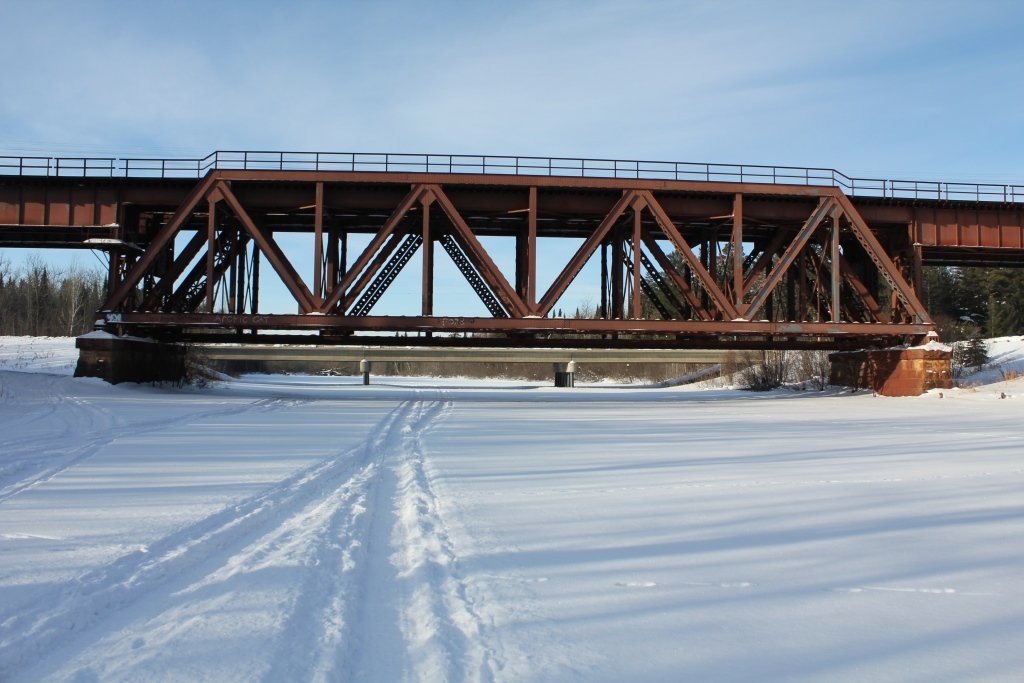

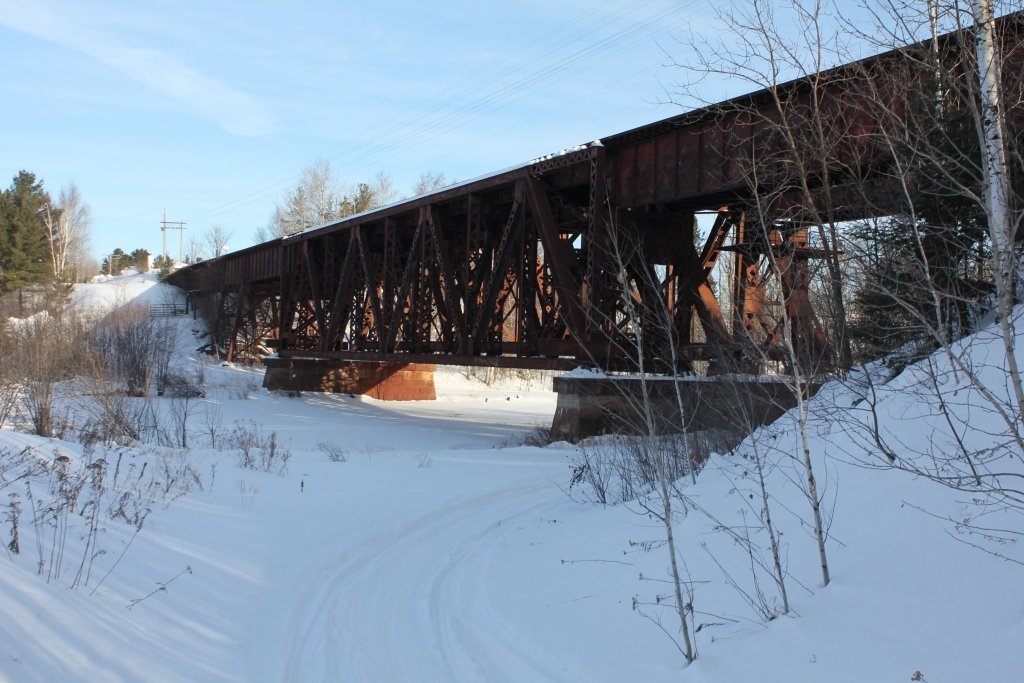

The photo above is an overivew from the ice.
