Abandoned Salt Creek Bridge

Abandoned Baltimore Through Truss Bridge over Salt Creek
Lincoln, Lancaster County, Nebraska

Click the Photo Above to See All Photos of This Bridge!
Name Abandoned Salt Creek Bridge
Built By Chicago, Burlington & Quincy Railroad
Contractor American Bridge Company of New York
Currently Owned By BNSF Railway
Length 230 Feet Total, 135 Foot Main Span
Width 1 Track
Height Above Ground 20 Feet (Estimated)
Superstructure Type Baltimore Through Truss and Trestle
Substructure Type Timber Pile
Date Built 1913
Traffic Count 0 Trains/Day (Bridge is Abandoned)
Current Status Abandoned
Significance Moderate Significance
In 1868, the Burlington and Missouri River Railroad had reached Creston, Iowa from Ottumwa. The crews used Creston as a point to continue building west.
By 1870, the line would be completed to East Plattsmouth, Iowa. This location was set on the Missouri River.

Just across the river, in Plattsmouth, the Burlington and Missouri River Railroad of Nebraska continued building west.

The railroad reached Ashland by 1870, and Lincoln later that year. The expansion would continue west, ultimately reaching Denver.

The lines were purchased by the Chicago, Burlington & Quincy Railroad in 1875. To the east, the Iowa line connected to Chicago, via Burlington.

By 1880, the CB&Q completed a large bridge across the Missouri River at Plattsmouth, connecting the two lines.

Throughout the early 20th century, the line would be upgraded. In Iowa, many sections were constructed double track between Creston and Pacific Junction.

In Nebraska, the Ashland to Lincoln section was constructed double track in 1910.

The line served as a broader connection, connecting Denver and Chicago.
By 1970, the CB&Q merged with Great Northern and Northern Pacific to form Burlington Northern.
In 1996, BN merged with the Atchison, Topeka & Santa Fe to form BNSF Railway, who currently owns this line.

Presently, the Creston to Lincoln section is known as the Creston Subdivision, and sees a steady traffic base.

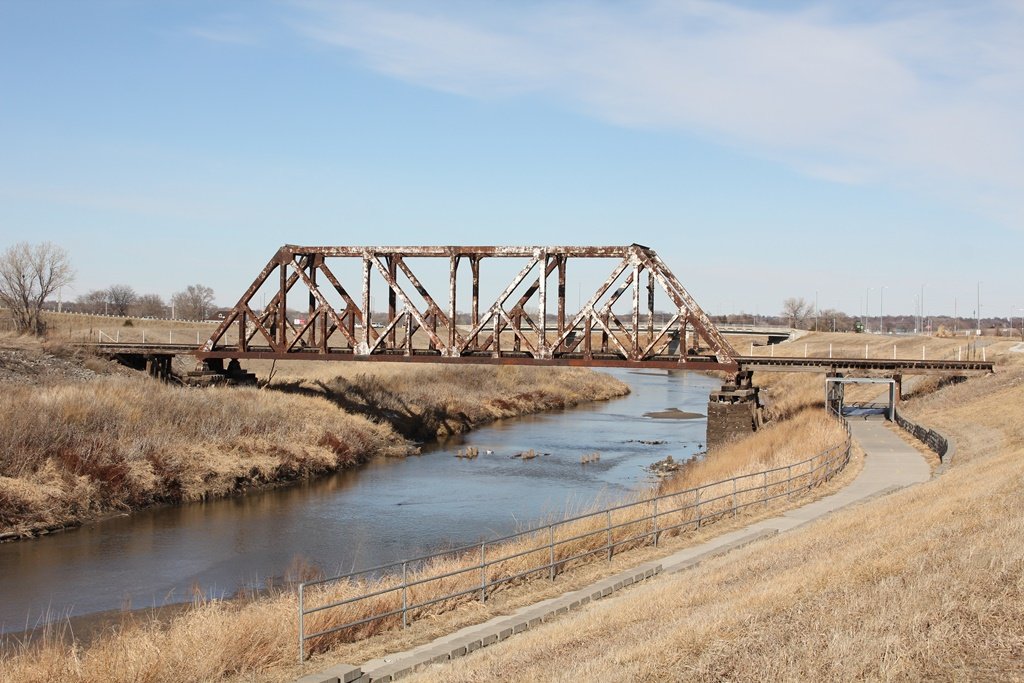

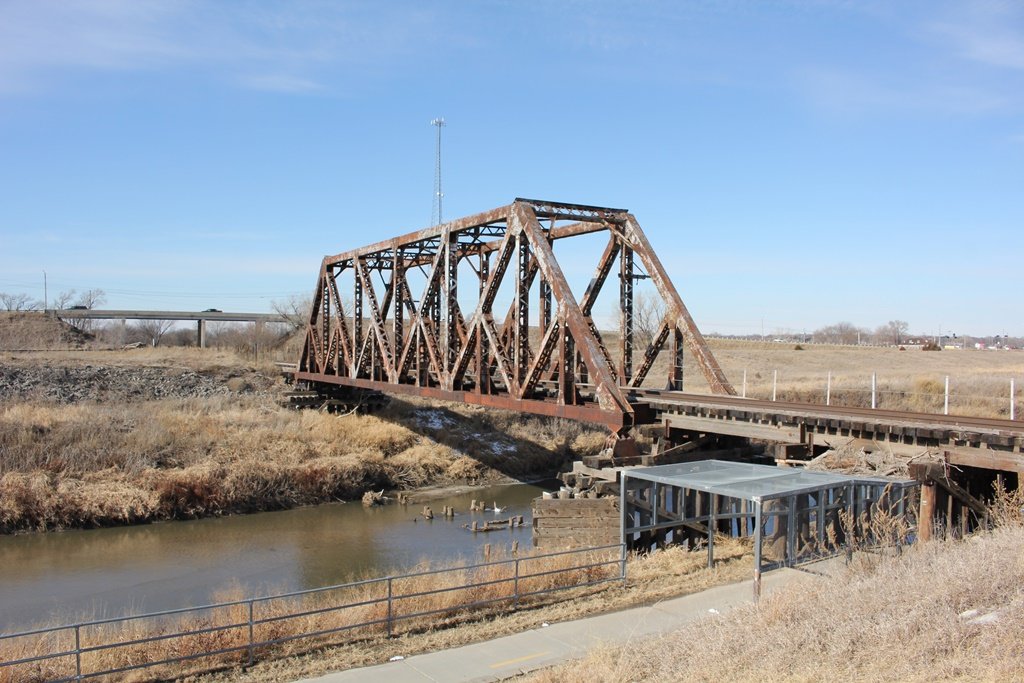

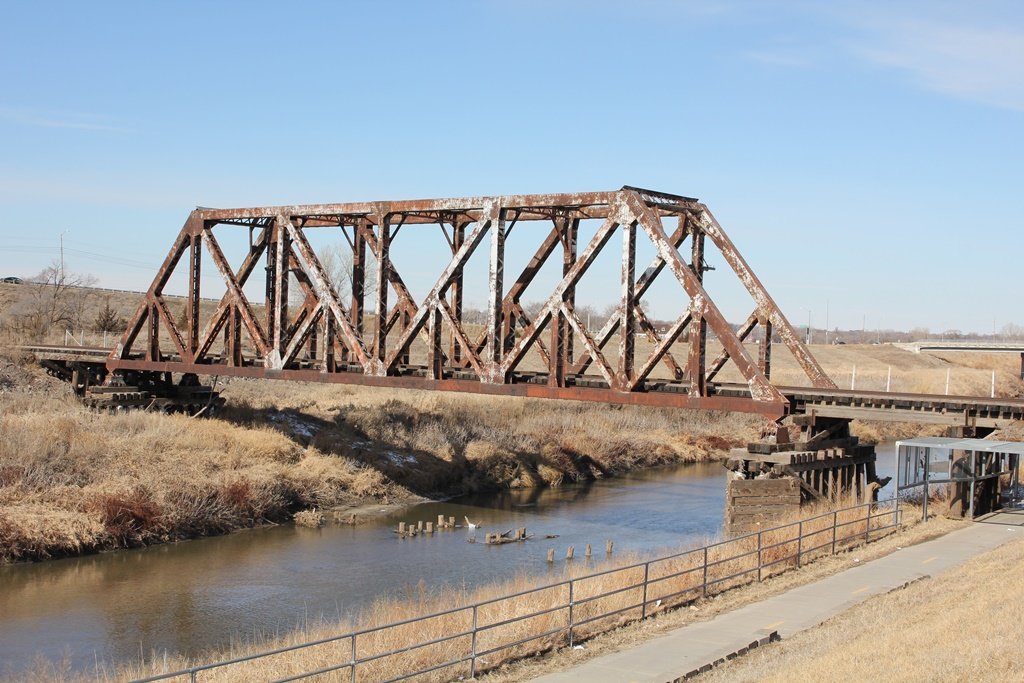

This large Baltimore Through Truss Bridge is one of two truss bridges over Salt Creek near the University of Nebraska-Lincoln Campus.
This bridge, and the Union Pacific Bridge sit right behind the baseball fields for the college.

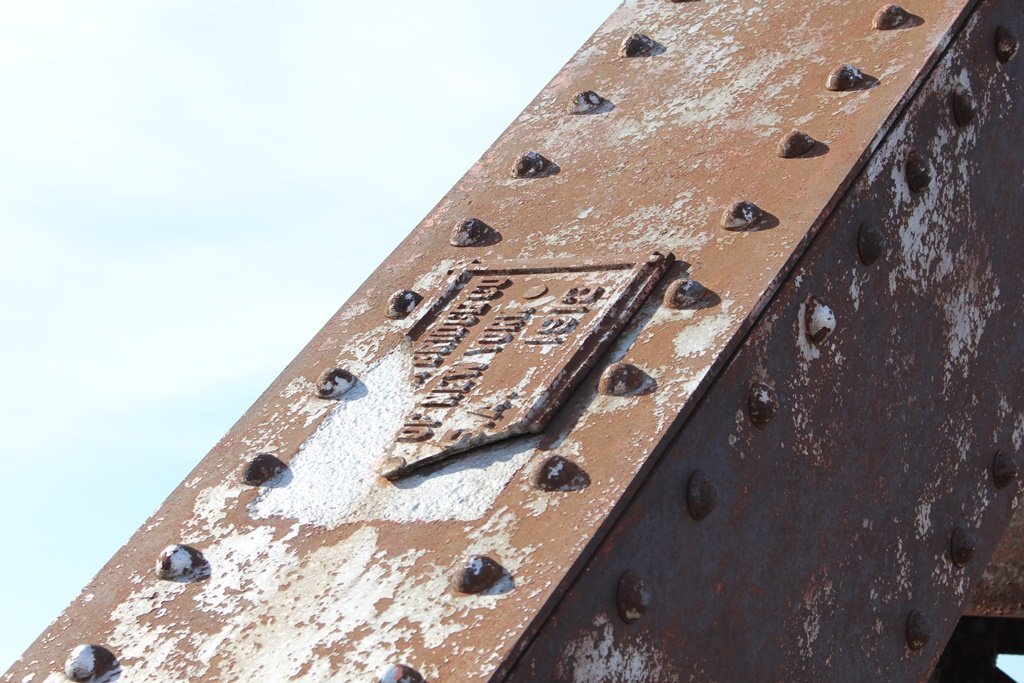

Built in 1913, this bridge likely replaced a similar bridge. A partially removed plate sits on the southeast endpost.
The line here was severed in the early 2000s, as the University campus expanded. The area surrounding here was once filled with rail yards, and this line was a connection between two yards.

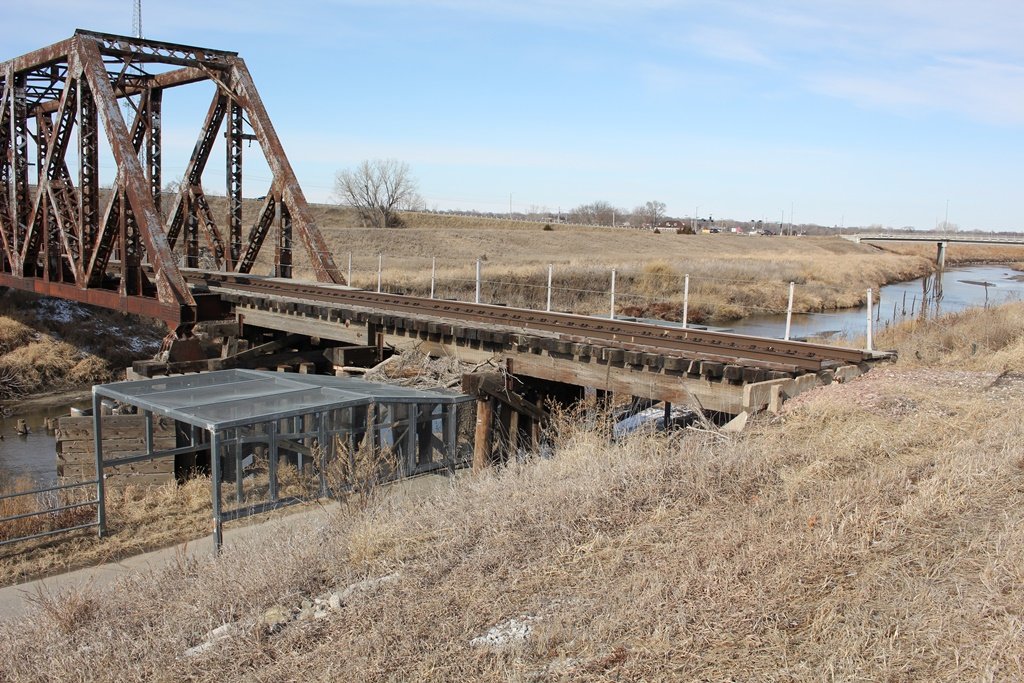

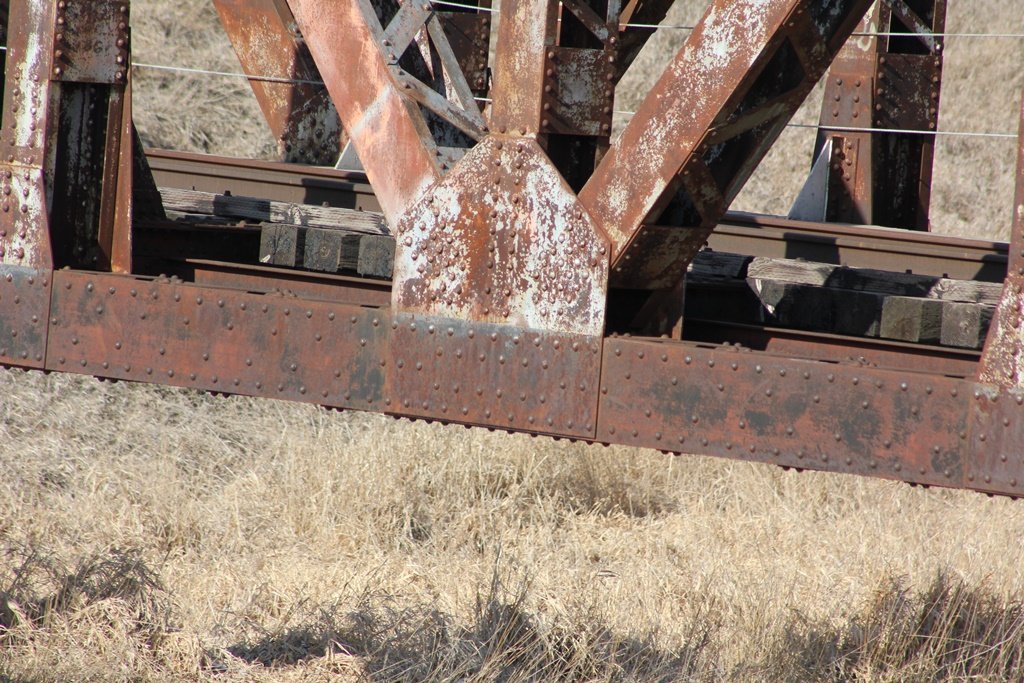

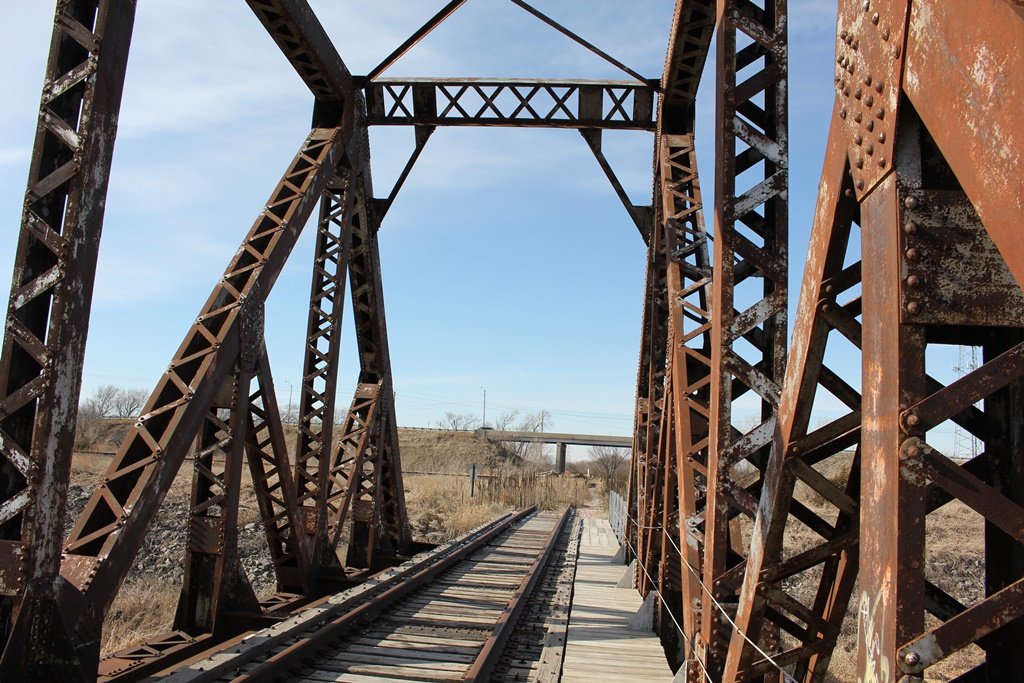

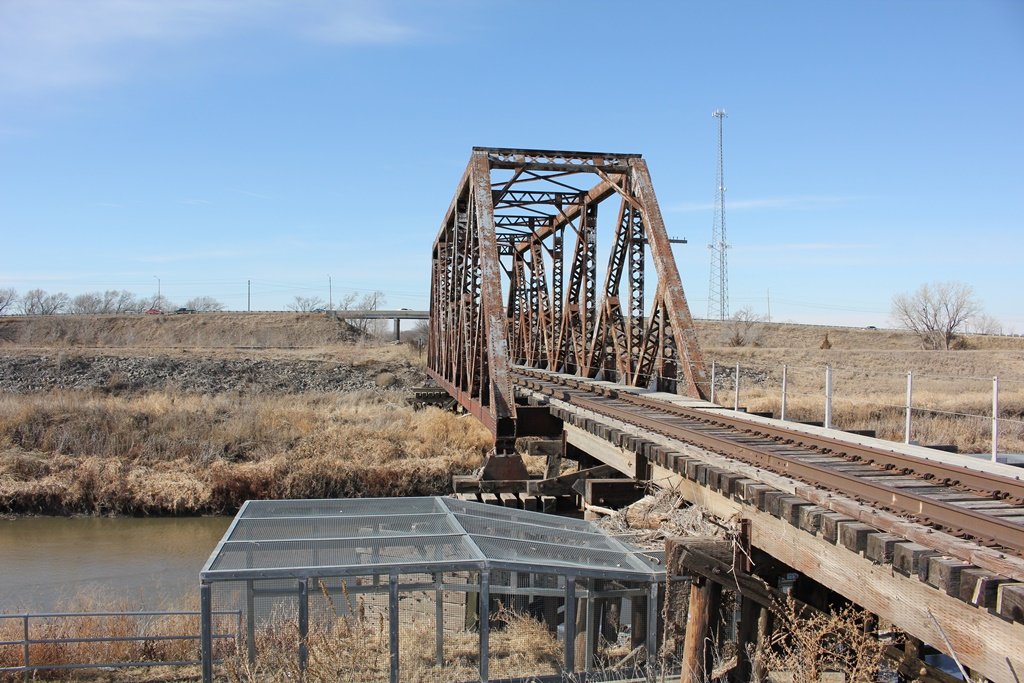

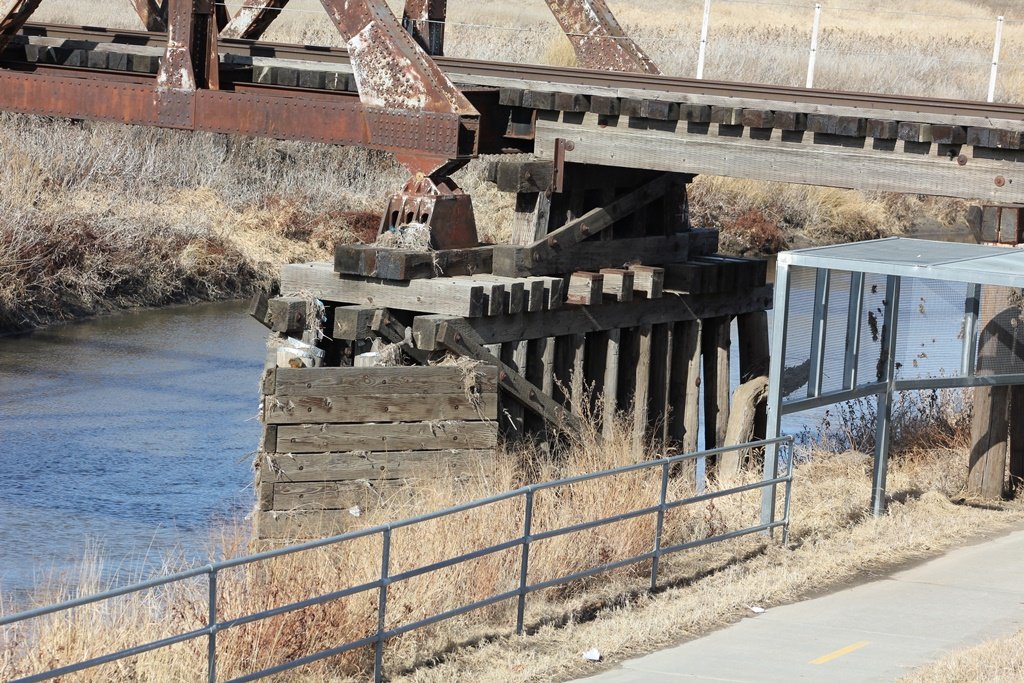

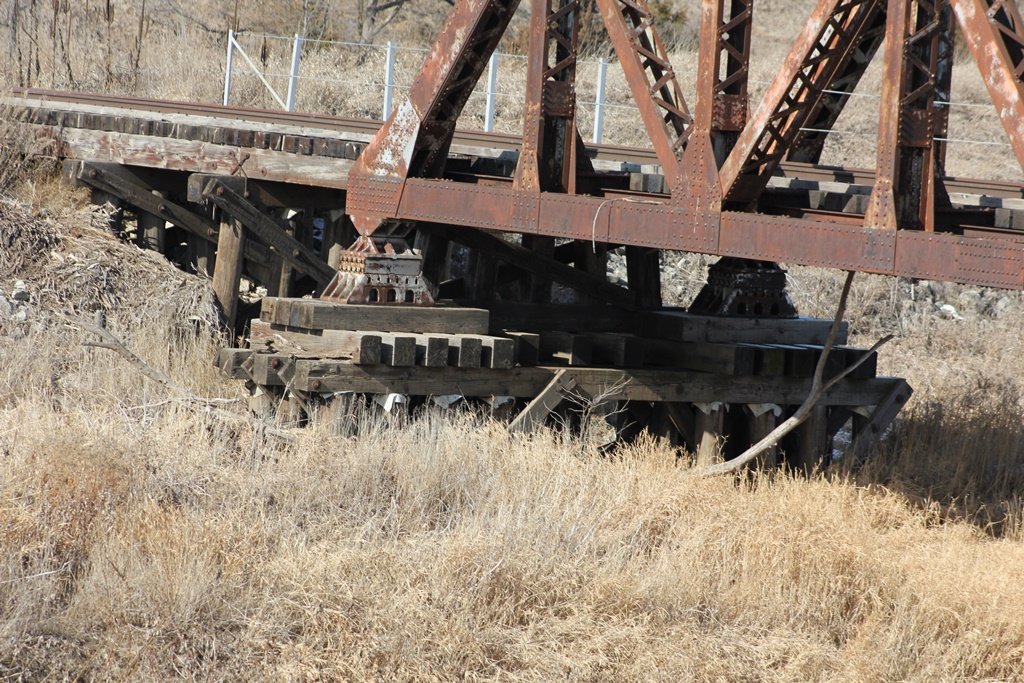

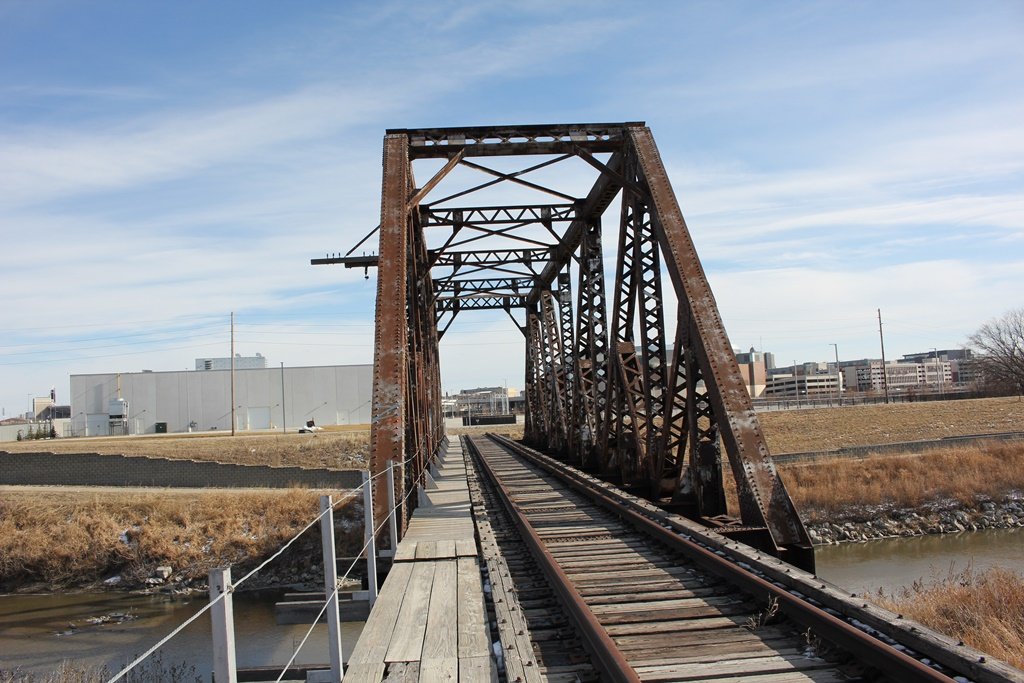

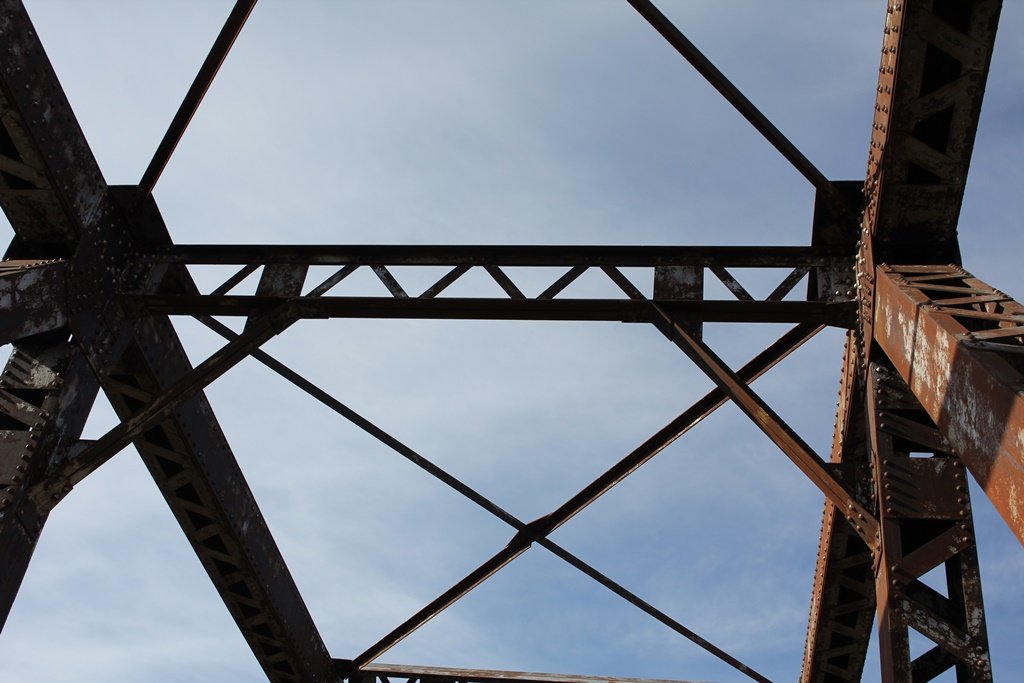

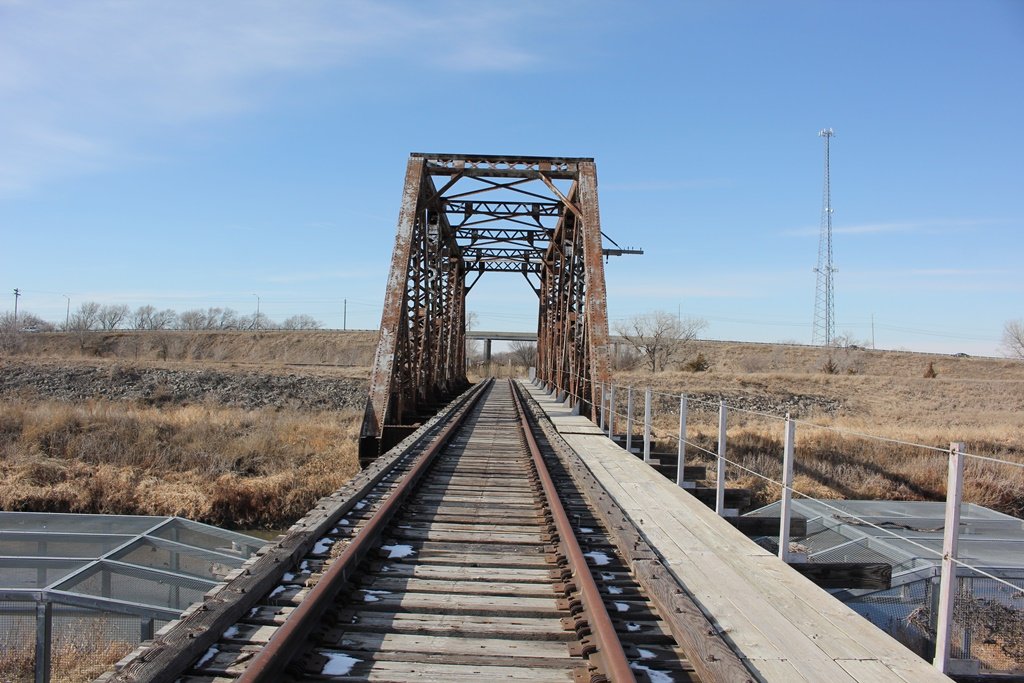

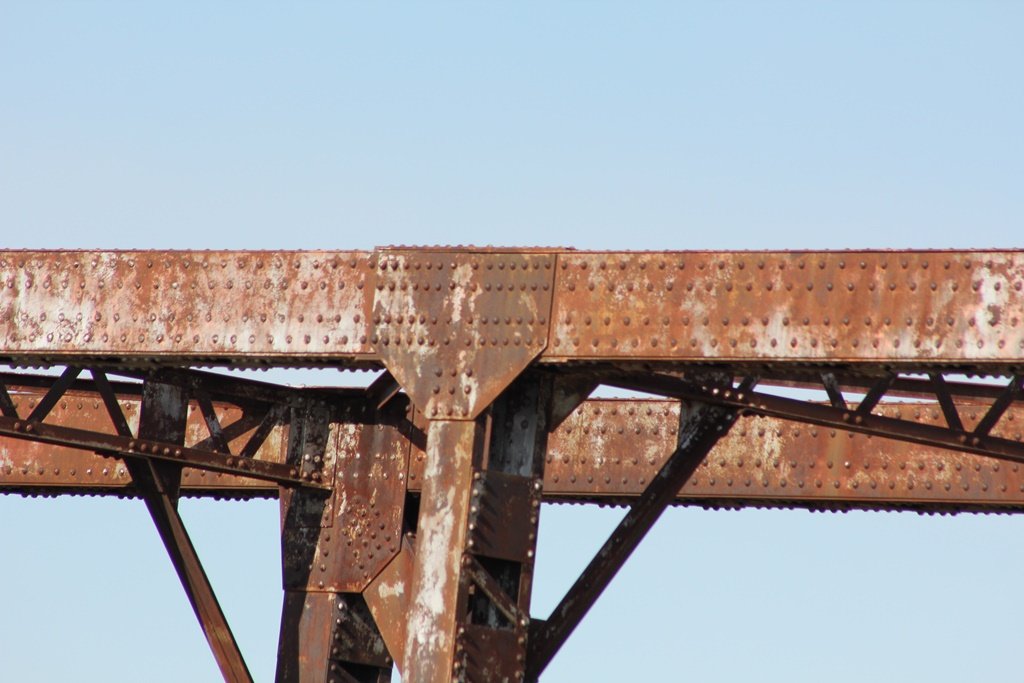

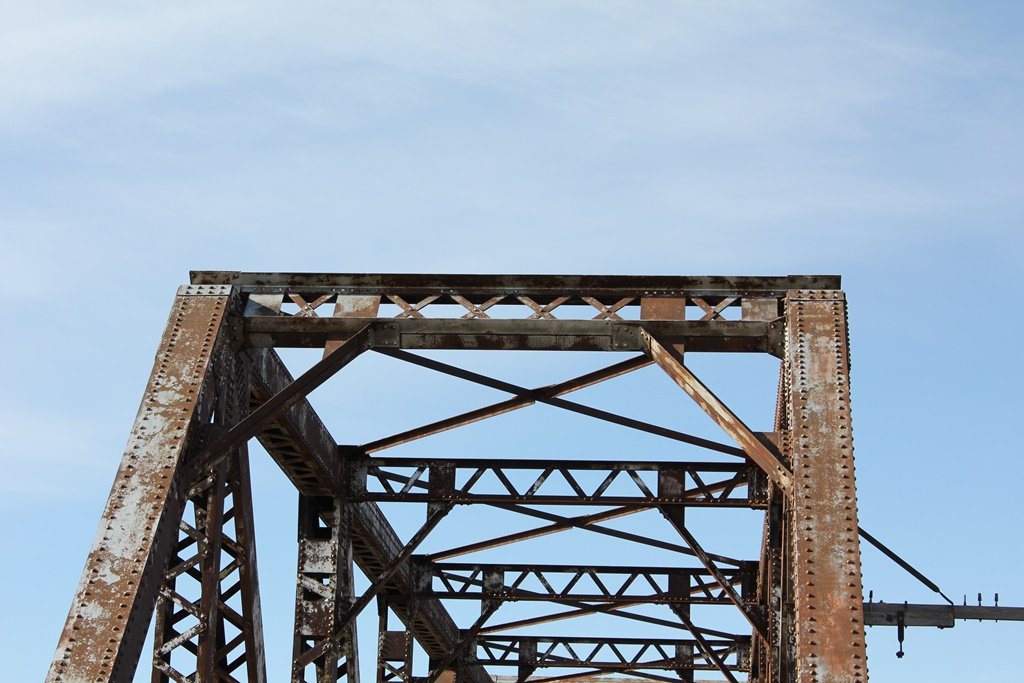

Built using a single, 6 panel riveted Baltimore Through Truss, it is also approached approached by trestle and is set upon wooden substructures.

The author has ranked this bridge as being moderately significant, due to the truss design.
It is hoped that this bridge can be reused for pedestrian traffic in the coming years.

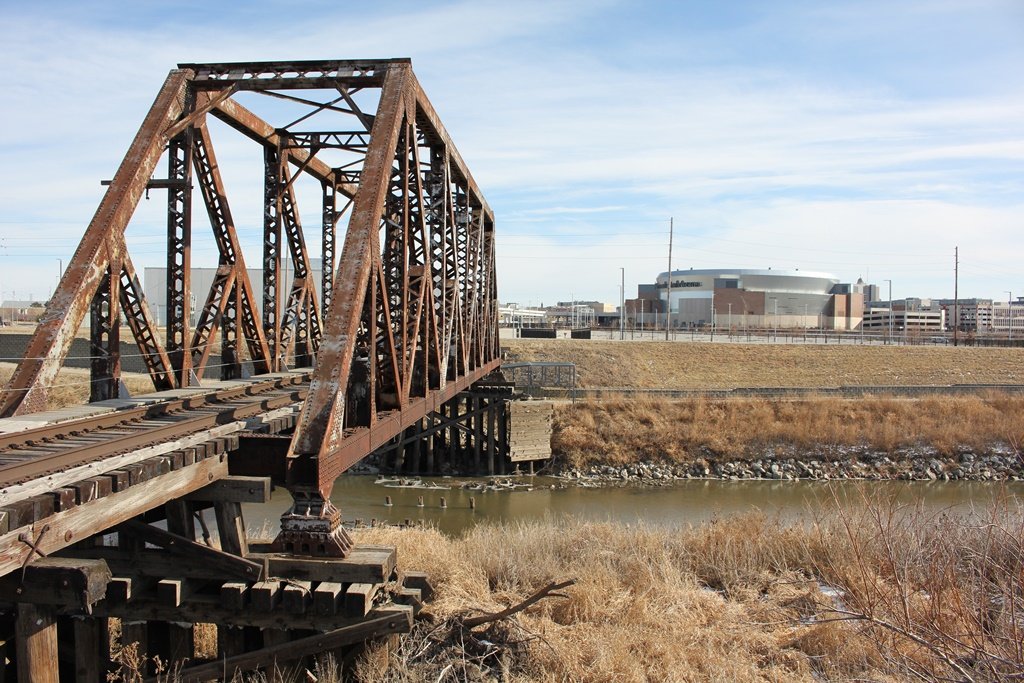

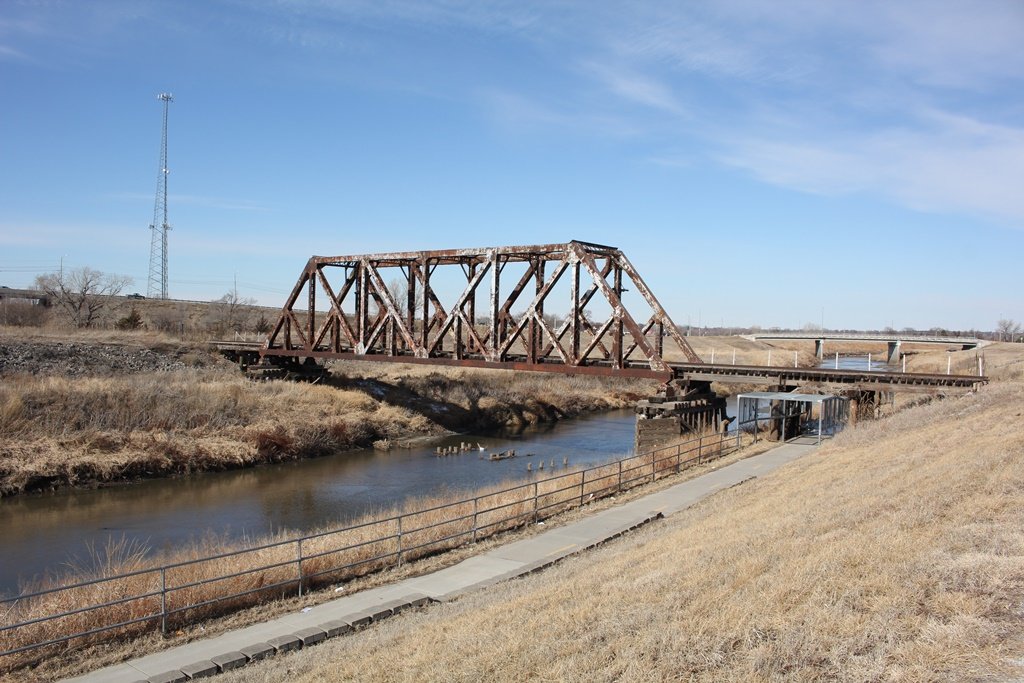

The photo above is an overview.


Source Type


Build Date American Bridge Company plaque
Contractor American Bridge Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
